Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#45347) — 20 parça
◀

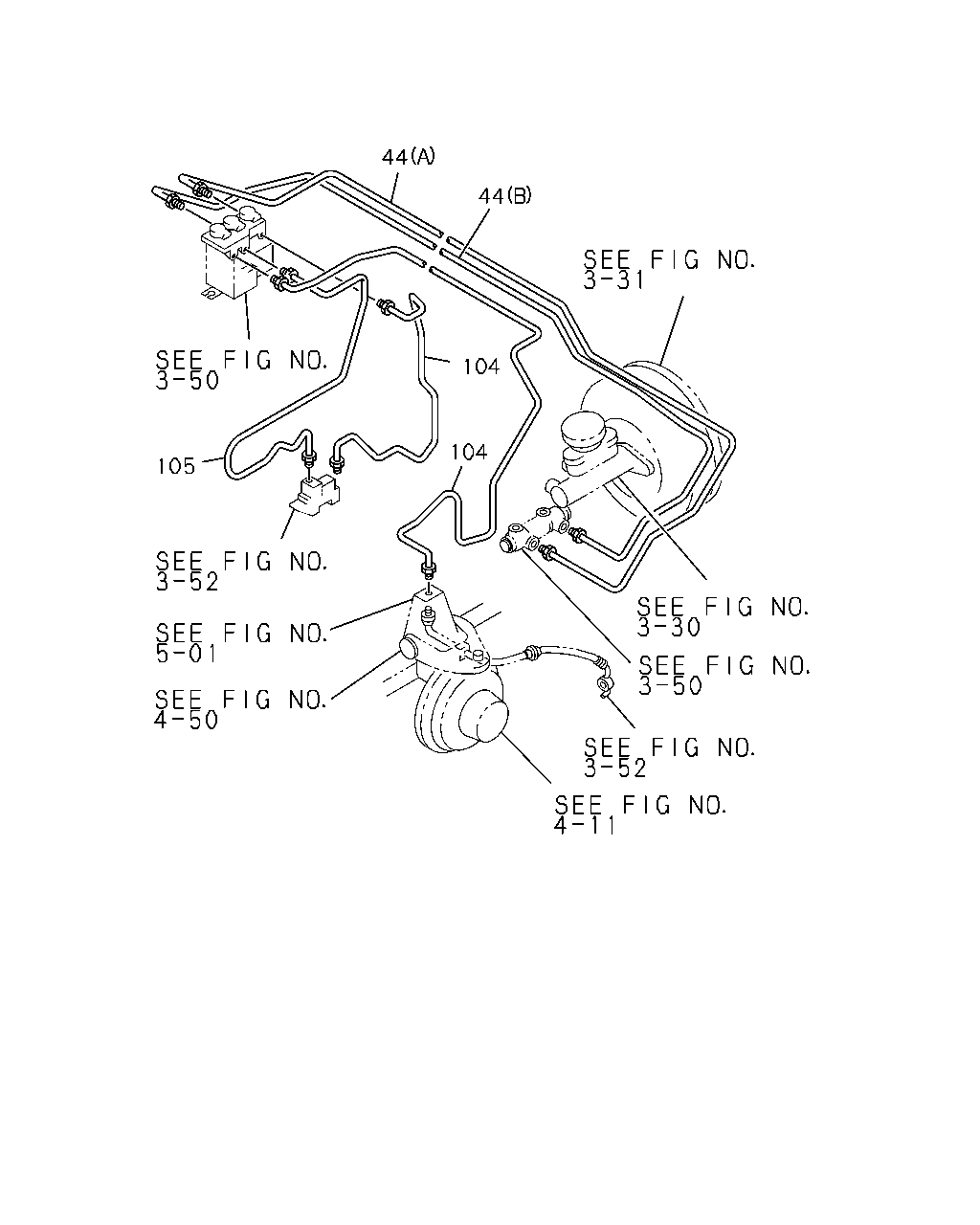

[355A] ENGINE ROOM (5 parça)
[355A] CHASSIS (15 parça)
▶
44
44
104
104
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
PIPE; BRK,HYDRAULIC UNIT TO VALVE
4 WHEEL ANTI-LOCK BRAKE(JE5) (A)
8-97101-916-3
01
1
9512-
44
PIPE; BRK,HYDRAULIC UNIT TO VALVE
4 WHEEL ANTI-LOCK BRAKE(JE5) (B)
8-97101-922-5
01
1
9512-
104
PIPE; BRK,H/U TO FRONT
4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97101-912-8
01
1
9512-
104
PIPE; BRK,H/U TO FRONT
4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97101-927-5
01
1
9512-
105
PIPE; BRK,H/U TO 2WAY
4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97101-929-5
01
1
9512-
8
9
1
1
9
8
2
2
39
46
49
32
9
8
1
1
9
8
2
2
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
(A) L=479.5
8-94338-053-0
01
1
9301-
1
HOSE; FLEX,RR BRK
(B)
8-97064-430-0
02
1
9301-
2
GASKET; FLEX HOSE,RR BRK
ID=10.2 OD=16.0
9-09571-410-0
04
1
9301-
8
CLIP; RR BRK
8-94137-662-0
02
1
9301-9606
8
CLIP; RR BRK
8-97162-347-0
02
1
9607-
9
PIPE; BRK,RR AXLE
8-97045-487-1
01
1
9301-9511
9
PIPE; BRK,RR AXLE
8-97108-632-0
01
1
9512-
9
PIPE; BRK,RR AXLE
8-97045-486-0
01
1
9301-9511
9
PIPE; BRK,RR AXLE
8-97108-631-0
01
1
9512-
32
UNION; OIL PIPE
M10 STRAIGHT OUTER M16X21
9-09227-055-0
01
1
9301-9511
39
PIPE; OIL,UNION TO RR FLEX HOSE
8-97086-577-2
01
1
9301-9504
39
PIPE; OIL,UNION TO RR FLEX HOSE
8-97116-480-1
01
1
9505-9511
39
PIPE; OIL,UNION TO RR FLEX HOSE
8-97121-063-4
01
1
9512-
46
NUT; UNION,OIL PIPE
M16
9-99111-416-0
01
1
9301-9511
49
WASHER; LK,UNION,OIL PIPE
ID=16.2
9-09150-516-0
01
1
9301-9511
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
