3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶

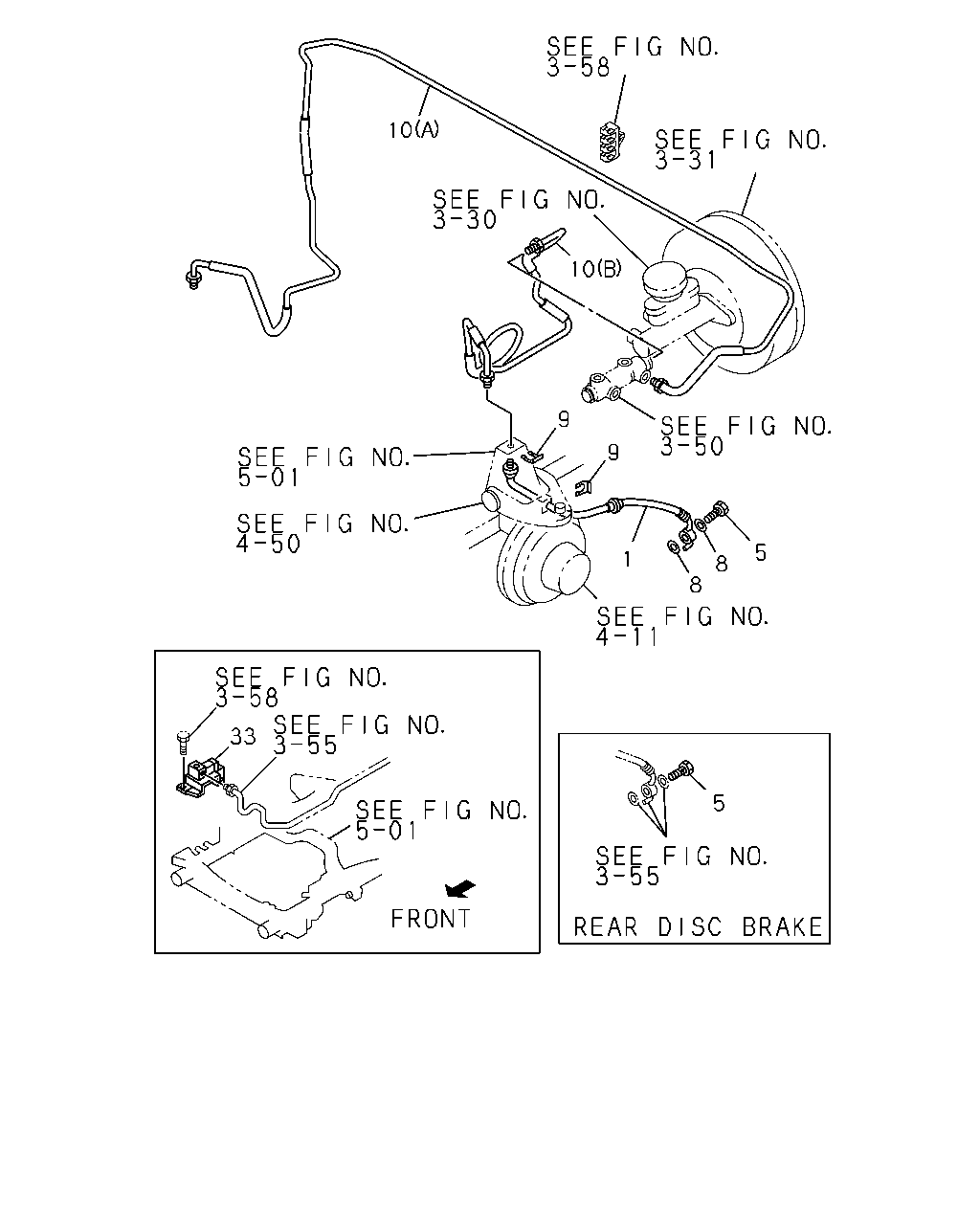

3-52 — BRAKE PIPING; OIL,FRONT
(#45346) — 14 parça
10
10
9
9
1
8
8
5
5
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
8-97064-429-1
02
1
9301-9511
1
HOSE; FLEX,FRT BRK
8-97104-253-0
02
1
9512-
5
BOLT; EYE,FLEX HOSE,FRT BRK
M10X22
5-09675-017-0
04
1
9301-9607
5
BOLT; EYE,FLEX HOSE,FRT BRK
M10X22
5-09675-017-0
02
1
9608-
8
GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0
9-09571-410-0
04
1
9301-
9
CLIP; FLEX HOSE,FRT BRK
8-94137-662-0
05
1
9301-9606
9
CLIP; FLEX HOSE,FRT BRK
8-97162-347-0
05
1
9607-
10
PIPE; OIL,VLV TO FRT FLEX HOSE
(A)
8-97084-600-1
01
1
9301-9308
10
PIPE; OIL,VLV TO FRT FLEX HOSE
(A)
8-97100-130-0
01
1
9309-9504
10
PIPE; OIL,VLV TO FRT FLEX HOSE
(A)
8-97118-854-0
01
1
9505-9511
10
PIPE; OIL,VLV TO FRT FLEX HOSE
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) (A)
8-97102-195-4
01
1
9512-
10
PIPE; OIL,VLV TO FRT FLEX HOSE
(B)
8-97084-599-1
01
1
9301-9511
10
PIPE; OIL,VLV TO FRT FLEX HOSE
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) (B)
8-97102-193-2
01
1
9512-
33
UNION; OIL PIPE
8-97115-928-0
01
1
9512-
