50688 - UC-LHD
▶
3 - Brakes, Brake System
▶

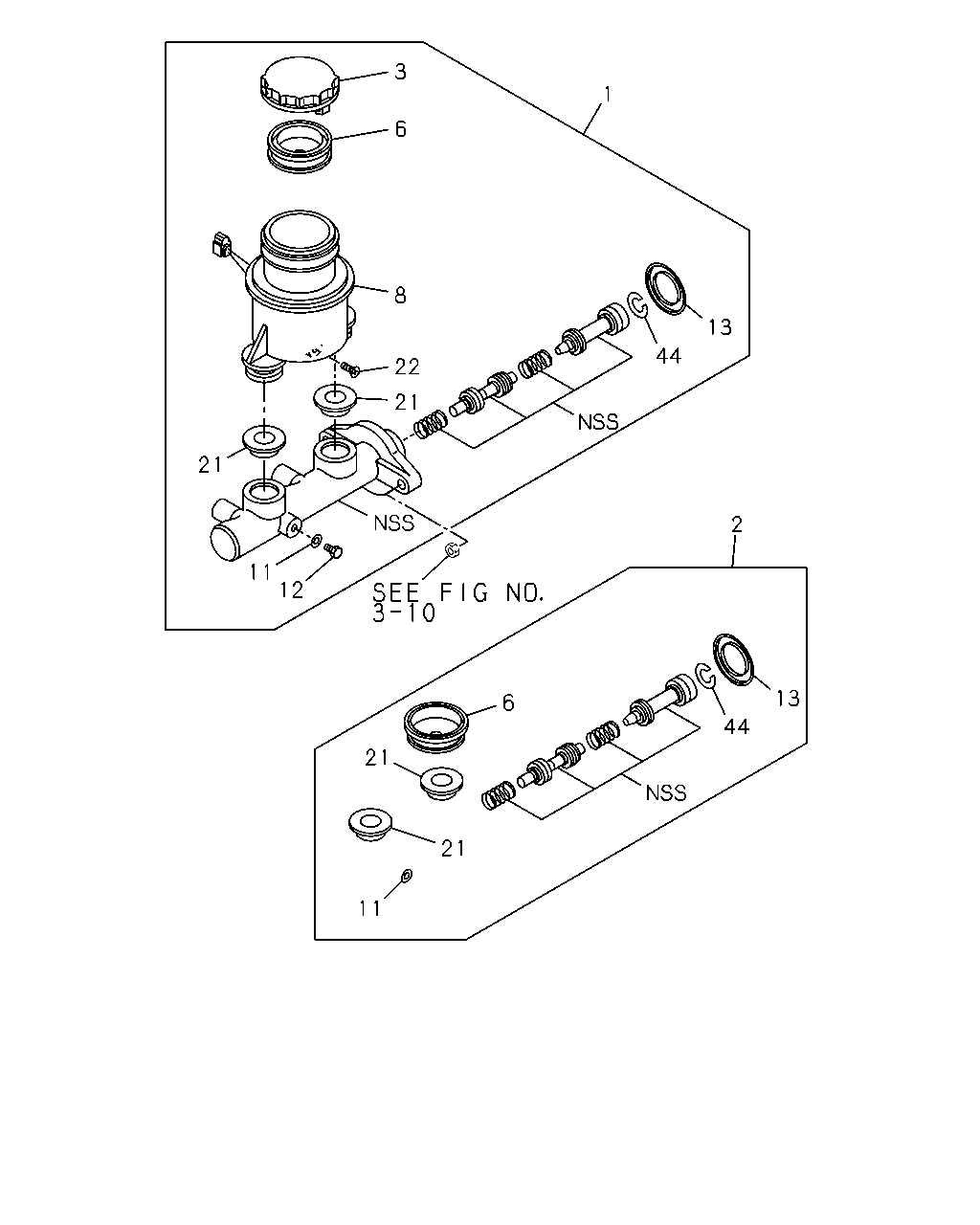

3-30 - BRAKE MASTER CYLINDER
▶
3-30 — BRAKE MASTER CYLINDER
(#45343) — 19 parça
1
3
6
8
22
21
21
11
12
44
13
2
13
44
6
21
21
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER ASM; BRK MASTER
8-97038-250-0
01
1
9301-9511
1
CYLINDER ASM; BRK MASTER
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97038-250-0
01
1
9512-
1
CYLINDER ASM; BRK MASTER
4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97101-708-0
01
1
9512-
2
REPAIR KIT; BRK,M/CYL
8-97071-804-0
01
1
9301-9511
2
REPAIR KIT; BRK,M/CYL
4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97123-934-0
01
1
9512-
2
REPAIR KIT; BRK,M/CYL
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97071-804-0
01
1
9512-
3
CAP; OIL TANK
8-94124-872-0
01
1
9301-
6
DIAPHRAGM; BRK M/CYL
8-94124-873-0
01
1
9301-
8
TANK; OIL,M/CYL
8-97071-798-0
01
1
9301-9511
8
TANK; OIL,M/CYL
4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97071-797-0
01
1
9512-
8
TANK; OIL,M/CYL
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97071-798-0
01
1
9512-
11
GASKET; STOPPER BOLT TO BRK M/CYL BODY
8-94107-675-0
01
1
9301-
12
BOLT; STOPPER,BRK M/CYL
M6X13
8-94107-674-0
01
1
9301-
13
SEAL; DUST,BRK M/CYL TO M/VAC
8-94132-833-0
01
1
9301-
21
GROMMET; BRK M/CYL
8-94133-716-0
02
1
9301-
22
SCREW; OIL TANK
8-94230-600-1
01
1
9301-
44
RING; SNAP,M/CYL
OD=27.9
9-09180-126-0
01
1
9301-9511
44
RING; SNAP,M/CYL
4 WHEEL ANTI-LOCK BRAKE(JE5) OD=30.1
9-09180-128-0
01
1
9512-
44
RING; SNAP,M/CYL
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) OD=27.9
9-09180-126-0
01
1
9512-
