3-11 — PARKING BRAKE CONTROL (#45342) — 43 parça

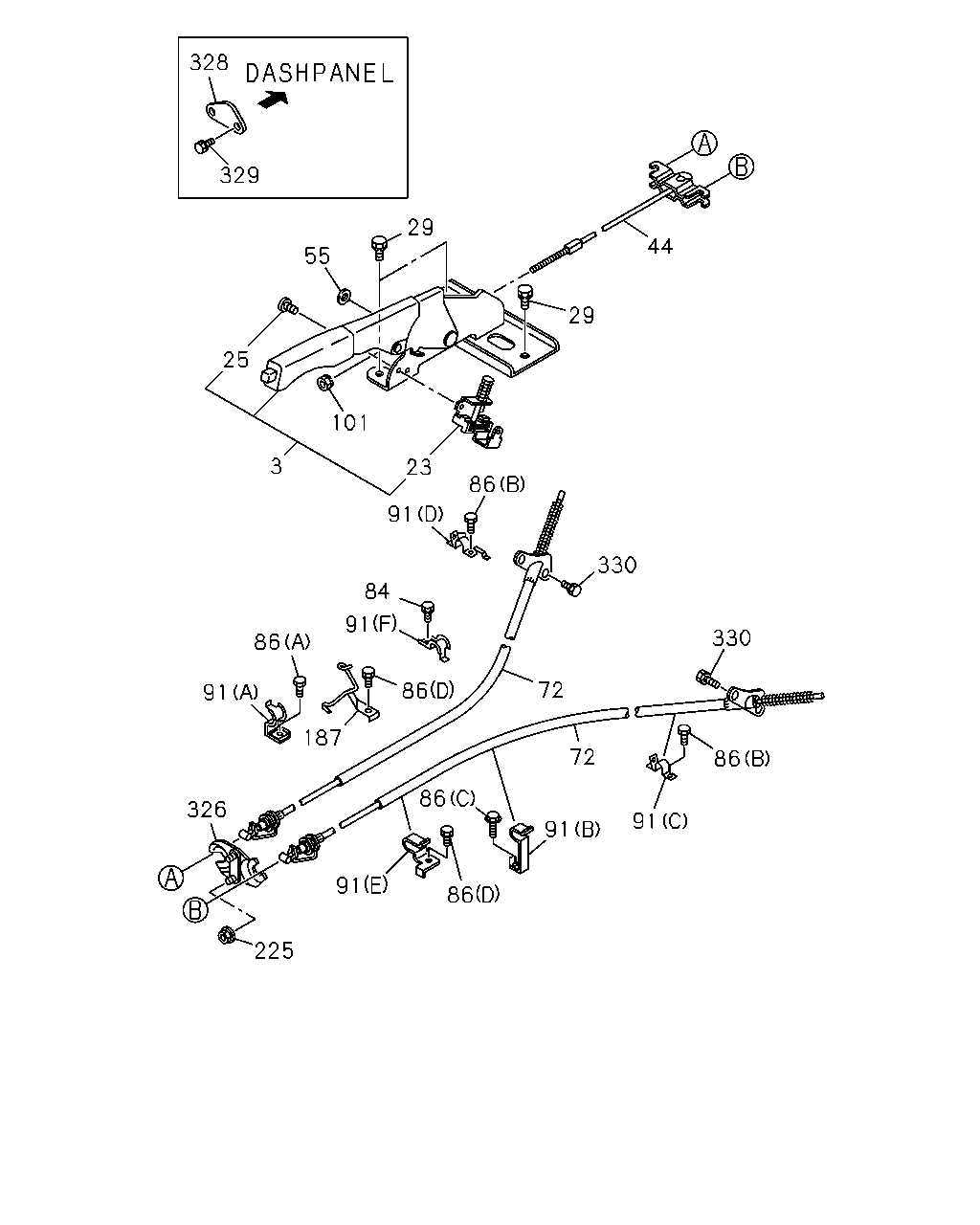

çizim 66394
328 329 25 55 29 44 29 23 101 3 91 86 330 330 86 91 72 72 91 86 86 91 225 326 187 86 84 91 86 91
BalonParca AdiParca NoAdetTipApplied Date A B
3 LEVER; PARKING BRK 8-97064-241-3 01 1 9301-9504 ● ●
3 LEVER; PARKING BRK 8-97123-951-0 01 1 9505- ● ●
23 SWITCH; PARKING BRK 8-97103-548-0 01 1 9301-9508 ● ●
23 SWITCH; PARKING BRK 8-97135-752-0 01 1 9509- ● ●
25 SCREW; SW,PARKING BRK
M4X10 TAPPING 		9-07076-410-0 01 1 9301- ● ●
29 BOLT; PARKING BRK LEVER TO BODY
M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9301-9504 ● ●
29 BOLT; PARKING BRK LEVER TO BODY
M8X20 FLANGE 		0-28680-820-0 03 1 9505- ● ●
44 CABLE; PARKING BRK,FRT 8-97064-238-4 01 1 9301- ● ●
55 WASHER; PL,PARK BRK CABLE
ID=6.4 		9-09160-506-0 01 1 9301- ● ●
72 CABLE; PARKING BRK 8-97064-240-5 01 1 9301-9511 ● ●
72 CABLE; PARKING BRK 8-97100-348-1 01 1 9512- ● ●
72 CABLE; PARKING BRK 8-97064-239-4 01 1 9301-9511 ● ●
72 CABLE; PARKING BRK 8-97135-270-1 01 1 9512- ● ●
84 BOLT; CABLE
M6X14 W/LK&PL WASHER 		0-50140-614-0 01 1 9301-9307 ● ●
84 BOLT; CABLE
M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9308-9607 ● ●
84 BOLT; CABLE
M6X16 FLANGE 		0-28680-616-0 01 1 9608- ● ●
86 BOLT
(A) M6X14 W/LK&PL WASHER 		0-50140-614-0 01 1 9301-9307 ● ●
86 BOLT
(A) M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9308-9607 ● ●
86 BOLT
(B) M6X14 W/LK&PL WASHER 		0-50140-614-0 06 1 9301-9307 ● ●
86 BOLT
(B) M6X16 W/LK&PL WASHER 		0-50140-616-0 06 1 9308-9607 ● ●
86 BOLT
(B) M6X16 FLANGE 		0-28680-616-0 06 1 9608- ● ●
86 BOLT
(C) M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9301-9504 ● ●
86 BOLT
(C) M8X20 FLANGE 		0-28680-820-0 01 1 9505- ● ●
86 BOLT
(D) M8X16 W/LK&PL WASHER 		0-50140-816-0 01 1 9301-9511 ● ●
86 BOLT
(D) M8X16 W/LK&PL WASHER 		0-50140-816-0 02 1 9512-9607 ● ●
86 BOLT
(D) M8X16 FLANGE 		0-28080-816-0 01 1 9608- ● ●
91 CLIP; PARKING BRK CABLE
(A) 		8-94146-602-0 03 1 9301-9511 ● ●
91 CLIP; PARKING BRK CABLE
(A) 		8-94146-602-0 02 1 9512- ● ●
91 CLIP; PARKING BRK CABLE
(B) 		8-97070-360-0 01 1 9301- ● ●
91 CLIP; PARKING BRK CABLE
(E) 		8-97064-313-0 01 1 9301- ● ●
91 CLIP; PARKING BRK CABLE
(C) 		8-97087-002-0 01 1 9301- ● ●
91 CLIP; PARKING BRK CABLE
(F) 		8-97021-566-0 01 1 9301-9511 ● ●
91 CLIP; PARKING BRK CABLE
(F) 		8-94459-413-0 01 1 9512- ● ●
91 CLIP; PARKING BRK CABLE
(D) 		8-97087-003-1 01 1 9301- ● ●
101 NUT; CABLE TO LEVER 9-09110-506-0 02 1 9301-9504 ● ●
101 NUT; CABLE TO LEVER
M6 		9-09110-406-0 02 1 9505- ● ●
187 BRACKET; HAND BRK 8-97135-143-1 01 1 9512- ● ●
225 NUT; CABLE CLIP
M8 FLANGE 		5-09440-005-0 02 1 9301- ● ●
326 RETAINER; PARK CABLE 8-97064-312-3 01 1 9301- ● ●
328 PLATE; SEAL 8-97064-242-1 01 1 9301-9609 ● ●
329 BOLT; SEAL PLATE
M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9301-9505 ● ●
329 BOLT; SEAL PLATE
M8X20 FLANGE 		0-28680-820-0 02 1 9506-9609 ● ●
330 BOLT; CABLE TO BRK
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9301- ● ●
