Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
3 - Brakes, Brake System
▶

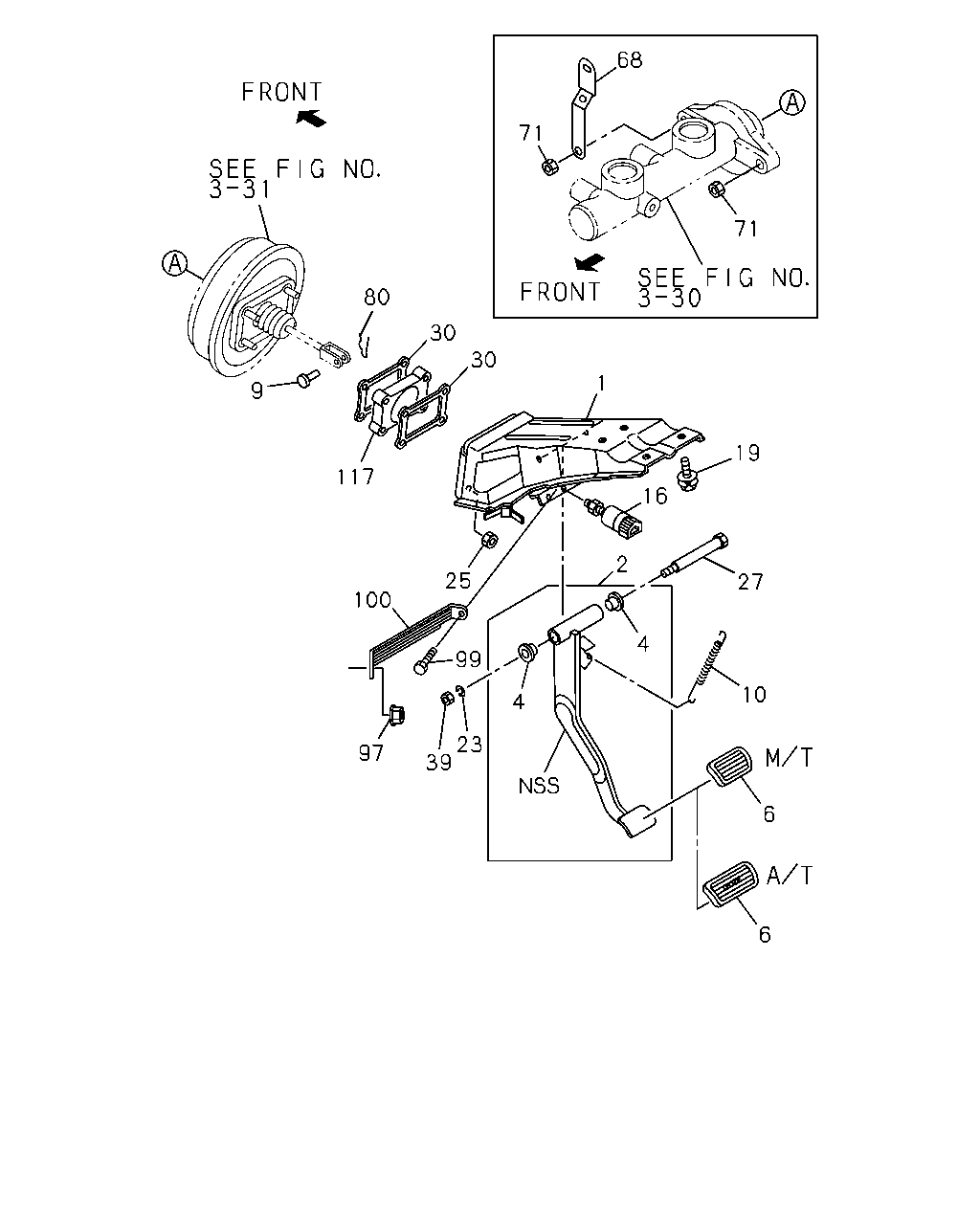

3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#45341) — 35 parça
68
71
71
80
30
30
1
19
16
2
27
10
6
6
4
4
23
39
97
99
25
100
117
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
8-94370-606-1
01
1
9301-9504
1
BRACKET ASM; PEDAL
8-97132-529-2
01
1
9505-
2
PEDAL; BRK
A/T THM(RMQ)
8-94370-610-1
01
1
9301-9504
2
PEDAL; BRK
A/T THM(RMQ)
8-97100-344-2
01
1
9505-
2
PEDAL; BRK
M/T MUA 5 SPEED(RMN)
8-94329-613-1
01
1
9301-9504
2
PEDAL; BRK
M/T MUA 5 SPEED(RMN)
8-97100-343-2
01
1
9505-
4
BUSHING; BRK PEDAL
8-94244-439-0
02
1
9301-
6
COVER; BRK PEDAL
A/T THM(RMQ)
5-31413-004-0
01
1
9301-
6
COVER; BRK PEDAL
M/T MUA 5 SPEED(RMN)
8-94222-524-1
01
1
9301-
9
PIN; JAW JOINT
8-94250-182-0
01
1
9301-
10
SPRING; RETURN,BRK PEDAL
8-94329-696-0
01
1
9301-9502
10
SPRING; RETURN,BRK PEDAL
8-97109-668-0
01
1
9503-
16
SWITCH; STOP LAMP
A/T THM(RMQ) EXC. AUTO CRUISE CONT<K30>
8-94109-863-0
01
1
9301-9504
16
SWITCH; STOP LAMP
AUTO CRUISE CONT<K30>
8-94109-863-0
01
1
9301-9504
16
SWITCH; STOP LAMP
M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30>
8-94109-863-0
01
1
9505-
16
SWITCH; STOP LAMP
A/T THM(RMQ)
8-94109-863-0
01
1
9505-
16
SWITCH; STOP LAMP
M/T MUA 5 SPEED(RMN) EXC. AUTO CRUISE CONT<K30> 12V 12A
8-94362-930-0
01
1
9301-
19
BOLT; BRKT
M8X18 W/LK&PL WASHER
0-50140-818-0
05
1
9301-9504
19
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
05
1
9505-9509
19
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
05
1
9510-9603
19
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
05
1
9604-
23
WASHER; LK,SHAFT
ID=10.2
9-09150-510-0
01
1
9301-
25
NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE
5-09440-005-0
04
1
9301-
27
SHAFT; BRK PEDAL
8-94480-803-0
01
1
9301-
30
GASKET; M/VAC TO BODY
8-94111-590-0
02
1
9301-
39
NUT; STOPPER LK
M10
9-09110-410-0
01
1
9301-
68
BRACKET; SERVO TO DASH PANEL
8-97061-908-0
01
1
9301-9511
68
BRACKET; SERVO TO DASH PANEL
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97061-908-0
01
1
9512-
68
BRACKET; SERVO TO DASH PANEL
4 WHEEL ANTI-LOCK BRAKE(JE5)
8-97111-351-0
02
1
9512-
71
NUT; BRK M/CYL
M8 W/LK WASHER
8-94279-050-0
02
1
9301-
80
PIN; SNAP,BRK PEDAL
L=27.7
8-94157-841-0
01
1
9301-
97
NUT; STAY
M8 FLANGE
5-09440-005-0
01
1
9301-9407
99
BOLT; STAY
M8X16 FLANGE
0-28080-816-0
01
1
9301-9407
100
STAY; BRK PEDAL MTG
8-94381-806-1
01
1
9301-9407
117
SPACER; M/VAC TO BODY
8-97094-455-0
01
1
9301-
