◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#45340) — 60 parça

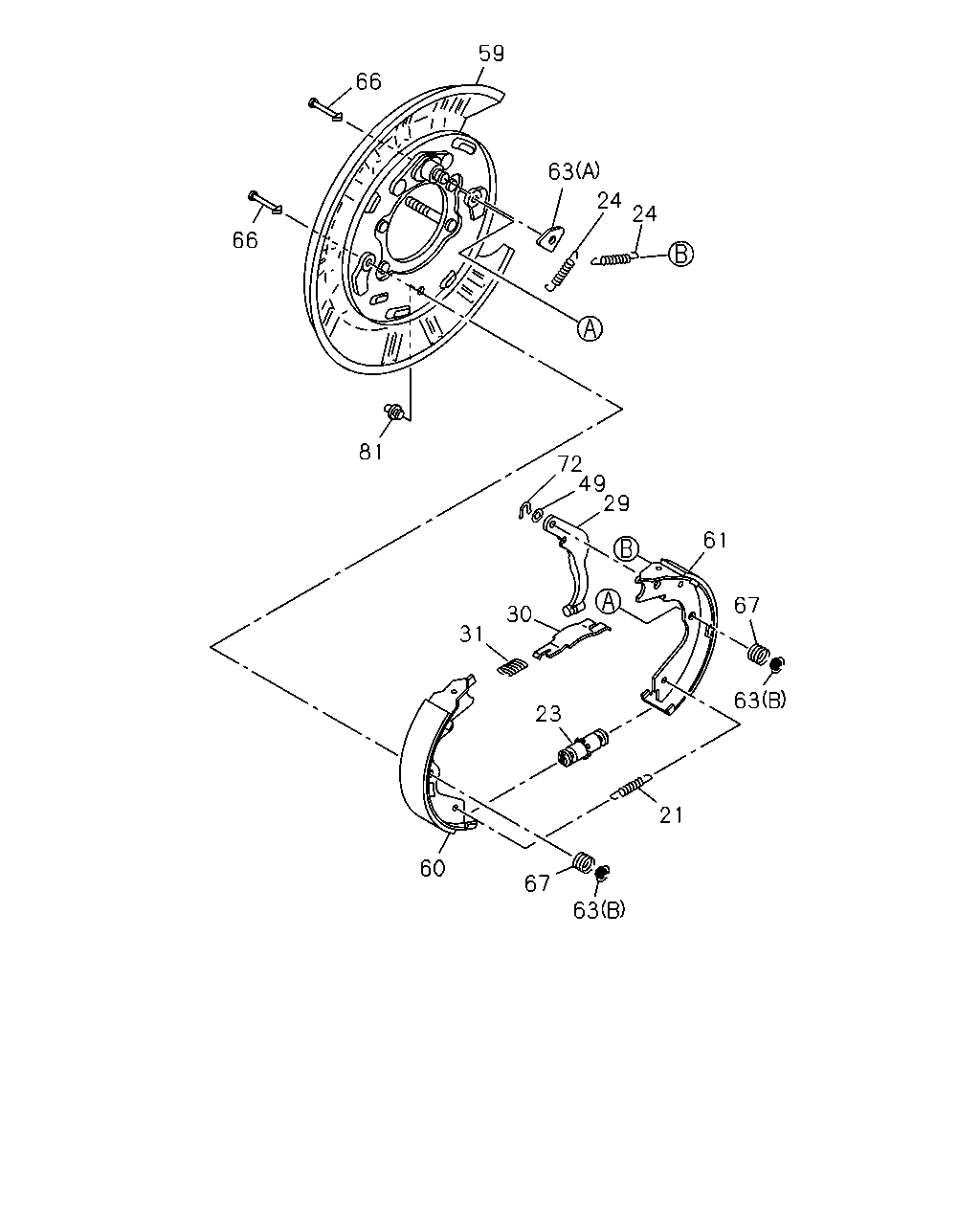

çizim 66239
66 66 59 63 24 24 81 72 49 29 61 67 63 21 63 67 60 23 31 30
BalonParca AdiParca NoAdetTipApplied Date A B
21 SPRING; RETURN,PARKING BRK SHOE 8-97034-749-0 02 1 9301-9308 ● ●
21 SPRING; RETURN,PARKING BRK SHOE 8-97091-941-0 02 1 9309-9509 ● ●
21 SPRING; RETURN,PARKING BRK SHOE 8-97120-773-0 02 1 9510- ● ●
23 SCREW; ADJ,PARKING BRK SHOE 8-97034-750-0 02 1 9301-9308 ● ●
23 SCREW; ADJ,PARKING BRK SHOE 8-97091-899-0 02 1 9309-9509 ● ●
23 SCREW; ADJ,PARKING BRK SHOE 8-97120-775-0 02 1 9510- ● ●
24 SPRING; BRK SHOE 8-97034-748-0 04 1 9301-9308 ● ●
24 SPRING; BRK SHOE 8-97091-896-0 04 1 9309-9509 ● ●
24 SPRING; BRK SHOE 8-97120-772-0 04 1 9510- ● ●
29 LEVER; PARKING BRK 8-97034-741-1 01 1 9301-9308 ● ●
29 LEVER; PARKING BRK 8-97087-812-1 01 1 9309-9509 ● ●
29 LEVER; PARKING BRK 8-97120-762-0 01 1 9510- ● ●
29 LEVER; PARKING BRK 8-97034-740-1 01 1 9301-9308 ● ●
29 LEVER; PARKING BRK 8-97087-811-0 01 1 9309-9509 ● ●
29 LEVER; PARKING BRK 8-97120-761-0 01 1 9510- ● ●
30 STRUT; PARKING BRK 8-97034-745-0 01 1 9301-9308 ● ●
30 STRUT; PARKING BRK 8-97087-810-0 01 1 9309-9509 ● ●
30 STRUT; PARKING BRK 8-97120-764-0 01 1 9510- ● ●
30 STRUT; PARKING BRK 8-97034-744-0 01 1 9301-9308 ● ●
30 STRUT; PARKING BRK 8-97087-809-0 01 1 9309-9509 ● ●
30 STRUT; PARKING BRK 8-97120-763-0 01 1 9510- ● ●
31 SPRING; SHOE TO STRUT 8-97034-746-0 02 1 9301-9308 ● ●
31 SPRING; SHOE TO STRUT 8-97091-895-0 02 1 9309-9509 ● ●
31 SPRING; SHOE TO STRUT 8-97120-771-0 02 1 9510- ● ●
49 WASHER; PARKING BRK LEVER 8-97034-742-0 02 1 9301-9308 ● ●
49 WASHER; PARKING BRK LEVER 8-94242-854-0 02 1 9309-9509 ● ●
49 WASHER; PARKING BRK LEVER 8-97120-769-0 02 1 9510- ● ●
59 COVER; DUST,PARKING BRK 8-97034-736-1 01 1 9301-9308 ● ●
59 COVER; DUST,PARKING BRK 8-97087-806-1 01 1 9309-9509 ● ●
59 COVER; DUST,PARKING BRK 8-97120-757-0 01 1 9510- ● ●
59 COVER; DUST,PARKING BRK 8-97034-735-1 01 1 9301-9308 ● ●
59 COVER; DUST,PARKING BRK 8-97087-805-1 01 1 9309-9509 ● ●
59 COVER; DUST,PARKING BRK 8-97120-756-0 01 1 9510- ● ●
60 SHOE; PARKING BRK,PRIMARY
LEADING 		8-97034-737-0 02 1 9301-9308 ● ●
60 SHOE; PARKING BRK,PRIMARY
LEADING 		8-97087-949-1 02 1 9309-9509 ● ●
60 SHOE; PARKING BRK,PRIMARY
LEADING 		8-97120-760-0 02 1 9510- ● ●
61 SHOE; PARKING BRK,SECONDARY
TRAILING 		8-97034-739-0 01 1 9301-9308 ● ●
61 SHOE; PARKING BRK,SECONDARY
TRAILING 		8-97087-808-1 01 1 9309-9509 ● ●
61 SHOE; PARKING BRK,SECONDARY
TRAILING 		8-97120-759-0 01 1 9510- ● ●
61 SHOE; PARKING BRK,SECONDARY
TRAILING 		8-97034-738-0 01 1 9301-9308 ● ●
61 SHOE; PARKING BRK,SECONDARY
TRAILING 		8-97087-807-1 01 1 9309-9509 ● ●
61 SHOE; PARKING BRK,SECONDARY
TRAILING 		8-97120-758-0 01 1 9510- ● ●
63 RETAINER; PARKING BRK LEVER
(A) 		8-97034-747-0 02 1 9301-9308 ● ●
63 RETAINER; PARKING BRK LEVER
(A) 		8-97091-894-0 02 1 9309-9509 ● ●
63 RETAINER; PARKING BRK LEVER
(A) 		8-97120-774-0 02 1 9510- ● ●
63 RETAINER; PARKING BRK LEVER
(B) 		8-97034-753-0 04 1 9301-9308 ● ●
63 RETAINER; PARKING BRK LEVER
(B) 		8-97106-761-0 04 1 9309-9509 ● ●
63 RETAINER; PARKING BRK LEVER
(B) 		8-97120-767-0 04 1 9510- ● ●
66 PIN; SHOE HOLD,PARKING BRK 8-97034-751-0 04 1 9301-9308 ● ●
66 PIN; SHOE HOLD,PARKING BRK 8-94201-061-0 04 1 9309-9509 ● ●
66 PIN; SHOE HOLD,PARKING BRK 8-97120-768-0 04 1 9510- ● ●
67 SPRING; SHOE HOLD,PARKING BRK 8-97034-752-0 04 1 9301-9308 ● ●
67 SPRING; SHOE HOLD,PARKING BRK 8-97106-760-0 04 1 9309-9509 ● ●
67 SPRING; SHOE HOLD,PARKING BRK 8-97120-766-0 04 1 9510- ● ●
72 RING; SNAP 8-97034-743-0 02 1 9301-9308 ● ●
72 RING; SNAP 8-94242-778-0 02 1 9309-9509 ● ●
72 RING; SNAP 8-97120-770-0 02 1 9510- ● ●
81 COVER; CHECK HOLE,PARKING BRK 8-97034-754-0 02 1 9301-9308 ● ●
81 COVER; CHECK HOLE,PARKING BRK 8-97091-902-0 02 1 9309-9509 ● ●
81 COVER; CHECK HOLE,PARKING BRK 8-97120-765-0 02 1 9510- ● ●
