Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
3 - Brakes, Brake System
▶
3-06 - REAR DISC BRAKE CALIPER
▶

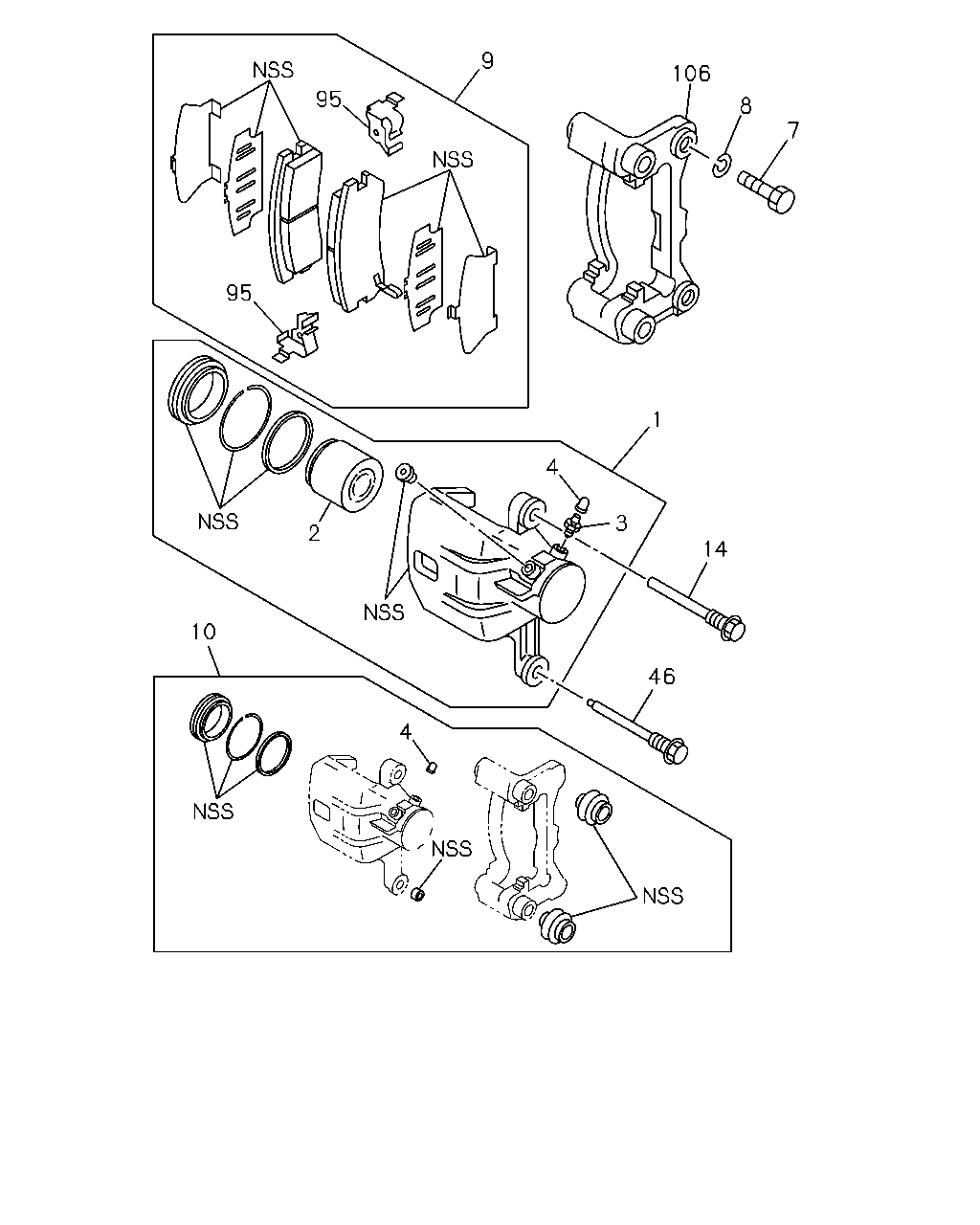

3-06 — REAR DISC BRAKE CALIPER
(#45339) — 18 parça
9
106
8
7
95
95
2
4
1
3
14
46
4
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CALIPER; RR DISC BRK
8-97065-360-0
01
1
9301-
1
CALIPER; RR DISC BRK
8-97065-359-0
01
1
9301-
2
PISTON; CALIPER,RR
8-97065-364-0
02
1
9301-
3
SCREW; BLEEDER,CALIPER,RR
8-94438-713-0
02
1
9301-
4
CAP; BLEEDER SCREW,CALIPER,RR
5-47619-007-2
02
1
9301-
7
BOLT; DISC BRK
M12X27
8-94425-585-0
04
1
9301-9502
7
BOLT; DISC BRK
M12X27
8-97126-215-1
04
1
9503-
8
WASHER; LK,DISC BRK
ID=12.2
9-09150-812-0
04
1
9301-
9
PAD KIT; CALIPER,RR
8-97070-080-0
01
1
9301-9505
9
PAD KIT; CALIPER,RR
8-97131-749-0
01
1
9506-
10
REPAIR KIT; DISC BRK,RR
8-97070-082-0
01
1
9301-
14
PIN; GUIDE,CALIPER
8-94362-820-0
02
1
9301-9602
14
PIN; GUIDE,CALIPER
8-97160-821-0
02
1
9603-
46
PIN; ADJ
8-94362-821-0
02
1
9301-9602
46
PIN; ADJ
8-97160-823-0
02
1
9603-
95
CLIP; PAD
8-97160-819-0
04
1
9603-
106
SUPPORT
8-97065-363-0
02
1
9301-9602
106
SUPPORT
8-97065-363-0
02
1
9603-
