Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
3 - Brakes, Brake System
▶
3-02 - FRONT DISC BRAKE CALIPER
▶

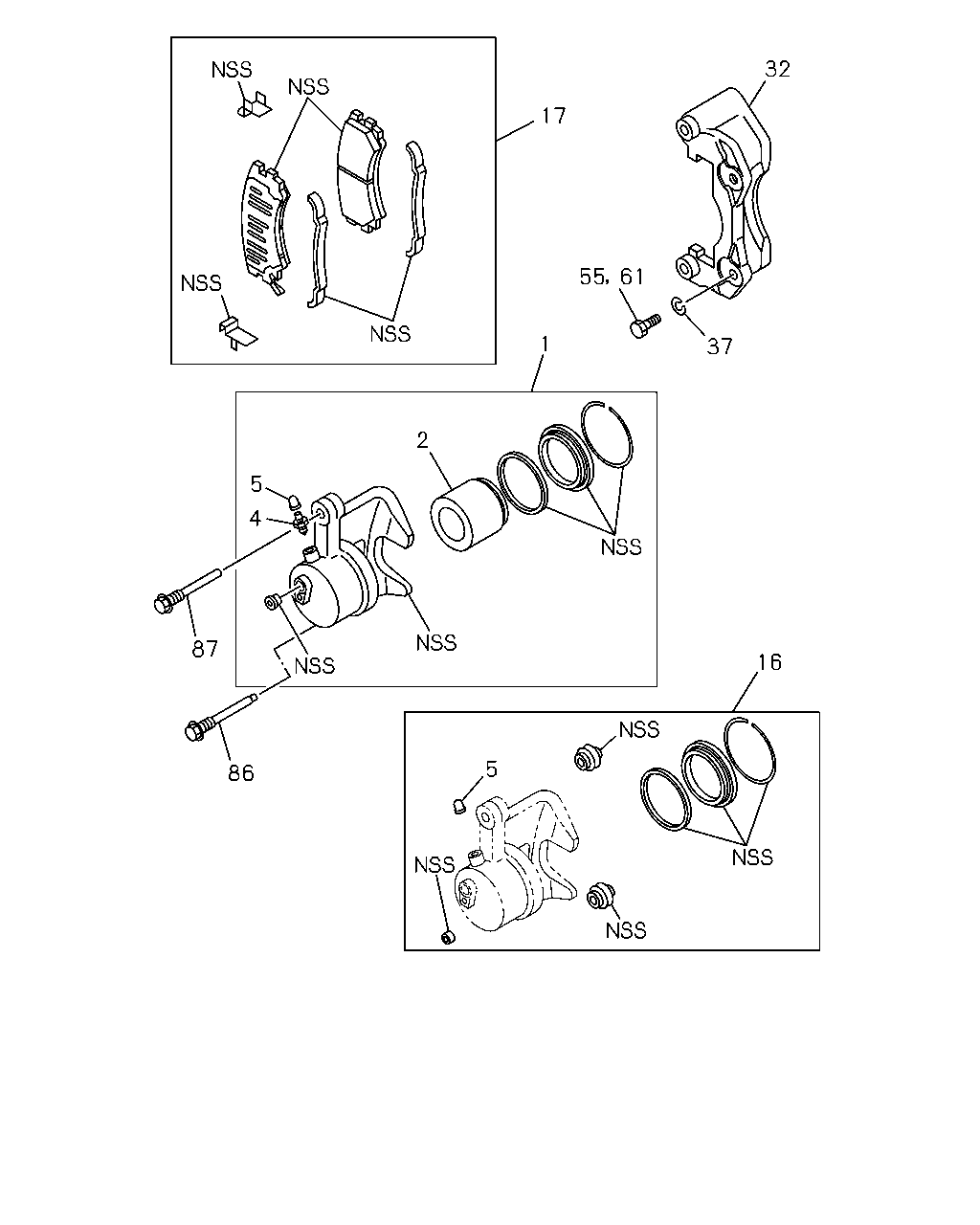

3-02 — FRONT DISC BRAKE CALIPER
(#45338) — 19 parça
17
32
37
1
2
5
4
87
86
5
16
55
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CALIPER; FRT DISC BRK
8-97065-353-0
01
1
9301-
1
CALIPER; FRT DISC BRK
8-97065-352-0
01
1
9301-
2
PISTON; CALIPER,DISC BRK,FRT
8-94438-689-0
02
1
9301-
4
SCREW; BLEEDER,DISC BRK,FRT
8-94438-713-0
02
1
9301-
5
CAP; BLEEDER,DISC BRK,FRT
5-47619-007-2
02
1
9301-
16
REPAIR KIT; CALIPER,DISC BRK,FRT
8-97070-081-0
01
1
9301-
17
PAD KIT; CALIPER,DISC BRK,FRT
8-97070-079-0
01
1
9301-9505
17
PAD KIT; CALIPER,DISC BRK,FRT
8-97131-748-0
01
1
9506-
32
SUPPORT; FRT DISC BRK
8-97065-356-0
02
1
9301-
37
WASHER; LK
ID=14.2
9-09150-814-0
04
1
9301-
55
BOLT; SUPPORT BRKT TO DISC BRK
M14X29
8-94423-252-0
02
1
9301-9502
55
BOLT; SUPPORT BRKT TO DISC BRK
M14X29
8-97126-347-0
02
1
9503-
61
BOLT; SUPPORT BRKT TO KNUCKLE
M14X29
8-94423-252-0
02
1
9301-9502
61
BOLT; SUPPORT BRKT TO KNUCKLE
M14X29
8-97126-347-0
02
1
9503-
86
PIN; GUIDE
8-97035-254-0
02
1
9301-9607
86
PIN; GUIDE
8-97160-820-0
02
1
9608-
87
PIN; LOCK
8-97035-255-0
02
1
9301-9607
87
PIN; LOCK
8-97160-821-0
01
1
9608-
87
PIN; LOCK
8-97160-822-0
01
1
9608-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
