2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#45335) — 83 parça

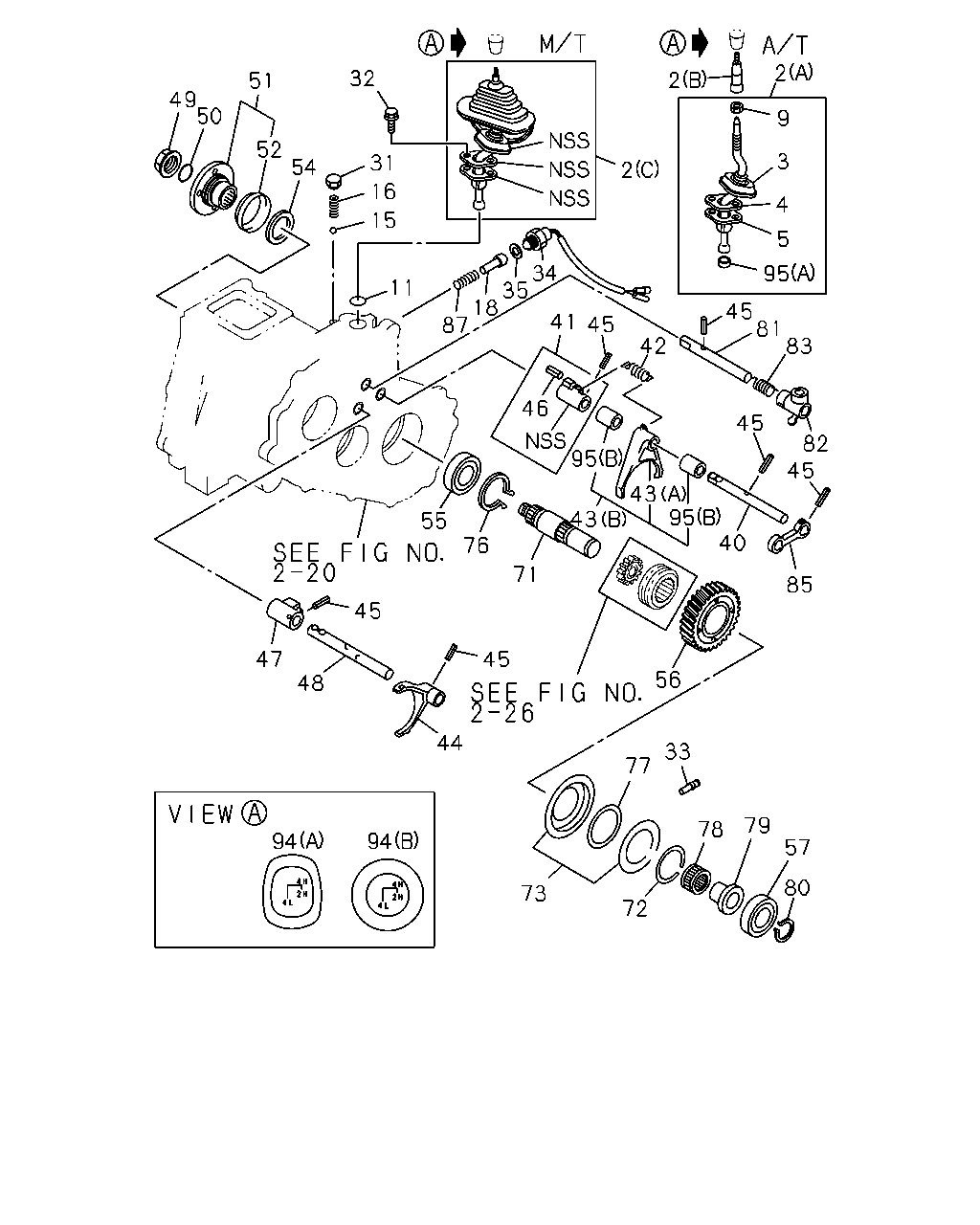

çizim 16902
2 2 9 3 4 5 95 45 81 83 82 45 45 42 45 41 34 35 18 87 11 15 16 31 32 54 52 51 50 49 46 95 43 95 40 85 71 76 55 45 47 48 45 44 56 43 33 77 78 79 57 80 72 73 94 94 2
BalonParca AdiParca NoAdetTipApplied Date
2 LEVER ASM; CHANGE,TRANSFER
A/T THM(RMQ) (A) 		8-97021-023-1 01 1 9301-9305
2 LEVER ASM; CHANGE,TRANSFER
A/T THM(RMQ) (A) 		8-97094-810-1 01 1 9306-9511
2 LEVER ASM; CHANGE,TRANSFER
A/T THM(RMQ) (A) 		8-97138-518-0 01 1 9512-
2 LEVER ASM; CHANGE,TRANSFER
A/T THM(RMQ) (B) 		8-97021-084-1 01 1 9301-9305
2 LEVER ASM; CHANGE,TRANSFER
M/T MUA 5 SPEED(RMN) (C) 		8-94441-917-3 01 1 9301-9511
2 LEVER ASM; CHANGE,TRANSFER
M/T MUA 5 SPEED(RMN) (C) 		8-97138-516-0 01 1 9512-
3 COVER; DUST,CHANGE LEVER
A/T THM(RMQ) 		8-97035-305-0 01 1 9301-9305
4 RETAINER; CHANGE LEVER,TRANSFER
A/T THM(RMQ) 		8-97035-374-1 01 1 9301-9305
5 COVER; BALL SEAT,CHANGE LEVER,TRANSFER
A/T THM(RMQ) 		8-97035-304-0 01 1 9301-9305
9 NUT; SHIFT LEVER,CHANGE LEVER
A/T THM(RMQ) M12 		9-99111-512-0 01 1 9301-9305
11 GASKET; CHANGE LEVER
M/T MUA 5 SPEED(RMN) ID=35.2 		9-09561-235-0 01 1 9301-
15 BALL; DETENT,SHIFT ROD,TRANSFER 8-94435-335-0 02 1 9301-
16 SPRING; DETENT,SHIFT ROD,TRANSFER
L=26.8 		8-94320-193-0 02 1 9301-9607
16 SPRING; DETENT,SHIFT ROD,TRANSFER
L=23.4 		8-97145-374-0 02 1 9608-
18 PIN; INTER LOCK,SHIFT ROD,TRANSFER 8-94461-898-0 01 1 9301-
31 PLUG; DETENT BALL,TRANSFER
M12X9 		9-99202-312-0 02 1 9301-
32 BOLT; CHANGE LEVER TO SIDE CASE
M8X16 FLANGE 		0-28080-816-0 02 1 9301-
33 SCREW; STOPPER,TRANSFER
M6X18 		8-94448-812-1 01 1 9301-
34 SWITCH; TRANSFER INDICATOR 5-82440-018-0 01 1 9301-9510
34 SWITCH; TRANSFER INDICATOR 8-97143-604-0 01 1 9511-9609
34 SWITCH; TRANSFER INDICATOR 8-97138-632-0 01 1 9610-
35 GASKET; INDICATOR SWITCH,TRANSFER
ID=14.2 OD=20.0 		9-09571-414-0 01 1 9301-
40 ROD; SHIFT,4X2-4X4,TRANSFER 8-94421-920-3 01 1 9301-9505
40 ROD; SHIFT,4X2-4X4,TRANSFER 8-97070-675-1 01 1 9506-
41 BLOCK; SHIFT,4X2-4X4,TRANSFER 8-97033-094-2 01 1 9301-
42 SPRING; GEAR LOCK RELEASE,TRANSFER
L=30 		8-94422-188-0 01 1 9301-
43 ARM; SHIFT,4X2-4X4,TRANSFER
(A) 		8-94377-525-1 01 1 9301-9409
43 ARM; SHIFT,4X2-4X4,TRANSFER
(B) 		8-97100-915-2 01 1 9410-
44 ARM; SHIFT,HIGH-LOW,TRANSFER 8-94421-922-3 01 1 9301-
45 PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25 		8-94171-541-0 06 1 9301-
46 PIN; SPR,SELECT LEVER 8-94448-816-1 01 1 9301-
47 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-97033-090-1 01 1 9301-9607
47 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-97141-883-1 01 1 9608-
48 ROD; SHIFT,HIGH-LOW,TRANSFER 8-94421-919-3 01 1 9301-9607
48 ROD; SHIFT,HIGH-LOW,TRANSFER 8-97141-882-1 01 1 9608-
49 NUT; COUPLING DRIVER,FRT OUTPUT
M27 FLANGE 		8-94422-073-0 01 1 9301-
50 GASKET; COUPLING DRIVER,FRT OUTPUT 8-94483-035-0 01 1 9301-
51 FLANGE ASM; COUPLING DRIVER,TRANSFER 8-94453-699-5 01 1 9301-
52 COVER; DUST,TRANSFER FLANGE 8-94320-867-2 01 1 9301-
54 SEAL; OIL,TRANSFER FLANGE
NOK 		8-97046-703-2 01 1 9301-
54 SEAL; OIL,TRANSFER FLANGE
TKK 		8-97046-702-0 01 1 9302-
55 BEARING; BALL,TRANSFER FLANGE,FRT SIDE
NSK 		8-94422-172-0 01 1 9301-
56 GEAR; OUTPUT,FRT WHEEL,TRANSFER
Z=47 		8-94482-317-1 01 1 9301-9504
56 GEAR; OUTPUT,FRT WHEEL,TRANSFER
A/T THM(RMQ) Z=47 		8-97120-120-0 01 1 9505-9505
56 GEAR; OUTPUT,FRT WHEEL,TRANSFER
M/T MUA 5 SPEED(RMN) Z=47 		8-97120-125-0 01 1 9505-9505
56 GEAR; OUTPUT,FRT WHEEL,TRANSFER
Z=47 		8-97120-125-0 01 1 9506-9607
56 GEAR; OUTPUT,FRT WHEEL,TRANSFER
Z=49 		8-97126-101-1 01 1 9608-
57 BEARING; BALL,TRANSFER FLANGE,RR SIDE
NSK 		8-94422-052-0 01 1 9301-
71 SHAFT; TRANSFER OUTPUT 8-94421-900-5 01 1 9301-9505
71 SHAFT; TRANSFER OUTPUT
A/T THM(RMQ) 950522- 		8-94421-900-5 01 1 9505-9505
71 SHAFT; TRANSFER OUTPUT
M/T MUA 5 SPEED(RMN) 950522- 		8-94377-437-2 01 1 9505-9505
71 SHAFT; TRANSFER OUTPUT 8-94377-437-3 01 1 9506-
72 RING; SNAP,ANTI LASH PLATE,FRT OUTPUT
M/T MUA 5 SPEED(RMN) 		8-94482-501-0 01 1 9301-
73 PLATE ASM; ANTI LASH,TRANSFER GEAR
M/T MUA 5 SPEED(RMN) 		8-94320-569-0 01 1 9301-9607
73 PLATE ASM; ANTI LASH,TRANSFER GEAR
M/T MUA 5 SPEED(RMN) 		8-97164-346-0 01 1 9608-
76 RING; SNAP,BRG OUTER,TRANSFER
OD=77.0 		8-94422-092-0 01 1 9301-
77 SPRING; BELLEVILLE,ANTI LASH PLATE
M/T MUA 5 SPEED(RMN) 		8-94482-499-0 01 1 9301-
78 BEARING; FRT OUTPUT GEAR,TRANSFER
NSK 		8-94422-064-0 01 1 9301-
79 COLLAR; FRT OUTPUT GEAR,TRANSFER 8-97031-079-0 01 1 9301-9412
79 COLLAR; FRT OUTPUT GEAR,TRANSFER 8-94422-076-1 01 1 9501-
80 RING; FRT OUTPUT SHAFT,TRANSFER
T=1.55 WHITE 		8-94422-180-0 01 1 9301-
80 RING; FRT OUTPUT SHAFT,TRANSFER
T=1.60 YELLOW 		8-94422-181-0 01 1 9301-
80 RING; FRT OUTPUT SHAFT,TRANSFER
T=1.65 BLUE 		8-94422-182-0 01 1 9301-
80 RING; FRT OUTPUT SHAFT,TRANSFER
T=1.70 PINK 		8-94422-183-0 01 1 9301-
80 RING; FRT OUTPUT SHAFT,TRANSFER
T=1.75 GREEN 		8-94422-184-0 01 1 9301-
80 RING; FRT OUTPUT SHAFT,TRANSFER
T=1.80 BROWN 		8-94422-185-0 01 1 9301-
80 RING; FRT OUTPUT SHAFT,TRANSFER
T=1.85 RED 		8-94422-186-0 01 1 9301-
80 RING; FRT OUTPUT SHAFT,TRANSFER
T=1.90 ORANGE 		8-94422-187-0 01 1 9301-
81 ROD; TRANSFER SELECT 8-94370-499-2 01 1 9301-
82 BLOCK; TRANSFER 8-97033-092-1 01 1 9301-
83 SPRING; SELECT 8-94462-235-0 01 1 9301-
85 BRIDGE; CONT ROD,TRANSFER 8-94422-440-0 01 1 9301-9508
85 BRIDGE; CONT ROD,TRANSFER
M/T MUA 5 SPEED(RMN) 		8-94422-440-0 01 1 9509-9509
85 BRIDGE; CONT ROD,TRANSFER
A/T THM(RMQ) 		8-97128-522-0 01 1 9509-9509
85 BRIDGE; CONT ROD,TRANSFER 8-97128-522-0 01 1 9510-
87 SPRING; INTER LOCK,TRANSFER 8-94461-897-0 01 1 9301-
94 KNOB; TRANSFER LEVER
A/T THM(RMQ) SHIFT KNOB DELUXE<S2Y> (A) GRAY 		8-97000-720-1 01 1 9301-9504
94 KNOB; TRANSFER LEVER
M/T MUA 5 SPEED(RMN) SHIFT KNOB DELUXE<S2Y> (A) BLACK 		8-94453-161-1 01 1 9301-9504
94 KNOB; TRANSFER LEVER
SHIFT KNOB DELUXE<S2Y> (A) BLACK 		8-94453-161-1 01 1 9505-
94 KNOB; TRANSFER LEVER
EXC. SHIFT KNOB DELUXE<S2Y> (B) 		8-94473-779-0 01 1 9301-9308
94 KNOB; TRANSFER LEVER
M/T MUA 5 SPEED(RMN) EXC. SHIFT KNOB DELUXE<S2Y> (B) 		8-94473-779-0 01 1 9309-
95 BUSHING
A/T THM(RMQ) (A) 		8-94442-099-0 01 1 9301-
95 BUSHING
(B) 		8-97103-115-0 02 1 9410-
