2-61 — TRANSFER CASE AND GEAR SHIFTER (#45334) — 23 parça

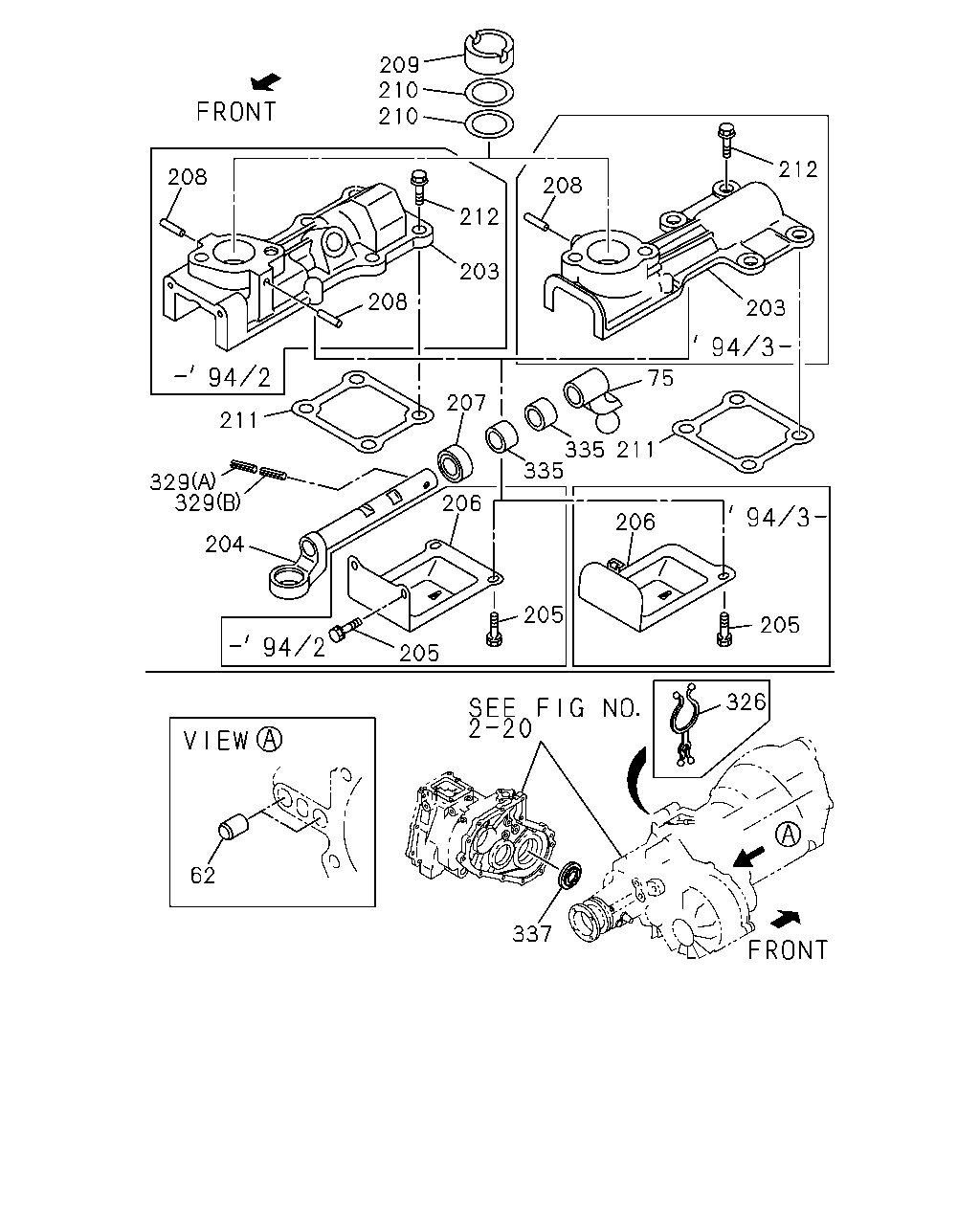

çizim 66543
209 210 210 208 208 203 212 208 212 203 75 211 335 335 206 207 211 329 329 204 205 205 206 205 326 337 62
BalonParca AdiParca NoAdetTipApplied Date
62 CAP; SHIFT ROD
A/T THM(RMQ) 		8-94321-479-1 02 1 9301-
75 LEVER ASM; L-H CONT,INTERNAL
A/T THM(RMQ) 		8-94367-929-2 01 1 9301-
203 BOX; TRANSFER CONT
A/T THM(RMQ) 		8-94367-926-1 01 1 9301-9402
203 BOX; TRANSFER CONT
A/T THM(RMQ) 		8-97106-782-2 01 1 9403-
204 ROD; SHIFT,TRANSFER CONT
A/T THM(RMQ) 		8-94367-928-3 01 1 9301-
205 BOLT; DUST COVER,CONT BOX,TRANSFER
A/T THM(RMQ) M6X12 W/LK WASHER 		0-50040-612-0 04 1 9301-9402
205 BOLT; DUST COVER,CONT BOX,TRANSFER
A/T THM(RMQ) M6X10 		9-03497-610-0 01 1 9403-9509
205 BOLT; DUST COVER,CONT BOX,TRANSFER
A/T THM(RMQ) M6X8 		9-03490-608-0 01 1 9510-
206 COVER; DUST,CONT BOX,TRANSFER
A/T THM(RMQ) 		8-94367-927-1 01 1 9301-9402
206 COVER; DUST,CONT BOX,TRANSFER
A/T THM(RMQ) 		8-97106-784-1 01 1 9403-
207 SEAL; OIL,INTERNAL SHIFT ROD,TRANSFER
A/T THM(RMQ) 		8-94221-533-1 01 1 9301-
208 PIN; BALL SEAT,CONT BOX,TRANSFER
A/T THM(RMQ) 		8-94204-186-0 02 1 9301-9402
208 PIN; BALL SEAT,CONT BOX,TRANSFER
A/T THM(RMQ) 		8-94204-186-0 01 1 9403-
209 SEAT; BALL,CHANGE LEVER,TRANSFER
A/T THM(RMQ) 		5-33619-042-0 01 1 9301-
210 SPRING; BALL SEAT,CHANGE LEVER,TRANSFE
A/T THM(RMQ) 		9-33619-632-0 02 1 9301-
211 GASKET; CONT BOX,TRANSFER
A/T THM(RMQ) 		8-94368-327-0 01 1 9301-
212 BOLT; CONT BOX,TRANSFER
A/T THM(RMQ) M8X22 FLANGE 		0-28080-822-0 04 1 9301-9706
212 BOLT; CONT BOX,TRANSFER
A/T THM(RMQ) M8X25 FLANGE 		0-28680-825-0 04 1 9707-
326 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) ID=44 		8-94420-658-0 01 1 9301-
329 PIN; SPRING,SHIFT ROD
A/T THM(RMQ) (A) OD=5.4 		9-09678-510-0 01 1 9301-
329 PIN; SPRING,SHIFT ROD
A/T THM(RMQ) (B) OD=3.3 		9-09678-519-0 01 1 9301-9402
335 BUSHING
A/T THM(RMQ) 		8-94388-205-1 02 1 9301-
337 PLATE; LOCK
M/T MUA 5 SPEED(RMN) 		8-97102-940-0 01 1 9512-
