2 - Clutch, Transmission, Trans Axle
▶

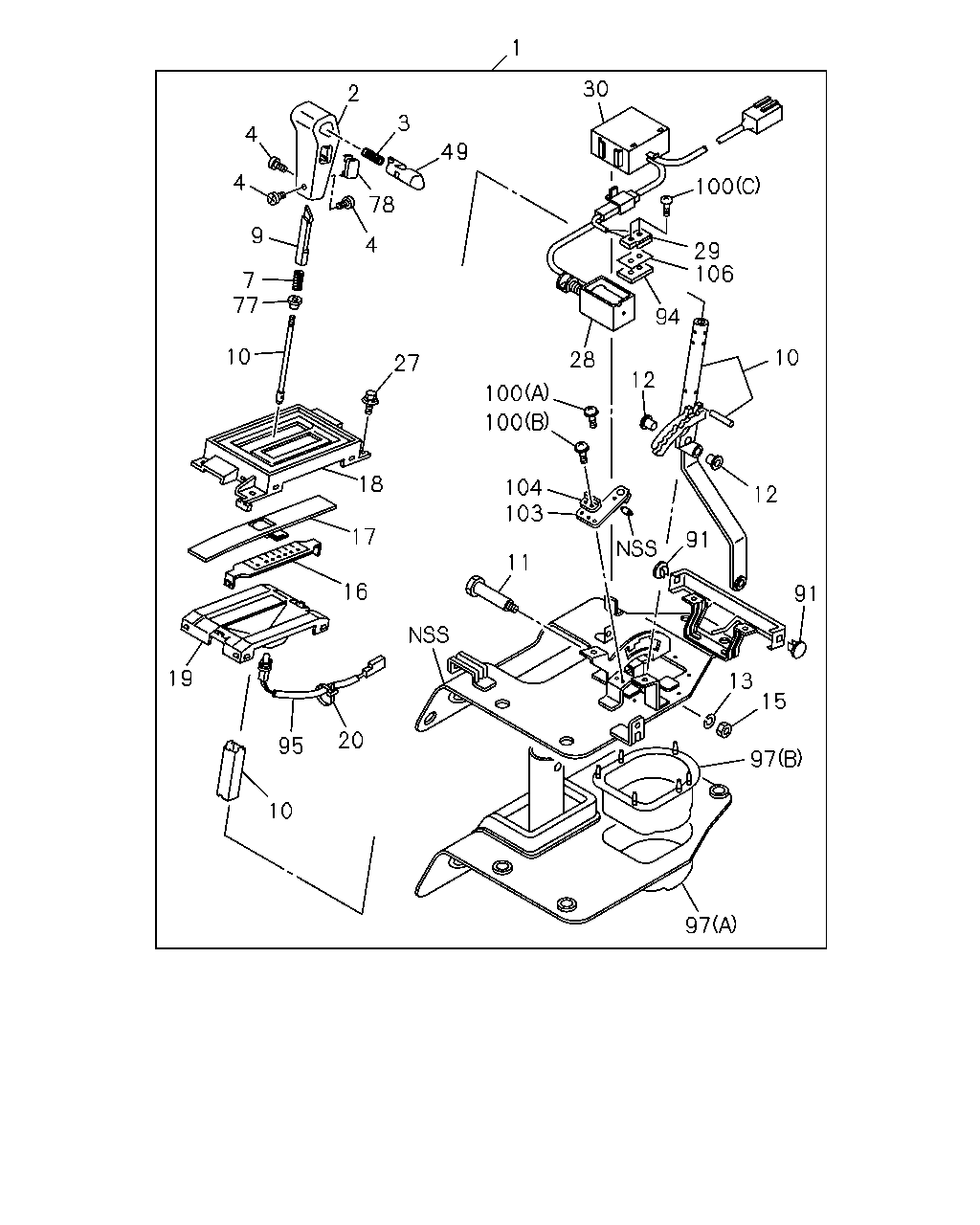

2-55 - AUTO TRANS SHIFT CONTROL LEVER
▶
2-55 — AUTO TRANS SHIFT CONTROL LEVER
(#45331) — 47 parça
◀
[255A] NO.2 (40 parça)
[255A] NO.1 (7 parça)
▶
1
30
100
29
106
94
10
12
28
100
100
104
103
11
91
12
91
13
15
97
97
10
20
95
19
16
17
18
27
10
77
7
9
4
78
49
3
2
4
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; SHIFT,A/T
GRAY
8-97007-489-7
01
1
9301-9504
1
LEVER; SHIFT,A/T
BLACK
8-97153-128-1
01
1
9505-
2
KNOB ASM; AUTO CONT LEVER
GRAY
8-94370-125-0
01
1
9301-9504
2
KNOB ASM; AUTO CONT LEVER
BLACK
8-94389-629-0
01
1
9505-
3
SPRING; RETURN,KNOB
8-94370-126-0
01
1
9301-
4
SCREW; KNOB TO LEVER
8-94370-128-0
03
1
9301-
7
SPRING; RETURN,ROD
8-97029-913-0
01
1
9301-
9
SLEEVE; KNOB,SHIFT LEVER
8-94370-129-0
01
1
9301-
10
LEVER; A/T CONT
8-97103-396-0
01
1
9301-
11
LEVER; A/T SHIFT LEVER TO LINK
8-97066-339-0
01
1
9301-
12
BUSHING; SELECT LEVER
8-94389-643-0
02
1
9301-
13
WASHER; LEVER TO SHAFT
ID=8.2
9-09150-608-0
01
1
9301-
15
NUT; LEVER TO SHAFT
M8
9-09111-408-0
01
1
9301-
16
LENS; INDICATOR
8-97032-476-0
01
1
9301-9504
16
LENS; INDICATOR
8-97123-315-0
01
1
9505-
17
PLATE; INDICATOR
8-97032-482-0
01
1
9301-9408
17
PLATE; INDICATOR
8-97113-989-0
01
1
9409-
18
COVER; INDICATOR,UPR
8-97035-002-0
01
1
9301-
19
COVER; INDICATOR,LWR
8-97035-003-0
01
1
9301-
20
CLIP; INHIBITOR SW
8-94389-647-0
01
1
9301-
27
SCREW; INDICATOR TO BRKT
M5X10 W/LK+PL WASHER
9-03920-510-0
04
1
9301-
28
SOLENOID ASM
8-97080-681-0
01
1
9301-
29
SWITCH; A/T
8-97080-683-0
01
1
9301-
30
CONTROLLER; A/T
951218-
8-97144-717-0
01
1
9301-
49
BUTTON; PUSH,KNOB
GRAY
8-94370-127-0
01
1
9301-9504
49
BUTTON; PUSH,KNOB
BLACK
8-94389-614-0
01
1
9505-
77
SUPPORT; SPRING,A/T CONT LEVER
8-94370-130-0
01
1
9301-
78
PROTECTOR; LAMP CABLE,A/T CONT LEVER
GRAY
8-97002-944-0
01
1
9301-9504
78
PROTECTOR; LAMP CABLE,A/T CONT LEVER
BLACK
8-97098-096-0
01
1
9505-
91
GROMMET
8-94203-326-0
02
1
9301-
94
PLATE; SWITCH
8-97035-011-0
01
1
9301-
95
LAMP; INDICATOR
8-97035-013-0
01
1
9301-
97
BOOT
(A)
8-97047-212-0
01
1
9301-
97
BOOT
(B)
8-97032-475-0
01
1
9301-
100
SCREW
(A) M5X10 W/LK+PL WASHER
9-03920-510-0
02
1
9301-
100
SCREW
(B) M4X10 W/LK&PL WASHER
9-03920-410-0
02
1
9301-
100
SCREW
(C)
8-97024-167-1
02
1
9301-
103
SPRING; PLATE
8-97035-014-0
01
1
9301-
104
PLATE; LINK
8-97035-016-1
01
1
9301-
106
SHEET; SWITCH
8-97035-009-0
01
1
9301-
32
33
35
1
35
33
58
33
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; SHIFT,A/T
GRAY
8-97007-489-7
01
1
9301-9504
1
LEVER; SHIFT,A/T
BLACK
8-97153-128-1
01
1
9505-
32
BOLT; CONT LEVER TO BODY
M8X30 W/LK WASHER
0-50040-830-0
04
1
9301-
33
WASHER; PL,CONT LEVER TO BODY
ID=8.4 OD=22
9-09164-708-0
06
1
9301-
35
SPACER; BRKT TO FLOOR,SELECT LEVER
(A) OD=13 T=4.5
8-94230-464-1
02
1
9301-
35
SPACER; BRKT TO FLOOR,SELECT LEVER
(B) OD=15 T=6.8
8-94437-495-0
04
1
9301-
58
SCREW; BRKT
8-94220-277-0
02
1
9301-
