2-52 — AUTO TRANS OVERDRIVE GEAR (#45329) — 29 parça

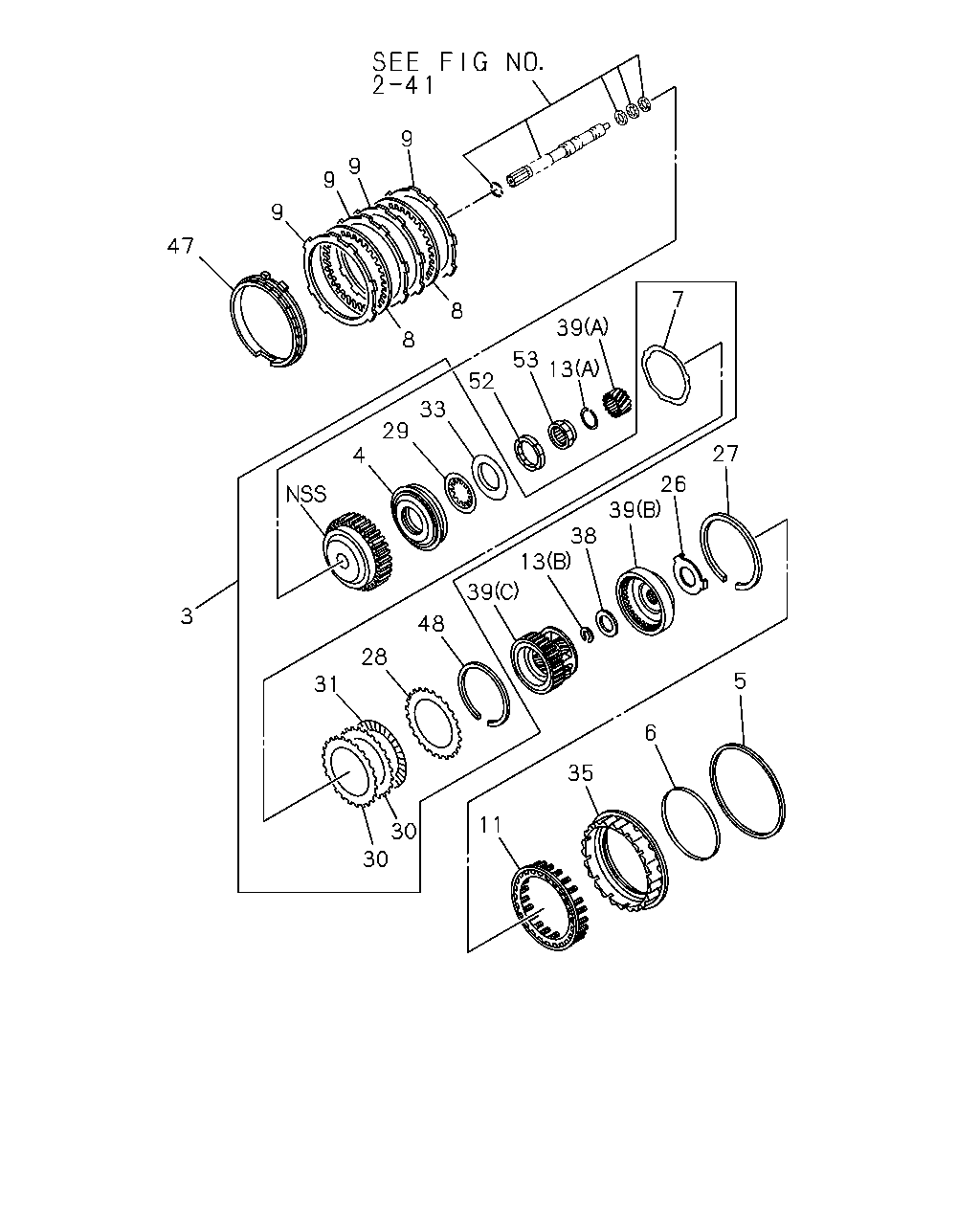

çizim 66620
47 9 9 9 9 8 8 3 4 29 33 52 53 13 39 7 27 26 39 38 13 39 48 28 31 30 30 11 35 6 5
BalonParca AdiParca NoAdetTipApplied Date
3 DRUM; CLU,OVERDRIVE,A/T 8-96041-100-0 01 1 9301-
4 PISTON ASM; CLU,OVERDRIVE,A/T 8-96015-507-0 01 1 9301-9311
4 PISTON ASM; CLU,OVERDRIVE,A/T 8-96017-401-0 01 1 9312-
5 GASKET; CLU PISTON,OUTER,OVERDRIVE,A/T 8-96014-320-0 01 1 9301-9411
5 GASKET; CLU PISTON,OUTER,OVERDRIVE,A/T 8-96017-561-0 01 1 9412-
6 GASKET; CLU PISTON,INNER,OVERDRIVE,A/T 8-96014-321-0 01 1 9301-
7 PLATE; CLU CUSHION 8-96014-983-0 01 1 9301-
8 DISC; CLU,OVERDRIVE,A/T 8-96014-459-0 02 1 9301-
9 DISC ASM; CLU & FACING,OVERDRIVE,A/T 8-96014-187-0 04 1 9301-
11 SPRING; CLU RETURN,OVERDRIVE,A/T 8-08635-244-0 01 1 9301-
13 RING; SNAP,OVERDRIVE,A/T
(A) 		8-08634-274-0 01 1 9301-
13 RING; SNAP,OVERDRIVE,A/T
(B) 		8-96014-389-0 01 1 9301-
26 WASHER; THRUST,OVERDRIVE,A/T 8-96014-390-0 01 1 9301-
27 RING; RET,OVERDRIVE,A/T 8-08634-023-0 01 1 9301-
28 PLATE; CLU BACKING,OVERDRIVE,A/T 8-08634-864-0 01 1 9301-
29 DISC ASM; CLU & FACING,OVERDRIVE,A/T 8-96014-902-0 01 1 9301-
30 DISC; CLU,OVERDRIVE,A/T 8-96014-194-0 02 1 9301-
31 PLATE; CUSHION,OVERDRIVE,A/T 8-96014-195-0 01 1 9301-
33 RETAINER; BRK RETURN SPR,OVERDRIVE,A/T 8-96015-601-0 01 1 9301-
35 PISTON; BRK,OVERDRIVE,A/T 8-96017-559-0 01 1 9301-
38 WASHER; THRUST,OVERDRIVE,A/T 8-08634-035-0 01 1 9301-
39 GEAR ASM; PLANETARY INTERNAL,A/T
(A) 		8-96014-199-0 01 1 9301-
39 GEAR ASM; PLANETARY INTERNAL,A/T
(B) 		8-96014-202-0 01 1 9301-
39 GEAR ASM; PLANETARY INTERNAL,A/T
(C) 		8-96014-376-0 01 1 9301-
47 FLANGE; OVERDRIVE BRK,A/T 8-96015-385-0 01 1 9301-
48 RING; SNAP,PLANETARY RING GEAR,OD 8-08634-056-0 01 1 9301-
52 ROLLER; OVERDRIVE CLU 8-08634-049-0 01 1 9301-9501
52 ROLLER; OVERDRIVE CLU 8-00930-660-0 01 1 9502-
53 CAM; OVERDRIVE ROLLER CLU 8-08634-038-0 01 1 9301-
