Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-49 - AUTO TRANS INHIBITOR SWITCH
▶

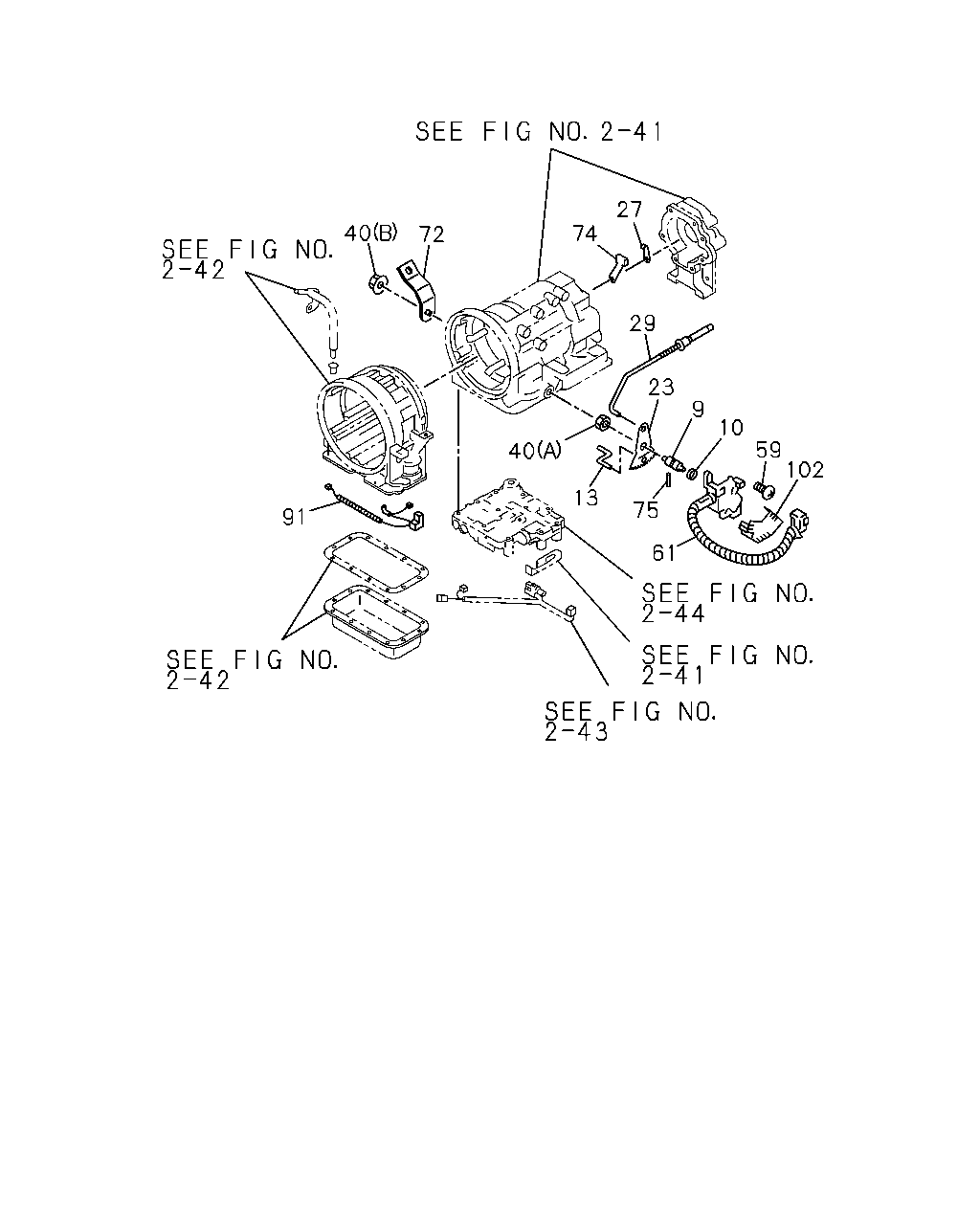

2-49 — AUTO TRANS INHIBITOR SWITCH
(#45328) — 21 parça
40
72
74
27
29
23
9
10
59
102
40
13
75
61
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
SHAFT; MANUAL,A/T
8-96014-268-0
01
1
9301-
10
GASKET; MANUAL SHIFT,A/T
8-08644-709-0
01
1
9301-
13
LEVER; SELECT,MANUAL SHAFT,A/T
8-05258-243-0
01
1
9301-
23
LEVER; PARKING ROD,A/T
8-96014-551-0
01
1
9301-9408
23
LEVER; PARKING ROD,A/T
8-96017-378-0
01
1
9409-
27
SPRING; PAWL RETURN,A/T
8-05258-076-0
01
1
9301-
29
ROD ASM; CONT,A/T
8-96016-702-0
01
1
9301-9408
29
ROD ASM; CONT,A/T
8-96017-286-0
01
1
9409-9607
29
ROD ASM; CONT,A/T
8-96014-271-0
01
1
9608-9611
29
ROD ASM; CONT,A/T
8-96017-286-0
01
1
9612-
40
NUT; LEVER TO SHAFT
(A)
8-11067-223-0
01
1
9301-
40
NUT; LEVER TO SHAFT
(B) M10 FLANGE
0-91250-110-0
01
1
9301-
59
SCREW; SW,A/T
8-96014-453-0
02
1
9301-
61
SWITCH ASM; POSITION
8-96017-178-0
01
1
9301-9409
61
SWITCH ASM; POSITION
8-96017-620-0
01
1
9410-
72
LEVER; SELECT CONT
8-97013-518-1
01
1
9301-
74
PAWL; PARKING BRK LK,A/T
8-96016-620-0
01
1
9301-
75
PIN; PARKING BRK LK,A/T
8-05259-654-0
01
1
9301-
91
HARNESS ASM; CABLE,A/T CONT
8-96017-030-0
01
1
9301-9606
91
HARNESS ASM; CABLE,A/T CONT
8-96018-278-0
01
1
9607-
102
SHIELD; MODE SWITCH,A/T
8-96014-454-0
01
1
9301-
