Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-48 - AUTO TRANS MULTIPLE-DISC CLUTCH
▶

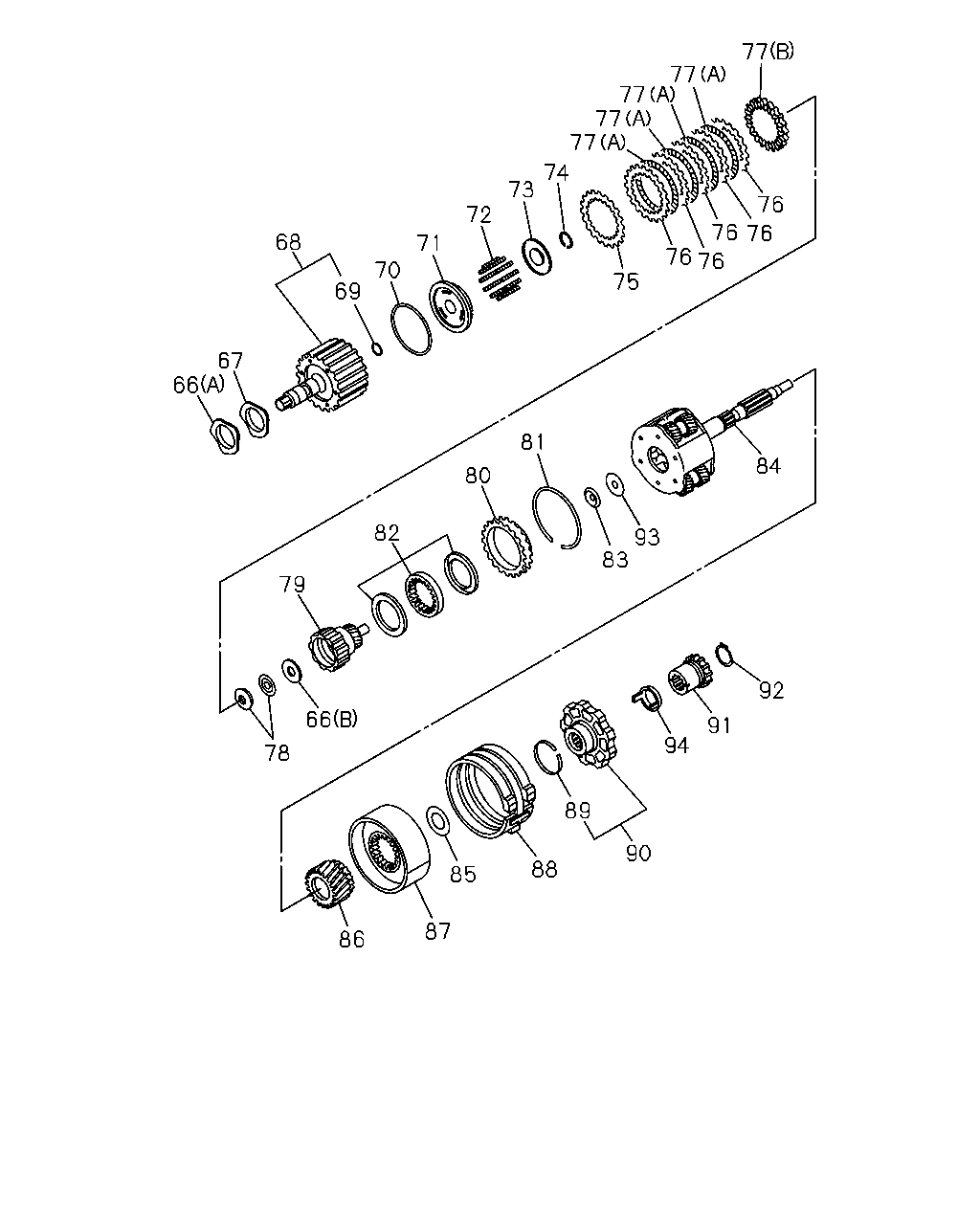

2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH
(#45327) — 33 parça
66
67
68
69
70
71
72
73
74
77
77
77
77
77
76
76
76
76
76
75
84
93
83
81
80
82
79
66
78
86
87
85
88
89
90
94
91
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
66
WASHER; THRUST,3RD CLU
(A)
8-96013-403-0
01
1
9301-
66
WASHER; THRUST,3RD CLU
(B)
8-96015-459-0
01
1
9301-
67
WASHER; THRUST,CLU HUB
8-05258-945-0
01
1
9301-
68
DRUM; 3RD CLU
8-96041-095-0
01
1
9301-
69
SEAL; 3RD CLU PISTON INNER
8-96014-295-0
01
1
9301-9504
69
SEAL; 3RD CLU PISTON INNER
8-96018-543-0
01
1
9505-
70
SEAL; 3RD CLU PISTON OUTER
8-96014-296-0
01
1
9301-
71
PISTON; 3RD CLU
8-96016-223-0
01
1
9301-
72
SPRING; PISTON CLU
8-08958-719-0
12
1
9301-
73
SEAT; SPR,3RD CLU
8-05258-039-0
01
1
9301-
74
RING; RET
8-05258-094-0
01
1
9301-
75
PLATE; SPR,CLU
8-96017-603-0
01
1
9301-
76
PLATE; 3RD CLU
8-05258-955-0
05
1
9301-
77
PLATE ASM; 3RD CLU
(A)
8-96014-297-0
04
1
9301-
77
PLATE ASM; 3RD CLU
(B)
8-96014-946-0
01
1
9301-
78
WASHER & THRUST BEARING KIT
8-96040-078-0
01
1
9301-
79
GEAR ASM; INPUT SUN
8-96016-253-0
01
1
9301-
80
RACE; SPRAG
8-96016-209-0
01
1
9301-
81
RING; RET,SPRAG
8-08958-684-0
01
1
9301-
82
SPRAG KIT
8-96017-149-0
01
1
9301-
83
BEARING; OUTPUT SHAFT
8-96014-602-0
01
1
9301-
84
CARRIER ASM; PLANETARY
8-96017-348-0
01
1
9301-
85
THRUST BEARING & WASHER KIT
8-96016-084-0
01
1
9301-
86
GEAR; REACTION SUN
8-96015-037-0
01
1
9301-
87
DRUM; REACTION SUN
8-96014-581-0
01
1
9301-9602
87
DRUM; REACTION SUN
8-96018-009-0
01
1
9603-
88
BAND; BRAKE
8-96014-805-0
01
1
9301-
89
SEAL; RING,PARKING LOCK
8-05258-837-0
01
1
9301-
90
WHEEL; PARKING LOCK
8-96016-669-0
01
1
9301-
91
WHEEL; SPD
8-96015-053-0
01
1
9301-
92
RING; RET
8-96015-123-0
01
1
9301-
93
WASHER; OUTPUT SHAFT
8-96014-607-0
01
1
9301-
94
GEAR; SPD WHEEL
8-96014-287-0
01
1
9301-
