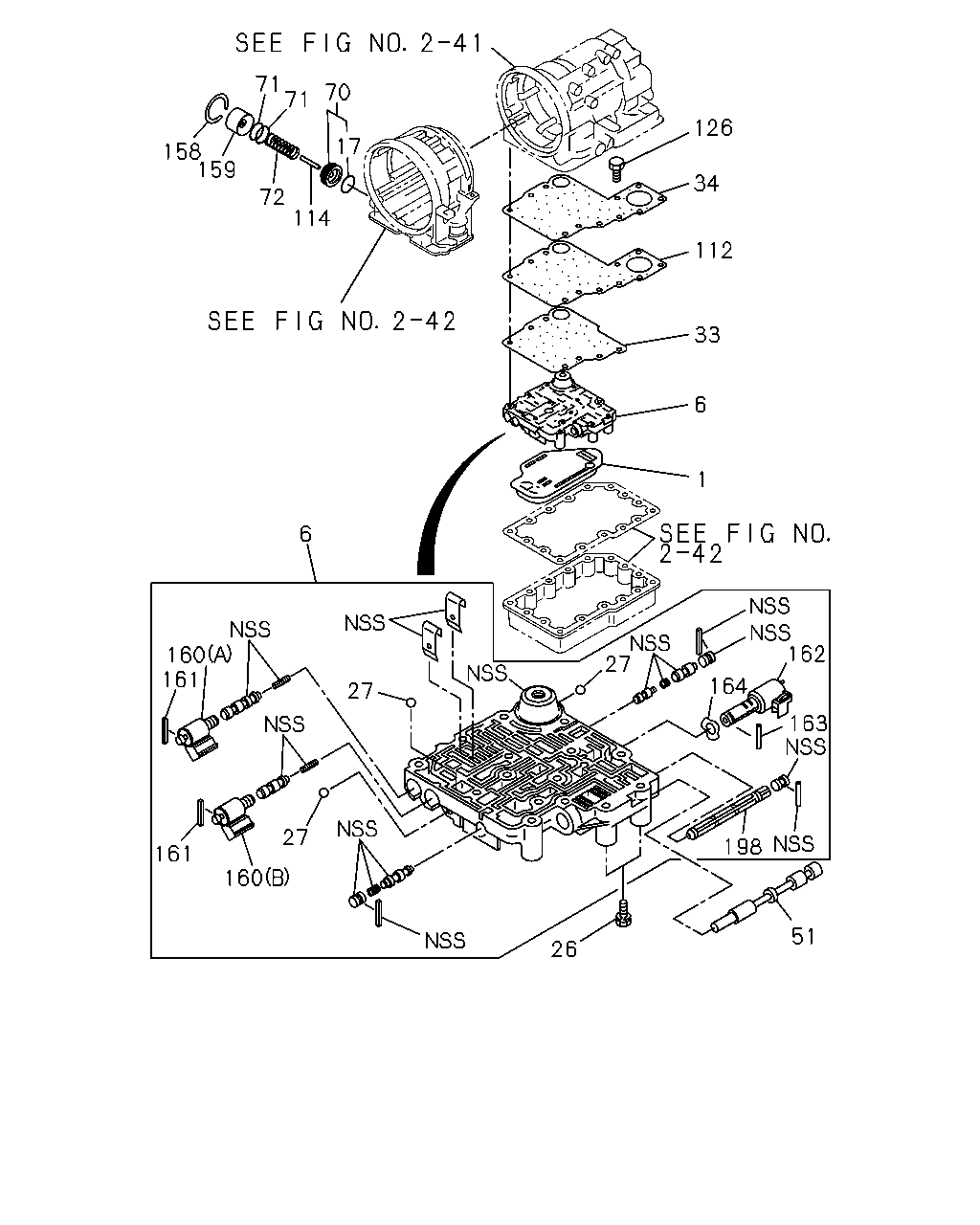

2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#45325) — 29 parça

71 71 70 17 114 72 159 158 126 34 112 33 6 1 27 162 164 163 198 51 26 160 161 27 161 160 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STRAINER ASM; OIL,A/T	8-96015-062-0	01	1	9301-
6	BODY ASM; VLV LWR,A/T	8-96016-831-0	01	1	9301-9408
6	BODY ASM; VLV LWR,A/T	8-96017-636-0	01	1	9409-
17	RETAINER; ACCUMLATOR CONT VALVE	8-96014-566-0	01	1	9301-
26	BOLT; BODY FIX,VLV LWR,A/T	8-00179-826-0	12	1	9301-
27	BALL; STEEL,VLV,A/T	8-11066-201-0	05	1	9301-
33	GASKET; LWR,VLV BODY,A/T	8-96015-417-0	01	1	9301-
34	GASKET; UPR,VLV BODY,A/T	8-96017-202-0	01	1	9301-9611
34	GASKET; UPR,VLV BODY,A/T	8-96018-338-0	01	1	9612-
51	VALVE; MANUAL,A/T	8-96014-445-0	01	1	9301-
70	PISTON; ACCUMLATOR	8-96016-916-0	01	1	9301-
71	GASKET; ACCUMLATOR PISTON	8-96014-317-0	02	1	9301-9408
72	SPRING; ACCUMLATOR PISTON	8-96016-972-0	01	1	9301-
112	PLATE; VLV BODY CVR,VLV LWR,A/T	8-96015-494-0	01	1	9301-9408
112	PLATE; VLV BODY CVR,VLV LWR,A/T	8-96017-628-0	01	1	9409-
114	PIN; ACCUMLATOR PISTON (B-2)	8-96017-098-0	01	1	9301-
126	BOLT; CVR,VLV LWR,A/T	8-00117-461-0	02	1	9301-
158	RING; SNAP,ADAPTER	8-96015-714-0	01	1	9301-
159	COVER; PISTON	8-96014-318-0	01	1	9301-9308
159	COVER; PISTON	8-96017-093-0	01	1	9309-
160	SOLENOID; ON-OFF (A)	8-96014-593-0	01	1	9301-
160	SOLENOID; ON-OFF (B)	8-96014-224-0	01	1	9301-
161	PIN; SPRING,SOLENOID	8-96014-443-0	02	1	9301-
162	SOLENOID; BAND CONT	8-96014-795-0	01	1	9301-9408
162	SOLENOID; BAND CONT	8-96042-006-0	01	1	9409-
163	PIN; SOLENOID	8-96014-440-0	01	1	9301-
164	WASHER; SOLENOID	8-96014-555-0	01	1	9301-
198	STRAINER	8-96014-437-0	01	1	9301-9408
198	STRAINER	8-96041-012-0	01	1	9409-
