◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-43 - AUTO TRANS CONTROL VALVE; UPPER BODY ▶
2-43 — AUTO TRANS CONTROL VALVE; UPPER BODY (#45324) — 17 parça

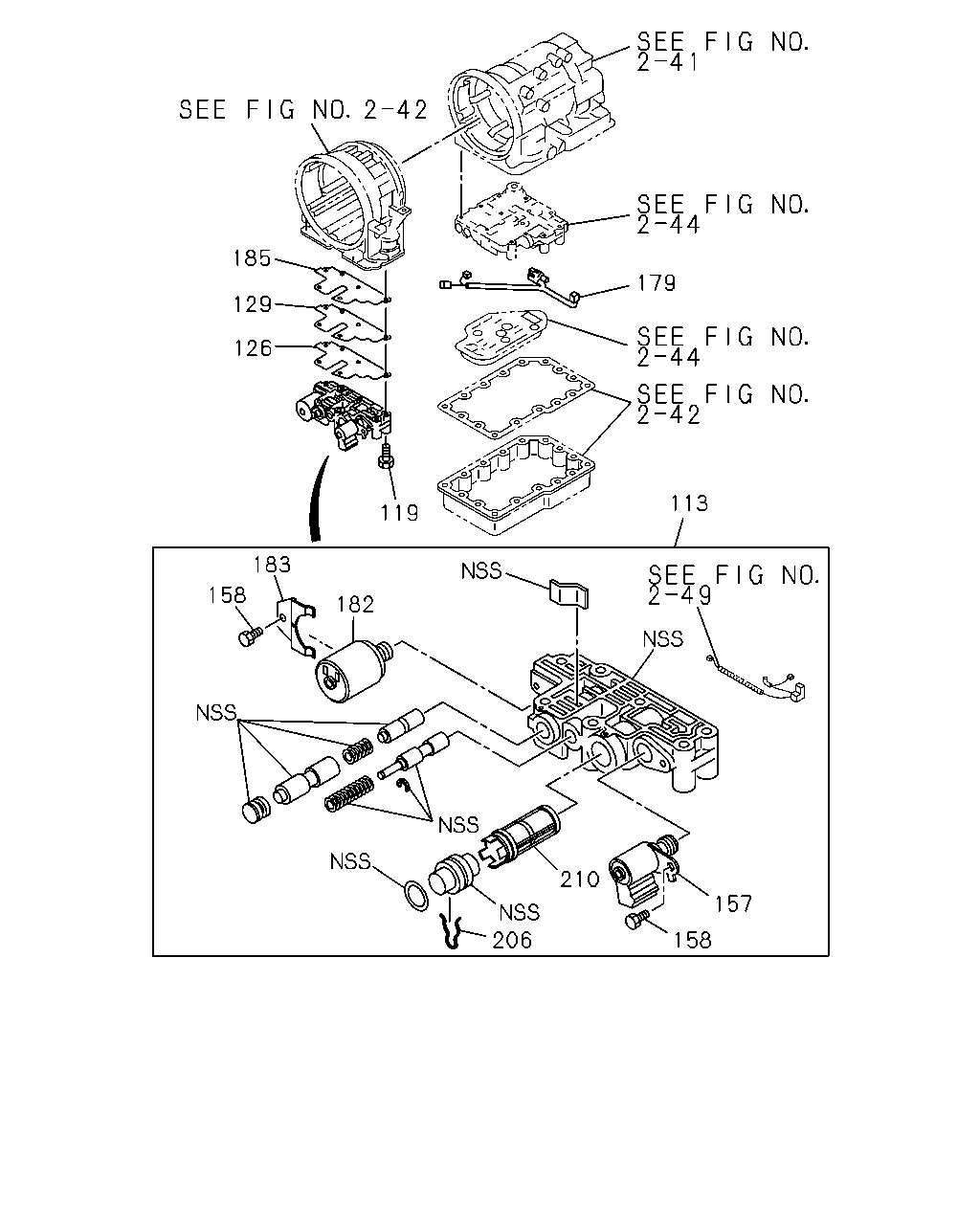

çizim 66240
179 113 119 126 129 185 158 183 182 206 210 157 158
BalonParca AdiParca NoAdetTipApplied Date
113 VALVE ASM; CONT,A/T 8-96016-534-0 01 1 9301-9401
113 VALVE ASM; CONT,A/T 8-96017-360-0 01 1 9402-
119 BOLT; VLV BODY,A/T 8-00179-826-0 07 1 9301-9401
119 BOLT; VLV BODY,A/T 8-96017-270-0 07 1 9402-
126 GASKET; VALVE BODY 8-96015-063-0 01 1 9301-9408
126 GASKET; VALVE BODY 8-96017-399-0 01 1 9409-
129 PLATE; SEPARATOR,SIDE 8-96015-708-0 01 1 9301-9408
129 PLATE; SEPARATOR,SIDE 8-96017-395-0 01 1 9409-
157 SOLENOID; CONV CLU 8-96014-183-0 01 1 9301-
158 BOLT; SOLENOID 8-00117-461-0 02 1 9301-
179 HARNESS; SOLENOID WIRE 8-96014-855-0 01 1 9301-
182 SOLENOID; FORCE MOTOR 8-08677-314-0 01 1 9301-
183 RETAINER; FORCE MOTOR 8-96016-954-0 01 1 9301-
185 GASKET; ADAPTER TO TRANSFER PLATE 8-96014-966-0 01 1 9301-9408
185 GASKET; ADAPTER TO TRANSFER PLATE 8-96017-400-0 01 1 9409-
206 RING; SNAP 8-05258-185-0 01 1 9401-
210 STRAINER 8-96041-009-0 01 1 9212-
