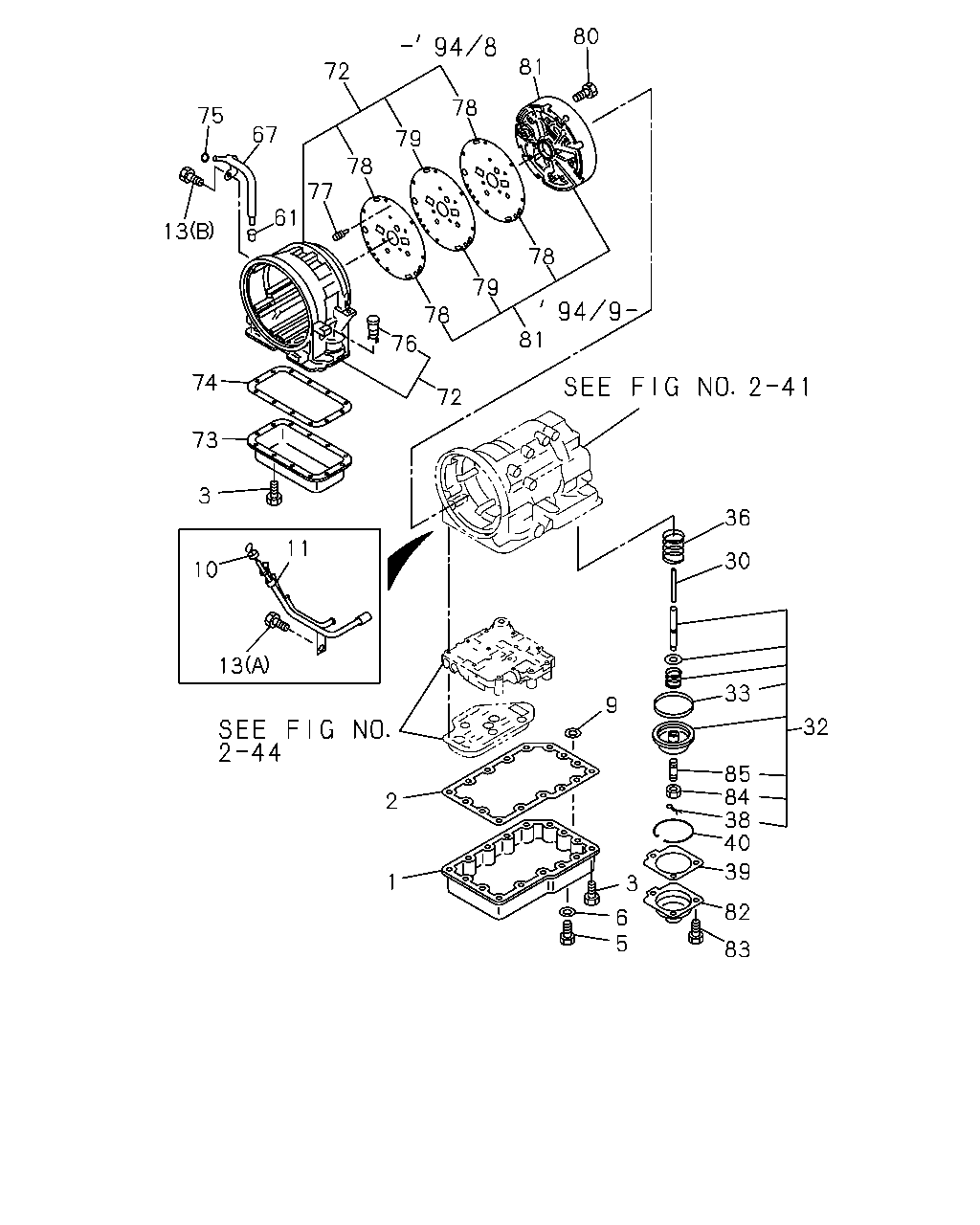

2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#45323) — 42 parça

80 81 78 79 72 78 77 61 13 67 75 74 73 3 10 11 13 72 76 78 79 78 81 36 30 33 32 85 84 38 40 39 82 83 5 6 3 1 2 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAN ASM; OIL,A/T	8-96016-562-0	01	1	9301-9511
1	PAN ASM; OIL,A/T	8-96017-876-0	01	1	9512-
2	GASKET; OIL PAN,A/T	8-96014-234-0	01	1	9301-
3	BOLT; OIL PAN TO CASE	8-96017-023-0	28	1	9301-
5	PLUG; OIL PAN	8-96015-481-0	02	1	9512-
6	GASKET; OIL PAN TO PLUG	8-01638-257-0	02	1	9512-
9	MAGNET; OIL PAN	8-96013-938-0	01	1	9301-
10	GAUGE; OIL LEVEL	8-97066-966-4	01	1	9301-9511
11	TUBE; OIL FILLER	8-97066-963-2	01	1	9301-9504
11	TUBE; OIL FILLER	8-97119-352-1	01	1	9505-9511
13	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28080-816-0	01	1	9301-
13	BOLT; OIL FILLER (B)	8-96017-023-0	01	1	9301-9511
30	ROD; VAC DIAPH,A/T	8-05258-182-0	01	1	9301-
32	PISTON ASM; SERVO,A/T	8-05258-183-0	01	1	9301-9408
32	PISTON ASM; SERVO,A/T	8-96017-601-0	01	1	9409-
33	SEAL; RING,SERVO PISTON,A/T	8-05258-159-0	01	1	9301-
36	SPRING; RETURN,SERVO PISTON,A/T	8-08958-931-0	01	1	9301-
38	RING; SNAP,SERVO PISTON,A/T	8-05258-185-0	01	1	9301-
39	GASKET; SERVO COVER	8-96014-414-0	01	1	9301-
40	RETAINER; SERVO PISTON,A/T	8-05258-121-0	01	1	9301-
61	SEAL; OIL FILTER	8-96014-690-0	01	1	9301-9302
61	SEAL; OIL FILTER	8-01259-475-0	01	1	9303-9511
67	TUBE; OIL FILLER,UPR,A/T	8-96015-118-0	01	1	9301-9511
72	CASE ASM; ADAPTER	8-96041-192-0	01	1	9301-9311
72	CASE ASM; ADAPTER	8-96017-512-0	01	1	9312-
73	PAN ASM; ADAPTER	8-96014-186-0	01	1	9301-
74	GASKET; ADAPTER PAN	8-96014-235-0	01	1	9301-
75	SEAL; FILTER TUBE	8-96014-673-0	01	1	9301-9511
76	CONNECTOR; ADAPTER CASE	8-96015-408-0	01	1	9301-
77	RESTRICTOR; OIL	8-96014-353-0	01	1	9301-
78	GASKET; ADAPTER PLATE	8-96016-514-0	02	1	9301-
79	PLATE; ADAPTER,CTR SUPPORT	8-96016-833-0	01	1	9301-
80	SCREW; CTR SUPPORT	8-96013-316-0	08	1	9301-
81	SUPPORT ASM; CENTER	8-96041-203-0	01	1	9301-9408
81	SUPPORT ASM; CENTER	8-96041-282-0	01	1	9409-
82	COVER; SERVO PISTON	8-96014-413-0	01	1	9301-
83	SCREW; SERVO COVER	8-96013-316-0	04	1	9301-
84	NUT; SERVO SCREW	8-00114-494-0	01	1	9301-9408
84	NUT; SERVO SCREW	8-96017-231-0	01	1	9409-
85	SCREW; SERVO PISTON	8-96014-010-0	01	1	9301-9408
85	SCREW; SERVO PISTON	8-96017-230-0	01	1	9409-9611
85	SCREW; SERVO PISTON	8-96018-235-0	01	1	9612-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
