◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP ▶
2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#45322) — 85 parça

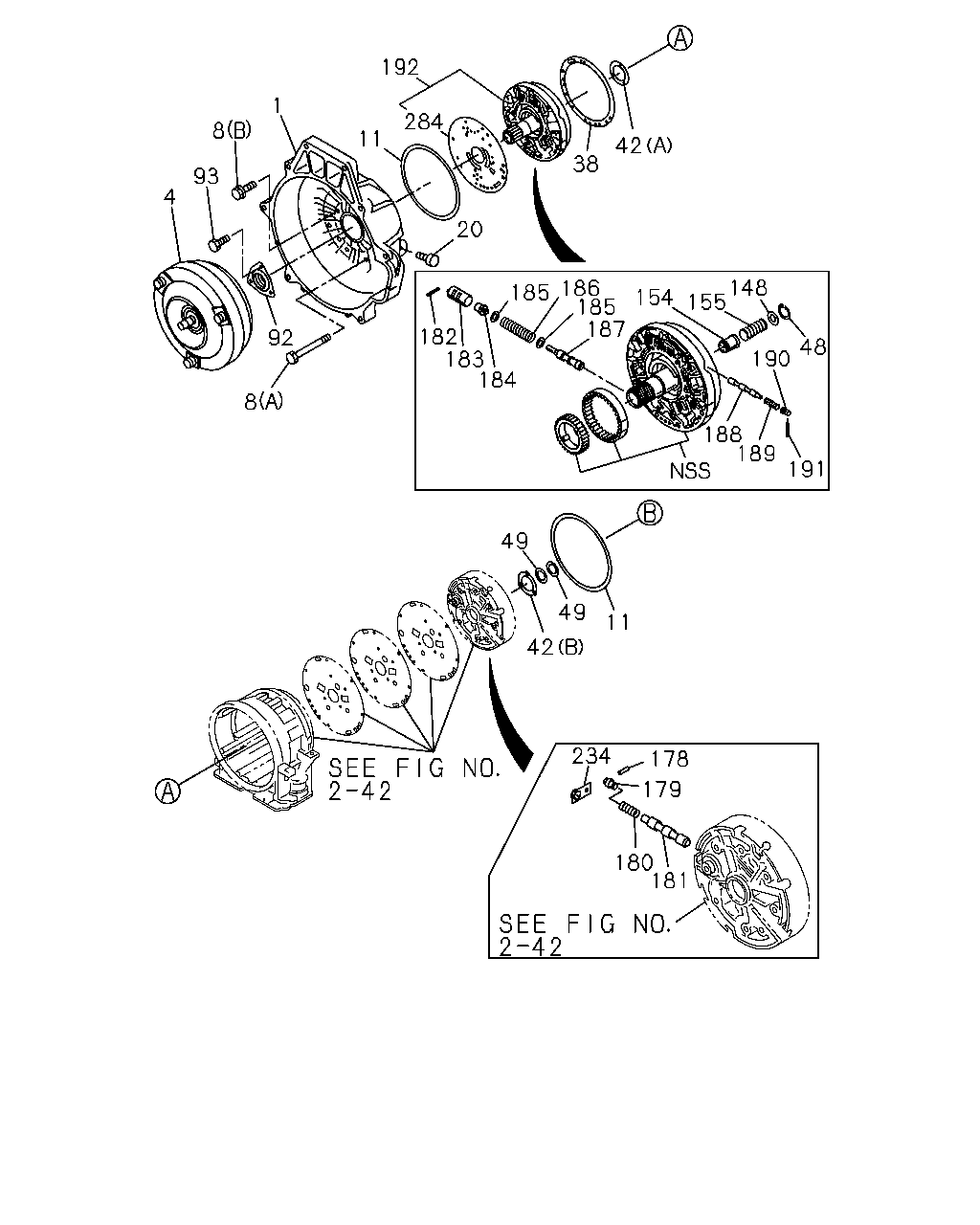

çizim 18624
192 284 11 1 8 93 4 92 8 20 38 42 185 186 185 187 154 155 148 48 190 191 189 188 184 183 182 49 11 49 42 234 178 179 180 181
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; CONV,A/T 8-96016-611-0 01 1 9301-9512
1 HOUSING; CONV,A/T 8-96042-197-0 01 1 9601-
4 CONVERTER ASM; TORQUE,A/T 8-08681-486-0 01 1 9301-9308
4 CONVERTER ASM; TORQUE,A/T 8-24200-145-0 01 1 9309-
8 BOLT; HSG TO CASE
(A) 		8-96016-795-0 07 1 9301-
8 BOLT; HSG TO CASE
(B) 		8-96013-210-0 05 1 9301-
11 RING; SEALING,TRANS CASE 8-96017-189-0 02 1 9301-
20 PLUG; TAPER,A/T CASE 8-08662-173-0 01 1 9301-
38 GASKET; OIL PUMP,A/T 8-96014-973-0 01 1 9301-
42 WASHER; OIL PUMP HSG,A/T
FRONT (A) YELLOW 		8-96013-761-0 01 1 9301-9408
42 WASHER; OIL PUMP HSG,A/T
FRONT (A) YELLOW 		8-96013-761-0 01 1 9409-
42 WASHER; OIL PUMP HSG,A/T
FRONT (A) RED 		8-96013-762-0 01 1 9301-9408
42 WASHER; OIL PUMP HSG,A/T
FRONT (A) RED 		8-96013-762-0 01 1 9409-
42 WASHER; OIL PUMP HSG,A/T
FRONT (A) BLACK 		8-96013-763-0 01 1 9301-9408
42 WASHER; OIL PUMP HSG,A/T
FRONT (A) BLACK 		8-96013-763-0 01 1 9409-
42 WASHER; OIL PUMP HSG,A/T
FRONT (A) NATURAL 		8-96013-764-0 01 1 9301-9408
42 WASHER; OIL PUMP HSG,A/T
FRONT (A) NATURAL 		8-96013-764-0 01 1 9409-
42 WASHER; OIL PUMP HSG,A/T
FRONT (A) GREEN 		8-96013-765-0 01 1 9301-9408
42 WASHER; OIL PUMP HSG,A/T
FRONT (A) GREEN 		8-96013-765-0 01 1 9409-
42 WASHER; OIL PUMP HSG,A/T
FRONT (A) BLUE 		8-96013-766-0 01 1 9301-9408
42 WASHER; OIL PUMP HSG,A/T
FRONT (A) BLUE 		8-96013-766-0 01 1 9409-
42 WASHER; OIL PUMP HSG,A/T
REAR (B) YELLOW 		8-96017-289-0 01 1 9301-
42 WASHER; OIL PUMP HSG,A/T
REAR (B) RED 		8-96017-290-0 01 1 9301-
42 WASHER; OIL PUMP HSG,A/T
REAR (B) BLACK 		8-96017-291-0 01 1 9301-
42 WASHER; OIL PUMP HSG,A/T
REAR (B) WHITE 		8-96017-292-0 01 1 9301-
42 WASHER; OIL PUMP HSG,A/T
REAR (B) GREEN 		8-96017-293-0 01 1 9301-
42 WASHER; OIL PUMP HSG,A/T
REAR (B) BLUE 		8-96017-294-0 01 1 9301-
48 RING; SNAP,OIL PUMP,A/T 8-96014-406-0 01 1 9301-
49 RING; OIL SEAL 8-96017-553-0 02 1 9301-
92 COVER ASM; A/T 8-96015-187-0 01 1 9301-
93 BOLT; COVER & BUSHING,A/T 8-96015-215-0 03 1 9301-
148 RETAINER; SPRING,CAM RING,OIL PUMP 8-96014-405-0 01 1 9301-
154 PISTON; ACCUMLATOR,OIL PUMP 8-96014-403-0 01 1 9301-
155 SPRING; SERVO,ACCUMLATOR PISTON,OIL PU 8-96014-404-0 01 1 9301-
178 PIN; LOCKOUT 8-96017-026-0 01 1 9301-9308
179 PLUG; LOCKOUT 8-96017-027-0 01 1 9301-
180 SPRING; LOCKOUT 8-96014-961-0 01 1 9301-
181 VALVE; LOCKOUT 8-96014-967-0 01 1 9301-
182 PIN; BOOST VALVE SLEEVE 8-08958-824-0 01 1 9301-
183 SLEEVE; BOOST VALVE 8-96016-067-0 01 1 9301-
184 VALVE; BOOST 8-96016-071-0 01 1 9301-
185 SEAT; SPR,REG VALVE 8-05258-219-0 02 1 9301-
186 SPRING; REG VALVE 8-96016-793-0 01 1 9301-9408
186 SPRING; REG VALVE 8-96017-526-0 01 1 9409-
187 VALVE; PRESSURE REG 8-96016-072-0 01 1 9301-
188 VALVE; CONV CLU CONT 8-96014-396-0 01 1 9301-
189 SPRING; CONV CLU CONT VALVE 8-96014-397-0 01 1 9301-
190 PLUG; CONV CLU CONT VALVE 8-96013-218-0 01 1 9301-
191 PIN; SPR,PLUG 8-96013-658-0 01 1 9301-
192 PUMP KIT; OIL 8-96041-092-0 01 1 9301-9408
192 PUMP KIT; OIL 8-96041-284-0 01 1 9409-
234 PLATE; RETAINER 8-96017-026-0 01 1 9309-
284 PLATE; WEAR,OIL PUMP 8-96014-995-0 01 1 9301-9408
284 PLATE; WEAR,OIL PUMP 8-96017-630-0 01 1 9409-9507
284 PLATE; WEAR,OIL PUMP 8-96017-926-0 01 1 9508-9511
284 PLATE; WEAR,OIL PUMP 8-96017-926-0 01 1 9512-
çizim 67644
164 162 163 9 16 2 176 177 15 167 12 27 27 128 121 285 17 193 3 57 68 68
BalonParca AdiParca NoAdetTipApplied Date
2 CASE ASM; A/T 8-96041-373-0 01 1 9301-9511
2 CASE ASM; A/T 8-96041-374-0 01 1 9512-9607
2 CASE ASM; A/T 8-96042-084-0 01 1 9608-9611
2 CASE ASM; A/T 8-96041-374-0 01 1 9612-
3 SEAL; OIL,RR COVER,A/T 8-96014-416-0 01 1 9301-
9 COVER ASM; RR,A/T 8-96042-194-0 01 1 9301-
12 CONNECTOR; OIL COOLER OUTLET PIPE 8-96015-476-0 01 1 9301-
15 BREATHER; A/T CASE 8-96015-793-0 01 1 9301-
16 GASKET; EXT HSG 8-96014-417-0 01 1 9301-
17 BOLT; REAR COVER TO CASE 8-96015-271-0 07 1 9301-
27 GASKET; HSG TO CASE 8-96014-270-0 02 1 9301-
57 SHAFT; TURBINE,A/T 8-96014-386-0 01 1 9301-9512
57 SHAFT; TURBINE,A/T 8-96018-034-0 01 1 9601-
68 RING; OIL SEAL,TURBINE SHAFT
(A) 		8-96015-717-0 03 1 9301-9408
68 RING; OIL SEAL,TURBINE SHAFT
(A) 		8-96017-484-0 02 1 9409-
68 RING; OIL SEAL,TURBINE SHAFT
(A) 		8-96041-327-0 01 1 9409-
68 RING; OIL SEAL,TURBINE SHAFT
(B) 		8-96013-953-0 01 1 9301-
121 CONNECTOR; ELEC 8-96015-409-0 01 1 9301-
128 ROLLER ASM; SPR,DETENT 8-96015-354-0 01 1 9301-
162 SENSOR; REVOLUTION,A/T CONT 8-96014-422-0 01 1 9301-
163 GASKET; REV SENSOR,A/T 8-96041-008-0 01 1 9301-9607
164 BOLT; REV SENSOR,A/T 8-96014-809-0 01 1 9301-
167 CONNECTOR; CASE,A/T 8-96015-477-0 01 1 9301-
176 RESERVOIR; MAIN CASE 8-96014-865-0 01 1 9301-
177 SEAL; MAIN CASE 8-96014-859-0 01 1 9301-9402
177 SEAL; MAIN CASE 8-96017-547-0 01 1 9403-
193 BEARING; OUTPUT SHAFT 8-96014-732-0 01 1 9301-
285 BRACKET; HARNESS 8-96017-916-0 01 1 9608-9611
285 BRACKET; HARNESS 8-96018-298-0 01 1 9612-
