0-40 — FUEL INJECTION SYSTEM (#4532) — 73 parça

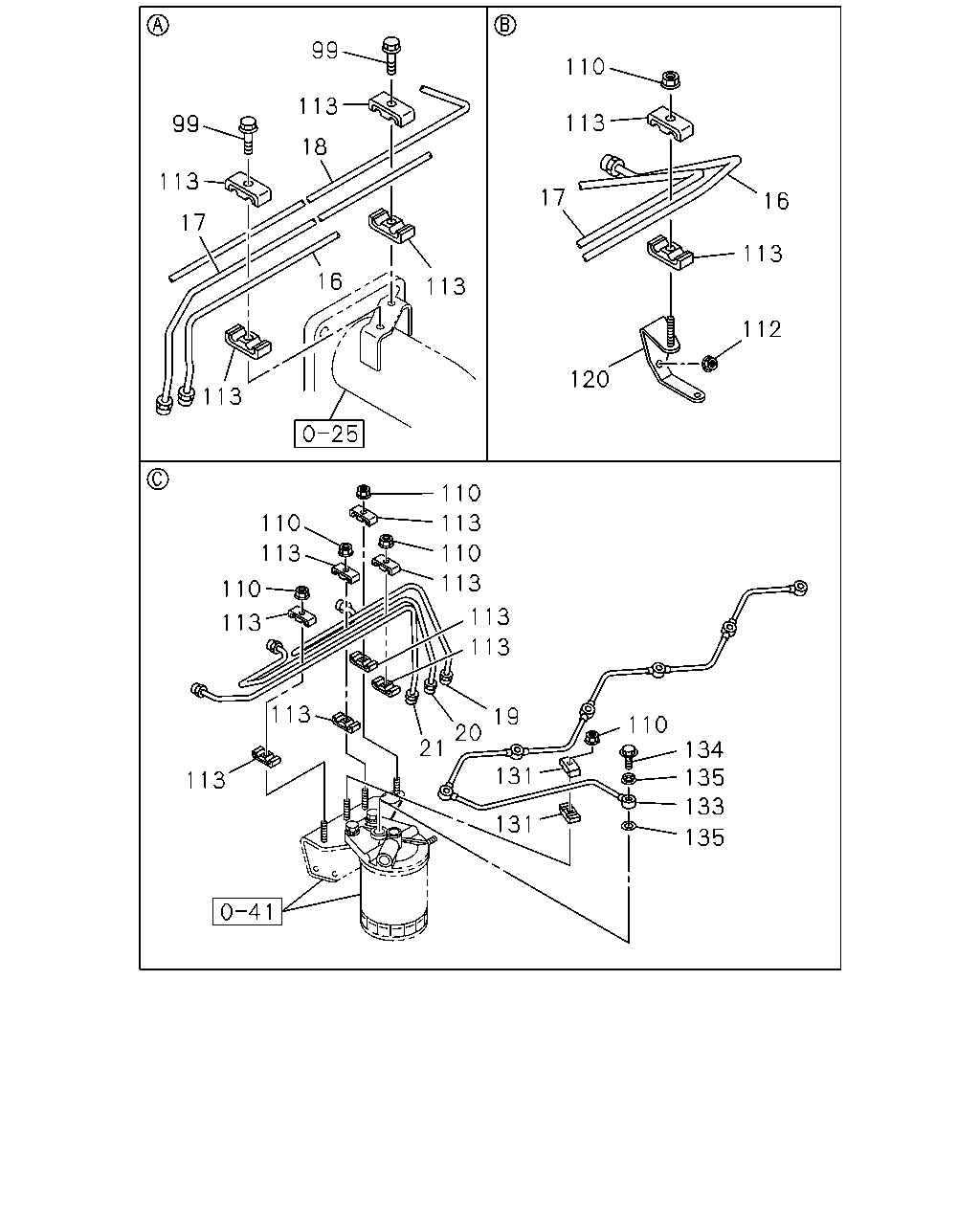

çizim 4746
99 110 113 113 99 18 113 17 16 17 113 16 113 112 120 113 110 110 113 113 110 113 110 113 113 113 113 19 110 20 21 134 135 131 113 133 131 135
BalonParca AdiParca NoAdetTipApplied Date
16 PIPE; INJ NO.1 1-15416-021-0 01 1 9712-
17 PIPE; INJ NO.2 1-15416-022-0 01 1 9712-
18 PIPE; INJ NO.3 1-15416-023-0 01 1 9712-
19 PIPE; INJ NO.4 1-15416-024-0 01 1 9712-
20 PIPE; INJ NO.5 1-15416-025-0 01 1 9712-
21 PIPE; INJ NO.6 1-15416-026-0 01 1 9712-
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28080-635-0 02 1 9712-
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 05 1 9712-
112 NUT; BRKT,INJ PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9712-
113 CLIP; INJ PIPE 1-09701-132-0 14 1 9712-
120 BRACKET; INJ PIPE 1-15419-524-1 01 1 9712-
131 CLIP; OVERFLOW LEAK OFF 1-09701-132-0 02 1 9712-
133 PIPE; INJ NOZZLE LEAK OFF 1-15416-027-0 01 1 9712-
134 BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 01 1 9712-
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9712-
272 NOZZLE KIT; INJ 1-15319-004-0 06 1 9811-
çizim 37694
31 32 34 36 36 140 44 43 47 45 138 140 43 33 35
BalonParca AdiParca NoAdetTipApplied Date
31 NOZZLE ASM; INJ 1-15300-359-0 06 1 9712-
32 HOLDER ASM; NOZZLE 1-15330-119-0 06 1 9712-
34 BOLT; EYE,NOZZLE HOLDER
M8X18 EYE-BOLT 		1-09675-037-1 06 1 9712-
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-111-0 06 1 9712-
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 12 1 9712-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) 		1-15342-002-0 06 1 9712-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) 		1-15342-003-0 06 1 9712-
44 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-005-0 06 1 9712-
45 ROD; PUSH,NOZZLE HOLDER 1-15349-129-0 06 1 9712-
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 1-15349-128-0 06 1 9712-
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-006-0 06 1 9712-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		1-15349-112-0 AR 1 9712-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		1-15349-113-0 AR 1 9712-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		1-15349-114-0 AR 1 9712-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		1-15349-115-0 AR 1 9712-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		1-15349-116-0 AR 1 9712-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		1-15349-117-0 AR 1 9712-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		1-15349-118-0 AR 1 9712-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		1-15349-119-0 AR 1 9712-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		1-15349-120-0 AR 1 9712-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		1-15349-121-0 AR 1 9712-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		1-15349-122-0 AR 1 9712-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		1-15349-123-0 AR 1 9712-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		1-15349-124-0 AR 1 9712-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		1-15349-125-0 AR 1 9712-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		1-15349-126-0 AR 1 9712-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		1-15349-127-0 AR 1 9712-
272 NOZZLE KIT; INJ 1-15319-004-0 06 1 9811-

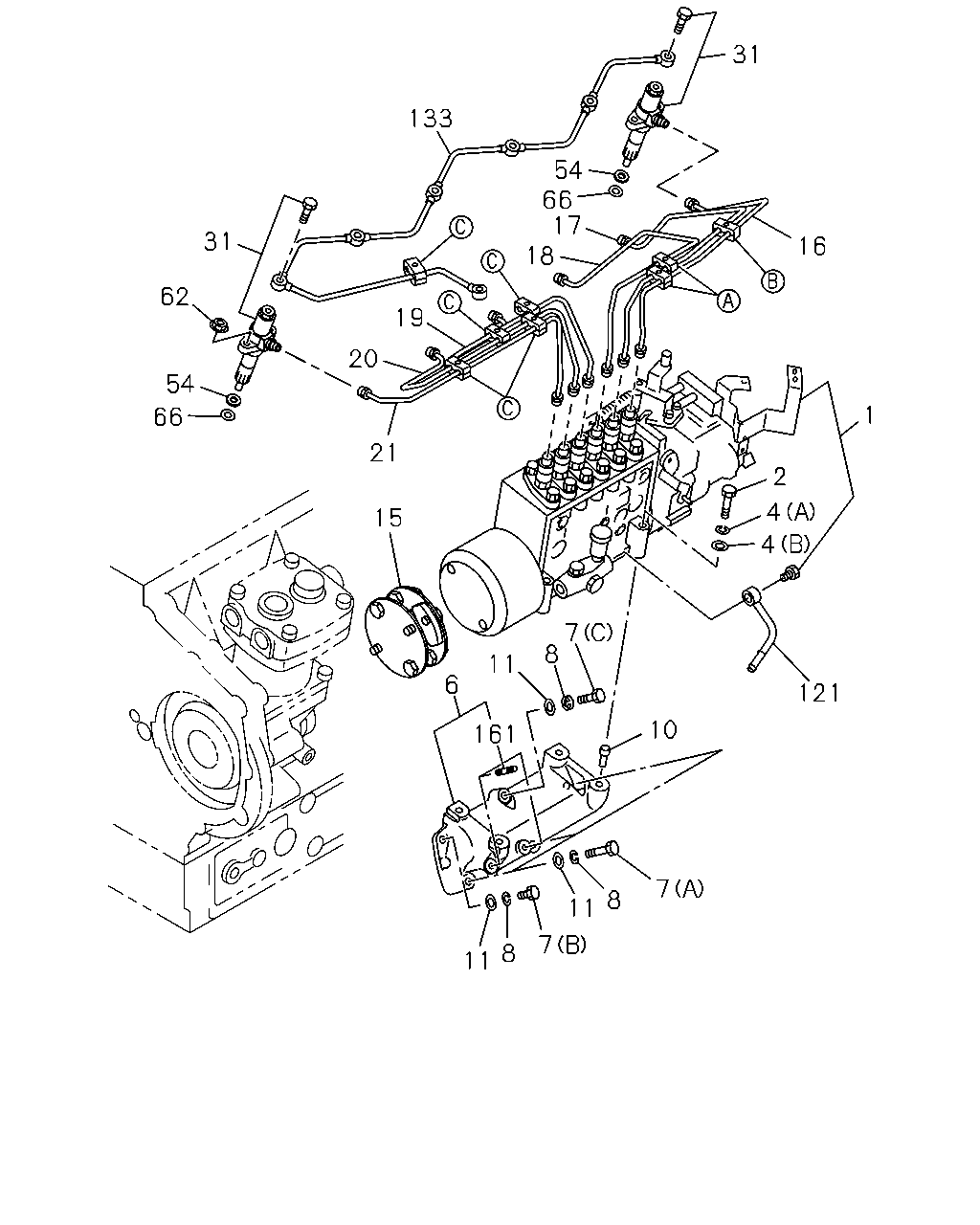

çizim 37722
31 133 54 66 17 18 31 16 62 19 20 54 1 66 21 2 4 15 4 7 8 11 6 121 10 161 7 8 11 7 8 11
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		1-15603-271-2 01 1 9712-
2 BOLT; INJ PUMP
M10X90 		0-16806-090-0 04 1 9712-
4 WASHER; INJ PUMP
(A) ID=10.2 		9-09150-510-0 04 1 9712-
4 WASHER; INJ PUMP
(B) ID=10.5 OD=18 		9-09160-510-0 04 1 9712-
6 BRACKET; INJ PUMP TO C/BL 1-19751-150-0 01 1 9712-0002
6 BRACKET; INJ PUMP TO C/BL 1-19751-168-0 01 1 0003-
7 BOLT; INJ PUMP BRKT
(A) M10X65 		0-16806-065-0 03 1 9712-0002
7 BOLT; INJ PUMP BRKT
M10X60 FLANGE 		0-28181-060-0 03 1 0003-
7 BOLT; INJ PUMP BRKT
(C) M10X35 		0-23801-035-0 01 1 9712-0002
7 BOLT; INJ PUMP BRKT
M10X40 FLANGE 		0-28781-040-0 01 1 0003-
7 BOLT; INJ PUMP BRKT
(B) M10X25 FLANGE 		0-28781-025-0 01 1 9712-
8 WASHER; LK,INJ PUMP BRKT
ID=10.2 		9-09150-510-0 04 1 9712-0002
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 9712-
11 WASHER; INJ PUMP BRKT
ID=10.5 OD=18 		9-09160-510-0 04 1 9712-0002
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		1-15780-111-1 01 1 9712-
16 PIPE; INJ NO.1 1-15416-021-0 01 1 9712-
17 PIPE; INJ NO.2 1-15416-022-0 01 1 9712-
18 PIPE; INJ NO.3 1-15416-023-0 01 1 9712-
19 PIPE; INJ NO.4 1-15416-024-0 01 1 9712-
20 PIPE; INJ NO.5 1-15416-025-0 01 1 9712-
21 PIPE; INJ NO.6 1-15416-026-0 01 1 9712-
31 NOZZLE ASM; INJ 1-15300-359-0 06 1 9712-
54 COVER; DUST,NOZZLE HOLDER 9-15339-051-0 06 1 9712-
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 9712-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-013-1 06 1 9712-
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15415-778-0 01 1 9712-
133 PIPE; INJ NOZZLE LEAK OFF 1-15416-027-0 01 1 9712-
161 STUD; INJ PUMP
M8X20 L=32 		9-04110-820-0 02 1 9712-
272 NOZZLE KIT; INJ 1-15319-004-0 06 1 9811-
