2-30 — GEAR SHIFTER AND QUADRANT BOX (#45319) — 70 parça

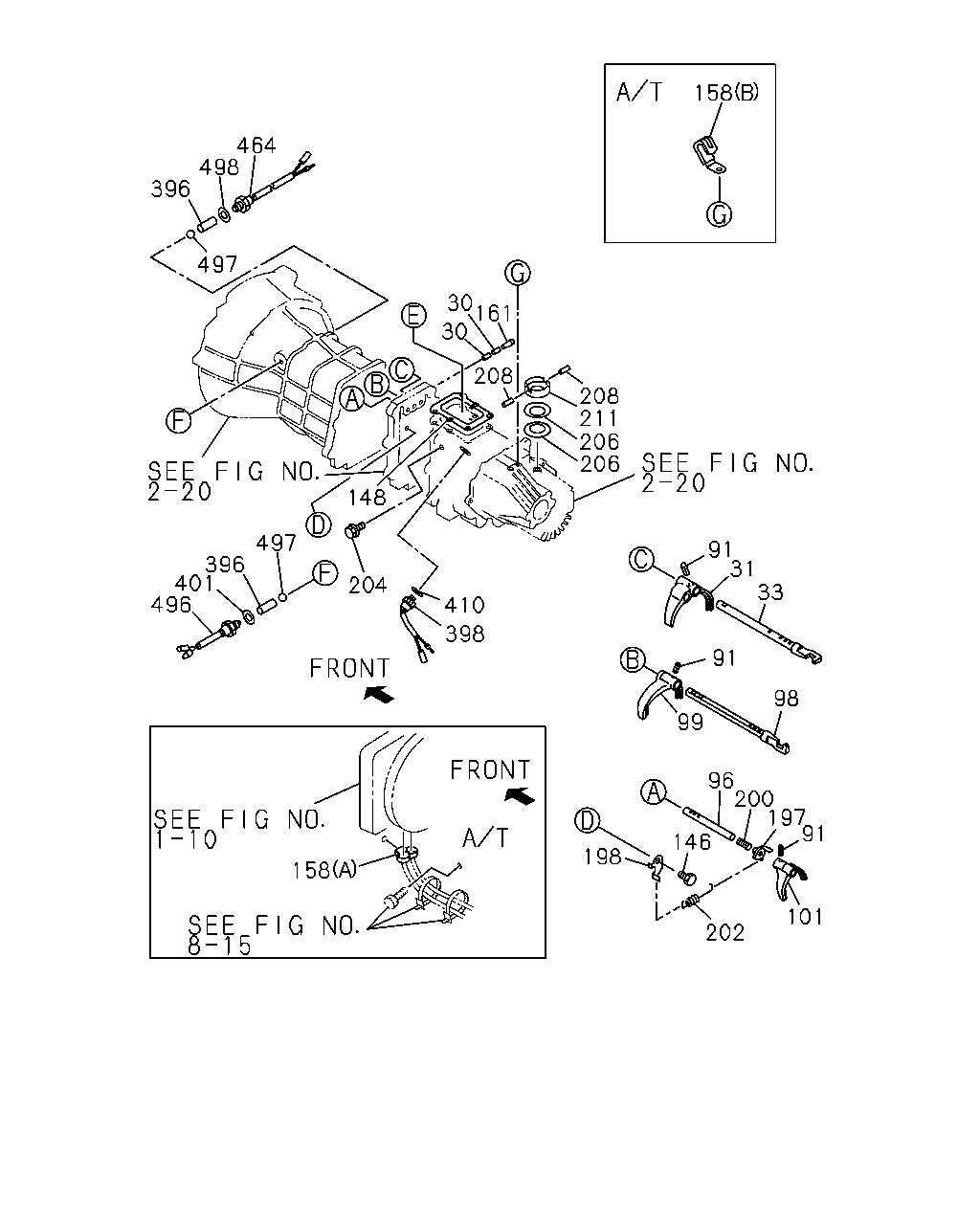

158 464 498 396 497 30 30 161 208 208 211 206 206 148 497 396 401 496 204 410 398 91 31 33 91 98 99 96 200 197 91 101 202 146 198 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	PIN; INTER LK	5-33534-002-1	02	1	9301-	●
31	ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	9301-	●
33	ROD; SHIFT,LOW & 2ND	8-97019-061-1	01	1	9301-	●
91	PIN; SPR,SHIFT ARM D=4.2 L=25	8-94171-541-0	03	1	9301-	●
96	ROD; SHIFT,5TH	8-94440-079-0	01	1	9301-	●
98	ROD; SHIFT,TOP & 3RD	8-97019-060-2	01	1	9301-	●
99	ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	9301-	●
101	ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	9301-	●
146	BOLT; REV INHIBITOR M8X22 FLANGE	0-28080-822-0	01	1	9301-9609	●
146	BOLT; REV INHIBITOR M8X20 FLANGE	0-28680-820-0	01	1	9610-	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94473-945-0	01	1	9301-9308	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	9309-	●
158	CLIP; HARNESS (A) ID=12	5-09700-350-0	01	1	9301-		●
158	CLIP; HARNESS (B) ID=24	8-97022-568-3	01	1	9301-		●
161	PLUG; INTER LK HOLE	8-94239-543-1	01	1	9301-	●
197	INHIBITOR; REV SHIFT	8-94448-753-0	01	1	9301-	●
198	BRACKET; REV INHIBITOR	8-94448-199-0	01	1	9301-	●
200	SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	9301-	●
202	SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	9301-	●
204	STOPPER; REV INHIBITOR	8-94479-434-2	01	1	9301-	●
206	SPRING; BALL SEAT	9-33619-632-0	02	1	9301-	●
208	PIN; BALL SEAT	8-94204-186-0	02	1	9301-	●
211	SEAT; BALL	5-33619-042-0	01	1	9301-	●
396	PLUNGER; SHIFT ROD L=43.7(TOP-3RD)	8-94225-227-0	01	1	9301-	●
396	PLUNGER; SHIFT ROD L=20.7(LOW-2ND)	8-94225-228-0	01	1	9301-	●
398	SWITCH; REV LAMP	8-94464-566-0	01	1	9301-9609	●
398	SWITCH; REV LAMP	8-97138-635-0	01	1	9610-	●
401	GASKET; SWITCH,TOP & 3RD ID=14.2 OD=20.0	9-09571-414-0	01	1	9301-	●
410	GASKET; REV SW ID=14.2 OD=20.0	9-09571-414-0	01	1	9301-	●
464	SWITCH; 1ST & 2ND	8-94411-366-1	01	1	9301-	●
496	SWITCH; TOP & 3RD	8-94411-366-1	01	1	9301-	●
497	BALL; SWITCH	9-00097-517-0	02	1	9301-	●
498	GASKET; SWITCH,1ST & 2ND ID=14.2 OD=20.0	9-09571-414-0	01	1	9301-	●

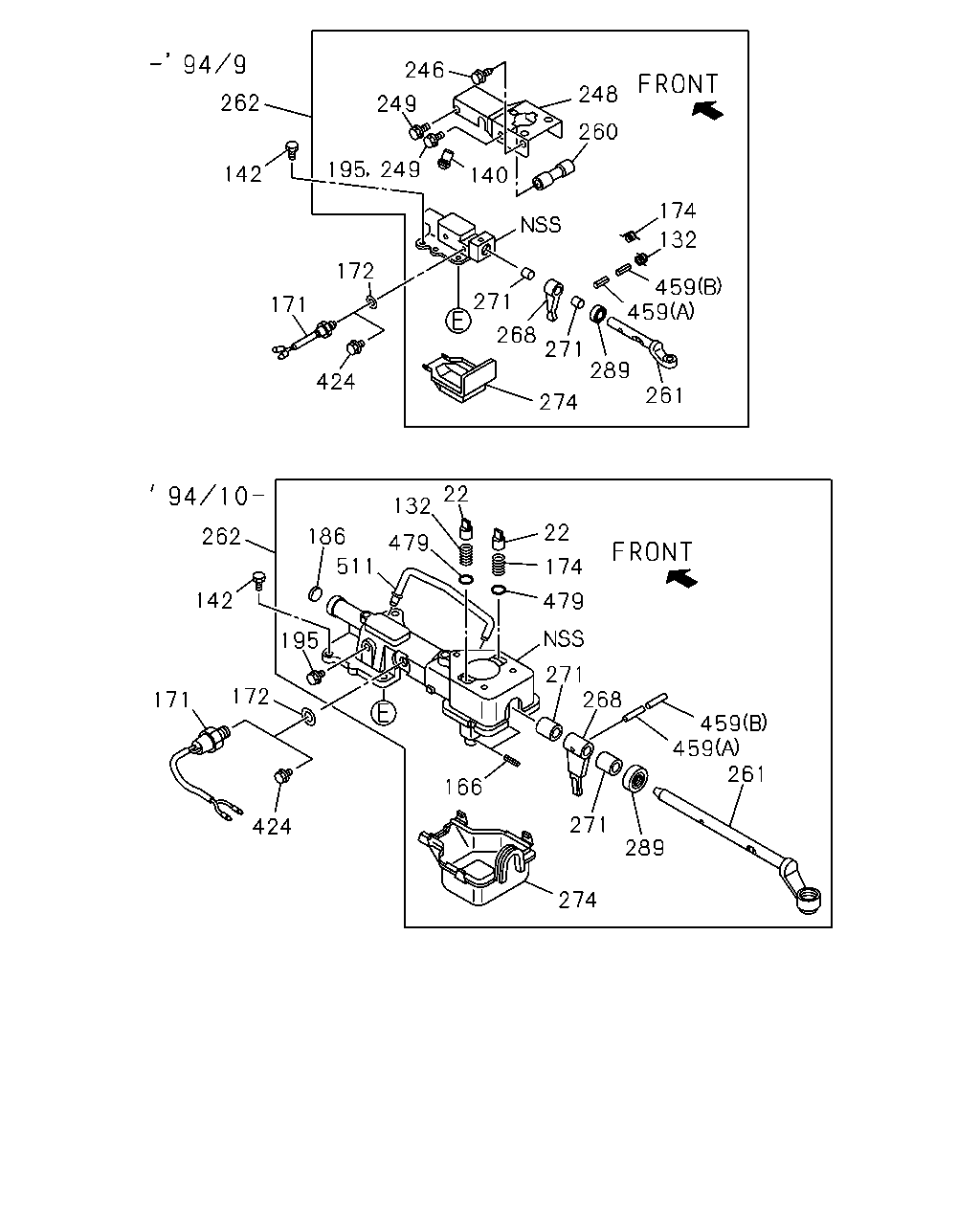

262 142 172 171 424 274 261 289 271 268 271 459 459 132 174 260 248 140 249 195 249 246 262 142 171 172 424 195 186 511 479 132 22 22 174 479 271 268 459 459 261 289 271 166 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
22	CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9410-	●
132	SPRING; SELECT STOP	8-94473-790-1	01	1	9301-9409	●
132	SPRING; SELECT STOP	8-97103-106-0	01	1	9410-	●
140	BREATHER; AIR,TRANS L=39	8-97035-693-2	01	1	9309-9409	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-94448-815-3	04	1	9301-	●
166	PIN; SPR,SELECT LEVER D=4.2 L=25	8-97103-142-0	02	1	9410-	●
171	SWITCH; NEUTRAL AUTO CRUISE CONT<K30>	5-82440-004-1	01	1	9301-9504	●
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9301-	●
174	SPRING; REV	8-94473-791-1	01	1	9301-9409	●
174	SPRING; REV	8-97103-105-0	01	1	9410-	●
186	PLUG; SHIFTER ROD OD=16	9-11129-081-0	01	1	9410-	●
195	BOLT M8X12 FLANGE	0-28080-812-0	02	1	9309-9409	●
195	BOLT M8X12 FLANGE	8-97049-142-0	01	1	9604-9604	●
195	BOLT M8X12 FLANGE	8-94479-696-1	01	1	9604-	●
246	SCREW; DUST COVER M4X10 FLANGE	8-94328-359-1	04	1	9301-9409	●
248	RETAINER; CONT BOX	8-94328-360-2	01	1	9301-9409	●
249	BOLT; RET,CONT BOX M8X12 FLANGE	8-97049-142-0	05	1	9301-9308	●
249	BOLT; RET,CONT BOX M8X12 FLANGE	8-97049-142-0	03	1	9309-9409	●
260	SHAFT; SPRING SET,CONT BOX	8-94473-789-0	01	1	9301-9409	●
261	ROD; GEAR CONT	8-94473-788-3	01	1	9301-9409	●
261	ROD; GEAR CONT	8-97103-090-0	01	1	9410-	●
262	BOX ASM; SHIFT CONT	8-97033-096-3	01	1	9301-9409	●
262	BOX ASM; SHIFT CONT	8-97100-878-2	01	1	9410-	●
268	LEVER; CONT,INTERNAL	8-94473-786-1	01	1	9301-9409	●
268	LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9410-	●
271	BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9301-	●
274	COVER; SHAFT,QUAD BOX	8-94473-785-2	01	1	9301-9409	●
274	COVER; SHAFT,QUAD BOX	8-97103-093-2	01	1	9410-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-94478-118-0	01	1	9301-	●
424	PLUG; NEUTRAL SW HOLE EXC. AUTO CRUISE CONT<K30> M14X9	9-99202-314-0	01	1	9301-9312	●
424	PLUG; NEUTRAL SW HOLE EXC. AUTO CRUISE CONT<K30> M14X11	8-94252-142-0	01	1	9401-9504	●
424	PLUG; NEUTRAL SW HOLE M14X11	8-94252-142-0	01	1	9505-9511	●
424	PLUG; NEUTRAL SW HOLE M14X11	8-94252-142-0	01	1	9512-	●
459	PIN; SPR,ROD TO ARM (A) OUTER OD=5.4	9-09678-510-0	01	1	9301-	●
459	PIN; SPR,ROD TO ARM (B) INNER OD=3.3	9-09678-519-0	01	1	9311-	●
479	PLATE; SELECT D=13	8-97103-110-0	02	1	9410-	●
511	PIPE; AIR	8-97104-725-0	01	1	9410-	●
