Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#45318) — 218 parça

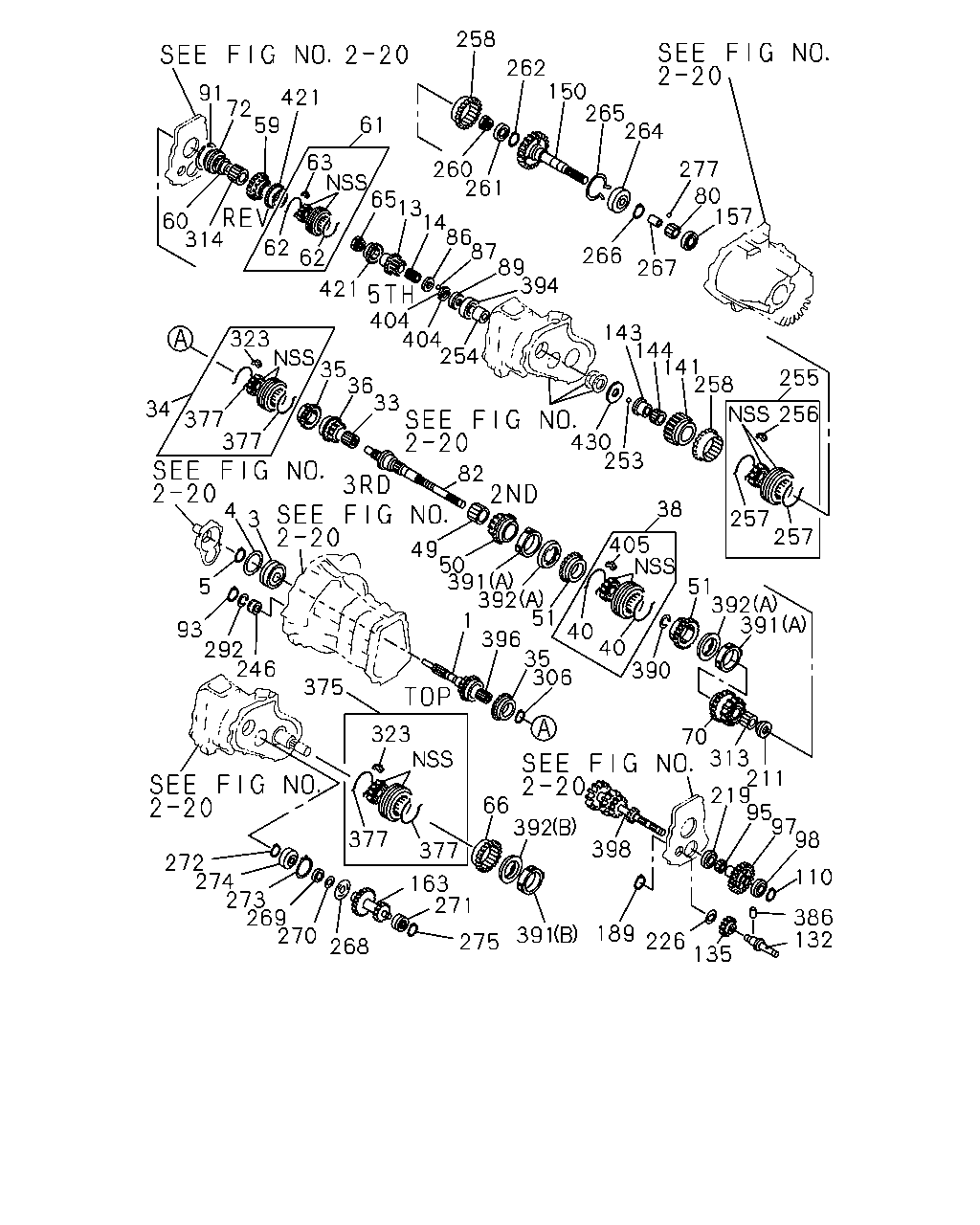

258 262 150 265 264 277 80 157 267 266 261 260 61 421 59 72 91 63 65 13 14 86 87 89 394 143 144 141 258 255 256 257 257 253 430 254 404 404 421 62 62 314 60 323 35 36 33 82 38 405 51 392 391 390 40 40 51 392 391 50 49 3 4 5 93 292 246 375 1 396 35 306 70 313 211 219 95 97 98 110 386 132 135 226 189 398 392 66 391 275 271 163 377 377 323 272 274 273 269 270 268 377 377 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=25	8-97041-579-3	01	1	9301-9409	●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97100-908-3	01	1	9410-	●
3	BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	9301-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	9301-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0	9-09180-040-0	01	1	9301-9303	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0 OD=53.0	8-94422-093-0	01	1	9304-	●
13	GEAR; 5TH,MAINSHAFT Z=22	8-97071-686-0	01	1	9301-9409	●
13	GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	9410-	●
14	BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	9301-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	9301-	●
34	SYNCHRONIZER; 4TH & 3RD	8-94421-869-2	01	1	9301-9412	●
34	SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	9501-	●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	9301-	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97065-100-0	01	1	9301-9409	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97104-022-2	01	1	9410-	●
38	SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	9301-	●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	9301-	●
49	BEARING; NEEDLE,2ND GEAR KOYO	9-00096-625-0	01	1	9301-	●
50	GEAR; 2ND,MAINSHAFT Z=33	8-97025-872-0	01	1	9301-	●
51	RING; BLOCK,LOW & 2ND Z=48	8-94363-054-0	02	1	9301-	●
59	GEAR; REV MAINSHAFT Z=40	8-94336-492-2	01	1	9301-9409	●
59	GEAR; REV MAINSHAFT Z=40	8-97104-024-2	01	1	9410-	●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	9301-	●
61	SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	9301-	●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	9301-	●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	9301-	●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	9301-	●
66	RING; BLOCK,SYN	8-97102-296-0	01	1	9512-9612	●	●
66	RING; BLOCK,SYN	8-97169-516-0	01	1	9701-	●	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-94363-057-0	01	1	9301-	●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	9301-	●
80	GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9301-	●	●
82	SHAFT; MAIN,TRANS Z=28-34-26-27	8-97029-307-0	01	1	9301-9504	●
82	SHAFT; MAIN,TRANS Z=28-34-26-27	8-97120-039-0	01	1	9505-	●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	9301-	●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	9301-	●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	9301-	●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	9301-	●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	9301-	●
89	RING; RET,THRUST RING	8-94422-395-0	01	1	9301-	●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	9301-	●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	9301-	●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	9301-	●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	9301-	●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	9301-	●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	9301-	●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	9301-	●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	9301-	●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	9301-	●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	9301-	●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	9301-	●
132	SHAFT; REV	8-97019-155-0	01	1	9301-	●
135	GEAR; REV IDLER Z=33	8-94377-435-0	01	1	9301-	●
141	GEAR; INPUT,TRANSFER Z=34	8-97018-362-0	01	1	9301-9504	●	●
141	GEAR; INPUT,TRANSFER Z=34	8-97120-121-0	01	1	9505-9607	●	●
141	GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	9608-	●	●
143	COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9301-	●	●
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-028-1	01	1	9301-	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97018-363-1	01	1	9301-9501	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97113-405-0	01	1	9502-9504	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97120-122-0	01	1	9505-9607	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97141-879-0	01	1	9608-9703	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9704-	●	●
157	BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-0	01	1	9301-	●	●
163	GEAR; COUNTER,TRANSFER Z=38-23	8-94367-604-0	01	1	9301-9504	●	●
163	GEAR; COUNTER,TRANSFER Z=38-23	8-97120-124-0	01	1	9505-9607	●	●
163	GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	9608-	●	●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	9301-	●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	9301-	●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	9301-	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	9301-	●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	9301-	●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-0	01	1	9301-	●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-3	01	1	9301-	●
246	BEARING; ROLLER,COUNTER SHAFT FRT KOYO	8-97029-601-1	01	1	9408-9504	●
253	BALL; INPUT	8-94201-356-0	01	1	9301-	●	●
254	COLLAR; TRANSFER	8-94483-030-2	01	1	9301-	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97030-109-0	01	1	9301-9607	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97141-885-1	01	1	9608-	●	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97033-098-0	01	1	9301-9607		●
256	INSERT; SYN,LOW-HIGH,TRANSFER	8-94363-062-0	03	1	9301-9607	●
257	SPRING; INSERT,LOW-HIGH SYN,TRANSFER	8-94448-045-0	02	1	9301-9607	●
258	RING; BLOCK,LOW-HIGH SYN,TRANSFER Z=42	8-97019-042-0	02	1	9301-9607	●
260	NUT; MAINSHAFT END M30	8-94422-072-1	01	1	9301-	●
260	NUT; MAINSHAFT END M27	8-94388-182-1	01	1	9301-		●
261	BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9301-	●	●
262	RING; SNAP,PILOT BRG ID=23.2	9-09180-025-0	01	1	9301-	●	●
264	BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-0	01	1	9301-	●	●
264	BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	9512-	●	●
265	RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9301-	●	●
266	RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9301-	●	●
267	COLLAR; RR OUTPUT SHAFT,TRANSFER	8-94368-835-1	01	1	9301-9501	●	●
268	PLATE; ANTI LASH,COUNTER	8-94320-567-0	01	1	9301-9607	●	●
268	PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	9608-	●	●
269	SPACER; ANTI LASH PLATE,COUNTER	8-94482-469-1	01	1	9301-	●	●
270	SPRING; BELLEVILLE,ANTI LASH,TRANSFER	8-94482-498-0	01	1	9309-	●	●
271	BEARING; COUNTER GEAR,FRT NSK	8-94422-050-0	01	1	9301-	●	●
272	RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9301-9403	●
272	RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9404-	●
272	RING; SNAP,BRG INNER T=1.60 BLUE	8-94448-810-0	01	1	9301-	●
272	RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9301-9403	●	●
272	RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9404-	●	●
273	RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9301-	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9301-9405	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97113-429-0	01	1	9406-9706	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9707-	●	●
274	BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9301-9405	●	●
274	BEARING; COUNTER GEAR,RR KOYO	8-97113-430-0	01	1	9406-9706	●	●
274	BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9707-	●	●
275	RING; SNAP,COUNTER GEAR BRG ID=23.2	9-09180-025-0	01	1	9301-	●	●
277	BALL; SPD DRIVE GEAR	8-94201-356-0	01	1	9301-	●	●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	9301-	●
306	RING; SNAP,MAINSHAFT T=1.80 WHITE	8-94422-094-0	01	1	9301-9503	●
306	RING; SNAP,MAINSHAFT T=1.80 WHITE	8-97129-617-0	01	1	9504-9504	●
306	RING; SNAP,MAINSHAFT T=1.85 YELLOW	8-94422-095-0	01	1	9301-9503	●
306	RING; SNAP,MAINSHAFT T=1.85 YELLOW	8-97129-616-0	01	1	9504-9504	●
306	RING; SNAP,MAINSHAFT T=1.90 BLUE	8-94422-096-0	01	1	9301-9503	●
306	RING; SNAP,MAINSHAFT T=1.90 BLUE	8-97129-615-0	01	1	9504-9504	●
306	RING; SNAP,MAINSHAFT T=1.80 WHITE	8-94422-094-0	01	1	9505-9505	●
306	RING; SNAP,MAINSHAFT 950515- T=1.80 WHITE	8-97129-617-0	01	1	9505-	●
306	RING; SNAP,MAINSHAFT T=1.85 YELLOW	8-94422-095-0	01	1	9505-9505	●
306	RING; SNAP,MAINSHAFT 950515- T=1.85 YELLOW	8-97129-616-0	01	1	9505-	●
306	RING; SNAP,MAINSHAFT T=1.90 BLUE	8-94422-096-0	01	1	9505-9505	●
306	RING; SNAP,MAINSHAFT 950515- T=1.90 BLUE	8-97129-615-0	01	1	9505-	●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	9301-	●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	9301-	●
323	INSERT	8-94448-202-1	03	1	9301-9511	●
323	INSERT	8-94448-202-1	06	1	9512-	●
323	INSERT	8-94448-202-1	03	1	9512-		●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-94457-785-1	01	1	9301-9412	●	●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-97104-026-0	01	1	9501-9511	●	●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-97104-027-0	01	1	9512-	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	02	1	9301-9511	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	04	1	9512-	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	02	1	9512-		●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	9301-	●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	9301-	●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	9301-	●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	9301-	●
391	RING; INSIDE,SYN (A)	8-94363-056-0	02	1	9301-	●
391	RING; INSIDE,SYN (B)	8-97101-452-0	01	1	9512-	●	●
392	RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-0	02	1	9301-	●
392	RING; OUTSIDE,SYN (B)	8-94455-344-2	01	1	9512-9612	●	●
392	RING; OUTSIDE,SYN	8-97169-514-0	01	1	9701-	●	●
394	BEARING; BALL,MAINSHAFT RR NSK	8-97018-921-1	01	1	9301-	●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	9301-	●
398	GEAR; COUNTER Z=46-38-27-21	8-97025-871-1	01	1	9301-9409	●
398	GEAR; COUNTER Z=46-38-27-21	8-97100-912-0	01	1	9410-	●
404	PLATE; THRUST	8-94421-892-0	02	1	9301-	●
405	INSERT; SYN,LOW & 2ND	8-94363-062-0	03	1	9301-	●
421	RING; BLOCK,REV & 5TH REV	8-94377-438-1	01	1	9301-9409	●
421	RING; BLOCK,REV & 5TH 5TH Z=36	8-97071-688-0	01	1	9301-9409	●
421	RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	9410-	●
430	PLATE; OIL SEAL,TRANSFER	8-94482-379-2	01	1	9301-	●

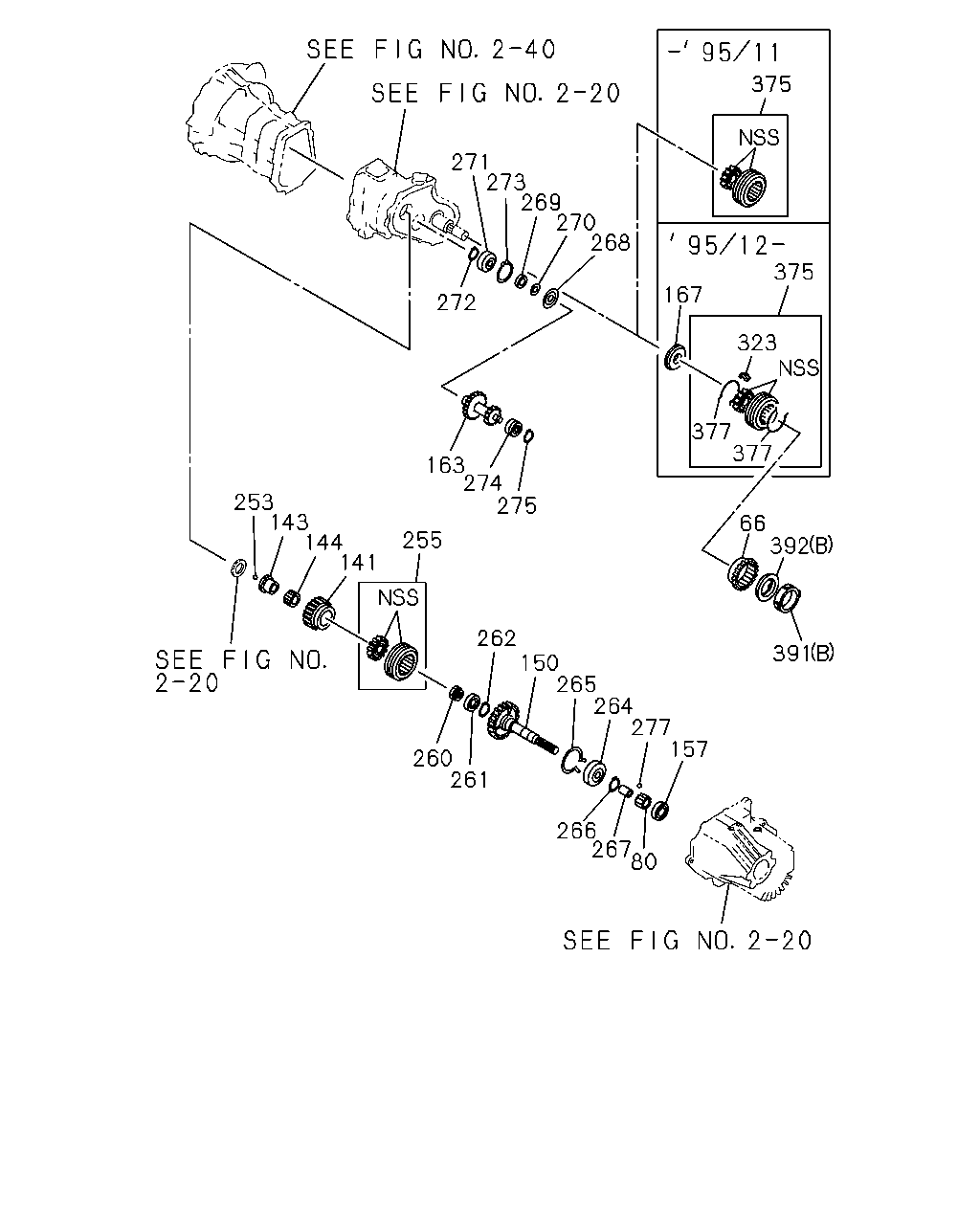

271 273 269 270 268 375 375 167 323 377 377 66 392 391 275 274 163 272 253 143 144 141 255 262 150 265 264 277 157 80 267 266 261 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
66	RING; BLOCK,SYN	8-97102-296-0	01	1	9512-9612	●	●
66	RING; BLOCK,SYN	8-97169-516-0	01	1	9701-	●	●
80	GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9301-	●	●
141	GEAR; INPUT,TRANSFER Z=34	8-97018-362-0	01	1	9301-9504	●	●
141	GEAR; INPUT,TRANSFER Z=34	8-97120-121-0	01	1	9505-9607	●	●
141	GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	9608-	●	●
143	COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9301-	●	●
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-028-1	01	1	9301-	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97018-363-1	01	1	9301-9501	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97113-405-0	01	1	9502-9504	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=47	8-97120-122-0	01	1	9505-9607	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97141-879-0	01	1	9608-9703	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9704-	●	●
157	BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-0	01	1	9301-	●	●
163	GEAR; COUNTER,TRANSFER Z=38-23	8-94367-604-0	01	1	9301-9504	●	●
163	GEAR; COUNTER,TRANSFER Z=38-23	8-97120-124-0	01	1	9505-9607	●	●
163	GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	9608-	●	●
167	PLATE; LK,COUNTER SHAFT,TRANSFER	8-97102-940-0	01	1	9512-		●
253	BALL; INPUT	8-94201-356-0	01	1	9301-	●	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97030-109-0	01	1	9301-9607	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97141-885-1	01	1	9608-	●	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97033-098-0	01	1	9301-9607		●
260	NUT; MAINSHAFT END M30	8-94422-072-1	01	1	9301-	●
260	NUT; MAINSHAFT END M27	8-94388-182-1	01	1	9301-		●
261	BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9301-	●	●
262	RING; SNAP,PILOT BRG ID=23.2	9-09180-025-0	01	1	9301-	●	●
264	BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-0	01	1	9301-	●	●
264	BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	9512-	●	●
265	RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9301-	●	●
266	RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9301-	●	●
267	COLLAR; RR OUTPUT SHAFT,TRANSFER	8-94368-835-1	01	1	9301-9501	●	●
268	PLATE; ANTI LASH,COUNTER	8-94320-567-0	01	1	9301-9607	●	●
268	PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	9608-	●	●
269	SPACER; ANTI LASH PLATE,COUNTER	8-94482-469-1	01	1	9301-	●	●
270	SPRING; BELLEVILLE,ANTI LASH,TRANSFER	8-94482-498-0	01	1	9309-	●	●
271	BEARING; COUNTER GEAR,FRT NSK	8-94422-050-0	01	1	9301-	●	●
272	RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9301-9403	●
272	RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9404-	●
272	RING; SNAP,BRG INNER T=1.60 BLUE	8-94448-810-0	01	1	9301-	●
272	RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9301-9403	●	●
272	RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9404-	●	●
273	RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9301-	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9301-9405	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97113-429-0	01	1	9406-9706	●	●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9707-	●	●
274	BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9301-9405	●	●
274	BEARING; COUNTER GEAR,RR KOYO	8-97113-430-0	01	1	9406-9706	●	●
274	BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9707-	●	●
275	RING; SNAP,COUNTER GEAR BRG ID=23.2	9-09180-025-0	01	1	9301-	●	●
277	BALL; SPD DRIVE GEAR	8-94201-356-0	01	1	9301-	●	●
323	INSERT	8-94448-202-1	03	1	9301-9511	●
323	INSERT	8-94448-202-1	06	1	9512-	●
323	INSERT	8-94448-202-1	03	1	9512-		●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-94457-785-1	01	1	9301-9412	●	●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-97104-026-0	01	1	9501-9511	●	●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-97104-027-0	01	1	9512-	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	02	1	9301-9511	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	04	1	9512-	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	02	1	9512-		●
391	RING; INSIDE,SYN (A)	8-94363-056-0	02	1	9301-	●
391	RING; INSIDE,SYN (B)	8-97101-452-0	01	1	9512-	●	●
392	RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-0	02	1	9301-	●
392	RING; OUTSIDE,SYN (B)	8-94455-344-2	01	1	9512-9612	●	●
392	RING; OUTSIDE,SYN	8-97169-514-0	01	1	9701-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
