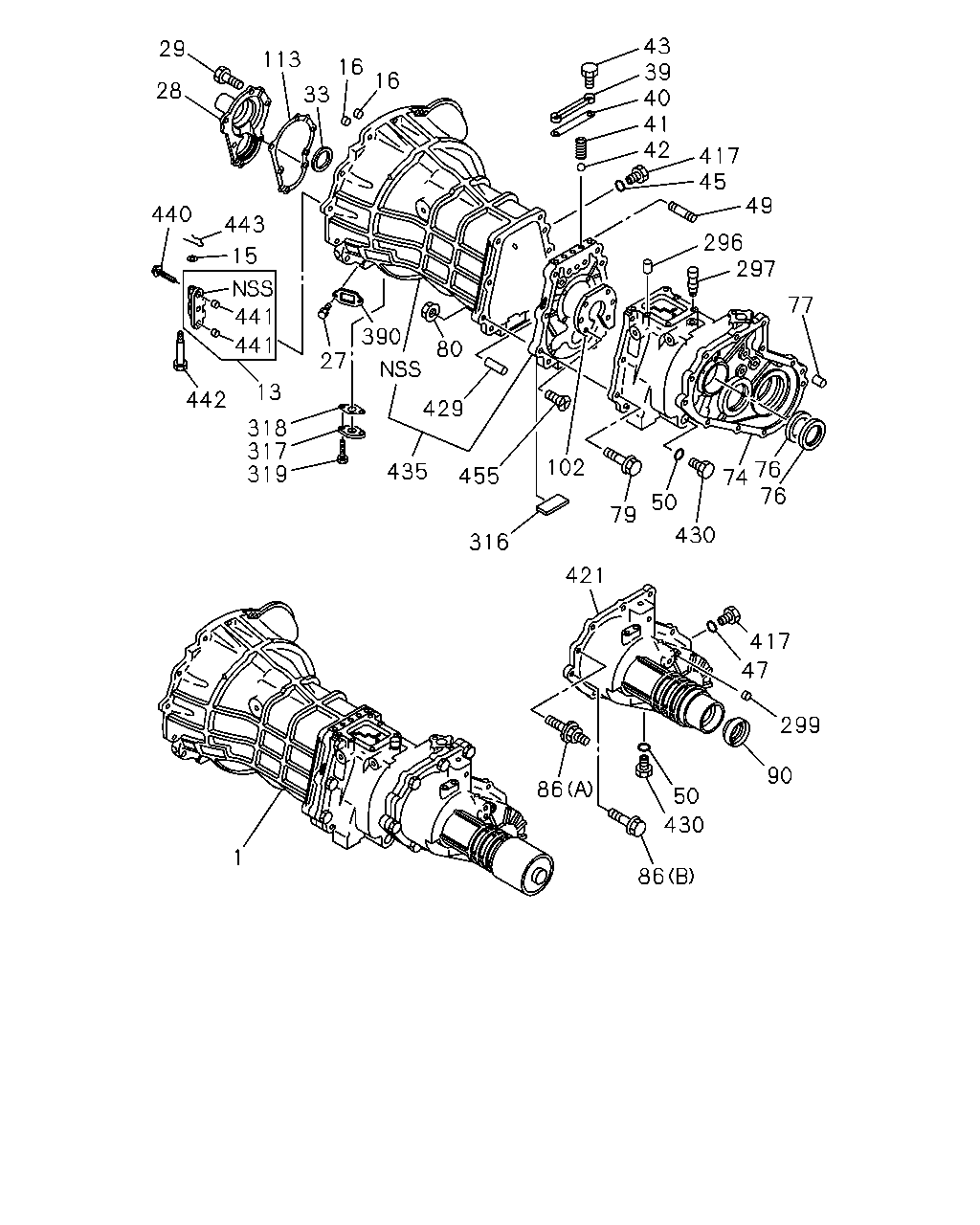

2-20 — MANUAL TRANSMISSION ASM AND CASE (#45316) — 115 parça

43 39 40 41 42 417 45 49 296 297 77 76 76 74 430 50 79 102 316 455 435 429 80 390 27 318 317 319 13 442 441 441 15 443 440 28 29 113 33 16 16 421 417 47 299 90 50 430 86 86 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL	8-97084-389-0	01	1	9301-9409	●
1	TRANSMISSION ASM; MANUAL	8-97103-984-0	01	1	9410-9511	●
1	TRANSMISSION ASM; MANUAL	8-97120-515-0	01	1	9512-9607	●
1	TRANSMISSION ASM; MANUAL	8-97138-652-0	01	1	9608-	●
13	SUPPORT; SHIFT FORK	8-97033-703-1	01	1	9301-	●
15	WASHER; PL ID=8.4 OD=22	9-09160-708-0	01	1	9301-	●
16	PLUG; SHIFT ROD OD=14	5-09609-004-0	02	1	9301-	●
27	BOLT; COVER TO CLU HSG M6X12 FLANGE	0-28080-612-0	02	1	9301-	●
28	COVER; FRT,TRANS CASE	8-94377-430-1	01	1	9301-9409	●
28	COVER; FRT,TRANS CASE	8-97104-678-0	01	1	9410-	●
29	BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	9301-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	9301-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	9301-	●
39	PLATE; DETENT SPR	8-94373-864-1	01	1	9301-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	9301-9308	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	9309-	●
41	SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	9301-	●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	9301-	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	0-28080-822-0	02	1	9301-9409	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-94448-815-3	02	1	9410-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	01	1	9301-9407	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9408-	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	01	1	9301-9407	●	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9408-	●	●
49	STUD; TRANSFER CASE M10X51.5 L=72	8-97036-714-1	01	1	9301-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	02	1	9301-9407	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	9408-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	01	1	9301-9407		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9408-		●
74	CASE ASM; TRANSFER	8-97027-772-5	01	1	9301-	●
74	CASE ASM; TRANSFER	8-97033-097-0	01	1	9301-9612		●
74	CASE ASM; TRANSFER	8-97164-349-0	01	1	9701-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	02	1	9301-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	02	1	9301-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9301-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	9301-		●
77	PIN; KNOCK,TRANSFER CASE OD=10 L=20	9-08161-020-0	02	1	9301-9507	●	●
77	PIN; KNOCK,TRANSFER CASE OD=10 L=20	8-97135-423-0	02	1	9508-	●	●
79	BOLT; TRANSFER CASE M10X55 FLANGE	8-94473-959-1	07	1	9301-	●
80	NUT; TRANSFER CASE M10 FLANGE	0-91150-210-0	01	1	9301-9301	●
80	NUT; TRANSFER CASE M10 FLANGE	0-91150-110-0	01	1	9302-	●
86	BOLT; RR COVER (A) M10X18,M10X35 L=63	8-94367-310-1	01	1	9301-9407	●
86	BOLT; RR COVER (B) M10X35 FLANGE	8-94448-818-1	10	1	9301-9407	●
86	BOLT; RR COVER (B) M10X35 FLANGE	8-94448-818-1	11	1	9408-	●	●
86	BOLT; RR COVER (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	9301-9301		●
86	BOLT; RR COVER (B) M10X35 FLANGE	8-94448-818-1	09	1	9301-9301		●
86	BOLT; RR COVER (B) M10X35 FLANGE	8-94448-818-1	11	1	9302-9407		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-706-0	01	1	9301-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-707-2	01	1	9301-	●	●
102	RETAINER; BRG UPR,MAINSHAFT	8-94448-042-0	01	1	9301-9601	●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	9602-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-946-0	01	1	9301-9308	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	9309-	●
296	PIN; QUAD BOX TO CASE OD=6 L=12	9-08150-612-0	02	1	9301-	●
297	BREATHER; AIR,TRANSFER CASE	8-97035-694-2	01	1	9301-	●	●
299	PLUG; SHIFTER ROD OD=14	5-09609-004-0	03	1	9301-	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	9301-	●
317	COVER; CASE FLOOR REMOTE SHIFT<M11>	8-97034-422-1	01	1	9301-	●
318	GASKET; COVER	8-97035-567-0	01	1	9301-	●
319	BOLT; COVER M6X12 FLANGE	0-28080-612-0	02	1	9301-	●
390	COVER; DUST,CLU SHIFT	8-94380-259-1	01	1	9301-	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	02	1	9301-	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	9301-		●
421	COVER; RR,TRANS	8-97069-364-5	01	1	9301-	●	●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	9301-	●
430	PLUG; OIL DRAIN	9-09662-004-0	02	1	9301-	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	9301-		●
435	CASE; TRANS	8-97019-056-0	01	1	9301-9607	●
435	CASE; TRANS	8-97120-625-0	01	1	9608-9705	●
435	CASE; TRANS	8-97149-234-1	01	1	9706-	●
440	BOLT; SUPPORT M10X25 FLANGE	0-28181-025-0	03	1	9301-	●
441	DOWEL; SUPPORT	8-97049-712-0	02	1	9301-	●
442	PIN; SHIFT FORK	8-94377-424-1	01	1	9301-	●
443	PIN; SNAP,SHIFT FORK L=27.7	1-09747-005-0	01	1	9301-	●
455	SCREW; BRG RET M8X22	8-94388-328-1	04	1	9301-9408	●
455	SCREW; BRG RET M8X22	8-97062-754-0	04	1	9409-	●

445 438 123 123 123 123 4 9 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOLT; FLYWHEEL HSG (B) M12X45 FLANGE	0-28181-245-0	02	1	9301-	●
4	BOLT; FLYWHEEL HSG (A) M10X40 FLANGE	0-28181-040-0	02	1	9301-	●	●
9	STIFFENER; C/BL	8-94389-545-2	01	1	9301-9304	●	●
9	STIFFENER; C/BL	8-97088-743-2	01	1	9305-	●	●
123	DOWEL; TRANS CASE	8-94134-791-0	02	1	9301-9307	●	●
123	DOWEL; TRANS CASE	8-94325-506-1	02	1	9308-	●	●
438	PROTECTOR; HEAT,SLAVE CYL	8-97066-178-1	01	1	9301-9308	●
438	PROTECTOR; HEAT,SLAVE CYL	8-97094-632-0	01	1	9309-	●
445	BOLT; HEAT PROTECTOR M6X12 FLANGE	0-28080-612-0	02	1	9301-	●

297 77 421 417 47 299 90 50 430 86 76 76 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	01	1	9301-9407	●	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9408-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	02	1	9301-9407	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	9408-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09720-560-0	01	1	9301-9407		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9408-		●
74	CASE ASM; TRANSFER	8-97027-772-5	01	1	9301-	●
74	CASE ASM; TRANSFER	8-97033-097-0	01	1	9301-9612		●
74	CASE ASM; TRANSFER	8-97164-349-0	01	1	9701-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	02	1	9301-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	02	1	9301-	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9301-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	9301-		●
77	PIN; KNOCK,TRANSFER CASE OD=10 L=20	9-08161-020-0	02	1	9301-9507	●	●
77	PIN; KNOCK,TRANSFER CASE OD=10 L=20	8-97135-423-0	02	1	9508-	●	●
86	BOLT; RR COVER (A) M10X18,M10X35 L=63	8-94367-310-1	01	1	9301-9407	●
86	BOLT; RR COVER (B) M10X35 FLANGE	8-94448-818-1	10	1	9301-9407	●
86	BOLT; RR COVER (B) M10X35 FLANGE	8-94448-818-1	11	1	9408-	●	●
86	BOLT; RR COVER (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	9301-9301		●
86	BOLT; RR COVER (B) M10X35 FLANGE	8-94448-818-1	09	1	9301-9301		●
86	BOLT; RR COVER (B) M10X35 FLANGE	8-94448-818-1	11	1	9302-9407		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-706-0	01	1	9301-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-707-2	01	1	9301-	●	●
297	BREATHER; AIR,TRANSFER CASE	8-97035-694-2	01	1	9301-	●	●
299	PLUG; SHIFTER ROD OD=14	5-09609-004-0	03	1	9301-	●	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	02	1	9301-	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	9301-		●
421	COVER; RR,TRANS	8-97069-364-5	01	1	9301-	●	●
430	PLUG; OIL DRAIN	9-09662-004-0	02	1	9301-	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	9301-		●
