◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10695 - LV233(THAI) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶
0-39 — AIR COMPRESSOR; BRAKE (#4531) — 33 parça

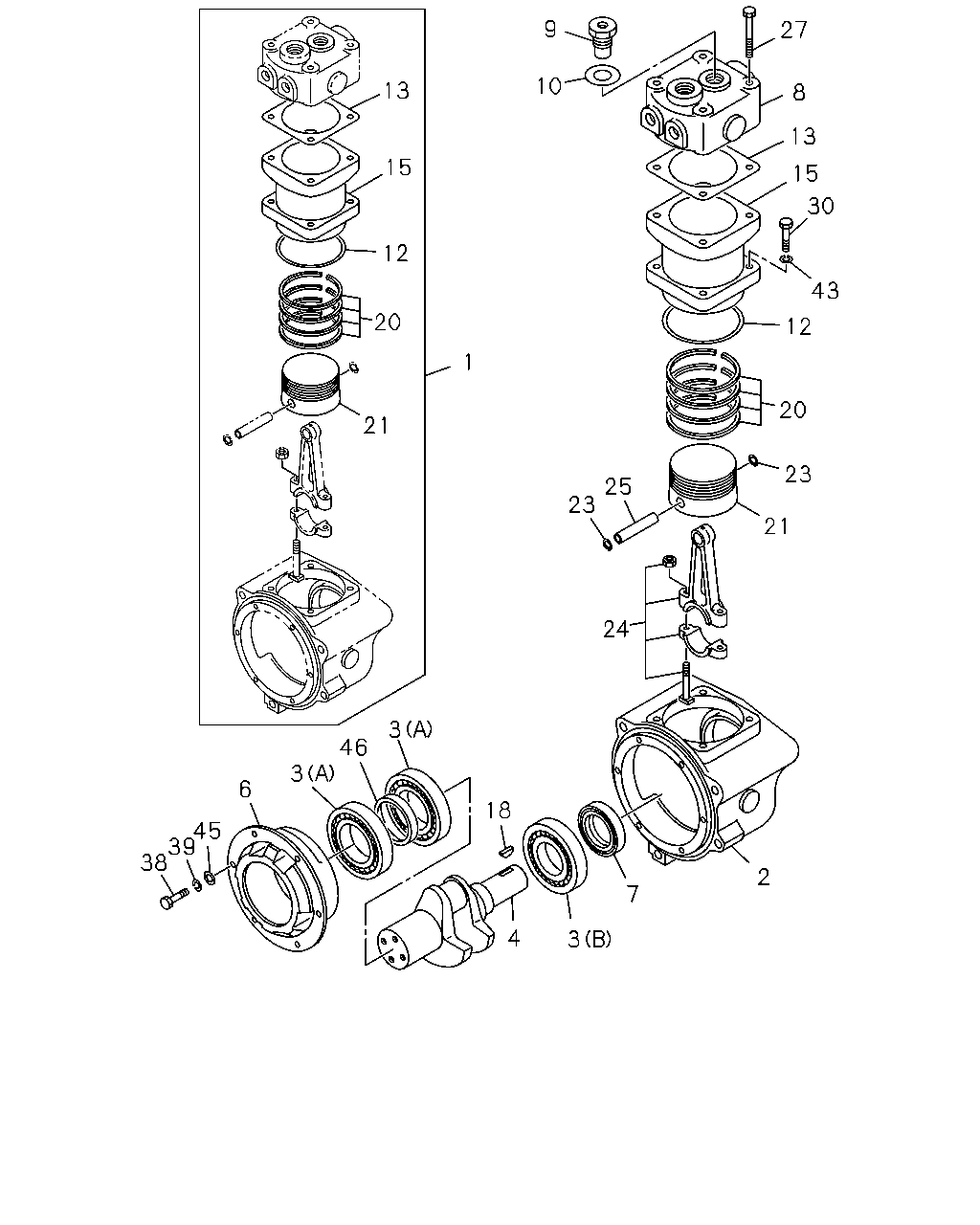

çizim 37920
9 27 10 13 8 13 15 15 30 12 43 20 12 1 20 21 23 25 23 21 24 3 46 3 6 18 45 39 38 2 7 4 3
BalonParca AdiParca NoAdetTipApplied Date
1 LINER KIT; CYL,AIR CMPR 1-19163-054-1 01 1 9712-
2 CRANKCASE; AIR CMPR 1-19151-277-0 01 1 9712-9810
2 CRANKCASE; AIR CMPR 1-19151-288-0 01 1 9811-
3 BEARING; AIR CMPR
(A) 		1-09800-211-0 02 1 9712-9810
3 BEARING; AIR CMPR
(A) 		1-09800-282-0 02 1 9811-
3 BEARING; AIR CMPR
(B) 		1-09800-232-0 01 1 9712-
4 CRANKSHAFT; AIR CMPR 1-19171-070-0 01 1 9712-9810
4 CRANKSHAFT; AIR CMPR 1-19171-081-0 01 1 9811-
6 COVER ASM; BRG,AIR CMPR 1-19156-045-0 01 1 9712-9810
6 COVER ASM; BRG,AIR CMPR 1-19156-080-0 01 1 9811-
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-187-0 01 1 9712-9810
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 9811-
8 HEAD ASM; CYL,AIR CMPR 1-19110-016-0 01 1 9712-
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-021-1 01 1 9712-
10 SHIM; AIR CMPR 9-19139-021-0 01 1 9712-
12 GASKET; AIR CMPR 1-09623-539-0 01 1 9712-
13 GASKET; AIR CMPR 1-19139-001-0 01 1 9712-
15 CYLINDER; AIR CMPR 1-19151-251-0 01 1 9712-
18 KEY; AIR CMPR 1-09735-041-0 01 1 9712-
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 9712-
21 PISTON; AIR CMPR 1-19161-016-0 01 1 9712-
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 9712-
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 9712-
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 9712-
27 BOLT; HD
M10X60 		9-01066-060-0 04 1 9712-
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 9712-
38 BOLT; COVER FIX
M6X16 		9-02050-616-0 06 1 9712-
39 WASHER; LK,COVER FIX
ID=6.1 		9-09150-506-0 06 1 9712-9810
39 WASHER; LK,COVER FIX
ID=10.2 		9-09150-510-0 06 1 9811-
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 9712-
45 WASHER; PL,COVER FIX,AIR CMPR 1-19159-005-0 06 1 9712-
46 SPACER; BRG 1-19179-010-0 01 1 9712-
48 SLEEVE; CR/SHF 1-19179-018-0 01 1 9811-
