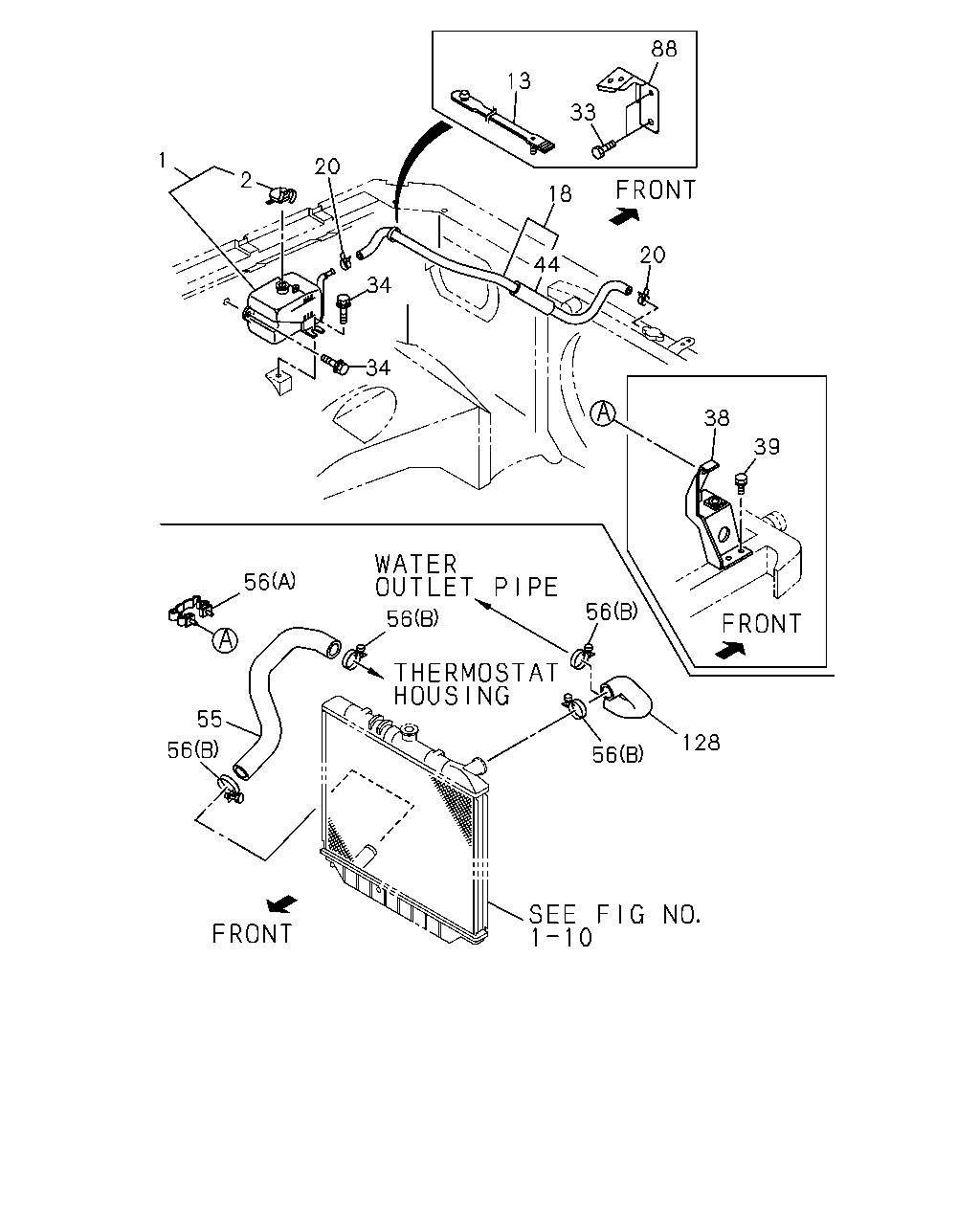

1-11 — RADIATOR HOSE AND SUB TANK
(#45304) — 22 parça
1
2
20
13
33
88
18
44
20
38
39
56
128
56
56
55
56
56
34
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-97016-106-2
01
1
9301-9306
1
TANK; SURGE,RAD
8-97100-667-2
01
1
9307-
2
CAP; SURGE TANK
8-94449-363-0
01
1
9301-9306
2
CAP; SURGE TANK
8-97100-665-0
01
1
9307-9509
2
CAP; SURGE TANK
8-97130-964-0
01
1
9510-
13
CLIP; HOSE,SURGE TANK
L=103
8-94239-339-0
02
1
9301-
18
HOSE; RAD TO SURGE TANK
8-97064-333-1
01
1
9301-
20
CLIP; HOSE,RAD
ID=12
8-94238-610-0
02
1
9301-
33
BOLT; BRKT
M6X18
8-94408-386-1
02
1
9401-9512
33
BOLT; BRKT
951218- M6X18
8-97071-681-0
02
1
9512-
34
BOLT; RESERVE TANK
M8X25
8-97017-390-0
02
1
9301-9302
34
BOLT; RESERVE TANK
M8X25
8-97091-076-0
02
1
9303-
38
BRACKET; RUBBER HOSE
8-97023-161-5
01
1
9301-9502
38
BRACKET; RUBBER HOSE
8-97120-500-0
01
1
9503-9511
38
BRACKET; RUBBER HOSE
8-97120-909-0
01
1
9512-
39
BOLT; BRKT FIX
M6X16 FLANGE
0-28480-616-0
02
1
9301-
44
INSULATOR; HOSE
8-97031-890-1
01
1
9301-
55
HOSE; WATER,RAD OUTLET
8-97072-935-0
01
1
9301-
56
CLIP; WATER HOSE,RAD
(A) ID=46
8-97023-235-1
01
1
9301-
56
CLIP; WATER HOSE,RAD
(B) ID=48
9-09915-512-1
04
1
9301-
88
BRACKET; SUB TANK HOSE
8-94473-988-3
01
1
9301-
128
HOSE; WATER,RAD INL
8-97064-331-0
01
1
9301-
