0-65 — STARTER (#45299) — 24 parça

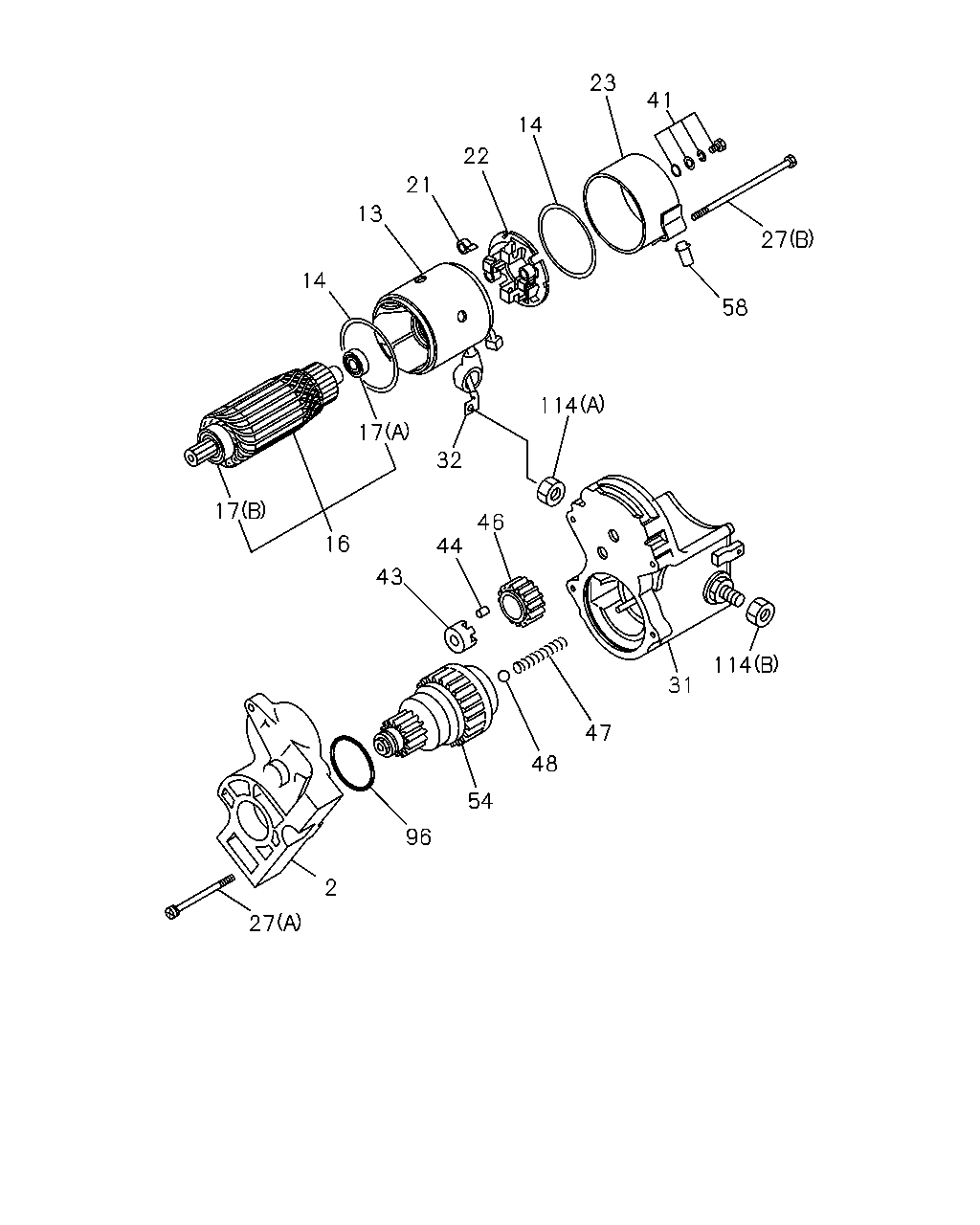

çizim 67658
41 23 14 22 21 13 14 17 16 17 32 114 46 44 43 27 2 96 54 48 47 31 114 58 27
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
ASM PART: A = 8-97064-553-0 		8-97041-426-0 01 1 -
13 YOKE; STARTER
ASM PART: A = 8-97064-553-0 		8-94377-254-0 01 1 -
14 GASKET; YOKE,STARTER
ASM PART: A = 8-97064-553-0 		8-94170-214-0 02 1 -
16 ARMATURE; STARTER
ASM PART: A = 8-97064-553-0 		8-94377-253-0 01 1 -
17 BEARING; ARMATURE,STARTER
(B) ASM PART: A = 8-97064-553-0 		8-94377-240-0 01 1 -
17 BEARING; ARMATURE,STARTER
(A) ASM PART: A = 8-97064-553-0 		8-94377-241-0 01 1 -
21 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-97064-553-0 		8-94377-244-0 04 1 -
22 HOLDER; BRUSH STARTER
ASM PART: A = 8-97064-553-0 		8-97041-424-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 8-97064-553-0 		8-97041-423-0 01 1 -
27 BOLT; THROUGH,STARTER
(A) ASM PART: A = 8-97064-553-0 		8-94377-243-0 02 1 -
27 BOLT; THROUGH,STARTER
(B) ASM PART: A = 8-97064-553-0 		8-97041-422-0 02 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: A = 8-97064-553-0 		8-97041-425-0 01 1 -
32 COVER; RUBBER,STARTER
ASM PART: A = 8-97064-553-0 		8-97041-420-0 01 1 -
41 SCREW; RR COVER,STARTER
ASM PART: A = 8-97064-553-0 		8-94170-216-0 02 1 -
43 RETAINER; PINION STARTER
ASM PART: A = 8-97064-553-0 		8-94377-246-0 01 1 -
44 ROLLER; PINION STARTER
ASM PART: A = 8-97064-553-0 		5-81129-099-0 05 1 -
46 GEAR; CLU STARTER
ASM PART: A = 8-97064-553-0 		8-94377-247-0 01 1 -
47 SPRING; PINION STARTER
ASM PART: A = 8-97064-553-0 		8-94377-245-0 01 1 -
48 BALL; PINION,STARTER
ASM PART: A = 8-97064-553-0 		5-81129-092-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 8-97064-553-0 		8-97041-427-0 01 1 -
58 PIPE; DRAIN RR COVER STARTER
ASM PART: A = 8-97064-553-0 		8-97041-421-0 01 1 -
96 GASKET; FRT CASE
ASM PART: A = 8-97064-553-0 		8-97078-001-0 01 1 -
114 NUT; TERMINAL
(A) ASM PART: A = 8-97064-553-0 		8-94109-763-0 01 1 -
114 NUT; TERMINAL
(B) ASM PART: A = 8-97064-553-0 		8-94377-238-0 01 1 -
