Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND BATTERY CABLE
▶

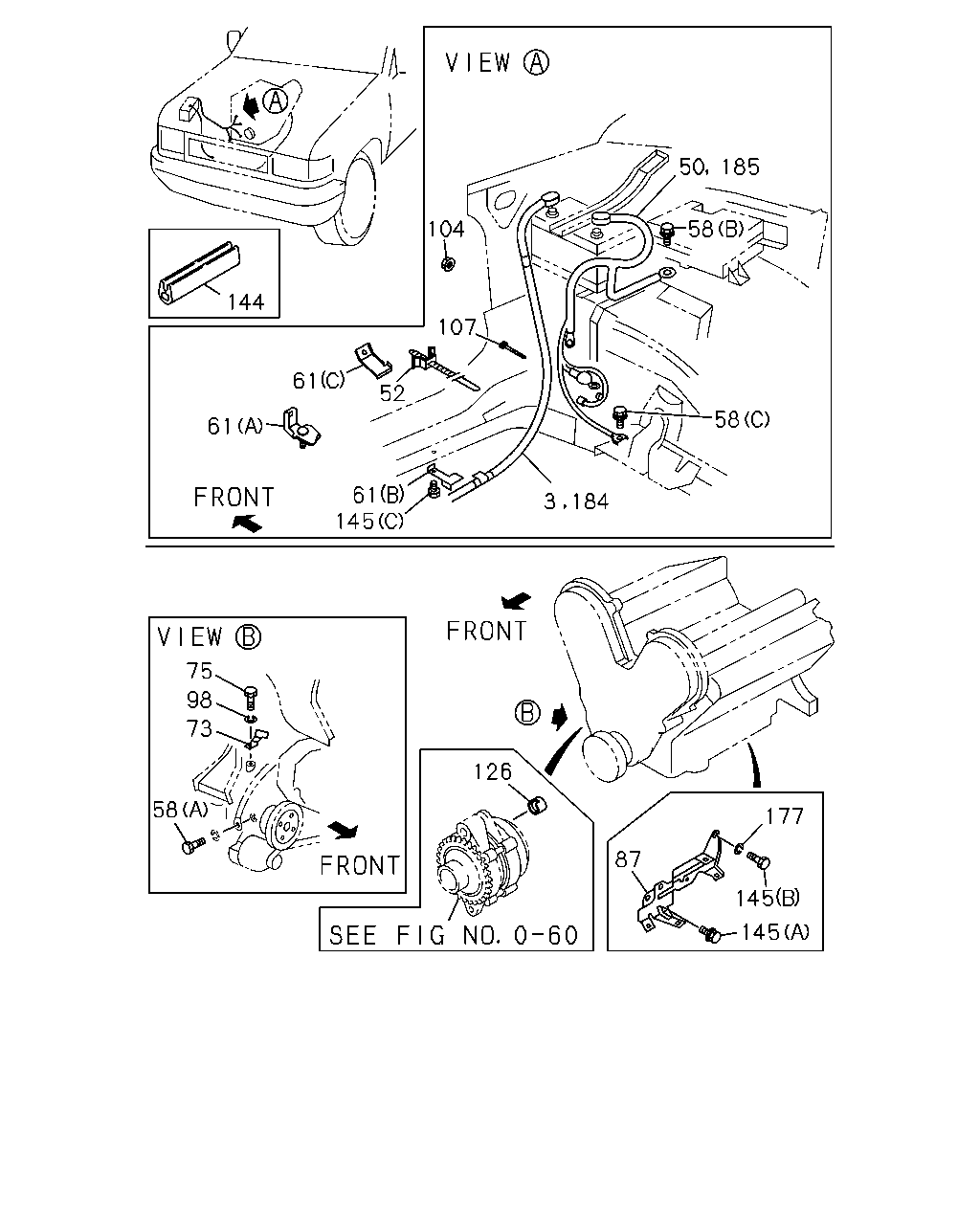

0-61 — BATTERY AND BATTERY CABLE
(#45298) — 32 parça
144
104
107
52
61
61
61
145
58
58
75
98
73
58
126
87
177
145
145
50
185
3
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
HARNESS; CABLE,BATTERY TO STARTER
8-97064-209-4
01
1
9301-9511
50
CABLE; BATTERY TO BODY (-)
8-97088-862-1
01
1
9301-9303
50
CABLE; BATTERY TO BODY (-)
8-97092-019-1
01
1
9304-9511
52
CLIP; BATTERY CABLE TO BODY
L=135
8-94473-399-0
01
1
9301-9511
52
CLIP; BATTERY CABLE TO BODY
EXC. 4 WHEEL ANTI-LOCK BRAKE(JE5) L=135
8-94473-399-0
01
1
9512-
52
CLIP; BATTERY CABLE TO BODY
4 WHEEL ANTI-LOCK BRAKE(JE5) L=170
5-09707-054-0
01
1
9512-
58
BOLT; CABLE,BATTERY
(C) M6X16 W/LK&PL WASHER
8-97086-823-0
01
1
9301-
58
BOLT; CABLE,BATTERY
(B) M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
9301-
58
BOLT; CABLE,BATTERY
(A) M8X16 FLANGE
0-28080-816-0
01
1
9405-
61
BRACKET; BATTERY CABLE
(B)
8-97066-913-3
02
1
9301-
61
BRACKET; BATTERY CABLE
(A)
8-97066-914-3
01
1
9301-9303
61
BRACKET; BATTERY CABLE
(C)
8-97066-915-0
01
1
9301-
73
BRACKET; BATTERY CABLE
8-97803-330-2
01
1
9301-9511
75
BOLT; BRKT
M6X12
0-20800-612-0
01
1
9301-
87
BRACKET; HARNESS
8-97081-418-0
01
1
9301-9511
87
BRACKET; HARNESS
8-97130-483-1
01
1
9512-
98
WASHER; LK,BRKT
ID=6.1
9-09150-506-0
01
1
9301-
104
NUT; BATTERY CABLE
M5 FLANGE
8-97068-819-0
01
1
9301-9303
107
CLIP; BAND
L=140
5-09707-031-0
02
1
9301-
126
CAP; TERMINAL,AC GEN
8-97087-081-1
01
1
9301-
144
PROTECTOR; EDGE
L=73 SERVICED BY L=190
1-71998-300-0
01
1
9301-9504
144
PROTECTOR; EDGE
L=80
5-22439-006-0
01
1
9301-9504
144
PROTECTOR; EDGE
L=120
8-97117-880-0
01
1
9505-
145
BOLT; BRKT
(A) M6X16 W/LK WASHER
0-50040-616-0
01
1
9301-9607
145
BOLT; BRKT
(A) M6X16 FLANGE
0-28080-616-0
01
1
9608-
145
BOLT; BRKT
(B) M10X20 W/LK WASHER
0-50051-020-0
01
1
9301-9303
145
BOLT; BRKT
(B) M10X16 FLANGE
0-28181-016-0
01
1
9304-
145
BOLT; BRKT
(C) M6X16 W/LK&PL WASHER
0-50140-616-0
02
1
9301-9607
145
BOLT; BRKT
(C) M6X16 FLANGE
0-28680-616-0
02
1
9608-
177
WASHER; PL,BRKT
ID=6.4 OD=14
9-09160-606-0
01
1
9301-9511
184
HARNESS; CABLE,BATTERY (+)
8-97102-043-0
01
1
9512-
185
HARNESS; CABLE,BATTERY (-)
8-97138-989-1
01
1
9512-
