Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶

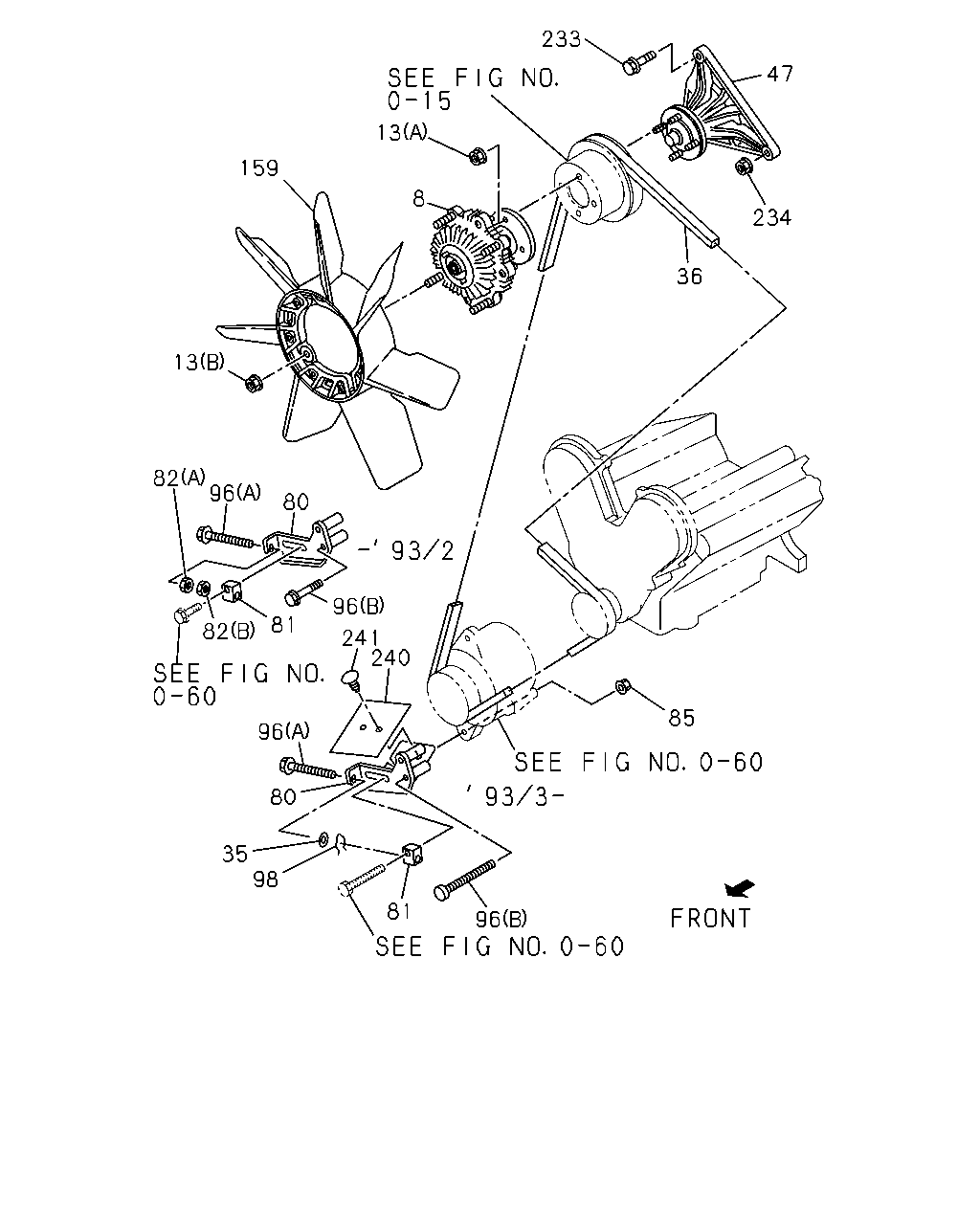

0-33 — FAN AND FAN BELT
(#45287) — 25 parça
233
47
234
36
13
8
159
13
82
96
80
96
241
240
81
82
96
80
35
98
81
96
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
CLUTCH; COOLING FAN
8-97018-918-1
01
1
9301-9308
8
CLUTCH; COOLING FAN
8-97102-903-0
01
1
9309-9512
8
CLUTCH; COOLING FAN
951211-
8-97135-167-0
01
1
9512-
13
NUT; COOLING FAN
(B) M6 FLANGE
0-91150-106-0
04
1
9301-
13
NUT; COOLING FAN
(A) M8 FLANGE
0-91150-108-0
04
1
9301-
35
WASHER; PL
ID=6.4
9-09160-506-0
01
1
9303-
36
BELT; COOLING FAN
8-97064-555-0
01
1
9301-
47
BRACKET; FAN
8-97018-655-0
01
1
9301-9310
47
BRACKET; FAN
8-97108-785-0
01
1
9311-
80
PLATE; ADJ
8-97018-939-2
01
1
9301-9302
80
PLATE; ADJ
8-97087-142-2
01
1
9303-
81
PIECE; SLIDING
8-97031-664-0
01
1
9301-
82
NUT; ADJ PLATE
(A)
9-09110-506-0
01
1
9301-9302
82
NUT; ADJ PLATE
(B)
9-09111-406-0
01
1
9301-9302
85
NUT; AC GEN
M6 W/LK WASHER
8-94424-179-0
01
1
9301-
96
BOLT; ADJ PLATE
(B) M8X70 W/LK WASHER
0-50040-870-0
02
1
9301-9302
96
BOLT; ADJ PLATE
(B) M8X70 FLANGE
0-28080-870-0
02
1
9303-
96
BOLT; ADJ PLATE
(A) M6X75 FLANGE
8-97028-681-0
01
1
9301-
98
RETAINER; ADJ PLATE
8-97101-664-0
01
1
9303-
159
BLADE; COOLING FAN
OD=470 7-BLADE
8-97018-917-0
01
1
9301-
233
BOLT; FAN BRKT
M8X90 FLANGE
0-28080-890-0
01
1
9301-
234
NUT; FAN BRKT
M8 FLANGE
0-91150-108-0
02
1
9301-
240
COVER; MUD,GEN
100X160 T=1.5 BLACK
8-97089-940-0
01
1
9303-
241
RIVET; COVER
OD=5.8 SCREW&GROMMET NYLON
8-94242-150-0
02
1
9303-9303
241
RIVET; COVER
OD=7.0-8.8 HEAD LINING CLIP NY DARK GRAY
8-97804-484-0
02
1
9304-
