Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶

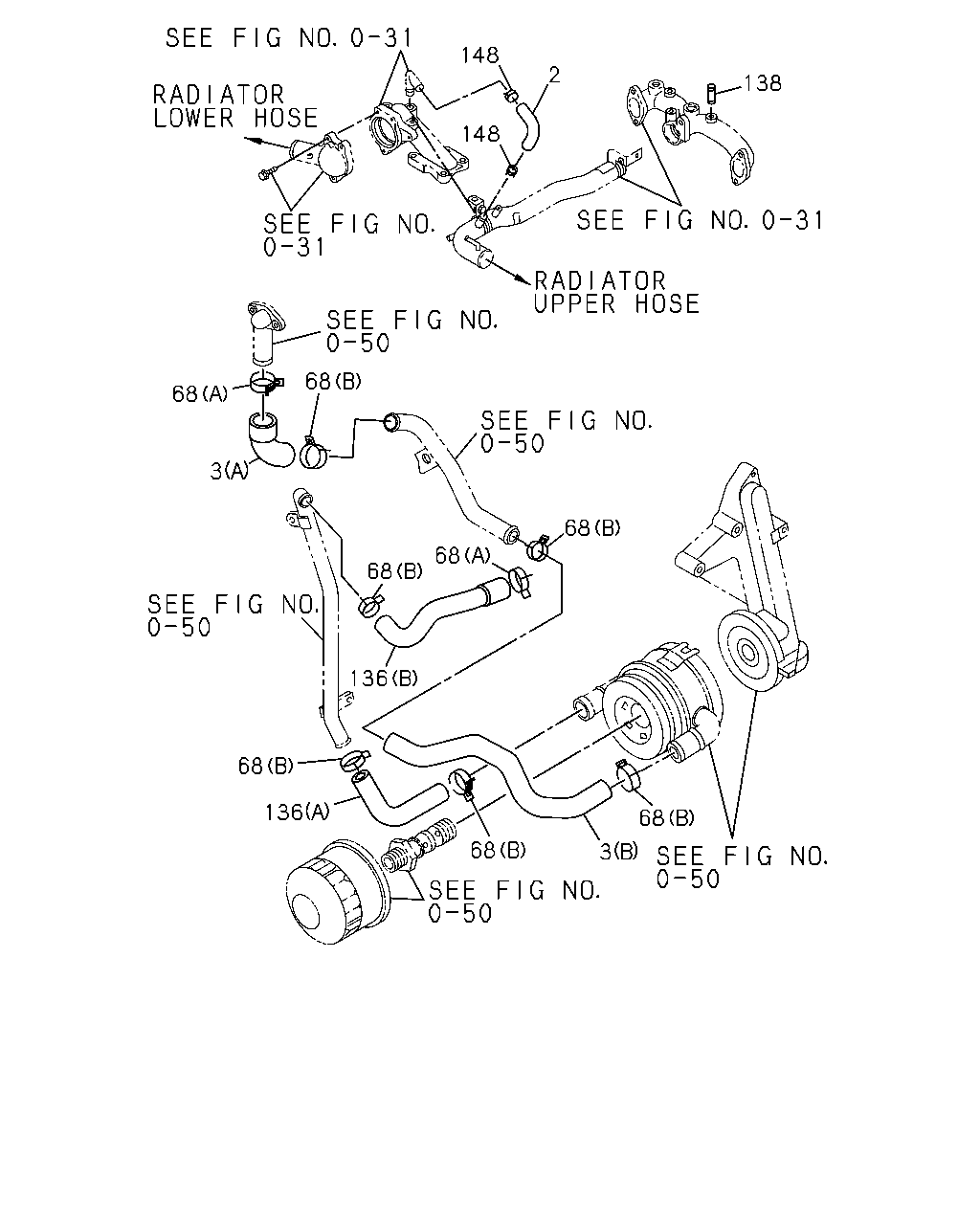

0-32 — WATER PIPING; ENGINE
(#45286) — 12 parça
148
2
148
138
68
68
68
3
68
68
136
68
136
68
3
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; WATER,BY-PASS
8-94384-326-3
01
1
9301-9309
2
HOSE; WATER,BY-PASS
8-97088-139-0
01
1
9310-
3
HOSE; WATER,OIL COOLER
(B)
8-97061-276-1
01
1
9301-
3
HOSE; WATER,OIL COOLER
(A)
8-97079-997-0
01
1
9301-
68
CLIP; WATER HOSE,OIL COOLER
(A) ID=22
8-94382-401-0
02
1
9301-
68
CLIP; WATER HOSE,OIL COOLER
(B) ID=18.9
8-94478-875-0
06
1
9301-
136
HOSE; OIL COOLER,RETURN
(A)
8-97061-277-0
01
1
9301-9506
136
HOSE; OIL COOLER,RETURN
(A)
8-97119-655-0
01
1
9507-
136
HOSE; OIL COOLER,RETURN
(B)
8-97061-307-2
01
1
9301-
138
PIPE; WATER
OD=10 L=28
8-94221-275-1
01
1
9301-
148
CLIP; BYPASS HOSE
ID=21.7
8-94413-822-0
02
1
9301-9401
148
CLIP; BYPASS HOSE
ID=20.4
8-94121-113-0
02
1
9402-
