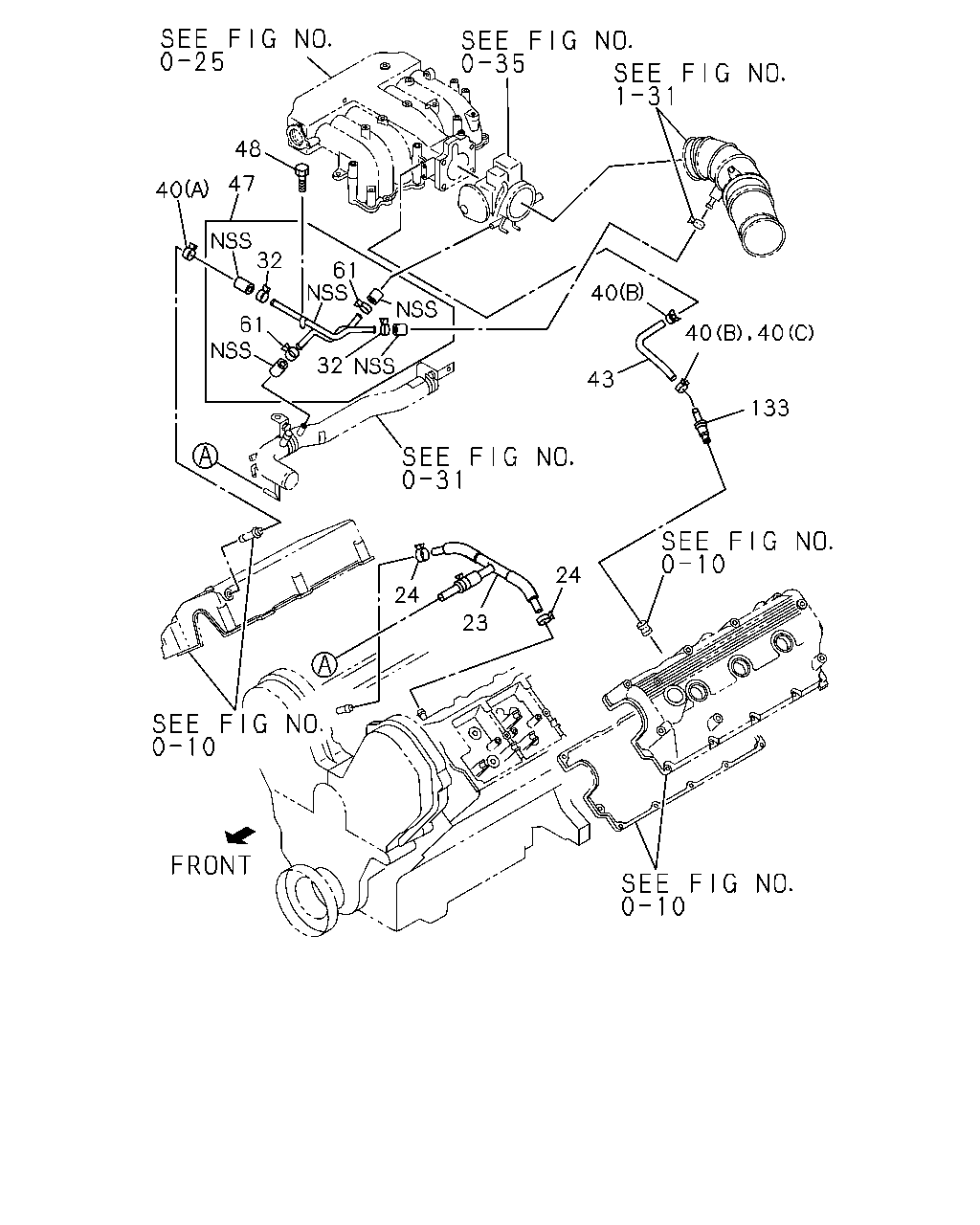

0-28 — VENTILATION SYSTEM
(#45283) — 18 parça
48
47
40
32
61
32
61
24
23
24
133
43
40
40
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
HOSE; RUBBER,VENTILATOR PIPE
W/JOINT:3WAY & 3-HOSE
8-97075-341-1
01
1
9301-
24
CLIP; RUBBER HOSE,VENTILATOR
ID=12 WO/PVC COATING
8-94123-526-0
02
1
9301-
32
CLIP; VENT HOSE
ID=12.8
8-94367-943-0
02
1
9301-9511
32
CLIP; VENT HOSE
ID=18.7
8-94367-944-0
02
1
9512-
40
CLIP; PCV HOSE
(A) ID=16
8-94238-568-0
01
1
9301-9511
40
CLIP; PCV HOSE
(A) ID=19
8-94238-569-0
01
1
9512-
40
CLIP; PCV HOSE
(B) ID=13
8-94238-571-0
02
1
9301-9511
40
CLIP; PCV HOSE
(B) ID=13
8-94238-571-0
01
1
9512-
40
CLIP; PCV HOSE
(C) ID=14
8-94238-572-0
01
1
9512-
43
HOSE; PCV
OD=13
8-94364-503-1
01
1
9301-9511
43
HOSE; PCV
8-97118-871-0
01
1
9512-
47
PIPE ASM; PCV
8-97032-383-5
01
1
9301-9511
47
PIPE ASM; PCV
8-97117-349-1
01
1
9512-
48
BOLT; PIPE
M6X12 FLANGE
0-28080-612-0
01
1
9301-9511
48
BOLT; PIPE
M8X12 FLANGE
0-28080-812-0
01
1
9512-
61
CLIP; HOSE
ID=14.8
8-94448-727-0
02
1
9301-
133
VALVE; PCV
8-94386-755-0
01
1
9301-9511
133
VALVE; PCV
8-97118-860-0
01
1
9512-
