10695 - LV233(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

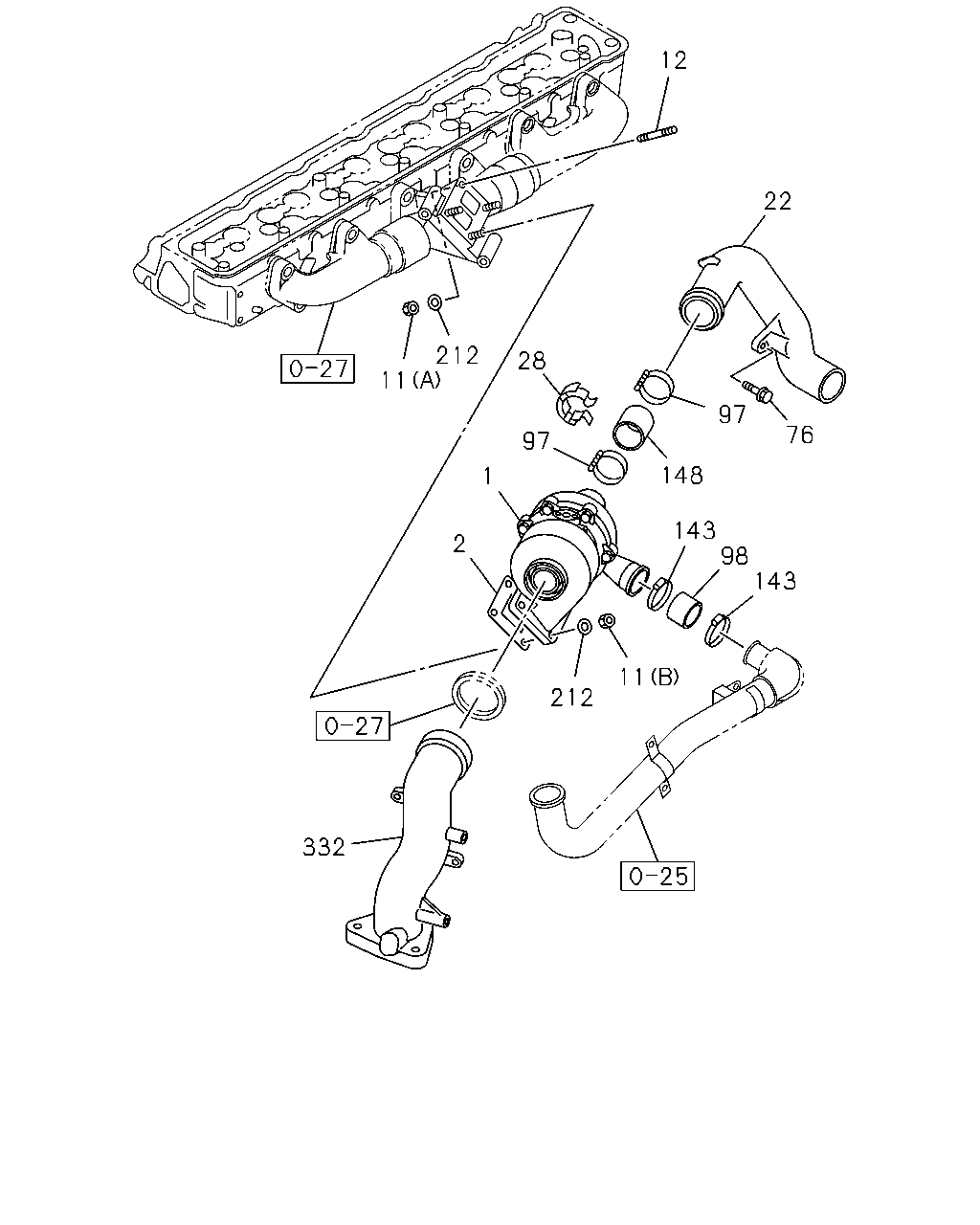

0-36 — TURBOCHARGER SYSTEM
(#4528) — 18 parça
12
22
212
28
97
76
97
148
1
143
98
143
2
11
212
332
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
1-14400-356-0
01
1
9712-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-181-0
01
1
9712-
11
NUT; TURBOCHARGER
(A) M10
1-09420-005-0
01
1
9712-
11
NUT; TURBOCHARGER
(B) M10 P=1.5 H=8
9-09842-007-0
03
1
9712-
12
STUD; TURBOCHARGER
M10X30,M10X22.5 L=45
9-04731-030-0
01
1
9712-
13
STUD; EXH PIPE
M12X40 L=64
9-94321-240-0
03
1
9803-
16
ADAPTER; EXH PIPE
1-14144-637-0
01
1
9803-
22
DUCT; INL,ACL TO TURBOCHARGER
1-14134-266-1
01
1
9712-
28
PROTECTOR; HEAT,HOSE,AIR DUCT
1-14181-123-0
01
1
9712-9907
28
PROTECTOR; HEAT,HOSE,AIR DUCT
1-14181-221-0
01
1
9908-
76
BOLT; AIR DUCT
M10X90 FLANGE
0-28081-090-0
02
1
9712-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=86
9-09915-592-0
02
1
9712-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
1-09360-797-1
01
1
9712-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79
8-94126-771-0
02
1
9712-
148
HOSE; TURBOCHARGER,INL
1-09360-403-1
01
1
9712-
167
RING
1-14149-207-0
02
1
9803-
212
WASHER; PL,TURBOCHARGER
ID=10
1-09503-033-1
04
1
9712-
332
DUCT; AIR,TURBOCHARGER
1-14144-637-0
01
1
9712-9802
