Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
0 - Engine, Emission, Engine Electrical
▶

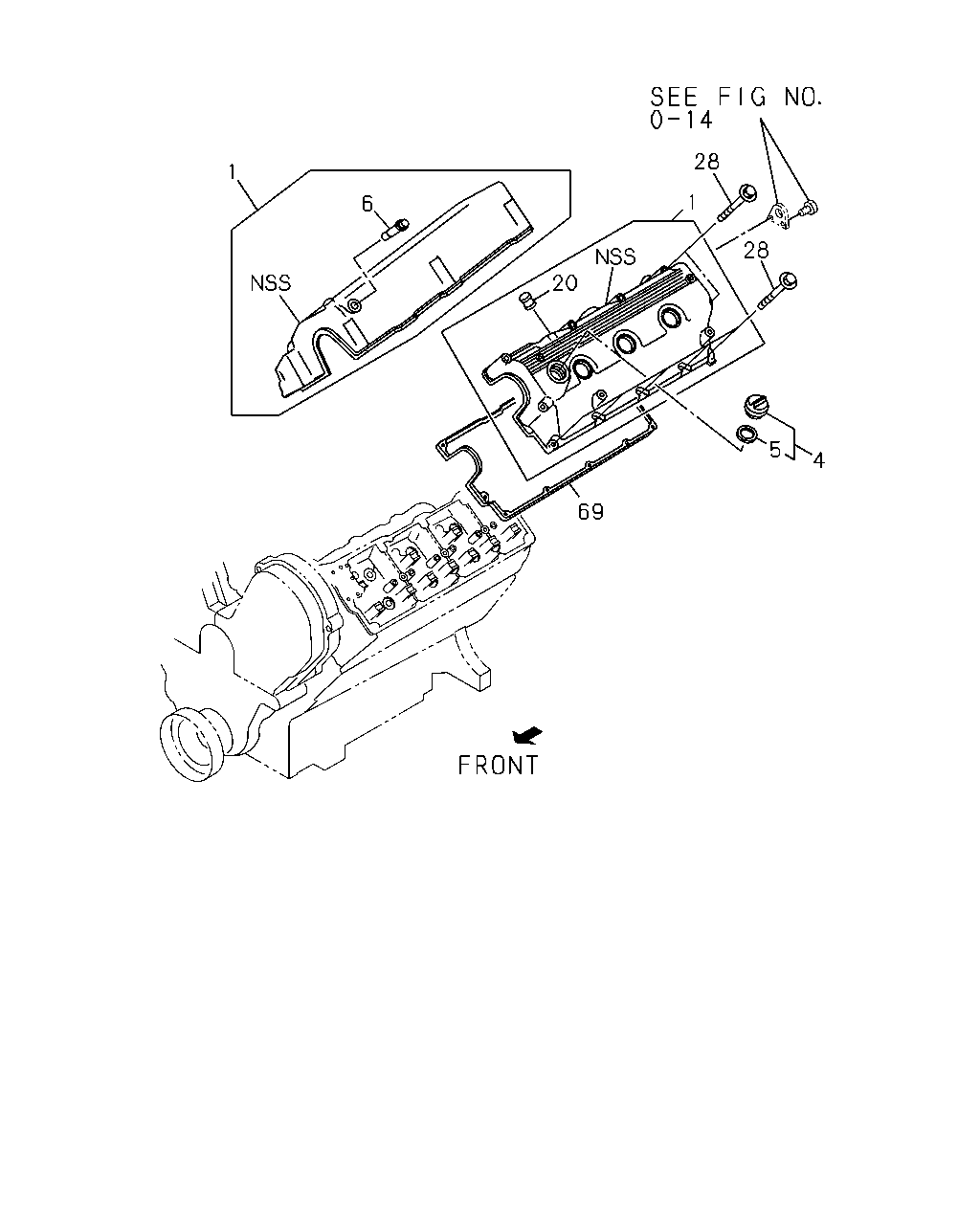

0-10 - CYLINDER HEAD COVER
▶
0-10 — CYLINDER HEAD COVER
(#45273) — 15 parça
1
6
28
1
28
20
4
5
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
8-94364-712-3
01
1
9301-9511
1
COVER; CYL HD
8-97117-345-1
01
1
9512-
1
COVER; CYL HD
8-94364-711-3
01
1
9301-9511
1
COVER; CYL HD
8-97117-346-1
01
1
9512-
4
CAP; OIL FILLER
8-94425-685-2
01
1
9301-9511
4
CAP; OIL FILLER
8-94133-207-5
01
1
9512-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-94123-623-1
01
1
9301-
6
PIPE; PCV HOSE
8-97016-327-0
01
1
9301-9511
6
PIPE; PCV HOSE
OD=15 L=41
8-94442-052-0
01
1
9512-
20
GROMMET; HD COVER
8-97021-737-0
01
1
9301-9511
20
GROMMET; HD COVER
8-97074-653-0
01
1
9512-
28
BOLT; HD COVER
M6X32 W/HEX-SOCKET
9-05820-632-0
10
1
9301-
28
BOLT; HD COVER
M6X80 W/HEX-SOCKET
9-05820-680-0
12
1
9301-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97048-720-2
02
1
9301-9512
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 951218-
8-97139-569-0
02
1
9512-
