9-01 — TOOLS (#45270) — 26 parça

224 263 18 26 25 24 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	WRENCH KIT	9-85161-902-0	01	1	9307-	●	●
24	WRENCH; 8X10 8X10	9-99592-108-0	01	1	9307-	●	●
25	WRENCH; 12X14 12X14	9-09592-112-0	01	1	9307-	●	●
26	WRENCH; 22X17 22X17	9-85162-101-0	01	1	9307-	●	●
224	BAND; RUBBER,JACK (A) TOOL BAG FIX L=100	5-73997-026-1	01	1	9307-	●	●
224	BAND; RUBBER,JACK (B) JACK FIX L=90	8-94284-400-0	01	1	9307-	●	●
237	BAG; TOOL	8-97019-769-0	01	1	9307-9309	●	●
237	BAG; TOOL	8-97103-736-0	01	1	9310-	●	●
263	BRACKET; TOOL 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z)	8-94292-704-2	02	1	9307-	●	●

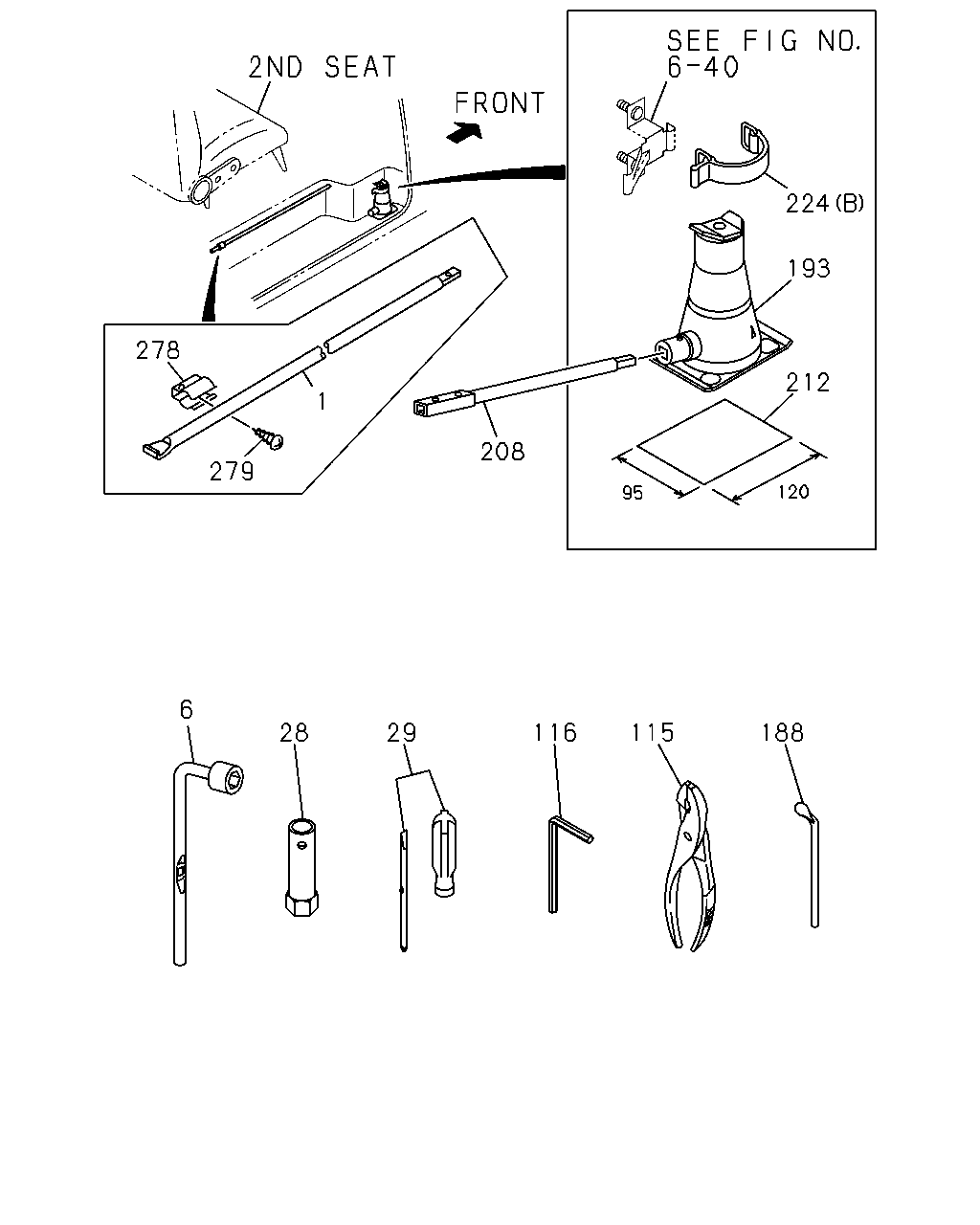

224 193 212 188 115 116 29 28 6 279 278 1 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER L=790	8-94367-917-0	01	1	9307-	●	●
6	WRENCH; WHEEL	8-94367-941-0	01	1	9307-	●	●
28	WRENCH; SPARK PLUG 4ZC1 ENG(LR9)	8-94366-368-0	01	1	9307-	●	●
29	DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	9307-	●	●
115	PLIER	5-85171-002-0	01	1	9307-	●	●
116	SPANNER; BAR,SUNROOF SUNROOF<CF5>	8-94286-455-0	01	1	9307-	●
188	EXTRACTOR; WHEEL CAP EXC. FRT&RR 6.00-14-6 5JX14(54G)	9-85292-102-1	01	1	9307-9406	●	●
188	EXTRACTOR; WHEEL CAP FRT&RR FT6.0-14-6 RR 6.0-14-8 4.5JX4(08B),FRT&RR 6.0-14-6 5JX14(11B),FRT&RR FT6.0-14-6 RR6.0-14-8 5JX14(12B),FRT&RR FT&RR6.0-14-8 4.5JX14(13B),FRT&RR 185R14C-8(14B),FRT&RR 6.00-14-8 4.5JX14(16B), FRT&RR 6.0-14-8 5J-14(18B),FRT&RR 6.00-14-8 5JX14(19B), FRT&RR 185R-14-8 5JX14(29B),FRT&RR 185R14-8 5.5JX14 ALUMI(9MJ)	9-85292-102-1	01	1	9407-	●	●
193	JACK ASM	8-94140-525-0	01	1	9307-9307	●	●
193	JACK ASM	8-94141-665-2	01	1	9308-9502	●	●
193	JACK ASM	8-97128-454-0	01	1	9503-	●	●
208	HANDLE; JACK L=270	8-94367-922-0	01	1	9307-	●	●
212	PAD; JACK EXC. MAT STEP WELL<BF3>	8-94293-955-1	01	1	9307-	●	●
224	BAND; RUBBER,JACK (A) TOOL BAG FIX L=100	5-73997-026-1	01	1	9307-	●	●
224	BAND; RUBBER,JACK (B) JACK FIX L=90	8-94284-400-0	01	1	9307-	●	●
278	CLIP; JACK & TIRE HANDLE 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z)	8-94368-494-0	02	1	9307-	●	●
279	SCREW; CLIP TO BODY 5 DOOR PANEL VAN(V4P),4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR PANEL VAN(V4Y),4 DOOR BUS(V4Z)	1-09981-167-0	02	1	9307-	●	●
