Isuzu WW
▶
SUV
▶
WFR
▶
50686 - WFR-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#45269) — 28 parça
Tümü
A - WFB6VC
B - WFB6VF
◀

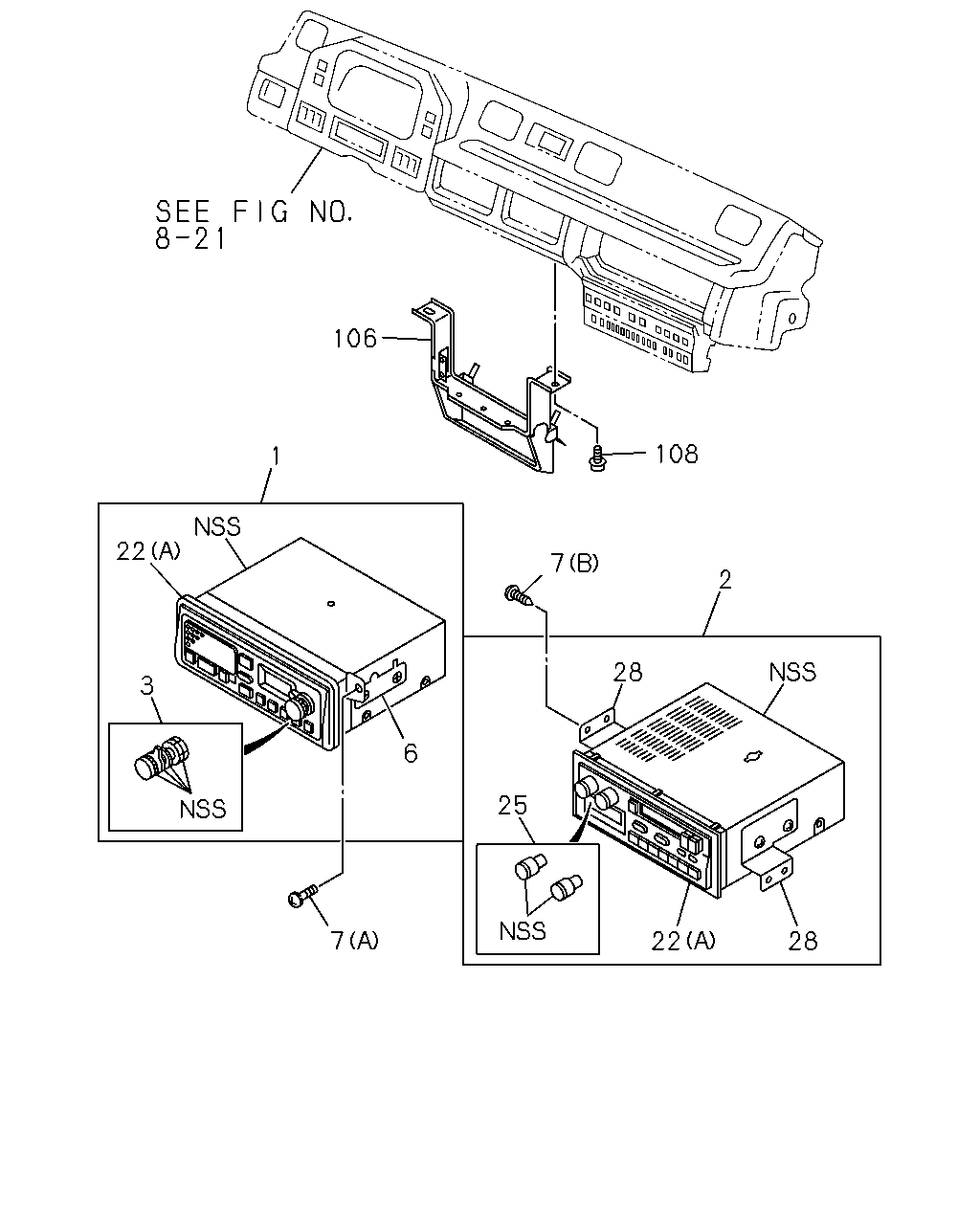

[890A] NO.1 (12 parça)
[890A] NO.3 (7 parça)
[890A] NO.2 (9 parça)
▶
106
108
7
2
28
25
22
28
7
6
3
22
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO
8-97088-828-0
01
1
9307-
●
●
2
RADIO & CASSETTE DECK ASM
AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> SANYO
8-97087-534-0
01
1
9307-
●
●
3
ATTACH KIT; AM/FM RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> SANYO
8-97093-557-0
01
1
9307-
●
●
6
BRACKET; RADIO TO PANEL
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN>
8-97102-947-0
01
1
9307-
●
●
7
SCREW; RADIO
AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) M5X14 W/LK&PL WASHER
9-03920-514-0
04
1
9307-
●
●
7
SCREW; RADIO
RADIO AM W/AMPLIFIER(RS2) (A) M5X14 TAPPING W/PL WASHER
0-74110-514-0
02
1
9307-
●
●
22
PANEL; RADIO
AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> (B)
8-97102-949-0
01
1
9307-
●
●
22
PANEL; RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> (A)
8-97102-948-0
01
1
9307-
●
●
25
ATTACH KIT; CASSETTE DECK
AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN>
8-97102-951-0
01
1
9307-
●
●
28
BRACKET; CASSETTE & RADIO
AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN>
8-97102-950-0
01
1
9307-
●
●
106
BRACKET; STEREO DECK
8-94278-511-3
01
1
9307-
●
●
108
SCREW; BRKT
M6X12 W/LK&PL WASHER
9-03920-612-0
02
1
9307-
●
●
89
49
48
216
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
SPEAKER; AUDIO
ANTENNA<U73>
8-94430-081-1
02
1
9307-
●
●
48
SPEAKER; AUDIO
AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ANTENNA<U73>
8-94430-081-1
02
1
9307-
●
●
49
SCREW; SPEAKER
ANTENNA<U73>
8-94432-649-0
08
1
9307-
●
●
49
SCREW; SPEAKER
AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ANTENNA<U73>
8-94432-649-0
08
1
9307-
●
●
89
GROMMET; FEEDER CABLE
5-09983-008-0
01
1
9307-
●
●
216
COVER; SPEAKER HOLE
ANTENNA<U73>
8-94227-098-0
02
1
9307-
●
●
216
COVER; SPEAKER HOLE
AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. ANTENNA<U73>
8-94227-098-0
02
1
9307-
●
●
96
138
80
181
101
72
69
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
69
CABLE; BONDING,ENG TO BODY
4ZC1 ENG(LR9)
8-94126-755-0
01
1
9307-
●
●
72
BOLT; EARTH
4ZC1 ENG(LR9) M6X22 W/LK&PL WASHER
8-94122-769-0
01
1
9307-9406
●
●
72
BOLT; EARTH
4ZC1 ENG(LR9) M6X20 W/LK&PL WASHER
8-97086-824-0
01
1
9407-
●
●
75
TERMINAL; MALE EARTH
4ZC1 ENG(LR9)
8-94102-644-0
01
1
9307-
●
●
80
ANTENNA
8-94124-576-0
01
1
9307-
●
●
96
PLUG; ANTENNA HOLE
EXC. RADIO AM W/AMPLIFIER(RS2),ANTENNA<U73>,AM/FM W/CASSETTE 2 SPEAKERS(6VL)
8-94208-453-1
02
1
9307-
●
●
101
CLIP; FEEDER TO BRKT
ID=6 & 6
8-94400-853-0
01
1
9307-
●
●
138
PLUG; RUBBER,DASH SIDE PANEL
EXC. RADIO AM W/AMPLIFIER(RS2),ANTENNA<U73>,AM/FM W/CASSETTE 2 SPEAKERS(6VL)
8-94203-634-1
01
1
9307-
●
●
181
CONDENSER; WIPER
9-83685-377-0
01
1
9307-
●
●
