8-75 — CONDENSER (#45266) — 27 parça

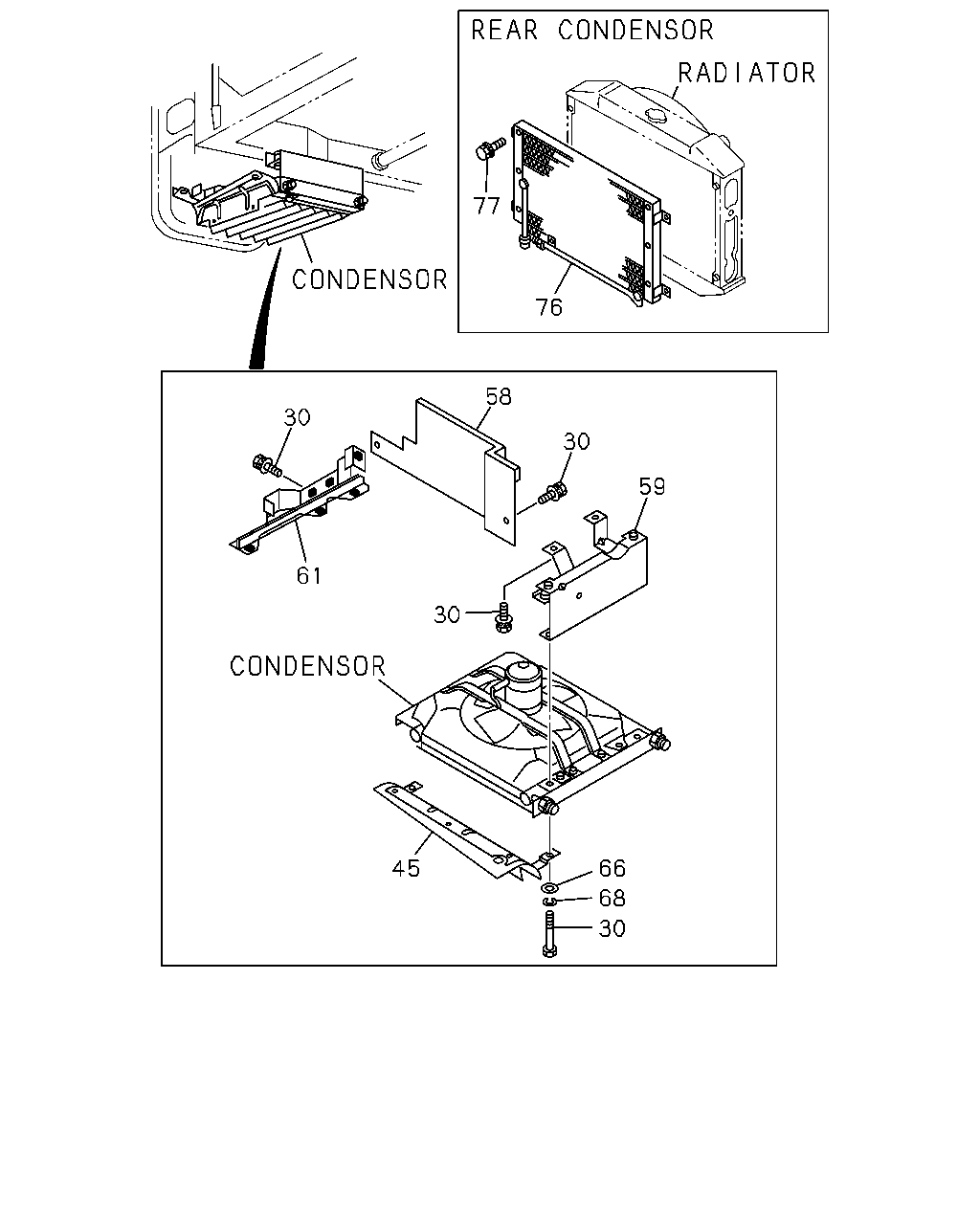

77 76 58 30 59 66 68 30 45 30 61 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X50	0-10805-650-0	05	1	9307-	●	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X16 W/WASHER	8-97069-572-0	06	1	9307-	●	●
45	COVER; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-97092-042-0	01	1	9307-	●	●
58	PLATE; COVER,CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94112-930-1	01	1	9307-	●	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94112-928-0	01	1	9307-	●	●
61	BRACKET; CONDENSER PANEL AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94112-929-0	01	1	9307-	●	●
66	WASHER; PL,CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=6.4	9-09160-506-0	05	1	9307-	●	●
68	WASHER; LK,CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=6.1	9-09150-506-0	05	1	9307-	●	●
76	CONDENSER ASM; RR AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-465-0	01	1	9307-	●	●
77	BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9307-	●	●

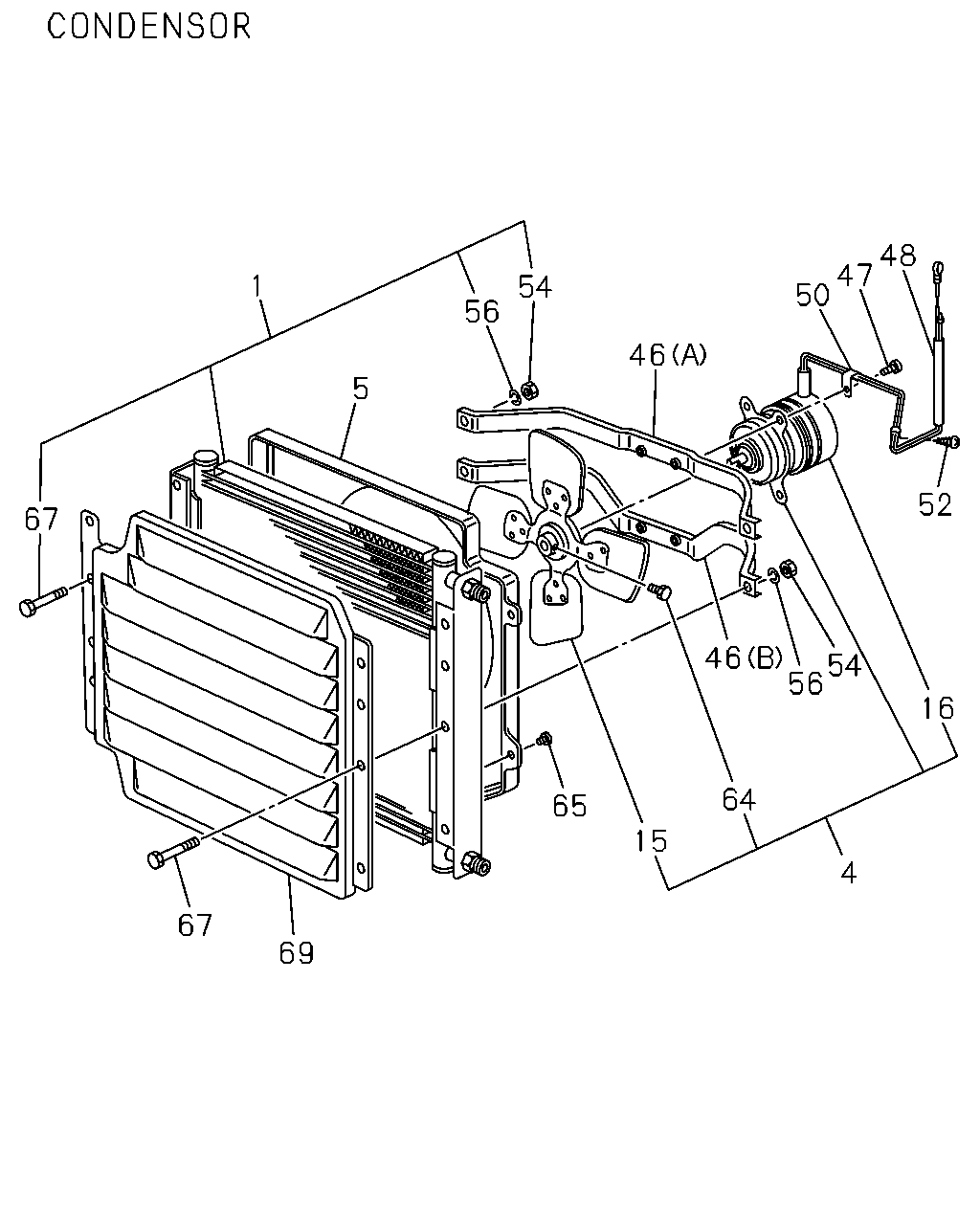

67 1 5 56 54 46 50 47 48 52 16 54 56 46 4 64 15 65 69 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97095-655-0	01	1	9307-	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94169-493-0	01	1	9307-	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94244-383-0	01	1	9307-	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94244-382-0	01	1	9307-	●	●
16	COVER; FAN MOTOR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94151-495-0	01	1	9307-	●	●
46	BRACKET; SHROUD AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A)	8-94244-384-0	01	1	9307-	●	●
46	BRACKET; SHROUD AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-94244-385-0	01	1	9307-	●	●
47	SCREW; CLIP AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X12 W/LK WASHER	9-03910-512-0	04	1	9307-	●	●
48	COVER; CABLE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94169-495-0	01	1	9307-	●	●
50	CLIP; CABLE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-97032-615-0	02	1	9307-	●	●
52	SCREW; CLIP,CABLE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X10 TAPPING W/PL WASHER	0-74300-510-0	01	1	9307-	●	●
54	NUT; COVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	9-88410-104-0	04	1	9307-	●	●
56	WASHER; LK,COVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-83579-492-0	04	1	9307-	●	●
64	BOLT; FAN AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X12	9-02040-612-0	01	1	9307-	●	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X10 TAPPING W/PL WASHER	0-74300-510-0	04	1	9307-	●	●
67	SCREW; COVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94151-496-0	04	1	9307-	●	●
69	COVER; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94169-494-0	01	1	9307-	●	●
