◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ WFR ▶ 50686 - WFR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-74 - EVAPORATOR ▶
8-74 — EVAPORATOR (#45265) — 36 parça

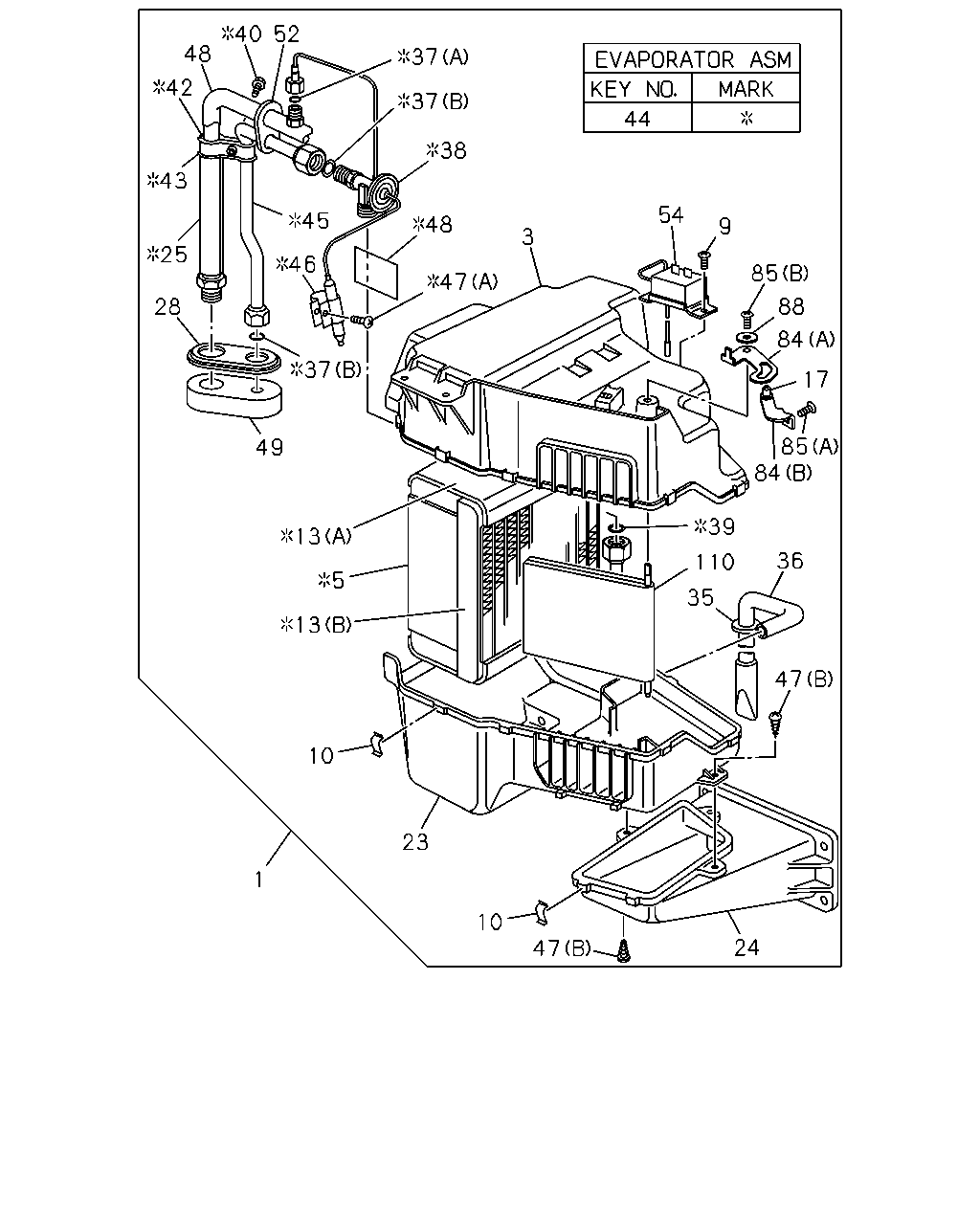

çizim 17416
44 37 37 38 48 47 3 54 9 85 88 84 17 85 84 39 110 35 36 47 24 47 10 23 1 10 13 5 13 49 37 46 45 52 40 48 42 43 25 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 EVAPORATOR ASM
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97088-158-0 01 1 9307- ● ●
3 CASE; EVAP,UPR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94175-005-0 01 1 9307- ● ●
5 EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97095-649-0 01 1 9307- ● ●
9 SCREW; THERMOSTAT TO CASE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94129-988-0 01 1 9307- ● ●
10 CLIP; EVAP CASE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		1-83574-148-0 10 1 9307- ● ●
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) 		5-83579-025-0 02 1 9307- ● ●
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) 		8-94175-008-0 02 1 9307- ● ●
17 ROLLER; LEVER,EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94206-402-0 01 1 9307- ● ●
23 CASE; EVAP,LWR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94175-004-0 01 1 9307- ● ●
24 DUCT; EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94170-102-0 01 1 9307- ● ●
25 COVER; EVAP PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97095-653-0 01 1 9307- ● ●
28 COVER; EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		5-83576-012-1 01 1 9307- ● ●
35 GROMMET; EVAP,LOW
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-09333-026-1 01 1 9307- ● ●
36 HOSE; DRAIN EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94112-924-0 01 1 9307- ● ●
37 GASKET; EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) ID=4.5 		8-94248-212-0 01 1 9307- ● ●
37 GASKET; EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) ID=6 		8-94481-700-0 02 1 9307- ● ●
38 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97095-631-0 01 1 9307- ● ●
39 GASKET; EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94481-717-0 01 1 9307- ● ●
40 SCREW; EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X12 TAPPING 		8-94248-771-0 01 1 9307- ● ●
42 CLIP; VLV PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97095-642-0 01 1 9307- ● ●
43 CLIP; VLV PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97095-644-0 01 1 9307- ● ●
44 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97095-646-0 01 1 9307- ● ●
45 PIPE; EXPANSION VLV
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97095-651-0 01 1 9307- ● ●
46 CLIP; EXPANSION VLV
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		1-83574-124-0 01 1 9307- ● ●
47 SCREW; EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) M5X14 		8-94244-002-0 01 1 9307- ● ●
47 SCREW; EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) M5X16 		8-94248-820-0 03 1 9307- ● ●
48 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83579-024-0 03 1 9307- ● ●
49 GROMMET; EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94112-925-1 01 1 9307- ● ●
52 GROMMET; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94175-012-0 01 1 9307- ● ●
54 THERMOSTAT; A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94233-187-0 01 1 9307- ● ●
84 LEVER; EVAP CASE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) "R-134A" 		8-94175-010-0 01 1 9307- ● ●
84 LEVER; EVAP CASE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) 		8-94175-011-0 01 1 9307- ● ●
85 SCREW; LEVER TO CASE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) 		5-83571-160-0 01 1 9307- ● ●
85 SCREW; LEVER TO CASE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) M5X16 		8-94248-820-0 01 1 9307- ● ●
88 WASHER; PL,EVAP TO BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) OD=20 		8-94233-175-0 01 1 9307- ● ●
110 DOOR; MODE,EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94175-009-1 01 1 9307- ● ●
