8-72 — COOLER UNIT (#45264) — 51 parça

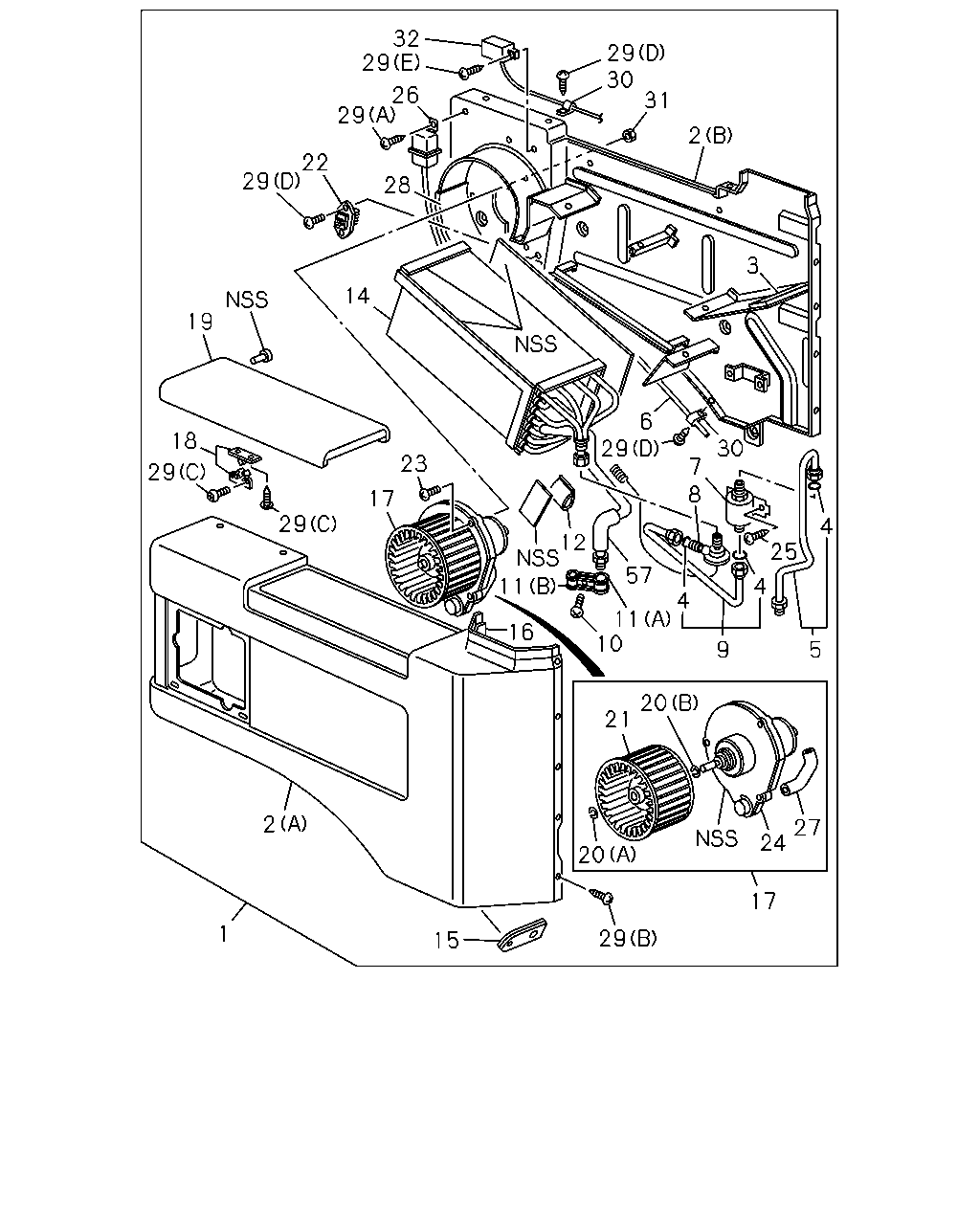

çizim 16139
32 29 26 29 28 22 29 14 19 18 29 29 17 23 29 6 29 30 31 2 3 30 7 8 4 25 5 4 9 4 57 12 11 16 10 11 21 20 27 24 17 20 29 15 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLING UNIT; RR
INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97082-889-1 01 1 9307- ● ●
1 COOLING UNIT; RR
INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97082-890-1 01 1 9307- ● ●
2 CASE; RR COOLER
INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) "R-134A" 		8-97096-115-0 01 1 9307- ● ●
2 CASE; RR COOLER
INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) "R-134A" 		8-97096-120-0 01 1 9307- ● ●
2 CASE; RR COOLER
INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) "R-134A" 		8-97096-127-1 01 1 9307- ● ●
2 CASE; RR COOLER
INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) "R-134A" 		8-97096-129-1 01 1 9307- ● ●
3 LINING; CASE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94440-311-0 03 1 9307- ● ●
4 GASKET; VLV TO PIPE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=6 		8-94481-700-0 03 1 9307- ● ●
5 PIPE; SOLENOID VLV
INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97096-124-0 01 1 9307-9312 ● ●
5 PIPE; SOLENOID VLV
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97096-124-0 01 1 9401- ● ●
5 PIPE; SOLENOID VLV
INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97096-105-0 01 1 9307-9312 ● ●
6 HARNESS; RR COOLER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97096-113-1 01 1 9307- ● ●
7 VALVE; SOLENOID
INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97096-123-0 01 1 9307-9312 ● ●
7 VALVE; SOLENOID
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97096-123-0 01 1 9401- ● ●
7 VALVE; SOLENOID
INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97096-103-0 01 1 9307-9312 ● ●
8 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97096-096-0 01 1 9307- ● ●
9 PIPE; VLV TO VLV
INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97096-122-0 01 1 9307-9312 ● ●
9 PIPE; VLV TO VLV
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97096-122-0 01 1 9401- ● ●
9 PIPE; VLV TO VLV
INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97096-101-0 01 1 9307-9312 ● ●
10 SCREW; CLIP TO BODY
INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X12 TAPPING 		8-94248-771-0 01 1 9307-9312 ● ●
10 SCREW; CLIP TO BODY
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X12 TAPPING 		8-94248-771-0 01 1 9401- ● ●
10 SCREW; CLIP TO BODY
INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94411-781-0 01 1 9307-9312 ● ●
11 CLIP; PIPE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) 		8-97096-106-0 01 1 9307- ● ●
11 CLIP; PIPE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) 		8-97096-109-0 01 1 9307- ● ●
12 CLIP; EVAP PIPE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94243-980-0 01 1 9307- ● ●
14 EVAPORATOR; RR COOLER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97096-094-0 01 1 9307- ● ●
15 GROMMET; CASE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94121-763-0 01 1 9307- ● ●
16 LINING; CASE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94121-766-0 01 1 9307- ● ●
17 MOTOR; FAN
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94151-579-0 01 1 9307- ● ●
18 CLIP; CASE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94151-583-0 01 1 9307- ● ●
19 COVER; RR COOLER,UPR
INTERIOR COLOR MEDIUM GRAY(113) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97029-732-0 01 1 9307- ● ●
19 COVER; RR COOLER,UPR
INTERIOR COLOR MED SAND(129) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97029-734-0 01 1 9307- ● ●
20 RING; SNAP,FAN MOTOR
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) 		5-83569-088-0 01 1 9307- ● ●
20 RING; SNAP,FAN MOTOR
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) 		8-94243-962-0 01 1 9307- ● ●
21 IMPELLER; FAN MOTOR
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83579-034-0 01 1 9307- ● ●
22 RESISTOR; RR COOLER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97096-111-0 01 1 9307- ● ●
23 SCREW; CASE TO MOTOR
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83579-028-0 03 1 9307- ● ●
24 LINING; FAN MOTOR
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94243-963-0 01 1 9307- ● ●
25 SCREW; VLV TO CASE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		9-03297-412-0 02 1 9307- ● ●
26 RELAY; RR COOLER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94121-767-0 01 1 9307- ● ●
27 HOSE; AIR,FAN MOTOR
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94440-309-0 01 1 9307- ● ●
28 LINING; CASE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94440-310-0 01 1 9307- ● ●
29 SCREW; CASE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) 		8-94411-781-0 02 1 9307- ● ●
29 SCREW; CASE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) 		8-94440-314-0 18 1 9307- ● ●
29 SCREW; CASE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) 		8-94440-315-0 04 1 9307- ● ●
29 SCREW; CASE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (D) 		9-03297-412-0 07 1 9307- ● ●
29 SCREW; CASE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (E) M4X12 TAPPING 		9-07066-412-0 02 1 9307- ● ●
30 CLIP; CABLE TO CASE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94121-759-0 02 1 9307- ● ●
31 NUT; CASE TO MOTOR
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94233-154-0 03 1 9307- ● ●
32 THERMOSTAT; RR COOLER
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94257-268-0 01 1 9307- ● ●
57 INSULATOR; PIPE
AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		1-83579-010-0 01 1 9307- ● ●
