8-70 — AIR CONDITIONING VENTILATION UNIT (#45262) — 37 parça

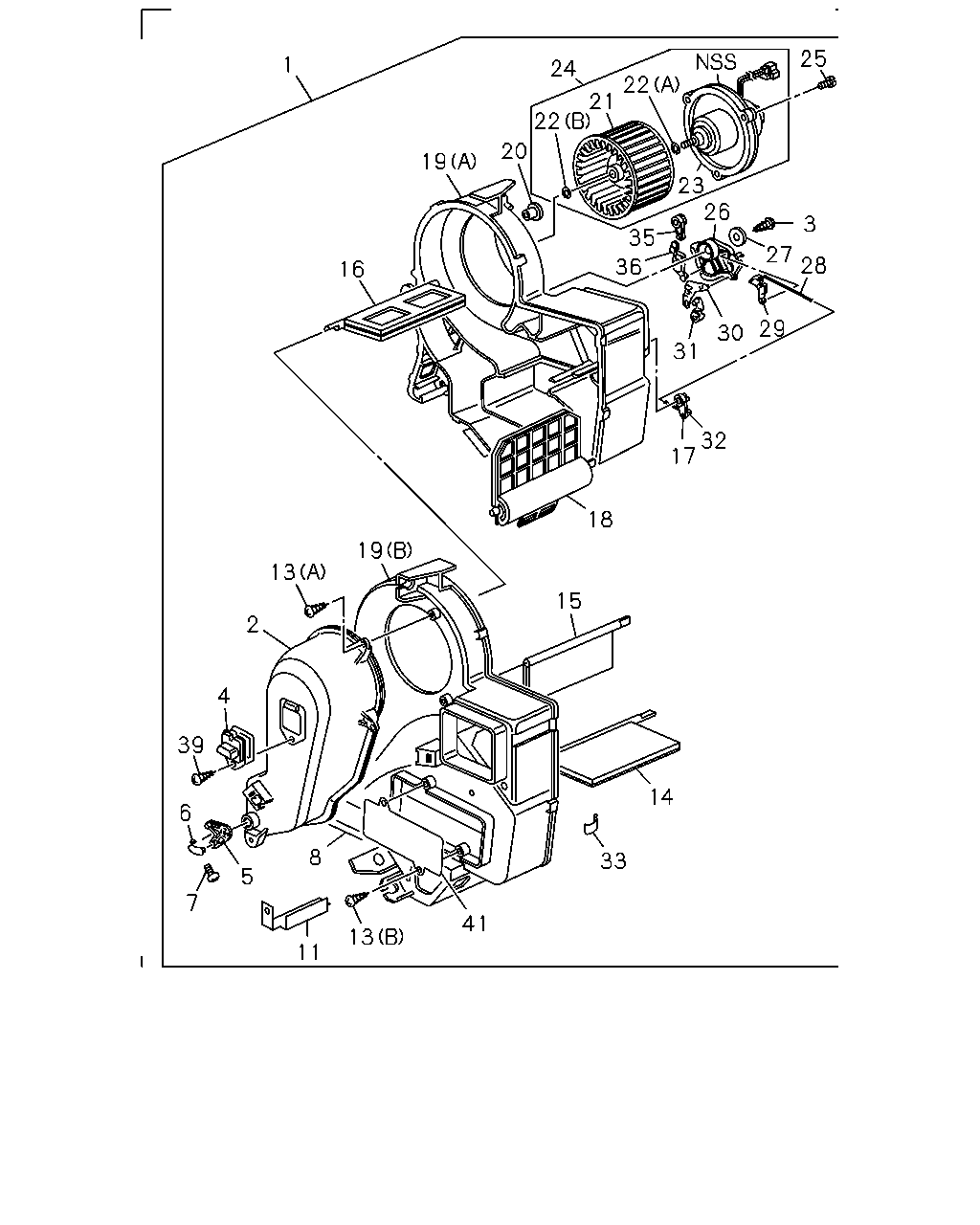

çizim 16138
1 16 19 20 22 24 21 22 25 23 26 27 3 28 29 30 31 35 36 32 17 18 15 14 33 41 13 11 8 5 7 6 39 4 2 13 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97085-416-1 01 1 9307- ● ●
2 DUCT; VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97095-662-1 01 1 9307- ● ●
3 SCREW; LEVER
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X16 		8-94248-820-0 01 1 9307- ● ●
4 RESISTOR; VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A" 		8-97095-663-0 01 1 9307- ● ●
5 LEVER; VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-189-0 01 1 9307- ● ●
6 LEVER; VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-190-0 01 1 9307- ● ●
7 SCREW; LEVER
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83571-160-0 01 1 9307- ● ●
8 LINING; VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-191-2 01 1 9307- ● ●
11 GUIDE; VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-194-0 01 1 9307- ● ●
13 SCREW; CASE
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) M5X10 TAPPING W/PL WASHER 		0-74300-510-0 05 1 9307- ● ●
13 SCREW; CASE
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) M4X16 TAPPING 		1-83579-114-0 02 1 9307- ● ●
14 DOOR; MODE,VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94464-846-0 01 1 9307- ● ●
15 DOOR; MIX,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94439-047-0 01 1 9307- ● ●
16 DOOR; MODE,VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94439-048-1 01 1 9307- ● ●
17 CLIP; SHUTTER LEVER,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94248-794-0 01 1 9307- ● ●
18 DOOR; MODE
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94439-045-0 01 1 9307- ● ●
19 CASE; VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) 		8-94243-959-0 01 1 9307- ● ●
19 CASE; VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) 		8-94243-960-2 01 1 9307- ● ●
20 NUT; CASE
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94233-154-0 03 1 9307- ● ●
21 IMPELLER; FAN MOTOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83579-034-0 01 1 9307- ● ●
22 RING; SNAP,FAN MOTOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) 		5-83569-088-0 01 1 9307- ● ●
22 RING; SNAP,FAN MOTOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) 		8-94243-962-0 01 1 9307- ● ●
23 GASKET; FAN MOTOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94233-165-0 01 1 9307- ● ●
24 MOTOR; FAN
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-97020-725-1 01 1 9307- ● ●
25 SCREW; FAN MOTOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83579-028-0 03 1 9307- ● ●
26 LEVER; VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83564-164-0 01 1 9307- ● ●
27 WASHER; LEVER
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) OD=30 		8-94233-145-0 01 1 9307- ● ●
28 ROD; SHUTTER LEVER,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94439-049-0 01 1 9307- ● ●
29 LEVER; SHUTTER,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-182-0 01 1 9307- ● ●
30 LEVER; VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-183-0 01 1 9307- ● ●
31 LEVER; VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-187-0 01 1 9307- ● ●
32 LEVER; VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-186-0 01 1 9307- ● ●
33 CLIP; VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		1-83574-148-0 08 1 9307- ● ●
35 LEVER; SHUTTER,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-188-0 01 1 9307- ● ●
36 LEVER; SHUTTER,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		5-83569-184-0 01 1 9307- ● ●
39 SCREW; TAP,RESISTOR,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X10 TAPPING W/PL WASHER 		0-74300-510-0 02 1 9307- ● ●
41 COVER; CASE
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) 		8-94257-810-0 01 1 9307- ● ●
