8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶
8-65 — CONTROL LEVER; HEATER AND AIR CON
(#45261) — 40 parça
Tümü
A - WFB6VC
B - WFB6VF
◀

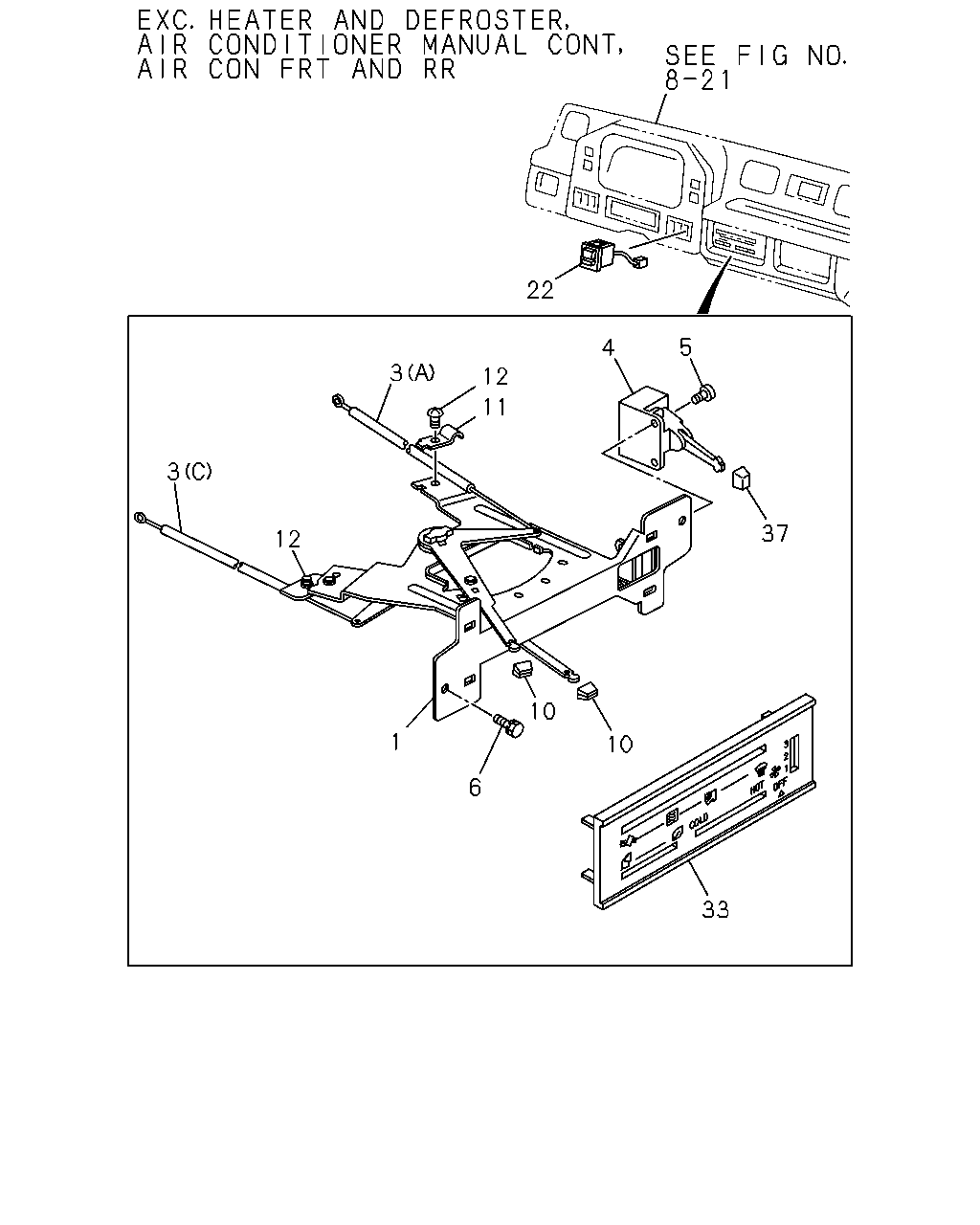

[865A] NO.2 (20 parça)

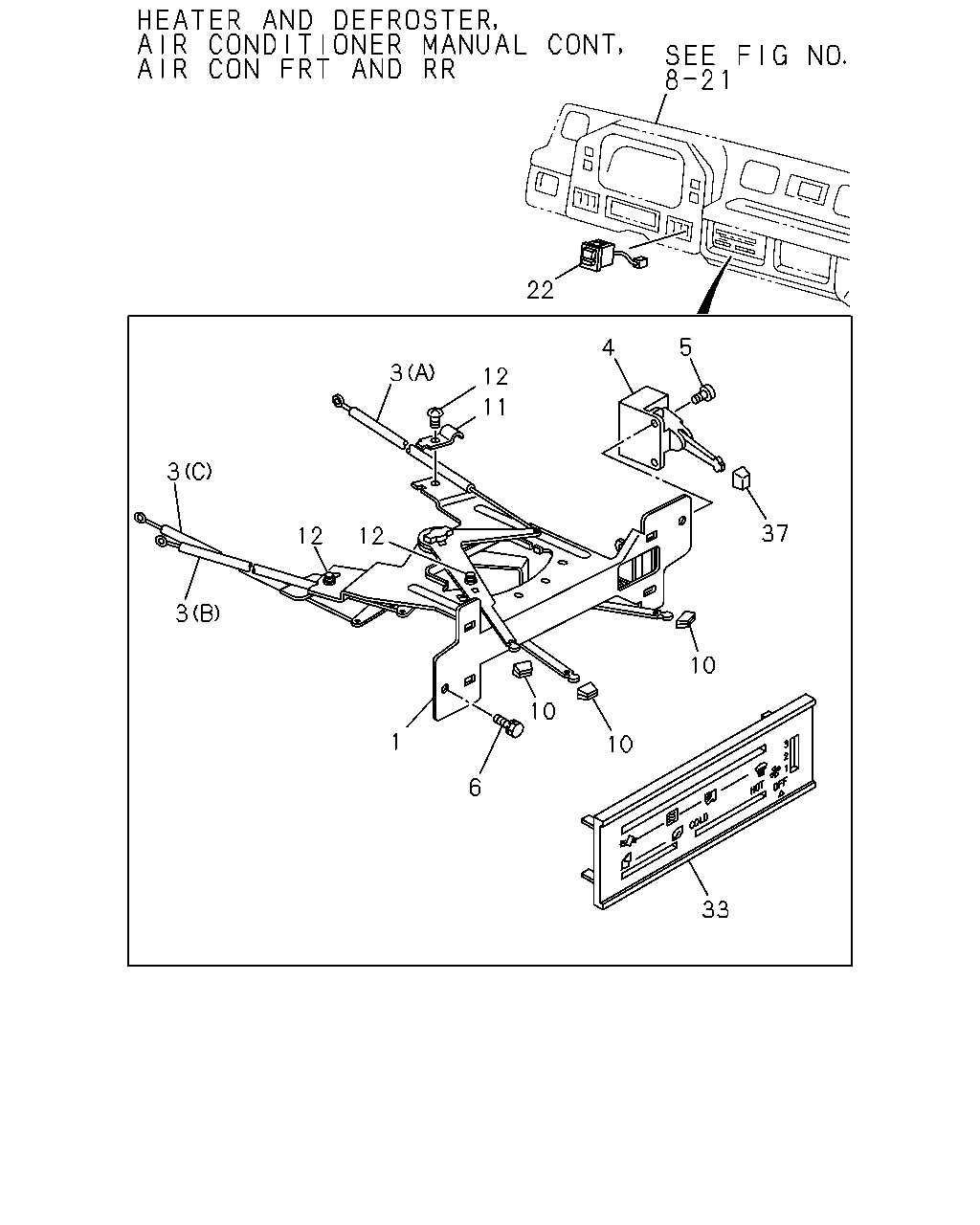

[865A] NO.1 (20 parça)
▶
22
4
5
37
33
10
10
6
1
3
12
11
12
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LEVER SUB ASM; HTR CONT
HEATER&DEFROSTER(C41)
8-94440-295-1
01
1
9307-
●
●
1
LEVER SUB ASM; HTR CONT
AIR CONDITIONER MANUAL CONT(C60) AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
8-94382-230-0
01
1
9307-
●
●
1
LEVER SUB ASM; HTR CONT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
8-94382-229-0
01
1
9307-
●
●
3
CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C)
8-94440-299-0
01
1
9307-
●
●
3
CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A)
8-94445-527-0
01
1
9307-
●
●
3
CABLE; HTR CONT LVR
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A)
8-94440-292-0
01
1
9307-
●
●
3
CABLE; HTR CONT LVR
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C)
8-94440-297-0
01
1
9307-
●
●
3
CABLE; HTR CONT LVR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)
8-94440-296-0
01
1
9307-
●
●
4
SWITCH; FAN,HTR CONT LVR
8-94157-020-0
01
1
9307-
●
●
5
SCREW; FAN SW
M4X8
5-83571-154-0
02
1
9307-
●
●
6
SCREW; CONT LVR TO INST PNL
M5X14 TAPPING W/PL WASHER
0-74110-514-0
02
1
9307-
●
●
10
KNOB; CONT LEVER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
5-83564-085-2
03
1
9307-
●
●
10
KNOB; CONT LEVER
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
5-83564-085-2
02
1
9307-
●
●
11
CLIP; CABLE,HTR CONT LVR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
5-83569-153-0
03
1
9307-
●
●
11
CLIP; CABLE,HTR CONT LVR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
5-83569-153-0
02
1
9307-
●
●
12
SCREW; CABLE CLIP,HTR CONT LVR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X8
1-83569-046-0
03
1
9307-
●
●
12
SCREW; CABLE CLIP,HTR CONT LVR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X8
1-83569-046-0
02
1
9307-
●
●
22
SWITCH; A/C,MAIN
8-94404-166-0
01
1
9307-
●
●
33
PANEL; HTR CONT
8-94278-545-4
01
1
9307-
●
●
37
KNOB; SW,HTR CONT LVR
8-94233-133-0
01
1
9307-
●
●
22
4
5
37
10
33
10
10
6
1
3
3
12
12
3
11
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LEVER SUB ASM; HTR CONT
HEATER&DEFROSTER(C41)
8-94440-295-1
01
1
9307-
●
●
1
LEVER SUB ASM; HTR CONT
AIR CONDITIONER MANUAL CONT(C60) AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
8-94382-230-0
01
1
9307-
●
●
1
LEVER SUB ASM; HTR CONT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
8-94382-229-0
01
1
9307-
●
●
3
CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C)
8-94440-299-0
01
1
9307-
●
●
3
CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A)
8-94445-527-0
01
1
9307-
●
●
3
CABLE; HTR CONT LVR
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A)
8-94440-292-0
01
1
9307-
●
●
3
CABLE; HTR CONT LVR
EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C)
8-94440-297-0
01
1
9307-
●
●
3
CABLE; HTR CONT LVR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)
8-94440-296-0
01
1
9307-
●
●
4
SWITCH; FAN,HTR CONT LVR
8-94157-020-0
01
1
9307-
●
●
5
SCREW; FAN SW
M4X8
5-83571-154-0
02
1
9307-
●
●
6
SCREW; CONT LVR TO INST PNL
M5X14 TAPPING W/PL WASHER
0-74110-514-0
02
1
9307-
●
●
10
KNOB; CONT LEVER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
5-83564-085-2
03
1
9307-
●
●
10
KNOB; CONT LEVER
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
5-83564-085-2
02
1
9307-
●
●
11
CLIP; CABLE,HTR CONT LVR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
5-83569-153-0
03
1
9307-
●
●
11
CLIP; CABLE,HTR CONT LVR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
5-83569-153-0
02
1
9307-
●
●
12
SCREW; CABLE CLIP,HTR CONT LVR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X8
1-83569-046-0
03
1
9307-
●
●
12
SCREW; CABLE CLIP,HTR CONT LVR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X8
1-83569-046-0
02
1
9307-
●
●
22
SWITCH; A/C,MAIN
8-94404-166-0
01
1
9307-
●
●
33
PANEL; HTR CONT
8-94278-545-4
01
1
9307-
●
●
37
KNOB; SW,HTR CONT LVR
8-94233-133-0
01
1
9307-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
