8-61 — HEATER UNIT; REAR (#45260) — 24 parça

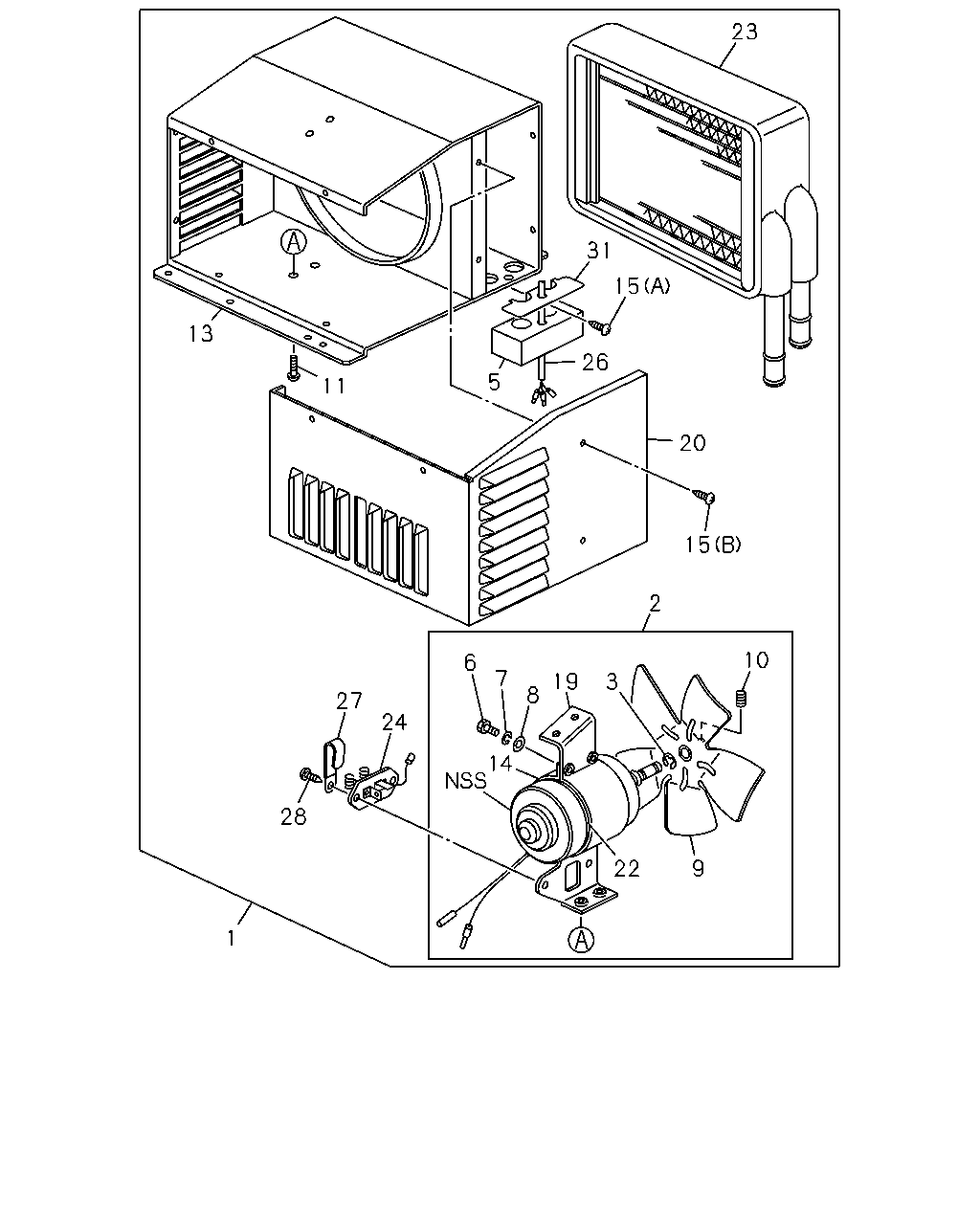

çizim 65667
23 31 15 26 5 11 13 27 24 28 1 22 9 10 3 19 8 14 6 7 2 20 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT; RR
REAR HEATER<C35> 		8-97088-863-0 01 1 9307-9309 ● ●
1 HEATER UNIT; RR
REAR HEATER<C35> W/WIRE-NET 		8-97088-865-0 01 1 9310- ● ●
2 MOTOR ASM; HTR
REAR HEATER<C35> 		8-94439-054-0 01 1 9307- ● ●
3 RING; SNAP,FAN TO MOTOR
REAR HEATER<C35> 		5-83569-088-0 01 1 9307- ● ●
5 LINING; HTR
REAR HEATER<C35> 		8-94253-909-0 01 1 9307- ● ●
6 BOLT; BRKT
REAR HEATER<C35> 		1-15729-008-0 04 1 9307- ● ●
7 WASHER; LK,BRKT
REAR HEATER<C35> ID=5 		1-83539-044-0 04 1 9307- ● ●
8 WASHER; PL,BRKT
REAR HEATER<C35> 		1-83539-045-0 04 1 9307- ● ●
9 FAN; MOTOR
REAR HEATER<C35> 		8-94244-009-0 01 1 9307- ● ●
10 SCREW; FAN TO MOTOR
REAR HEATER<C35> 		8-94439-055-0 01 1 9307- ● ●
11 SCREW; HTR CASE
REAR HEATER<C35> 		8-94244-012-0 04 1 9307- ● ●
13 CASE; HTR
REAR HEATER<C35> 		8-94462-663-0 01 1 9307- ● ●
14 BRACKET; HTR
REAR HEATER<C35> 		8-94439-056-0 01 1 9307- ● ●
15 SCREW; CASE
REAR HEATER<C35> (B) M4X10 BLACK 		5-09109-001-0 09 1 9307- ● ●
15 SCREW; CASE
REAR HEATER<C35> (A) 		8-94244-015-0 01 1 9307- ● ●
19 BRACKET; HTR
REAR HEATER<C35> 		8-94415-004-0 01 1 9307- ● ●
20 CASE; HTR
REAR HEATER<C35> 		8-94454-794-0 01 1 9307- ● ●
22 ISOLATOR; HTR
REAR HEATER<C35> 		1-83579-053-0 01 1 9307- ● ●
23 CORE ASM; HTR
REAR HEATER<C35> 		8-94121-169-1 01 1 9307- ● ●
24 RESISTOR; HTR
REAR HEATER<C35> 		8-94415-006-0 01 1 9307- ● ●
26 HARNESS; WIRE,HTR
REAR HEATER<C35> 		8-97095-666-0 01 1 9307- ● ●
27 CLIP; MOTOR
REAR HEATER<C35> 		8-94158-260-0 01 1 9307- ● ●
28 SCREW; MOTOR TO RESISTOR
REAR HEATER<C35> 		8-94244-014-0 02 1 9307- ● ●
31 COVER; HTR
REAR HEATER<C35> 		8-94439-058-0 01 1 9307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
