Isuzu WW
▶
BUSES
▶
LV
▶
10695 - LV233(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶
0-33 — FAN AND FAN BELT
(#4526) — 34 parça
◀

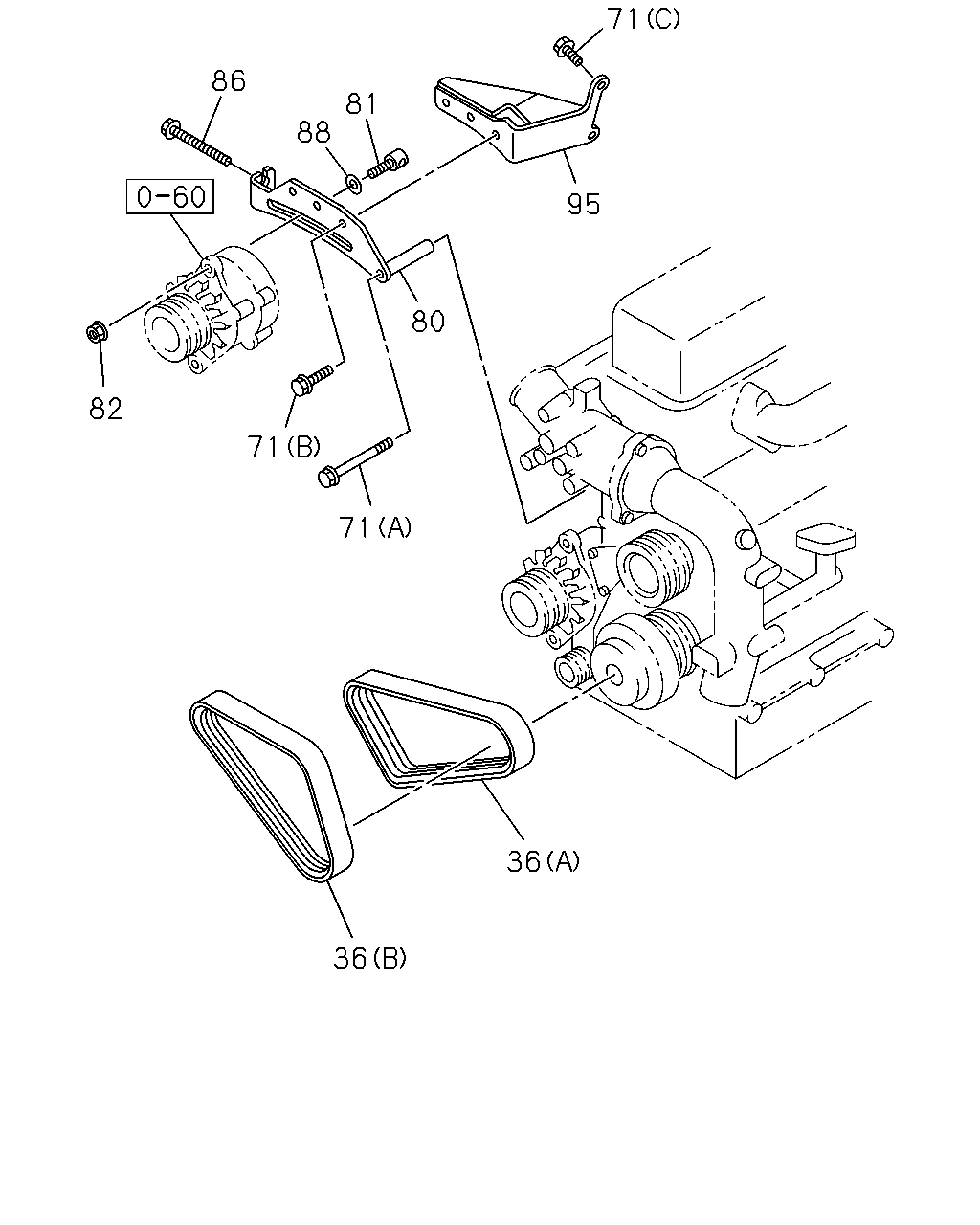

[033A] NO.2 (22 parça)

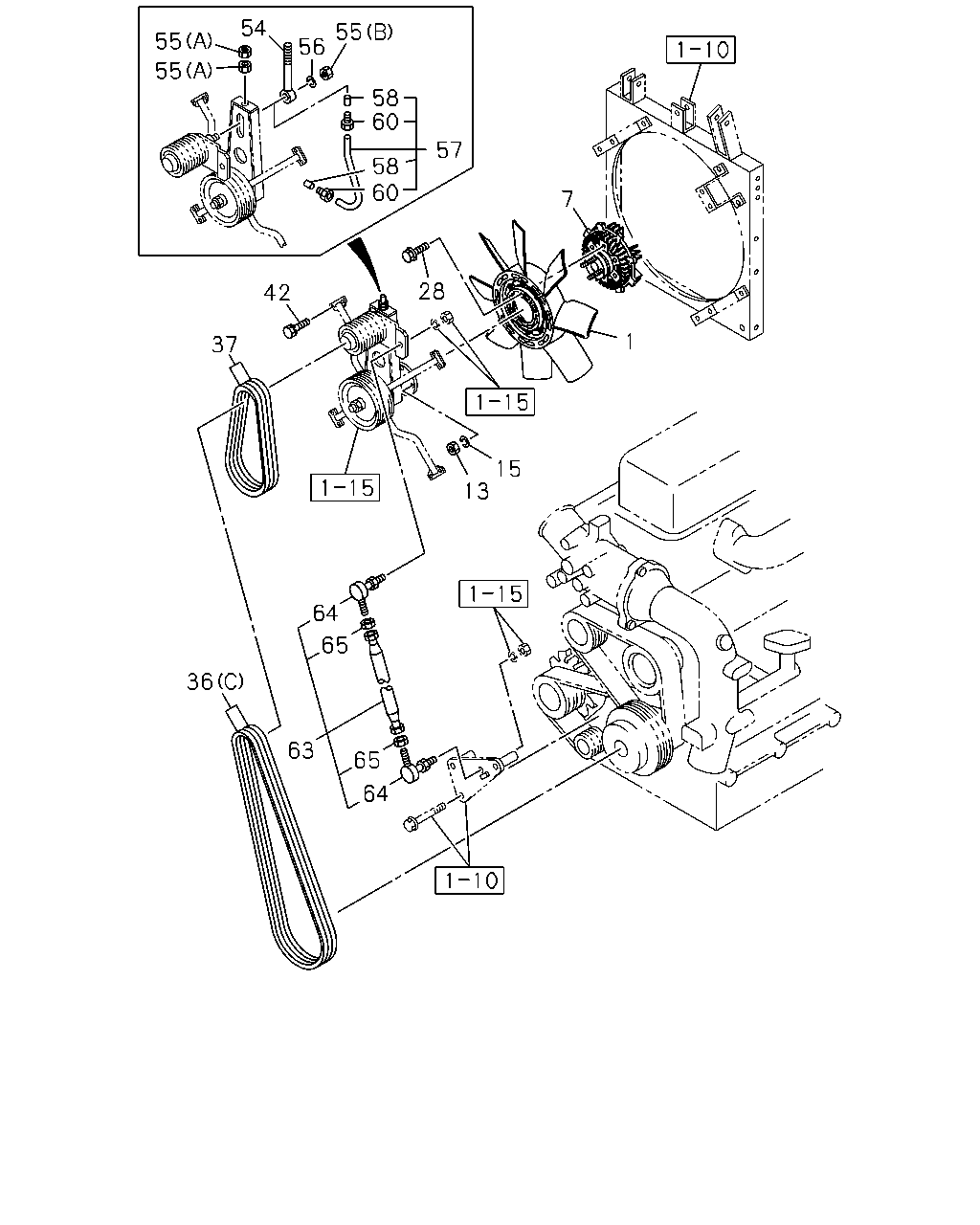

[033A] NO.1 (12 parça)
▶
54
55
55
56
55
58
60
57
58
60
7
28
42
1
37
15
13
64
65
36
63
65
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FAN; COOLING
1-13660-277-1
01
1
9712-
7
COUPLING; FAN
1-21650-194-0
01
1
9712-
13
NUT; COOLING FAN
M10
9-09110-410-0
04
1
9712-
15
WASHER; LK,COOLING FAN
ID=10.2
9-09150-510-0
04
1
9712-
28
BOLT; COOLING FAN
M10X16 FLANGE
0-28181-016-0
06
1
9712-
36
BELT; COOLING FAN
(C) 1 SET=2 PIECE(1136714450) MITSUBOSHI
1-13671-446-0
01
1
9712-
36
BELT; COOLING FAN
(A) L=1323
1-13671-454-0
01
1
9712-
36
BELT; COOLING FAN
(B) L=1378
1-13671-456-0
01
1
9712-
37
BELT; COOLING FAN,CR/SHF TO IDLE PULLE
1 SET=2 PIECE(1136714470) MITSUBOSHI
1-13671-448-0
01
1
9712-
42
BOLT; FAN DRIVE
M10X30 W/LK WASHER
0-50041-030-0
08
1
9712-
54
RETAINER; IDLE PULLEY,COOLING FAN
1-21625-036-0
01
1
9712-
55
NUT; IDLE PULLEY RET
(A) M10
9-09110-510-0
02
1
9712-
55
NUT; IDLE PULLEY RET
(B) M24
9-99111-524-0
01
1
9712-
56
WASHER; LK,IDLE PULLEY TO SPINDLE
ID=24.5
9-09150-524-0
01
1
9712-
57
PIPE; GREASE,IDLE PULLEY
L=180
1-59461-674-0
01
1
9712-
58
SLEEVE; GREASE PIPE,FAN & IDLE PULLEY
ID=6.1 T=6
9-83765-027-0
01
1
9712-
60
NIPPLE; SLEEVE,GREASE PIPE
9-83765-026-0
01
1
9712-
63
LINK ASM; ADJ,COOLING FAN DRIVE PULLEY
1-21629-041-2
01
1
9712-
64
ROD ASM; END,SWING ARM,FAN DRIVE
LH THREAD
1-09760-034-3
01
1
9712-
64
ROD ASM; END,SWING ARM,FAN DRIVE
RH THREAD
1-09760-035-3
01
1
9712-
65
NUT; LK,ADJ LINK,FAN PULLEY
M12 LH THREAD
9-09840-247-1
01
1
9712-
65
NUT; LK,ADJ LINK,FAN PULLEY
M12
9-99111-412-0
01
1
9712-
71
86
81
88
95
80
82
71
71
36
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
36
BELT; COOLING FAN
(C) 1 SET=2 PIECE(1136714450) MITSUBOSHI
1-13671-446-0
01
1
9712-
36
BELT; COOLING FAN
(A) L=1323
1-13671-454-0
01
1
9712-
36
BELT; COOLING FAN
(B) L=1378
1-13671-456-0
01
1
9712-
71
BOLT; ADJ PLATE,GEN
(A) M12X140 FLANGE
0-28186-214-0
01
1
9712-
71
BOLT; ADJ PLATE,GEN
(C) M10X25 FLANGE
0-28781-025-0
02
1
9712-
71
BOLT; ADJ PLATE,GEN
(B) M10X35 FLANGE
0-28681-035-0
03
1
9712-
80
PLATE; ADJ
1-13674-272-0
01
1
9712-
81
PIECE; SLIDING
M12X59
1-13674-161-0
01
1
9712-
82
NUT; ADJ PLATE
M12 FLANGE
0-91150-112-0
01
1
9712-
86
BOLT; ADJ
1-09009-169-0
01
1
9712-
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
9-09160-712-0
01
1
9712-
95
BRACKET; ADJ PLATE
1-21559-410-0
01
1
9712-
