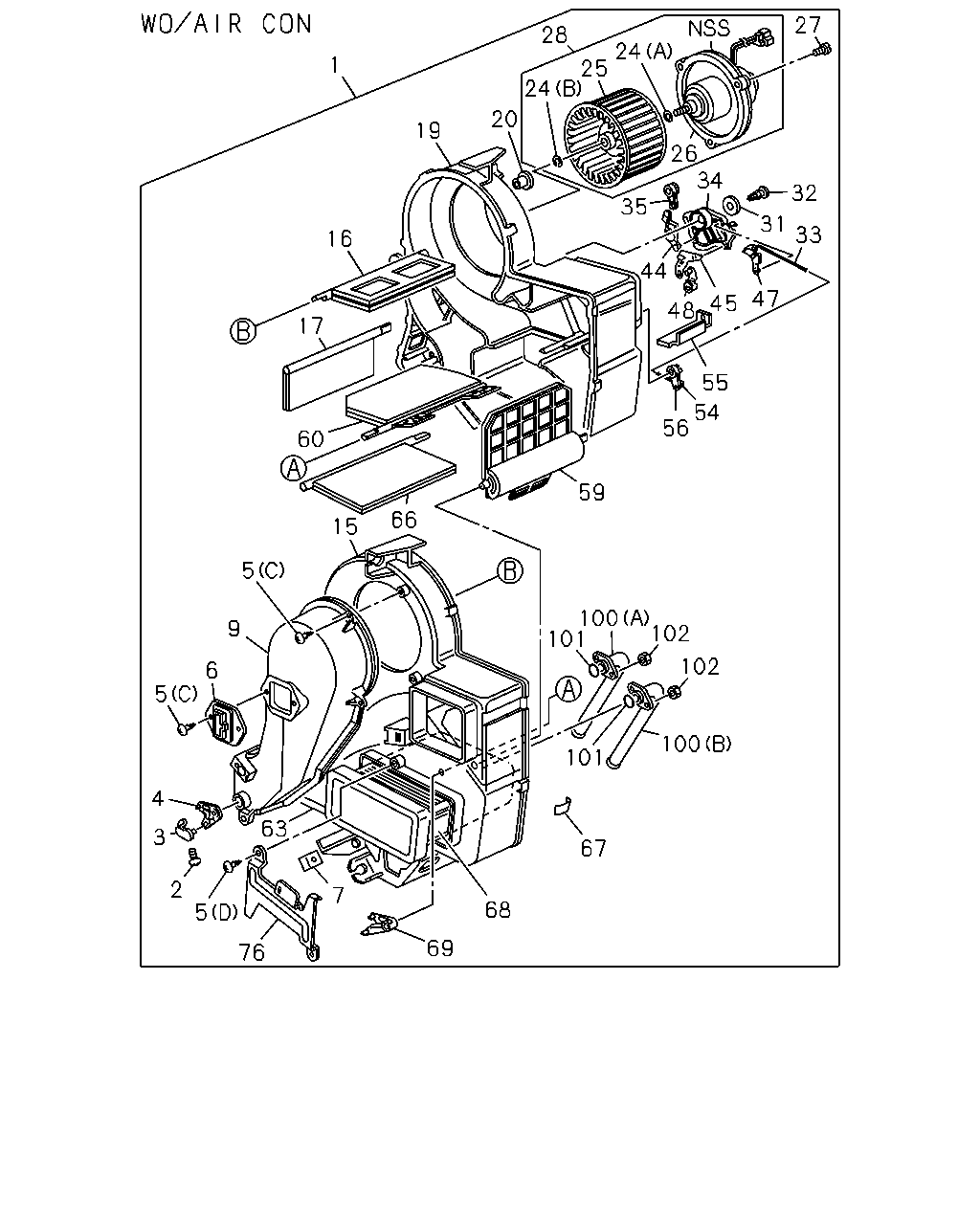

8-60 — HEATER UNIT; FRONT (#45259) — 100 parça

1 16 19 74 127 35 34 32 33 31 44 48 45 47 56 54 55 59 101 100 102 102 100 101 67 68 69 76 5 7 63 5 2 3 77 27 26 24 25 24 20 15 66 28 60 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94459-750-2	01	1	9307-	●	●
1	HEATER UNIT HEATER&DEFROSTER(C41)	8-97085-411-1	01	1	9307-	●	●
2	SCREW; LEVER HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83571-160-0	01	1	9307-	●	●
3	LEVER; DUCT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-190-0	01	1	9307-	●	●
5	SCREW; BRKT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) M5X12 TAPPING	8-94248-771-0	07	1	9307-	●	●
5	SCREW; BRKT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-94248-807-0	02	1	9307-	●	●
5	SCREW; BRKT HEATER&DEFROSTER(C41) (C) M5X10 TAPPING W/PL WASHER	0-74300-510-0	08	1	9307-	●	●
5	SCREW; BRKT HEATER&DEFROSTER(C41) (D) M4X16 TAPPING	1-83579-114-0	02	1	9307-	●	●
7	LINING; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94475-081-1	01	1	9307-	●	●
15	SCROLL; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94169-488-0	01	1	9307-	●	●
15	SCROLL; HTR UNIT HEATER&DEFROSTER(C41)	8-94243-959-0	01	1	9307-	●	●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94439-047-0	01	1	9307-	●	●
17	SHUTTER; HTR UNIT,CENTER HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94439-048-1	01	1	9307-	●	●
19	SCROLL; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94169-489-0	01	1	9307-	●	●
20	NUT; DUCT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94233-154-0	03	1	9307-	●	●
24	RING; SNAP,FAN MOTOR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A)	5-83569-088-0	01	1	9307-	●	●
24	RING; SNAP,FAN MOTOR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-94243-962-0	01	1	9307-	●	●
25	IMPELLER; FAN MOTOR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-83579-082-0	01	1	9307-	●	●
25	IMPELLER; FAN MOTOR HEATER&DEFROSTER(C41)	5-83579-034-0	01	1	9307-	●	●
26	GASKET; FAN MOTOR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94233-165-0	01	1	9307-	●	●
27	SCREW; FAN MOTOR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83579-028-0	03	1	9307-	●	●
28	MOTOR ASM; FAN,HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94440-320-1	01	1	9307-	●	●
28	MOTOR ASM; FAN,HTR UNIT HEATER&DEFROSTER(C41)	8-97020-725-1	01	1	9307-	●	●
31	WASHER; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) OD=30	8-94233-145-0	01	1	9307-	●	●
32	SCREW; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X16	8-94248-820-0	01	1	9307-	●	●
33	ROD; SHUTTER LEVER HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94439-049-0	01	1	9307-	●	●
34	LEVER; SHUTTER,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83564-164-0	01	1	9307-	●	●
35	LEVER; SHUTTER,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-188-0	01	1	9307-	●	●
44	LEVER; SHUTTER,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-184-0	01	1	9307-	●	●
45	LEVER; SHUTTER,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-183-0	01	1	9307-	●	●
47	LEVER; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-182-0	01	1	9307-	●	●
48	LEVER; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-187-0	01	1	9307-	●	●
54	CLIP; SHUTTER LEVER HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94248-794-0	01	1	9307-	●	●
55	GUIDE; CASE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-194-0	01	1	9307-	●	●
56	LEVER; SHUTTER,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-186-0	01	1	9307-	●	●
59	SHUTTER; HTR UNIT,SIDE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94439-045-0	01	1	9307-	●	●
60	DOOR; MIX,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94439-044-1	01	1	9307-	●	●
63	LINING; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-191-2	01	1	9307-	●	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94464-846-0	01	1	9307-	●	●
67	CLIP; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-83574-148-0	08	1	9307-	●	●
68	CORE; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94463-853-0	01	1	9307-	●	●
69	LEVER; SHUTTER,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-185-0	01	1	9307-	●	●
74	DUCT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-83563-099-0	01	1	9307-	●	●
76	BRACKET; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94440-322-0	01	1	9307-	●	●
77	COVER; HTR CASE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94248-099-0	01	1	9307-	●	●
100	PIPE; CORE,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A)	5-83567-179-1	01	1	9307-	●	●
100	PIPE; CORE,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	5-83567-180-1	01	1	9307-	●	●
101	GASKET; CORE,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94246-731-0	02	1	9307-	●	●
102	NUT; CORE,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94246-732-0	04	1	9307-	●	●
127	WASHER; LEVER TO DUCT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83571-150-0	03	1	9307-	●	●

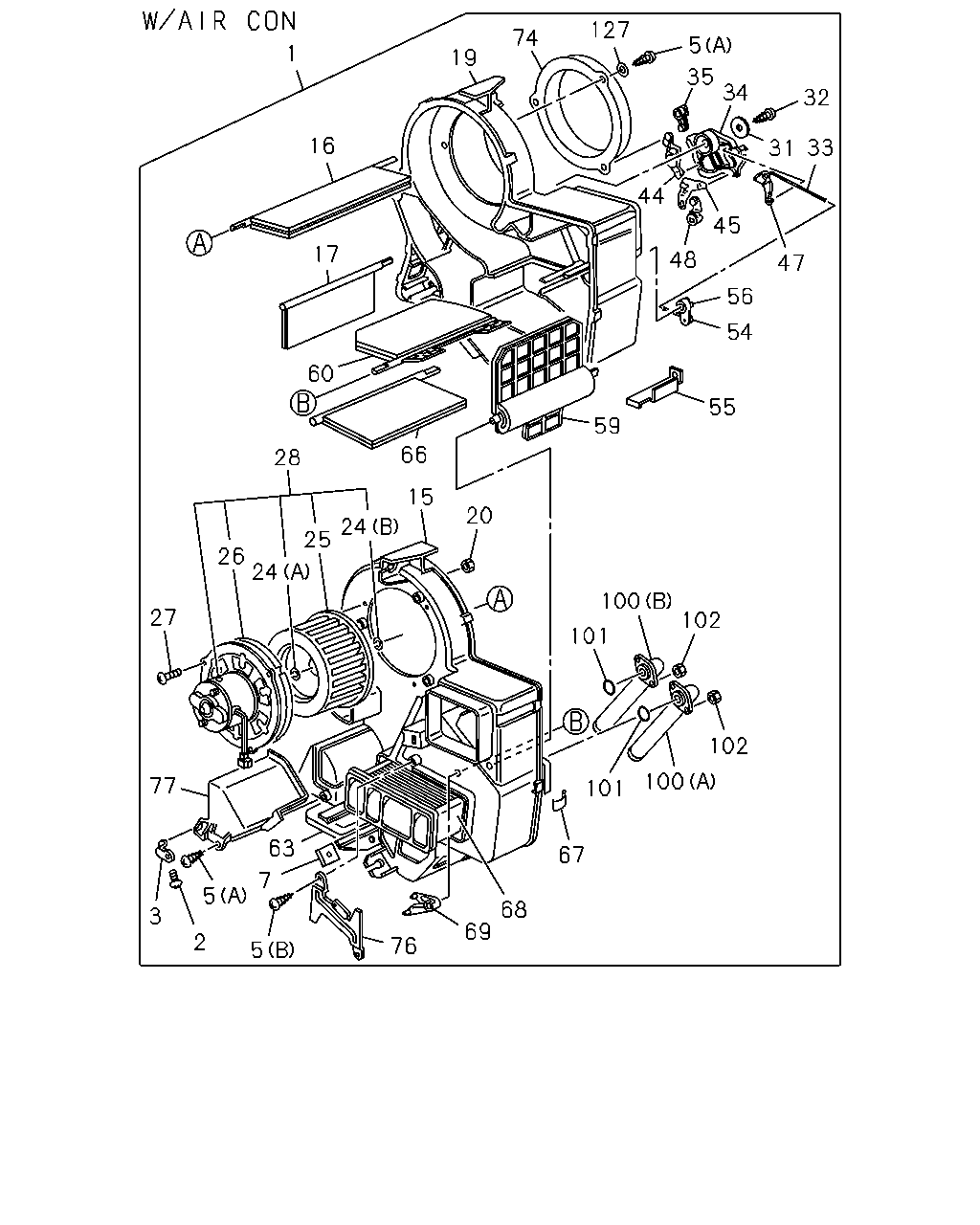

27 24 25 28 24 20 19 1 16 17 60 66 15 5 9 6 5 4 3 2 5 63 76 7 69 68 67 101 100 102 102 100 101 59 56 54 55 48 44 35 26 34 32 31 33 47 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94459-750-2	01	1	9307-	●	●
1	HEATER UNIT HEATER&DEFROSTER(C41)	8-97085-411-1	01	1	9307-	●	●
2	SCREW; LEVER HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83571-160-0	01	1	9307-	●	●
3	LEVER; DUCT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-190-0	01	1	9307-	●	●
4	LEVER; DUCT HEATER&DEFROSTER(C41)	5-83569-189-0	01	1	9307-	●	●
5	SCREW; BRKT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) M5X12 TAPPING	8-94248-771-0	07	1	9307-	●	●
5	SCREW; BRKT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-94248-807-0	02	1	9307-	●	●
5	SCREW; BRKT HEATER&DEFROSTER(C41) (C) M5X10 TAPPING W/PL WASHER	0-74300-510-0	08	1	9307-	●	●
5	SCREW; BRKT HEATER&DEFROSTER(C41) (D) M4X16 TAPPING	1-83579-114-0	02	1	9307-	●	●
6	RESISTOR; HTR UNIT HEATER&DEFROSTER(C41) "R-134A"	8-97095-663-0	01	1	9307-	●	●
7	LINING; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94475-081-1	01	1	9307-	●	●
9	DUCT; HTR UNIT HEATER&DEFROSTER(C41)	8-97095-662-1	01	1	9307-	●	●
15	SCROLL; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94169-488-0	01	1	9307-	●	●
15	SCROLL; HTR UNIT HEATER&DEFROSTER(C41)	8-94243-959-0	01	1	9307-	●	●
16	SHUTTER; HTR UNIT,CENTER UPR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94439-047-0	01	1	9307-	●	●
17	SHUTTER; HTR UNIT,CENTER HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94439-048-1	01	1	9307-	●	●
19	SCROLL; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94169-489-0	01	1	9307-	●	●
20	NUT; DUCT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94233-154-0	03	1	9307-	●	●
24	RING; SNAP,FAN MOTOR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A)	5-83569-088-0	01	1	9307-	●	●
24	RING; SNAP,FAN MOTOR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	8-94243-962-0	01	1	9307-	●	●
25	IMPELLER; FAN MOTOR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-83579-082-0	01	1	9307-	●	●
25	IMPELLER; FAN MOTOR HEATER&DEFROSTER(C41)	5-83579-034-0	01	1	9307-	●	●
26	GASKET; FAN MOTOR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94233-165-0	01	1	9307-	●	●
27	SCREW; FAN MOTOR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83579-028-0	03	1	9307-	●	●
28	MOTOR ASM; FAN,HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94440-320-1	01	1	9307-	●	●
28	MOTOR ASM; FAN,HTR UNIT HEATER&DEFROSTER(C41)	8-97020-725-1	01	1	9307-	●	●
31	WASHER; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) OD=30	8-94233-145-0	01	1	9307-	●	●
32	SCREW; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X16	8-94248-820-0	01	1	9307-	●	●
33	ROD; SHUTTER LEVER HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94439-049-0	01	1	9307-	●	●
34	LEVER; SHUTTER,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83564-164-0	01	1	9307-	●	●
35	LEVER; SHUTTER,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-188-0	01	1	9307-	●	●
44	LEVER; SHUTTER,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-184-0	01	1	9307-	●	●
45	LEVER; SHUTTER,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-183-0	01	1	9307-	●	●
47	LEVER; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-182-0	01	1	9307-	●	●
48	LEVER; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-187-0	01	1	9307-	●	●
54	CLIP; SHUTTER LEVER HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94248-794-0	01	1	9307-	●	●
55	GUIDE; CASE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-194-0	01	1	9307-	●	●
56	LEVER; SHUTTER,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-186-0	01	1	9307-	●	●
59	SHUTTER; HTR UNIT,SIDE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94439-045-0	01	1	9307-	●	●
60	DOOR; MIX,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94439-044-1	01	1	9307-	●	●
63	LINING; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-191-2	01	1	9307-	●	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94464-846-0	01	1	9307-	●	●
67	CLIP; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-83574-148-0	08	1	9307-	●	●
68	CORE; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94463-853-0	01	1	9307-	●	●
69	LEVER; SHUTTER,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-185-0	01	1	9307-	●	●
76	BRACKET; HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94440-322-0	01	1	9307-	●	●
100	PIPE; CORE,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A)	5-83567-179-1	01	1	9307-	●	●
100	PIPE; CORE,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B)	5-83567-180-1	01	1	9307-	●	●
101	GASKET; CORE,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94246-731-0	02	1	9307-	●	●
102	NUT; CORE,HTR UNIT HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94246-732-0	04	1	9307-	●	●
