8-52 — PIPING; AIR CONDITIONING (#45257) — 73 parça

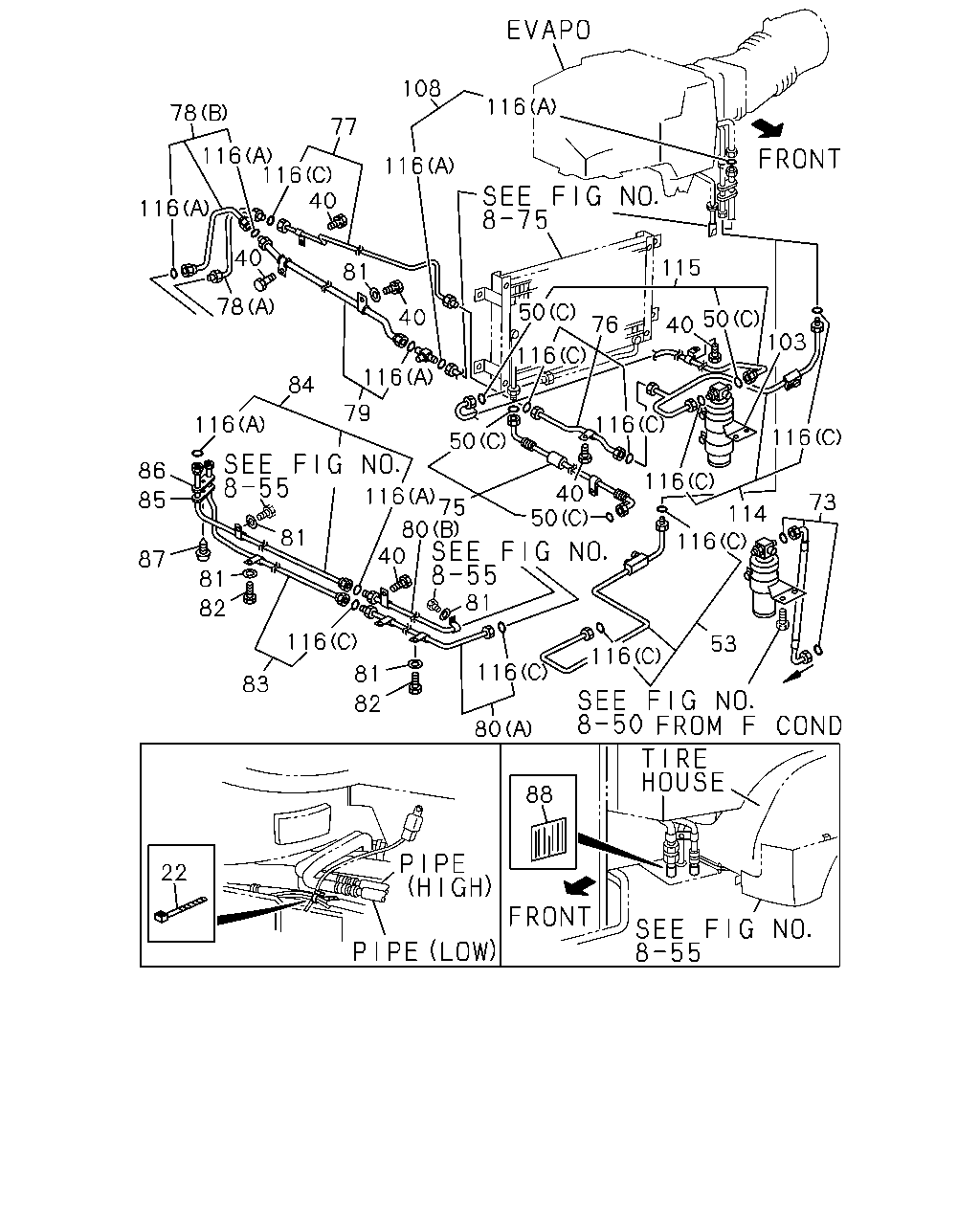

116 108 116 77 40 116 116 78 116 40 78 81 40 116 79 84 116 86 85 87 81 82 81 83 116 81 82 80 88 116 116 53 73 116 114 116 116 116 40 50 81 40 80 116 75 50 116 50 76 40 50 103 115 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLIP; BAND,A/C PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2) CLIP L=140	8-94219-878-0	01	1	9307-	●	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X12 W/LK WASHER	0-50040-612-0	05	1	9307-	●	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9307-	●	●
50	GASKET; FLEX HOSE,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) ID=13.9	8-94113-330-0	01	1	9307-	●	●
50	GASKET; FLEX HOSE,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) ID=10.8	8-94113-331-0	01	1	9307-	●	●
50	GASKET; FLEX HOSE,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) ID=11.0	8-94461-900-0	01	1	9307-	●	●
50	GASKET; FLEX HOSE,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (D) ID=14.8	8-94461-901-0	01	1	9307-	●	●
50	GASKET; FLEX HOSE,A/C 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) ID=13.9	8-94113-330-0	02	1	9307-	●	●
50	GASKET; FLEX HOSE,A/C 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) ID=10.8	8-94113-331-0	02	1	9307-	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) ID=6.07	8-94461-902-0	04	1	9307-	●	●
53	PIPE; RECEIVER TANK TO EVAP AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97072-460-1	01	1	9307-	●	●
73	HOSE; FLEX,CONDENSER TO TANK AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97072-578-0	01	1	9307-	●	●
75	HOSE; FLEX,CONDENSER TO CONDENSER AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-582-0	01	1	9307-	●	●
76	PIPE; TANK TO PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-468-0	01	1	9307-	●	●
77	PIPE; PIPE TO COOLING UNIT AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-477-0	01	1	9307-	●	●
78	PIPE; PIPE TO UNIT,FRT AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) "R-134A"	8-97072-471-0	01	1	9307-	●	●
78	PIPE; PIPE TO UNIT,FRT AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) "R-134A"	8-97072-482-0	01	1	9307-	●	●
79	PIPE; COOLING UNIT TO TANK AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-483-0	01	1	9307-	●	●
80	PIPE; PIPE TO UNIT,CENTER AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) "R-134A"	8-97072-472-0	01	1	9307-	●	●
80	PIPE; PIPE TO UNIT,CENTER AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) "R-134A"	8-97072-480-0	01	1	9307-	●	●
81	WASHER; PL,CLIP TO BODY AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=5.3 OD=12	9-09160-605-0	05	1	9307-	●	●
81	WASHER; PL,CLIP TO BODY AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=6.4 OD=18	9-09164-706-0	01	1	9307-	●	●
82	SCREW; CLIP TO BODY AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X19	1-09981-152-0	03	1	9307-	●	●
83	PIPE; PIPE TO COOLING UNIT AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-474-0	01	1	9307-	●
83	PIPE; PIPE TO COOLING UNIT AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-473-0	01	1	9307-		●
84	PIPE; COOLING UNIT TO PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-479-0	01	1	9307-	●
84	PIPE; COOLING UNIT TO PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-478-0	01	1	9307-		●
85	COVER; PLATE,EVAP PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	5-83576-012-1	01	1	9307-	●	●
86	SEAL; RUBBER,EVAP PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94112-925-1	01	1	9307-	●	●
87	SCREW; COVER PLATE AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X16 TAPPING	9-07076-516-0	01	1	9307-	●	●
88	INSULATOR; PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-83569-024-0	02	1	9307-	●	●
103	TANK; RECEIVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-454-1	01	1	9307-	●	●
108	PIPE; EVAP TO PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-461-1	01	1	9307-	●	●
114	PIPE; TANK TO EVAP AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-469-1	01	1	9307-	●	●
115	HOSE; FLEX,CONDENSER TO TANK AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-561-0	01	1	9307-	●	●
116	GASKET; PIPE 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) ID=11.0	8-94461-900-0	01	1	9307-	●	●
116	GASKET; PIPE 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) ID=14.8	8-94461-901-0	01	1	9307-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) ID=13.9	8-94113-330-0	02	1	9307-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (C) ID=6.07	8-94461-902-0	01	1	9307-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) ID=6.07	8-94461-902-0	05	1	9307-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) ID=13.9	8-94113-330-0	05	1	9307-	●	●

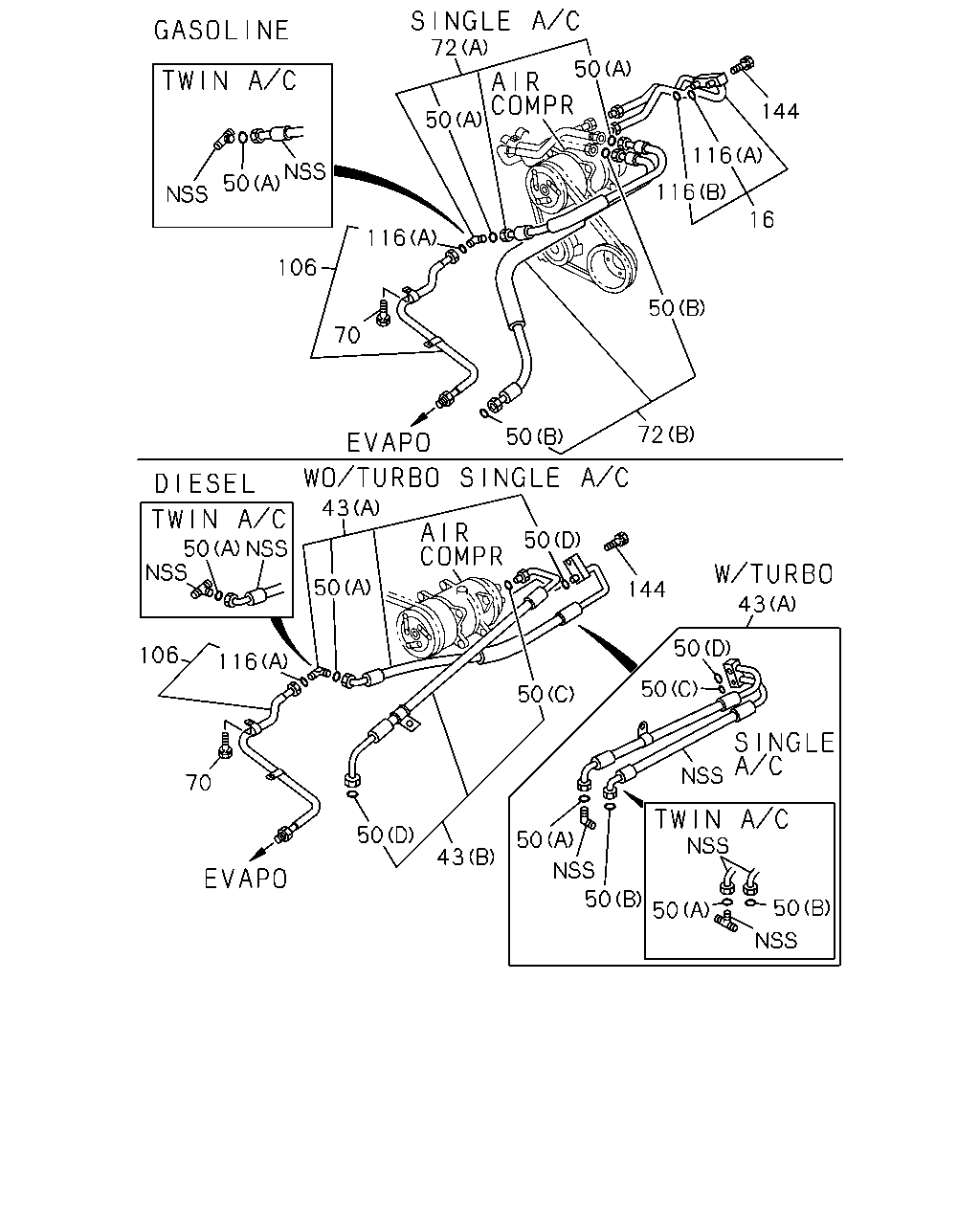

50 72 50 50 144 116 116 16 50 72 50 116 106 70 43 50 50 106 116 70 50 43 50 50 144 43 50 50 50 50 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; PIPE TO CMPR 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-456-0	01	1	9307-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) W/TWIN A/C T-UNION "R-134A"	8-97072-573-1	01	1	9307-9406	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TURBOCHARGER(K51) (A) W/TWIN A/C T-UNION "R-134A"	8-97072-573-1	01	1	9407-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) TURBOCHARGER(K51) (A) W/TWIN A/C T-UNION "R-134A"	8-97072-833-1	01	1	9407-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60) (A) W/SINGLE A/C L-UNION "R-134A"	8-97072-571-1	01	1	9307-9406	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51) (A) W/SINGLE A/C L-UNION "R-134A"	8-97072-571-1	01	1	9407-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) (A) "R-134A"	8-97072-562-1	01	1	9407-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) "R-134A"	8-97072-563-0	01	1	9307-9406	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TURBOCHARGER(K51) (B) "R-134A"	8-97072-563-0	01	1	9407-	●	●
50	GASKET; FLEX HOSE,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) ID=13.9	8-94113-330-0	01	1	9307-	●	●
50	GASKET; FLEX HOSE,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) ID=10.8	8-94113-331-0	01	1	9307-	●	●
50	GASKET; FLEX HOSE,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) ID=11.0	8-94461-900-0	01	1	9307-	●	●
50	GASKET; FLEX HOSE,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (D) ID=14.8	8-94461-901-0	01	1	9307-	●	●
50	GASKET; FLEX HOSE,A/C 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) ID=13.9	8-94113-330-0	02	1	9307-	●	●
50	GASKET; FLEX HOSE,A/C 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) ID=10.8	8-94113-331-0	02	1	9307-	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) ID=6.07	8-94461-902-0	04	1	9307-	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9307-	●	●
72	HOSE; FLEX,TANK 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) T-UNION "R-134A"	8-97072-831-0	01	1	9307-	●	●
72	HOSE; FLEX,TANK 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60) (A) L-UNION "R-134A"	8-97072-832-0	01	1	9307-	●	●
72	HOSE; FLEX,TANK 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) "R-134A"	8-97072-577-0	01	1	9307-	●	●
106	PIPE; PIPE TO UNION AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97072-458-0	01	1	9307-	●	●
116	GASKET; PIPE 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) ID=11.0	8-94461-900-0	01	1	9307-	●	●
116	GASKET; PIPE 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) ID=14.8	8-94461-901-0	01	1	9307-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) ID=13.9	8-94113-330-0	02	1	9307-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (C) ID=6.07	8-94461-902-0	01	1	9307-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) ID=6.07	8-94461-902-0	05	1	9307-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) ID=13.9	8-94113-330-0	05	1	9307-	●	●
144	BOLT; CONN TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9307-9406	●	●
144	BOLT; CONN TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. TURBOCHARGER(K51) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9407-	●	●
144	BOLT; CONN TO CMPR 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X40 FLANGE	0-28081-040-0	01	1	9307-9406	●	●
144	BOLT; CONN TO CMPR 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X40 FLANGE	0-28081-040-0	01	1	9407-	●	●
144	BOLT; CONN TO CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) TURBOCHARGER(K51) M10X40 FLANGE	0-28081-040-0	01	1	9407-	●	●
