Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#45256) — 124 parça

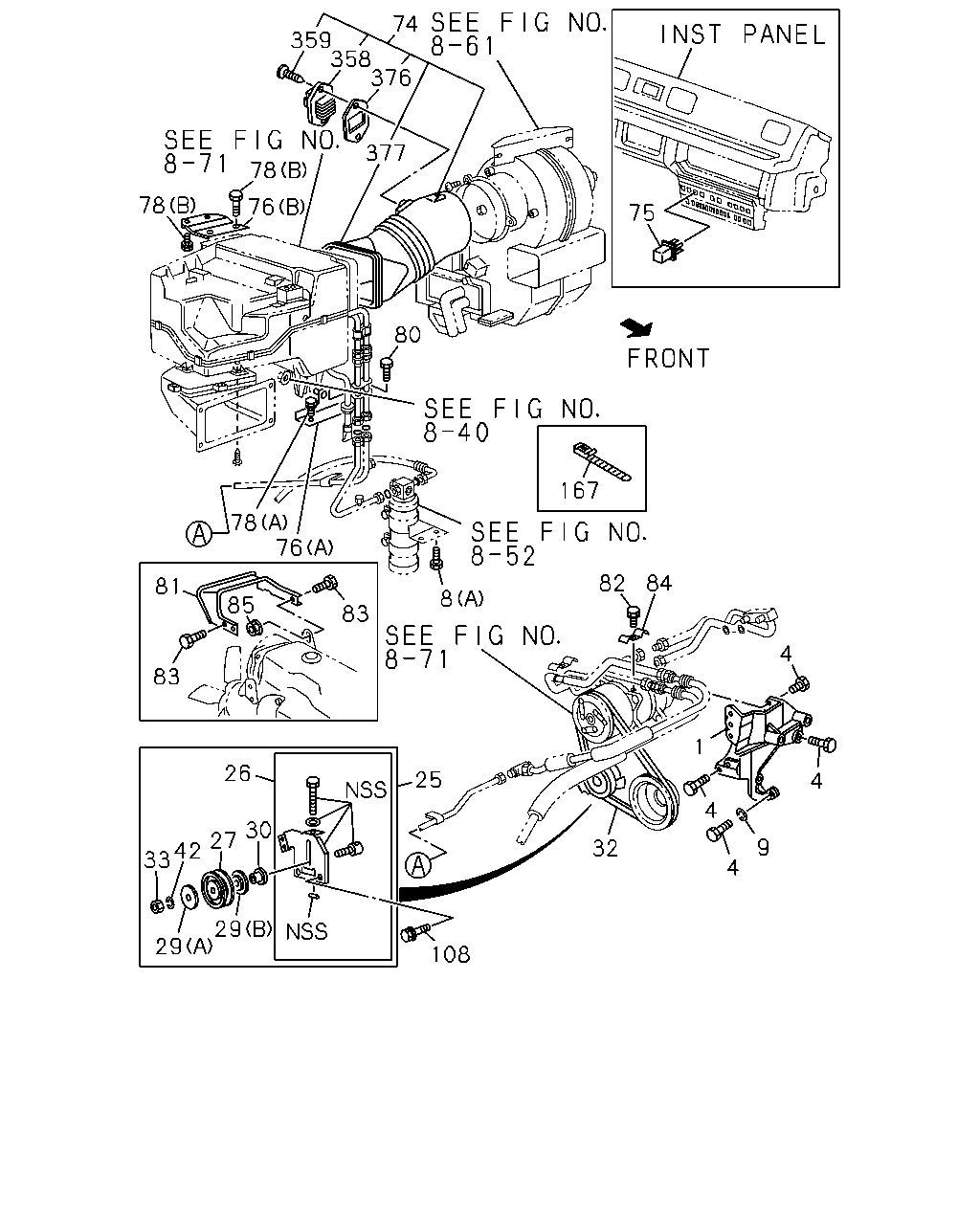

75 74 359 358 376 377 78 78 76 80 78 76 81 83 85 83 26 30 27 42 33 29 29 108 25 32 4 9 4 4 1 4 84 82 8 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) COMPR LOWER W/COLLAR	8-97073-844-0	01	1	9307-9406	●	●
1	BRACKET; A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> COMPR LOWER W/COLLAR	8-97073-844-0	01	1	9407-	●	●
1	BRACKET; A/C 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94411-500-0	01	1	9307-	●	●
4	BOLT; A/C CMPR BRKT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X45 W/LK WASHER	0-50041-045-0	04	1	9307-9406	●	●
4	BOLT; A/C CMPR BRKT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> M10X45 W/LK WASHER	0-50041-045-0	04	1	9407-	●	●
4	BOLT; A/C CMPR BRKT 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X55	0-10806-055-0	02	1	9307-	●	●
4	BOLT; A/C CMPR BRKT 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X25 W/LK WASHER	0-50041-025-0	01	1	9307-	●	●
4	BOLT; A/C CMPR BRKT 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X35 W/LK WASHER	0-50041-035-0	05	1	9307-	●	●
8	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9307-	●	●
8	BOLT; BRKT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) COMPR RR BRKT FIX M8X25 W/LK WASHER	0-50040-825-0	02	1	9307-9406	●	●
8	BOLT; BRKT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> (B) COMPR RR BRKT FIX M8X25 W/LK WASHER	0-50040-825-0	02	1	9407-	●	●
9	WASHER; LK,A/C CMPR BRKT 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=10.2	9-09150-510-0	02	1	9307-	●	●
25	PULLEY ASM; IDLER,CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94227-212-0	01	1	9307-9406	●	●
25	PULLEY ASM; IDLER,CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF>	8-94227-212-0	01	1	9407-	●	●
25	PULLEY ASM; IDLER,CMPR 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94411-713-0	01	1	9307-	●	●
26	BRACKET; IDLE PULLEY,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94227-747-0	01	1	9307-9406	●	●
26	BRACKET; IDLE PULLEY,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF>	8-94227-747-0	01	1	9407-	●	●
26	BRACKET; IDLE PULLEY,A/C 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94406-892-0	01	1	9307-	●	●
27	PULLEY; IDLE,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-89748-868-0	01	1	9307-9406	●	●
27	PULLEY; IDLE,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF>	5-89748-868-0	01	1	9407-	●	●
27	PULLEY; IDLE,A/C 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94160-544-0	01	1	9307-	●	●
29	COVER; DUST,IDLE PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	9-13669-603-0	01	1	9307-9406	●	●
29	COVER; DUST,IDLE PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF>	9-13669-603-0	01	1	9407-	●	●
29	COVER; DUST,IDLE PULLEY 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) FRONT	8-94160-545-0	01	1	9307-	●	●
29	COVER; DUST,IDLE PULLEY 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) REAR	8-94161-804-0	01	1	9307-	●	●
30	COLLAR; IDLE PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94207-192-0	01	1	9307-9406	●	●
30	COLLAR; IDLE PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF>	8-94207-192-0	01	1	9407-	●	●
30	COLLAR; IDLE PULLEY 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94161-805-0	01	1	9307-	●	●
32	BELT; A/C CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=1390	8-94218-575-0	01	1	9307-9406	●	●
32	BELT; A/C CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> L=1390	8-94218-575-0	01	1	9407-	●	●
32	BELT; A/C CMPR 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=929	8-94411-860-0	01	1	9307-9311	●	●
32	BELT; A/C CMPR 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=925	8-94482-165-0	01	1	9312-	●	●
33	NUT; IDLER PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M8	9-09110-408-0	01	1	9307-9406	●	●
33	NUT; IDLER PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> M8	9-09110-408-0	01	1	9407-	●	●
33	NUT; IDLER PULLEY 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94160-678-0	01	1	9307-	●	●
42	WASHER; PULLEY 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94172-502-0	01	1	9307-	●	●
74	DUCT; EVAP TO HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97085-418-0	01	1	9307-	●	●
75	SWITCH; THERMO,A/C CUT HEATER RELAY BROWN	8-94232-223-0	01	1	9307-	●	●
76	BRACKET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) EVAPO UNIT LOWER	8-94232-860-2	01	1	9307-	●	●
76	BRACKET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) EVAPO UNIT UPPER	8-94404-168-1	01	1	9307-	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9307-	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9307-	●	●
80	SCREW; EVAP TO DUCT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X16 TAPPING	9-07076-516-0	01	1	9307-	●	●
81	BRACKET; CYL HD TO PIPE 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94410-114-0	01	1	9307-	●	●
82	BOLT; CLIP TO BRKT 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X30 W/LK&PL WASHER	0-50140-630-0	01	1	9307-	●	●
83	BOLT; BRKT TO CYL HD 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M8X16 W/LK WASHER	0-50040-816-0	03	1	9307-	●	●
84	CLIP; PIPE 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94154-849-0	01	1	9307-	●	●
85	NUT; FLANGE,HANGER 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M8 FLANGE	5-09440-005-0	01	1	9307-	●	●
108	BOLT; A/C CMPR,ADJ 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M8X20 W/LK WASHER	0-50040-820-0	04	1	9307-	●	●
167	CLIP; BAND,FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=250	5-09707-030-0	01	1	9307-	●	●
358	RESISTOR; DUCT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97095-663-0	01	1	9307-	●	●
359	SCREW; RESISTOR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M4X16 TAPPING	1-83579-114-0	02	1	9307-	●	●
376	PLATE; RESISTOR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-97020-761-0	01	1	9307-	●	●
377	LINING; DUCT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-97095-667-0	01	1	9307-	●	●

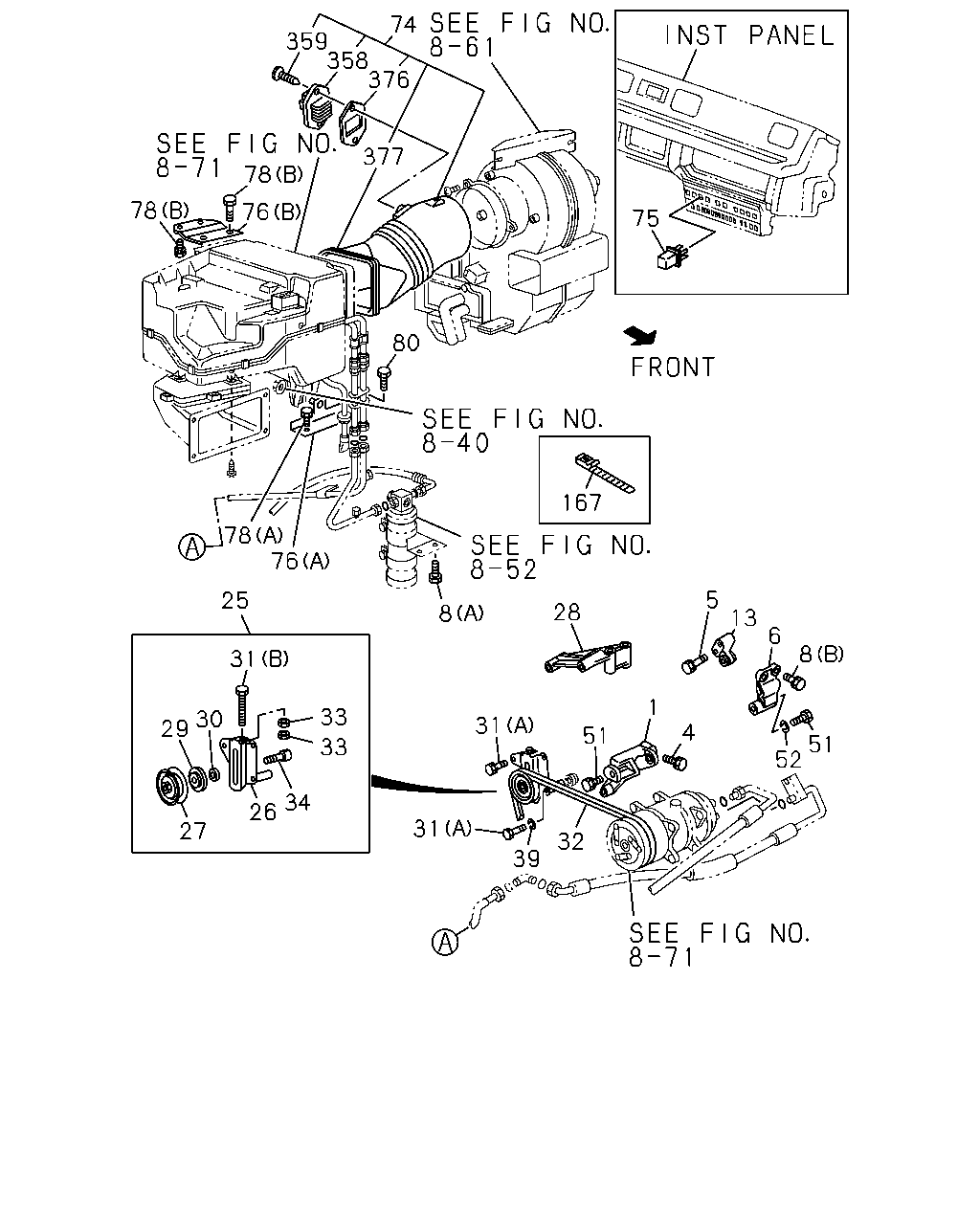

74 359 358 376 377 78 78 76 80 78 76 25 31 30 29 27 26 34 33 33 31 31 39 32 51 1 4 52 51 8 6 13 5 28 8 167 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) COMPR LOWER W/COLLAR	8-97073-844-0	01	1	9307-9406	●	●
1	BRACKET; A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> COMPR LOWER W/COLLAR	8-97073-844-0	01	1	9407-	●	●
1	BRACKET; A/C 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94411-500-0	01	1	9307-	●	●
4	BOLT; A/C CMPR BRKT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X45 W/LK WASHER	0-50041-045-0	04	1	9307-9406	●	●
4	BOLT; A/C CMPR BRKT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> M10X45 W/LK WASHER	0-50041-045-0	04	1	9407-	●	●
4	BOLT; A/C CMPR BRKT 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X55	0-10806-055-0	02	1	9307-	●	●
4	BOLT; A/C CMPR BRKT 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X25 W/LK WASHER	0-50041-025-0	01	1	9307-	●	●
4	BOLT; A/C CMPR BRKT 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X35 W/LK WASHER	0-50041-035-0	05	1	9307-	●	●
5	BOLT; BRKT TO TENSION HSG 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M8X53 W/LK WASHER	5-09030-035-1	02	1	9307-9406	●	●
5	BOLT; BRKT TO TENSION HSG 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> M8X53 W/LK WASHER	5-09030-035-1	02	1	9407-	●	●
6	BRACKET; CMPR,RR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94142-360-0	01	1	9307-9406	●	●
6	BRACKET; CMPR,RR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF>	8-94142-360-0	01	1	9407-	●	●
8	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9307-	●	●
8	BOLT; BRKT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) COMPR RR BRKT FIX M8X25 W/LK WASHER	0-50040-825-0	02	1	9307-9406	●	●
8	BOLT; BRKT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> (B) COMPR RR BRKT FIX M8X25 W/LK WASHER	0-50040-825-0	02	1	9407-	●	●
13	BRACKET; CMPR,FRT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) W/COLLAR	8-94170-315-0	01	1	9307-9406	●	●
13	BRACKET; CMPR,FRT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> W/COLLAR	8-94170-315-0	01	1	9407-	●	●
25	PULLEY ASM; IDLER,CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94227-212-0	01	1	9307-9406	●	●
25	PULLEY ASM; IDLER,CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF>	8-94227-212-0	01	1	9407-	●	●
25	PULLEY ASM; IDLER,CMPR 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94411-713-0	01	1	9307-	●	●
26	BRACKET; IDLE PULLEY,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94227-747-0	01	1	9307-9406	●	●
26	BRACKET; IDLE PULLEY,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF>	8-94227-747-0	01	1	9407-	●	●
26	BRACKET; IDLE PULLEY,A/C 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94406-892-0	01	1	9307-	●	●
27	PULLEY; IDLE,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-89748-868-0	01	1	9307-9406	●	●
27	PULLEY; IDLE,A/C 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF>	5-89748-868-0	01	1	9407-	●	●
27	PULLEY; IDLE,A/C 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94160-544-0	01	1	9307-	●	●
28	BRACKET; ADJ PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94224-389-0	01	1	9307-9406	●	●
28	BRACKET; ADJ PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF>	8-94224-389-0	01	1	9407-	●	●
29	COVER; DUST,IDLE PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	9-13669-603-0	01	1	9307-9406	●	●
29	COVER; DUST,IDLE PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF>	9-13669-603-0	01	1	9407-	●	●
29	COVER; DUST,IDLE PULLEY 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) FRONT	8-94160-545-0	01	1	9307-	●	●
29	COVER; DUST,IDLE PULLEY 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) REAR	8-94161-804-0	01	1	9307-	●	●
30	COLLAR; IDLE PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94207-192-0	01	1	9307-9406	●	●
30	COLLAR; IDLE PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF>	8-94207-192-0	01	1	9407-	●	●
30	COLLAR; IDLE PULLEY 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94161-805-0	01	1	9307-	●	●
31	BOLT; ADJ,IDLE PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) M8X25 W/LK WASHER	0-50040-825-0	02	1	9307-9406	●	●
31	BOLT; ADJ,IDLE PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> (A) M8X25 W/LK WASHER	0-50040-825-0	02	1	9407-	●	●
31	BOLT; ADJ,IDLE PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) M8X88	5-09000-095-1	01	1	9307-9406	●	●
31	BOLT; ADJ,IDLE PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> (A) M8X88	5-09000-095-1	01	1	9407-	●	●
31	BOLT; ADJ,IDLE PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) M8X135	8-94239-615-0	01	1	9307-9406	●	●
31	BOLT; ADJ,IDLE PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> (B) M8X135	8-94239-615-0	01	1	9407-	●	●
32	BELT; A/C CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=1390	8-94218-575-0	01	1	9307-9406	●	●
32	BELT; A/C CMPR 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> L=1390	8-94218-575-0	01	1	9407-	●	●
32	BELT; A/C CMPR 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=929	8-94411-860-0	01	1	9307-9311	●	●
32	BELT; A/C CMPR 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=925	8-94482-165-0	01	1	9312-	●	●
33	NUT; IDLER PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M8	9-09110-408-0	01	1	9307-9406	●	●
33	NUT; IDLER PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> M8	9-09110-408-0	01	1	9407-	●	●
33	NUT; IDLER PULLEY 4ZC1 ENG(LR9) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94160-678-0	01	1	9307-	●	●
34	SHAFT; IDLE PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94207-193-0	01	1	9307-9406	●	●
34	SHAFT; IDLE PULLEY 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF>	8-94207-193-0	01	1	9407-	●	●
39	WASHER; LK,ADJ BOLT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=8.2	9-09150-508-0	01	1	9307-9406	●	●
39	WASHER; LK,ADJ BOLT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> ID=8.2	9-09150-508-0	01	1	9407-	●	●
51	BOLT; CMPR TO BRKT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X50	0-10806-050-0	01	1	9307-9406	●	●
51	BOLT; CMPR TO BRKT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> M10X50	0-10806-050-0	01	1	9407-	●	●
51	BOLT; CMPR TO BRKT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M10X40 W/LK WASHER	0-50041-040-0	03	1	9307-9406	●	●
51	BOLT; CMPR TO BRKT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> M10X40 W/LK WASHER	0-50041-040-0	03	1	9407-	●	●
52	WASHER; LK,CMPR TO BRKT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=10.2	9-09150-510-0	01	1	9307-9406	●	●
52	WASHER; LK,CMPR TO BRKT 4FG1 ENG(RLL) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. GENERATOR 55A<6LF> ID=10.2	9-09150-510-0	01	1	9407-	●	●
74	DUCT; EVAP TO HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97085-418-0	01	1	9307-	●	●
75	SWITCH; THERMO,A/C CUT HEATER RELAY BROWN	8-94232-223-0	01	1	9307-	●	●
76	BRACKET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) EVAPO UNIT LOWER	8-94232-860-2	01	1	9307-	●	●
76	BRACKET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) EVAPO UNIT UPPER	8-94404-168-1	01	1	9307-	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (B) M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9307-	●	●
78	BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (A) M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9307-	●	●
80	SCREW; EVAP TO DUCT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X16 TAPPING	9-07076-516-0	01	1	9307-	●	●
167	CLIP; BAND,FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) L=250	5-09707-030-0	01	1	9307-	●	●
358	RESISTOR; DUCT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) "R-134A"	8-97095-663-0	01	1	9307-	●	●
359	SCREW; RESISTOR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M4X16 TAPPING	1-83579-114-0	02	1	9307-	●	●
376	PLATE; RESISTOR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-97020-761-0	01	1	9307-	●	●
377	LINING; DUCT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-97095-667-0	01	1	9307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
