Sayfa 8-45 - Isuzu EPC

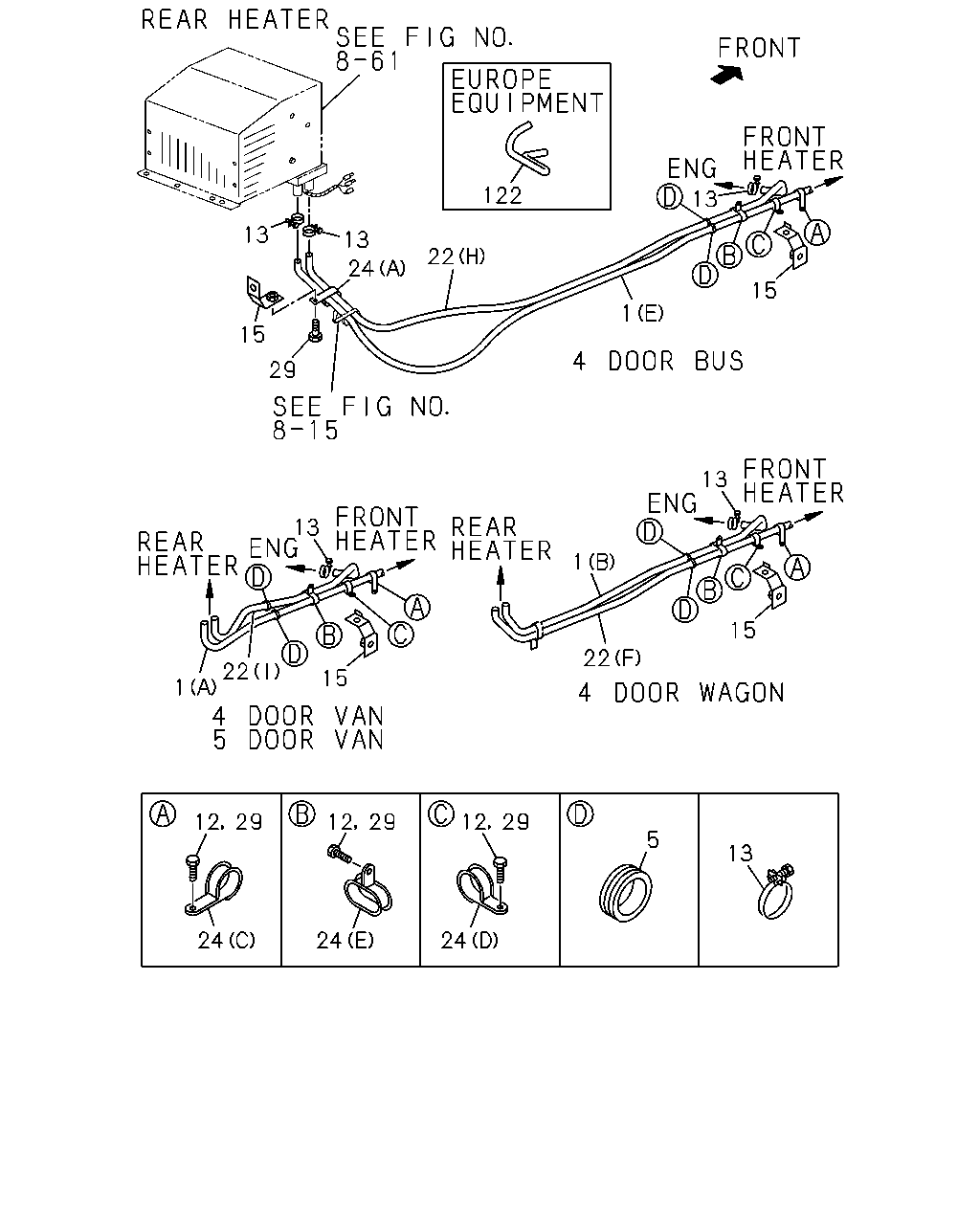

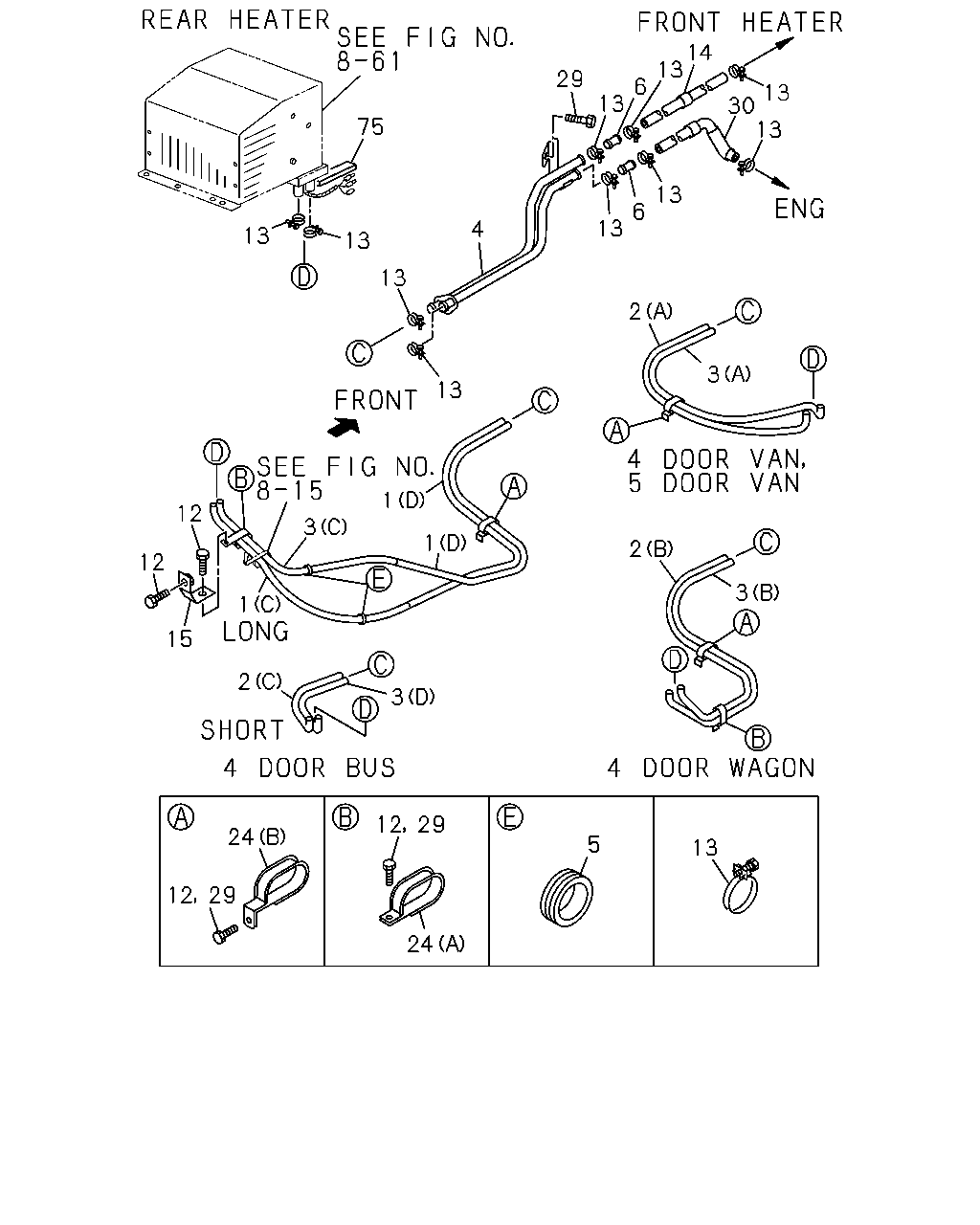

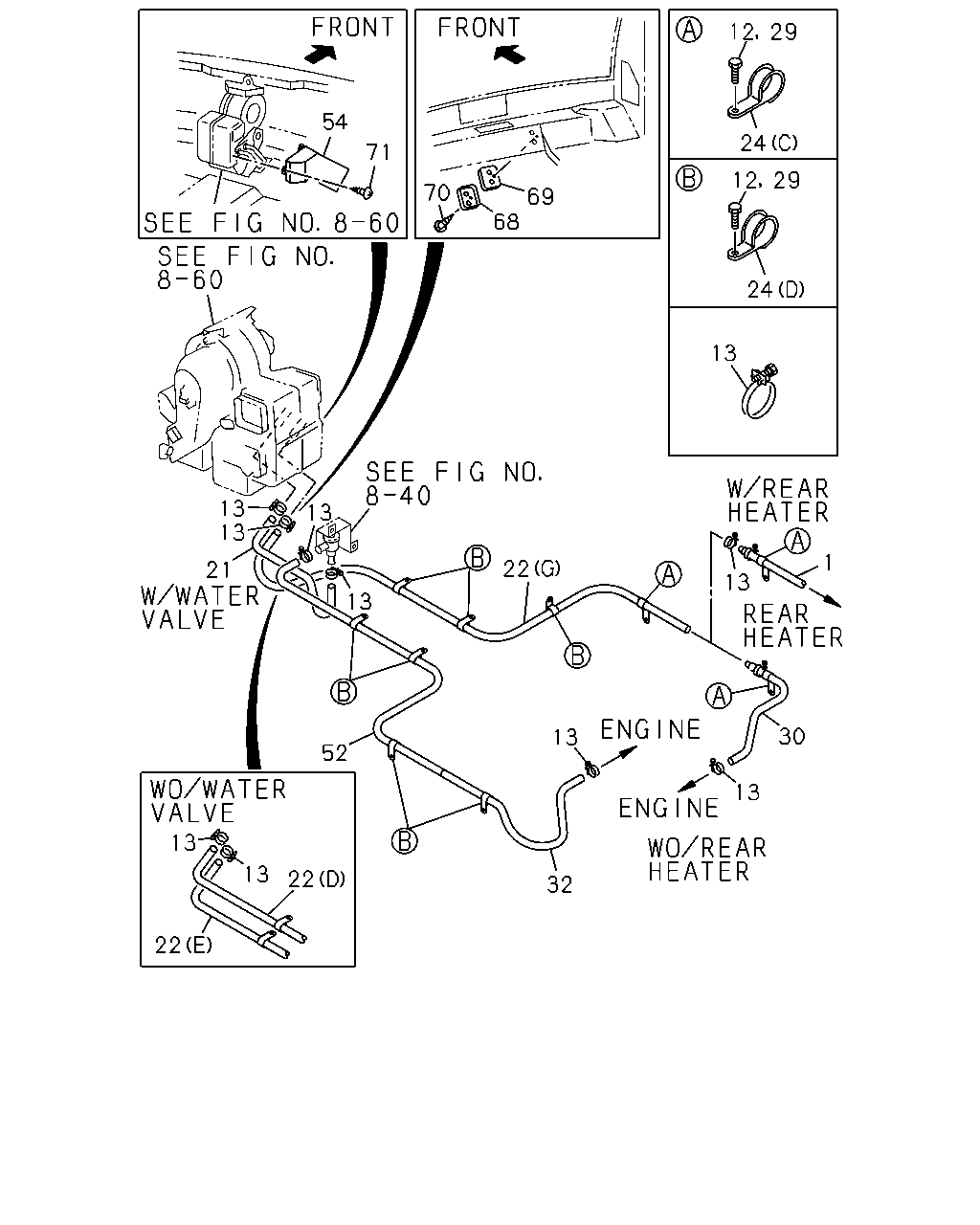

8-45 — HEATER PIPING (#45255) — 254 parça

13 30 13 14 13 6 13 29 75 13 13 13 4 13 6 13 2 3 13 1 1 3 12 12 15 1 2 3 24 12 29 12 29 24 5 13 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; WATER,PIPE TO RR HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W) (B) W/CONN.&CLAMP,WO/INSULATOR	8-94428-021-0	01	1	9307-	●
1	HOSE; WATER,PIPE TO RR HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) (E) W/CONN.&INSULATOR,WO/CLAMP	8-94137-693-1	01	1	9307-		●
1	HOSE; WATER,PIPE TO RR HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) (A) W/CONN.&CLAMP,WO/INSULATOR	8-94137-689-0	01	1	9307-		●
1	HOSE; WATER,PIPE TO RR HTR 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) (C) W/INSULATOR,WO/CONN.&CLAMP	8-94118-362-2	01	1	9307-		●
1	HOSE; WATER,PIPE TO RR HTR 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) (D) W/CONN.,WO/CLAMP&INSULATOR	8-94118-363-0	02	1	9307-		●
2	HOSE; WATER,RR HTR 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) (C) WO/CONN.,CLAMP&INSULATOR	8-94253-136-0	01	1	9307-	●
2	HOSE; WATER,RR HTR 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W) (B) WO/CONN.,CLAMP&INSULATOR	8-94425-759-0	01	1	9307-	●
2	HOSE; WATER,RR HTR 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) (A) WO/CONN.,CLAMP&INSULATOR	8-94233-329-2	01	1	9307-		●
3	HOSE; WATER,RR HTR TO PIPE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) (D) WO/CONN.,CLAMP&INSULATOR	8-94162-230-0	01	1	9307-	●
3	HOSE; WATER,RR HTR TO PIPE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W) (B) WO/CONN.,CLAMP&INSULATOR	8-94425-760-0	01	1	9307-	●
3	HOSE; WATER,RR HTR TO PIPE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) (C) W/INSULATOR,WO/CONN.&CLAMP	8-94118-361-0	01	1	9307-		●
3	HOSE; WATER,RR HTR TO PIPE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) (A) WO/CONN.,CLAMP&INSULATOR	8-94233-330-2	01	1	9307-		●
4	PIPE; RR HTR 4ZC1 ENG(LR9) REAR HEATER<C35>	8-94119-861-1	01	1	9307-	●	●
5	GROMMET; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W)	9-09956-075-0	02	1	9307-	●
5	GROMMET; WATER HOSE REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z)	9-09956-075-0	02	1	9307-		●
5	GROMMET; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z)	9-09956-075-0	04	1	9307-		●
6	CONNECTOR; WATER HOSE 4ZC1 ENG(LR9) REAR HEATER<C35>	9-09903-482-0	02	1	9307-9406	●	●
6	CONNECTOR; WATER HOSE 4ZC1 ENG(LR9) REAR HEATER<C35>	9-09903-482-0	01	1	9407-	●	●
12	BOLT; CLAMP,WATER HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X14 W/LK WASHER	0-50040-614-0	09	1	9307-	●	●
12	BOLT; CLAMP,WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X14 W/LK WASHER	0-50040-614-0	06	1	9307-	●	●
12	BOLT; CLAMP,WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9307-	●	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) ID=22	8-94382-401-0	15	1	9307-9401	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) ID=22	8-94382-401-0	15	1	9307-9401		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) ID=25	9-09915-642-2	15	1	9402-9405	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) ID=25	9-09915-642-2	15	1	9402-9405		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) ID=25	8-94369-726-0	15	1	9406-	●	●
13	CLIP; HTR HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=22	8-94382-401-0	06	1	9307-9401	●	●
13	CLIP; HTR HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=25	9-09915-642-2	06	1	9402-9405	●	●
13	CLIP; HTR HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=25	8-94369-726-0	06	1	9406-	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) TURBOCHARGER(K51) ID=25	8-94369-726-0	01	1	9407-	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X) ID=22	8-94382-401-0	11	1	9307-9401	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X) ID=25	9-09915-642-2	11	1	9402-9405	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X) ID=25	8-94369-726-0	11	1	9406-	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=22	8-94382-401-0	13	1	9307-9401		●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=25	9-09915-642-2	13	1	9402-9405		●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=25	8-94369-726-0	13	1	9406-		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=22	8-94382-401-0	19	1	9307-9401		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=25	9-09915-642-2	19	1	9402-9405		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=25	8-94369-726-0	19	1	9406-		●
14	HOSE; WATER,CONN TO PIPE 4ZC1 ENG(LR9) REAR HEATER<C35> W/INSULATOR,WO/CONN.&CLAMP	8-94430-193-1	01	1	9307-	●	●
15	BRACKET; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> W/FLANGE	8-94233-591-1	01	1	9307-	●	●
15	BRACKET; WATER HOSE REAR HEATER<C35> 4 DOOR BUS(V4Z) WO/FLANGE	8-94459-578-0	01	1	9307-		●
24	CLAMP; WATER HOSE REAR HEATER<C35> 4 DOOR WAGON(V4W) (A) B=18	9-83651-948-1	01	1	9307-	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) L=35	8-94135-846-0	02	1	9307-	●	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (D) L=30	9-09715-062-0	07	1	9307-	●	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> (E)	5-09700-190-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> (D) L=30	9-09715-062-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) L=35	8-94135-846-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (D) L=30	9-09715-062-0	06	1	9307-	●	●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) (B)	5-83519-009-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE REAR HEATER<C35> 4 DOOR BUS(V4Z) (A) B=18	9-83651-948-1	02	1	9307-		●
29	BOLT; CLAMP TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W) M6X14 W/LK WASHER	0-50040-614-0	03	1	9307-	●
29	BOLT; CLAMP TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W) M6X14 W/LK WASHER	0-50040-614-0	02	1	9307-	●
29	BOLT; CLAMP TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) M6X14 W/LK WASHER	0-50040-614-0	02	1	9307-		●
29	BOLT; CLAMP TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) M6X14 W/LK WASHER	0-50040-614-0	05	1	9307-		●
29	BOLT; CLAMP TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) M6X14 W/LK WASHER	0-50040-614-0	04	1	9307-		●
29	BOLT; CLAMP TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) M6X14 W/LK WASHER	0-50040-614-0	01	1	9307-		●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> W/CONN.&CLAMP,WO/INSULATOR	8-94137-686-1	01	1	9307-9406	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35>,TURBOCHARGER(K51) W/CONN.&CLAMP,WO/INSULATOR	8-94137-686-1	01	1	9407-	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) TURBOCHARGER(K51) W/CONN.&CLAMP,WO/INSULATOR	8-97029-414-2	01	1	9407-	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) TURBOCHARGER(K51) W/CONN.&CLAMP,WO/INSULATOR	8-97042-029-1	01	1	9407-	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> WO/CONN.,CLAMP&INSULATOR	8-94232-392-1	01	1	9307-9406	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> EXC. TURBOCHARGER(K51) WO/CONN.,CLAMP&INSULATOR	8-94232-392-1	01	1	9407-	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> TURBOCHARGER(K51) WO/CONN.,CLAMP&INSULATOR	8-97029-415-2	01	1	9407-	●	●
30	HOSE; WATER,CONN TO ENG 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> W/CONN.,CLAMP&INSULATOR	8-94430-191-3	01	1	9307-	●	●
30	HOSE; WATER,CONN TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> W/INSULATOR,WO/CONN.&CLAMP	8-94430-192-1	01	1	9307-	●	●
75	FINISHER; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> L=80	9-82991-007-0	01	1	9307-	●	●

13 13 24 22 122 13 15 1 15 29 13 15 22 1 12 29 24 24 12 29 24 12 29 5 13 22 1 15 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; WATER,PIPE TO RR HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W) (B) W/CONN.&CLAMP,WO/INSULATOR	8-94428-021-0	01	1	9307-	●
1	HOSE; WATER,PIPE TO RR HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) (E) W/CONN.&INSULATOR,WO/CLAMP	8-94137-693-1	01	1	9307-		●
1	HOSE; WATER,PIPE TO RR HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) (A) W/CONN.&CLAMP,WO/INSULATOR	8-94137-689-0	01	1	9307-		●
1	HOSE; WATER,PIPE TO RR HTR 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) (C) W/INSULATOR,WO/CONN.&CLAMP	8-94118-362-2	01	1	9307-		●
1	HOSE; WATER,PIPE TO RR HTR 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) (D) W/CONN.,WO/CLAMP&INSULATOR	8-94118-363-0	02	1	9307-		●
5	GROMMET; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W)	9-09956-075-0	02	1	9307-	●
5	GROMMET; WATER HOSE REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X),4 DOOR BUS(V4Z)	9-09956-075-0	02	1	9307-		●
5	GROMMET; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z)	9-09956-075-0	04	1	9307-		●
12	BOLT; CLAMP,WATER HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X14 W/LK WASHER	0-50040-614-0	09	1	9307-	●	●
12	BOLT; CLAMP,WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X14 W/LK WASHER	0-50040-614-0	06	1	9307-	●	●
12	BOLT; CLAMP,WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9307-	●	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) ID=22	8-94382-401-0	15	1	9307-9401	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) ID=22	8-94382-401-0	15	1	9307-9401		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) ID=25	9-09915-642-2	15	1	9402-9405	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) ID=25	9-09915-642-2	15	1	9402-9405		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) ID=25	8-94369-726-0	15	1	9406-	●	●
13	CLIP; HTR HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=22	8-94382-401-0	06	1	9307-9401	●	●
13	CLIP; HTR HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=25	9-09915-642-2	06	1	9402-9405	●	●
13	CLIP; HTR HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=25	8-94369-726-0	06	1	9406-	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) TURBOCHARGER(K51) ID=25	8-94369-726-0	01	1	9407-	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X) ID=22	8-94382-401-0	11	1	9307-9401	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X) ID=25	9-09915-642-2	11	1	9402-9405	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X) ID=25	8-94369-726-0	11	1	9406-	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=22	8-94382-401-0	13	1	9307-9401		●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=25	9-09915-642-2	13	1	9402-9405		●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=25	8-94369-726-0	13	1	9406-		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=22	8-94382-401-0	19	1	9307-9401		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=25	9-09915-642-2	19	1	9402-9405		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=25	8-94369-726-0	19	1	9406-		●
15	BRACKET; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> W/FLANGE	8-94233-591-1	01	1	9307-	●	●
15	BRACKET; WATER HOSE REAR HEATER<C35> 4 DOOR BUS(V4Z) WO/FLANGE	8-94459-578-0	01	1	9307-		●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W) (F) W/CONN.&CLAMP	8-94428-022-0	01	1	9307-	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> (D) WO/CONN.	8-94171-789-2	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> (E) W/INSULATOR,WO/CONN.	8-94430-190-1	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> (G) W/INSULATOR,WO/CONN.	8-94430-272-2	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> (C) WO/CONN.&INSULATOR	8-94115-370-2	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> (B) W/INSULATOR,WO/CONN.&CLAMP	8-94171-788-4	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4ZC1 ENG(LR9) REAR HEATER<C35> (A) W/INSULATOR,WO/CONN.	8-94430-271-1	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) (H) W/CONN.&INSULATOR,WO/CLAMP	8-94111-014-1	01	1	9307-		●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) (I) W/CONN.&CLAMP,WO/INSULATOR	8-94237-173-0	01	1	9307-		●
24	CLAMP; WATER HOSE REAR HEATER<C35> 4 DOOR WAGON(V4W) (A) B=18	9-83651-948-1	01	1	9307-	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) L=35	8-94135-846-0	02	1	9307-	●	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (D) L=30	9-09715-062-0	07	1	9307-	●	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> (E)	5-09700-190-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> (D) L=30	9-09715-062-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) L=35	8-94135-846-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (D) L=30	9-09715-062-0	06	1	9307-	●	●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) (B)	5-83519-009-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE REAR HEATER<C35> 4 DOOR BUS(V4Z) (A) B=18	9-83651-948-1	02	1	9307-		●
29	BOLT; CLAMP TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W) M6X14 W/LK WASHER	0-50040-614-0	03	1	9307-	●
29	BOLT; CLAMP TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W) M6X14 W/LK WASHER	0-50040-614-0	02	1	9307-	●
29	BOLT; CLAMP TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) M6X14 W/LK WASHER	0-50040-614-0	02	1	9307-		●
29	BOLT; CLAMP TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) M6X14 W/LK WASHER	0-50040-614-0	05	1	9307-		●
29	BOLT; CLAMP TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) M6X14 W/LK WASHER	0-50040-614-0	04	1	9307-		●
29	BOLT; CLAMP TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) M6X14 W/LK WASHER	0-50040-614-0	01	1	9307-		●
122	HOSE; WATER,CSD TO PIPE HEATER&DEFROSTER(C41) EUROPEAN BASIC EQUIPMENT(EK4) TURBOCHARGER(K51)	8-97026-239-0	01	1	9407-	●	●

12 29 24 12 29 24 13 1 13 30 13 13 32 22 22 13 13 52 13 13 21 13 13 54 71 70 68 69 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; WATER,PIPE TO RR HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W) (B) W/CONN.&CLAMP,WO/INSULATOR	8-94428-021-0	01	1	9307-	●
1	HOSE; WATER,PIPE TO RR HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) (E) W/CONN.&INSULATOR,WO/CLAMP	8-94137-693-1	01	1	9307-		●
1	HOSE; WATER,PIPE TO RR HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) (A) W/CONN.&CLAMP,WO/INSULATOR	8-94137-689-0	01	1	9307-		●
1	HOSE; WATER,PIPE TO RR HTR 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) (C) W/INSULATOR,WO/CONN.&CLAMP	8-94118-362-2	01	1	9307-		●
1	HOSE; WATER,PIPE TO RR HTR 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) (D) W/CONN.,WO/CLAMP&INSULATOR	8-94118-363-0	02	1	9307-		●
12	BOLT; CLAMP,WATER HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X14 W/LK WASHER	0-50040-614-0	09	1	9307-	●	●
12	BOLT; CLAMP,WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X14 W/LK WASHER	0-50040-614-0	06	1	9307-	●	●
12	BOLT; CLAMP,WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9307-	●	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) ID=22	8-94382-401-0	15	1	9307-9401	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) ID=22	8-94382-401-0	15	1	9307-9401		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) ID=25	9-09915-642-2	15	1	9402-9405	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) ID=25	9-09915-642-2	15	1	9402-9405		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) ID=25	8-94369-726-0	15	1	9406-	●	●
13	CLIP; HTR HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=22	8-94382-401-0	06	1	9307-9401	●	●
13	CLIP; HTR HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=25	9-09915-642-2	06	1	9402-9405	●	●
13	CLIP; HTR HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=25	8-94369-726-0	06	1	9406-	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) TURBOCHARGER(K51) ID=25	8-94369-726-0	01	1	9407-	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X) ID=22	8-94382-401-0	11	1	9307-9401	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X) ID=25	9-09915-642-2	11	1	9402-9405	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X) ID=25	8-94369-726-0	11	1	9406-	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=22	8-94382-401-0	13	1	9307-9401		●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=25	9-09915-642-2	13	1	9402-9405		●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=25	8-94369-726-0	13	1	9406-		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=22	8-94382-401-0	19	1	9307-9401		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=25	9-09915-642-2	19	1	9402-9405		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=25	8-94369-726-0	19	1	9406-		●
21	HOSE; WATER,VLV TO HTR REAR HEATER<C35> WO/CONN.,CLAMP&INSULATOR	8-94418-481-0	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W) (F) W/CONN.&CLAMP	8-94428-022-0	01	1	9307-	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> (D) WO/CONN.	8-94171-789-2	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> (E) W/INSULATOR,WO/CONN.	8-94430-190-1	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> (G) W/INSULATOR,WO/CONN.	8-94430-272-2	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> (C) WO/CONN.&INSULATOR	8-94115-370-2	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> (B) W/INSULATOR,WO/CONN.&CLAMP	8-94171-788-4	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4ZC1 ENG(LR9) REAR HEATER<C35> (A) W/INSULATOR,WO/CONN.	8-94430-271-1	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) (H) W/CONN.&INSULATOR,WO/CLAMP	8-94111-014-1	01	1	9307-		●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) (I) W/CONN.&CLAMP,WO/INSULATOR	8-94237-173-0	01	1	9307-		●
24	CLAMP; WATER HOSE REAR HEATER<C35> 4 DOOR WAGON(V4W) (A) B=18	9-83651-948-1	01	1	9307-	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) L=35	8-94135-846-0	02	1	9307-	●	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (D) L=30	9-09715-062-0	07	1	9307-	●	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> (E)	5-09700-190-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> (D) L=30	9-09715-062-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) L=35	8-94135-846-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (D) L=30	9-09715-062-0	06	1	9307-	●	●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) (B)	5-83519-009-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE REAR HEATER<C35> 4 DOOR BUS(V4Z) (A) B=18	9-83651-948-1	02	1	9307-		●
29	BOLT; CLAMP TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W) M6X14 W/LK WASHER	0-50040-614-0	03	1	9307-	●
29	BOLT; CLAMP TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W) M6X14 W/LK WASHER	0-50040-614-0	02	1	9307-	●
29	BOLT; CLAMP TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) M6X14 W/LK WASHER	0-50040-614-0	02	1	9307-		●
29	BOLT; CLAMP TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) M6X14 W/LK WASHER	0-50040-614-0	05	1	9307-		●
29	BOLT; CLAMP TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) M6X14 W/LK WASHER	0-50040-614-0	04	1	9307-		●
29	BOLT; CLAMP TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) M6X14 W/LK WASHER	0-50040-614-0	01	1	9307-		●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> W/CONN.&CLAMP,WO/INSULATOR	8-94137-686-1	01	1	9307-9406	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35>,TURBOCHARGER(K51) W/CONN.&CLAMP,WO/INSULATOR	8-94137-686-1	01	1	9407-	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) TURBOCHARGER(K51) W/CONN.&CLAMP,WO/INSULATOR	8-97029-414-2	01	1	9407-	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) TURBOCHARGER(K51) W/CONN.&CLAMP,WO/INSULATOR	8-97042-029-1	01	1	9407-	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> WO/CONN.,CLAMP&INSULATOR	8-94232-392-1	01	1	9307-9406	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> EXC. TURBOCHARGER(K51) WO/CONN.,CLAMP&INSULATOR	8-94232-392-1	01	1	9407-	●	●
30	HOSE; WATER,CONN TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> TURBOCHARGER(K51) WO/CONN.,CLAMP&INSULATOR	8-97029-415-2	01	1	9407-	●	●
30	HOSE; WATER,CONN TO ENG 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> W/CONN.,CLAMP&INSULATOR	8-94430-191-3	01	1	9307-	●	●
30	HOSE; WATER,CONN TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> W/INSULATOR,WO/CONN.&CLAMP	8-94430-192-1	01	1	9307-	●	●
32	HOSE; WATER,ENG TO CONN 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) W/CONN.&CLAMP,WO/INSULATOR	8-94232-454-2	01	1	9307-	●	●
32	HOSE; WATER,ENG TO CONN 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) W/CONN.,CLAMP&INSULATOR	8-94333-463-1	01	1	9307-	●	●
52	HOSE; WATER,CONN TO VLV 4FG1 ENG(RLL) REAR HEATER<C35> W/INSULATOR,WO/CONN.&CLAMP L=1250 W/INSURATER-3	8-97100-654-0	01	1	9307-	●	●
52	HOSE; WATER,CONN TO VLV 4ZC1 ENG(LR9) REAR HEATER<C35> W/INSULATOR,WO/CONN.&CLAMP J-BEND WHITE MARK	8-94443-306-1	01	1	9307-	●	●
54	COVER; HTR PIPE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94114-647-1	01	1	9307-	●	●
68	COVER; HTR PIPE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94244-719-0	01	1	9307-	●	●
69	SEAL; RUBBER,HTR PIPE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94244-720-0	01	1	9307-	●	●
70	SCREW; COVER PLATE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-09981-151-0	01	1	9307-	●	●
71	SCREW; COVER TO HTR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X10 TAPPING	0-71080-510-0	03	1	9307-	●	●

101 100 16 17 16 31 16 16 17 54 71 69 68 70 32 13 13 24 29 12 24 29 12 22 22 14 52 22 13 13 13 21 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	BOLT; CLAMP,WATER HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X14 W/LK WASHER	0-50040-614-0	09	1	9307-	●	●
12	BOLT; CLAMP,WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X14 W/LK WASHER	0-50040-614-0	06	1	9307-	●	●
12	BOLT; CLAMP,WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9307-	●	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) ID=22	8-94382-401-0	15	1	9307-9401	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) ID=22	8-94382-401-0	15	1	9307-9401		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W),4 DOOR BUS(V4Z) ID=25	9-09915-642-2	15	1	9402-9405	●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) ID=25	9-09915-642-2	15	1	9402-9405		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) ID=25	8-94369-726-0	15	1	9406-	●	●
13	CLIP; HTR HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=22	8-94382-401-0	06	1	9307-9401	●	●
13	CLIP; HTR HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=25	9-09915-642-2	06	1	9402-9405	●	●
13	CLIP; HTR HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=25	8-94369-726-0	06	1	9406-	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) TURBOCHARGER(K51) ID=25	8-94369-726-0	01	1	9407-	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X) ID=22	8-94382-401-0	11	1	9307-9401	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X) ID=25	9-09915-642-2	11	1	9402-9405	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X) ID=25	8-94369-726-0	11	1	9406-	●	●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=22	8-94382-401-0	13	1	9307-9401		●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=25	9-09915-642-2	13	1	9402-9405		●
13	CLIP; HTR HOSE 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=25	8-94369-726-0	13	1	9406-		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=22	8-94382-401-0	19	1	9307-9401		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=25	9-09915-642-2	19	1	9402-9405		●
13	CLIP; HTR HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) ID=25	8-94369-726-0	19	1	9406-		●
14	HOSE; WATER,CONN TO PIPE 4ZC1 ENG(LR9) REAR HEATER<C35> W/INSULATOR,WO/CONN.&CLAMP	8-94430-193-1	01	1	9307-	●	●
16	CLIP; WATER HOSE 4ZC1 ENG(LR9) ID=14.8	8-94448-727-0	04	1	9307-	●	●
17	HOSE; WATER,BYPASS 4ZC1 ENG(LR9) (A) W/PIPE TO BYPASS PIPE L=103	8-94364-553-1	01	1	9307-	●	●
17	HOSE; WATER,BYPASS 4ZC1 ENG(LR9) (B) INL MFD TO BYPASS PIPE L=195	8-94412-147-7	01	1	9307-	●	●
21	HOSE; WATER,VLV TO HTR REAR HEATER<C35> WO/CONN.,CLAMP&INSULATOR	8-94418-481-0	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W) (F) W/CONN.&CLAMP	8-94428-022-0	01	1	9307-	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> (D) WO/CONN.	8-94171-789-2	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> (E) W/INSULATOR,WO/CONN.	8-94430-190-1	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> (G) W/INSULATOR,WO/CONN.	8-94430-272-2	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> (C) WO/CONN.&INSULATOR	8-94115-370-2	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> (B) W/INSULATOR,WO/CONN.&CLAMP	8-94171-788-4	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4ZC1 ENG(LR9) REAR HEATER<C35> (A) W/INSULATOR,WO/CONN.	8-94430-271-1	01	1	9307-	●	●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) (H) W/CONN.&INSULATOR,WO/CLAMP	8-94111-014-1	01	1	9307-		●
22	HOSE; WATER,CONN TO HTR 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) (I) W/CONN.&CLAMP,WO/INSULATOR	8-94237-173-0	01	1	9307-		●
24	CLAMP; WATER HOSE REAR HEATER<C35> 4 DOOR WAGON(V4W) (A) B=18	9-83651-948-1	01	1	9307-	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) L=35	8-94135-846-0	02	1	9307-	●	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (D) L=30	9-09715-062-0	07	1	9307-	●	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> (E)	5-09700-190-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE 4FG1 ENG(RLL) REAR HEATER<C35> (D) L=30	9-09715-062-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (C) L=35	8-94135-846-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) (D) L=30	9-09715-062-0	06	1	9307-	●	●
24	CLAMP; WATER HOSE 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),4 DOOR WAGON(V4W),5 DOOR VAN(V4X), 4 DOOR BUS(V4Z) (B)	5-83519-009-0	01	1	9307-	●	●
24	CLAMP; WATER HOSE REAR HEATER<C35> 4 DOOR BUS(V4Z) (A) B=18	9-83651-948-1	02	1	9307-		●
29	BOLT; CLAMP TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR WAGON(V4W) M6X14 W/LK WASHER	0-50040-614-0	03	1	9307-	●
29	BOLT; CLAMP TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR WAGON(V4W) M6X14 W/LK WASHER	0-50040-614-0	02	1	9307-	●
29	BOLT; CLAMP TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) M6X14 W/LK WASHER	0-50040-614-0	02	1	9307-		●
29	BOLT; CLAMP TO ENG 4FG1 ENG(RLL) REAR HEATER<C35> 4 DOOR BUS(V4Z) M6X14 W/LK WASHER	0-50040-614-0	05	1	9307-		●
29	BOLT; CLAMP TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR BUS(V4Z) M6X14 W/LK WASHER	0-50040-614-0	04	1	9307-		●
29	BOLT; CLAMP TO ENG 4ZC1 ENG(LR9) REAR HEATER<C35> 4 DOOR VAN(V4V),5 DOOR VAN(V4X) M6X14 W/LK WASHER	0-50040-614-0	01	1	9307-		●
31	PIPE; BYPASS,HTR 4ZC1 ENG(LR9)	8-94364-552-0	01	1	9307-	●	●
32	HOSE; WATER,ENG TO CONN 4FG1 ENG(RLL) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) W/CONN.&CLAMP,WO/INSULATOR	8-94232-454-2	01	1	9307-	●	●
32	HOSE; WATER,ENG TO CONN 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) W/CONN.,CLAMP&INSULATOR	8-94333-463-1	01	1	9307-	●	●
52	HOSE; WATER,CONN TO VLV 4FG1 ENG(RLL) REAR HEATER<C35> W/INSULATOR,WO/CONN.&CLAMP L=1250 W/INSURATER-3	8-97100-654-0	01	1	9307-	●	●
52	HOSE; WATER,CONN TO VLV 4ZC1 ENG(LR9) REAR HEATER<C35> W/INSULATOR,WO/CONN.&CLAMP J-BEND WHITE MARK	8-94443-306-1	01	1	9307-	●	●
54	COVER; HTR PIPE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94114-647-1	01	1	9307-	●	●
68	COVER; HTR PIPE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94244-719-0	01	1	9307-	●	●
69	SEAL; RUBBER,HTR PIPE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94244-720-0	01	1	9307-	●	●
70	SCREW; COVER PLATE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	1-09981-151-0	01	1	9307-	●	●
71	SCREW; COVER TO HTR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M5X10 TAPPING	0-71080-510-0	03	1	9307-	●	●
100	CAP; RUBBER,WATER PIPE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35>	8-94366-898-1	02	1	9307-	●	●
101	CLIP; CAP,WATER PIPE 4ZC1 ENG(LR9) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) EXC. REAR HEATER<C35> ID=16	8-94238-568-0	02	1	9307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
