Isuzu WW
▶
BUSES
▶
LV
▶
10695 - LV233(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#4525) — 11 parça
◀

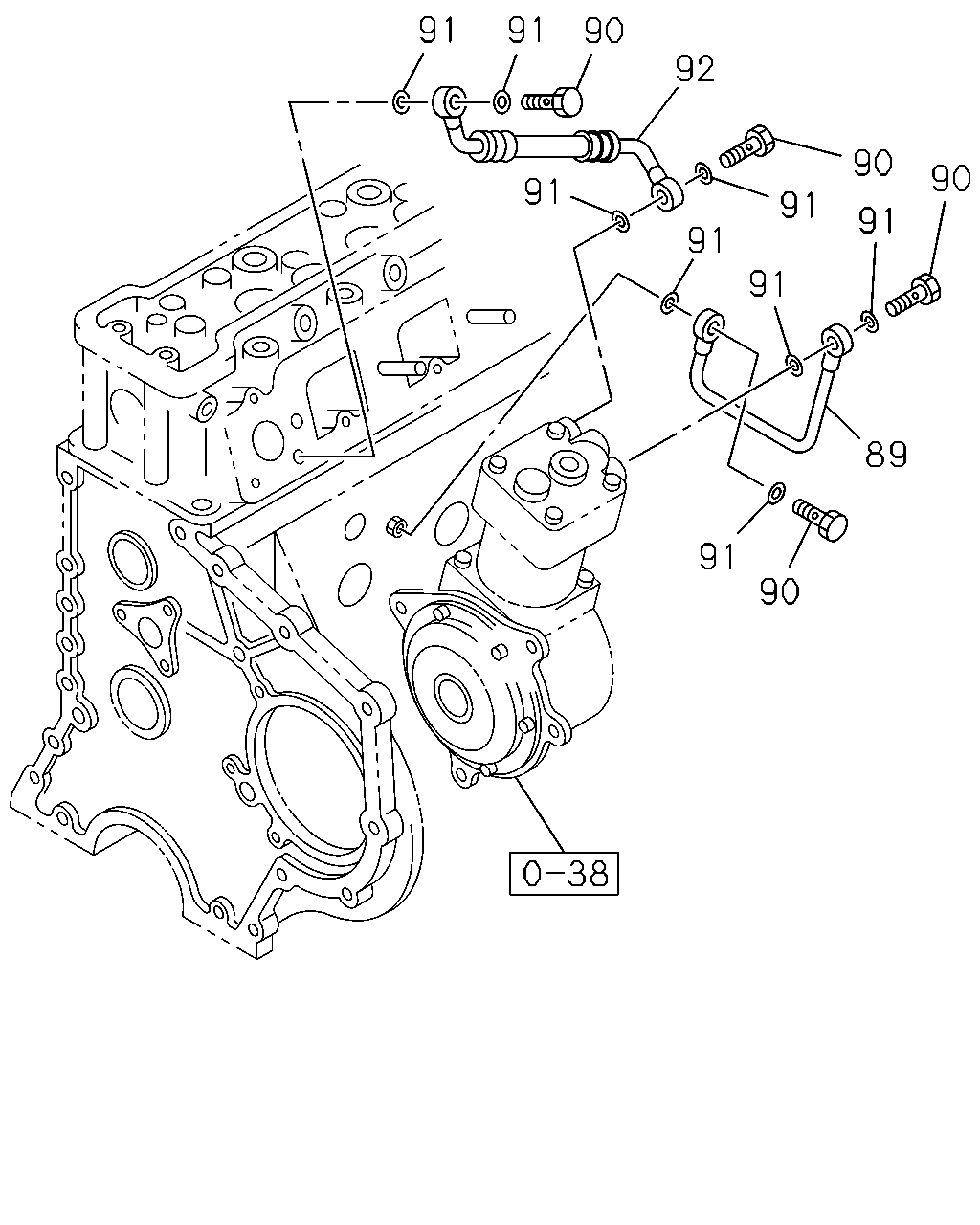

[032A] NO.2 (4 parça)
[032A] NO.1 (7 parça)
▶
91
91
90
92
90
90
91
91
91
91
91
89
91
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
89
PIPE; WATER,AIR CMPR,IN
1-13721-409-0
01
1
9712-
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
04
1
9712-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
9712-
92
PIPE; WATER,AIR CMPR,OUT
1-13721-201-0
01
1
9712-
127
126
126
127
126
126
126
127
126
135
124
126
126
127
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
73
PROTECTOR; HEAT,WATER PIPE
1-14181-293-0
01
1
9712-
124
PIPE; WATER,C/BL TO THERMOSTAT HSG
1-13721-738-0
01
1
9712-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
1-09630-085-0
08
1
9712-
127
BOLT; EYE
(A) M14X31
1-09675-191-0
02
1
9712-
127
BOLT; EYE
(B) M14X27 FLANGE
1-09675-192-0
01
1
9712-
127
BOLT; EYE
(C) M14X27 EYE-BOLT
1-09675-193-0
01
1
9712-
135
BOLT; STAY,THERMOSTAT HSG
M8X25 FLANGE
0-28080-825-0
01
1
9712-
