0-32 — WATER PIPING; ENGINE (#45248) — 27 parça

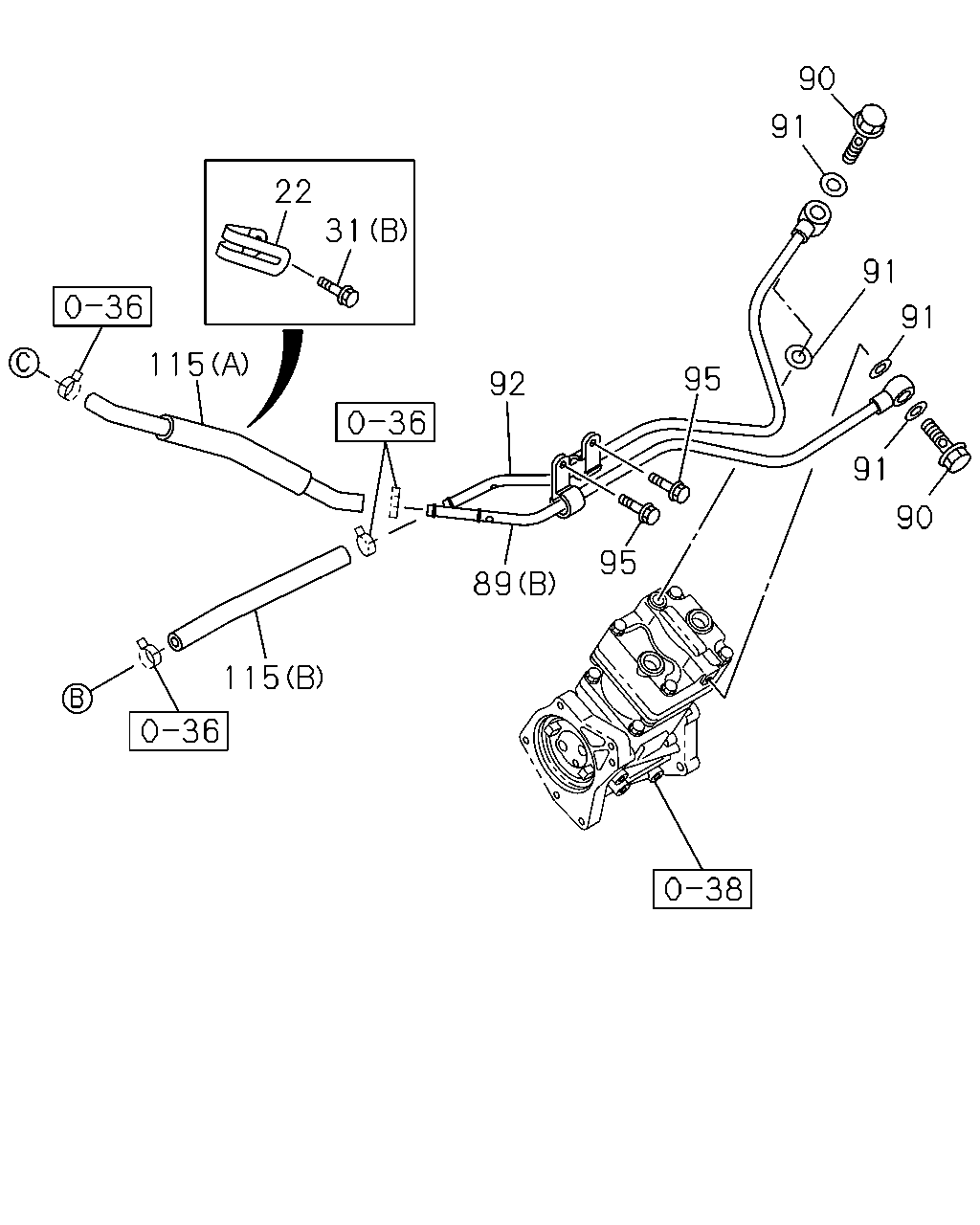

çizim 16617
115 92 22 31 90 91 91 91 91 90 95 95 89 115
BalonParca AdiParca NoAdetTipApplied Date
22 CLIP; WATER HOSE
L=36 		8-94224-891-1 01 1 1109-
31 BOLT; CLIP
(B) M8X12 FLANGE 		0-28050-812-0 01 1 1109-
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 02 1 1109-
89 PIPE; WATER,AIR CMPR,IN
(A) 		8-97358-699-0 01 1 1109-
89 PIPE; WATER,AIR CMPR,IN
(B) 		8-98095-668-0 01 1 1109-
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 02 1 1109-
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 04 1 1109-1312
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 04 1 1401-
92 PIPE; WATER,AIR CMPR,OUT 8-98132-662-0 01 1 1109-
95 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1109-
115 HOSE; RUBBER
(A) 		8-98095-678-3 01 1 1109-
115 HOSE; RUBBER
(B) L=130 		8-98136-884-0 01 1 1109-

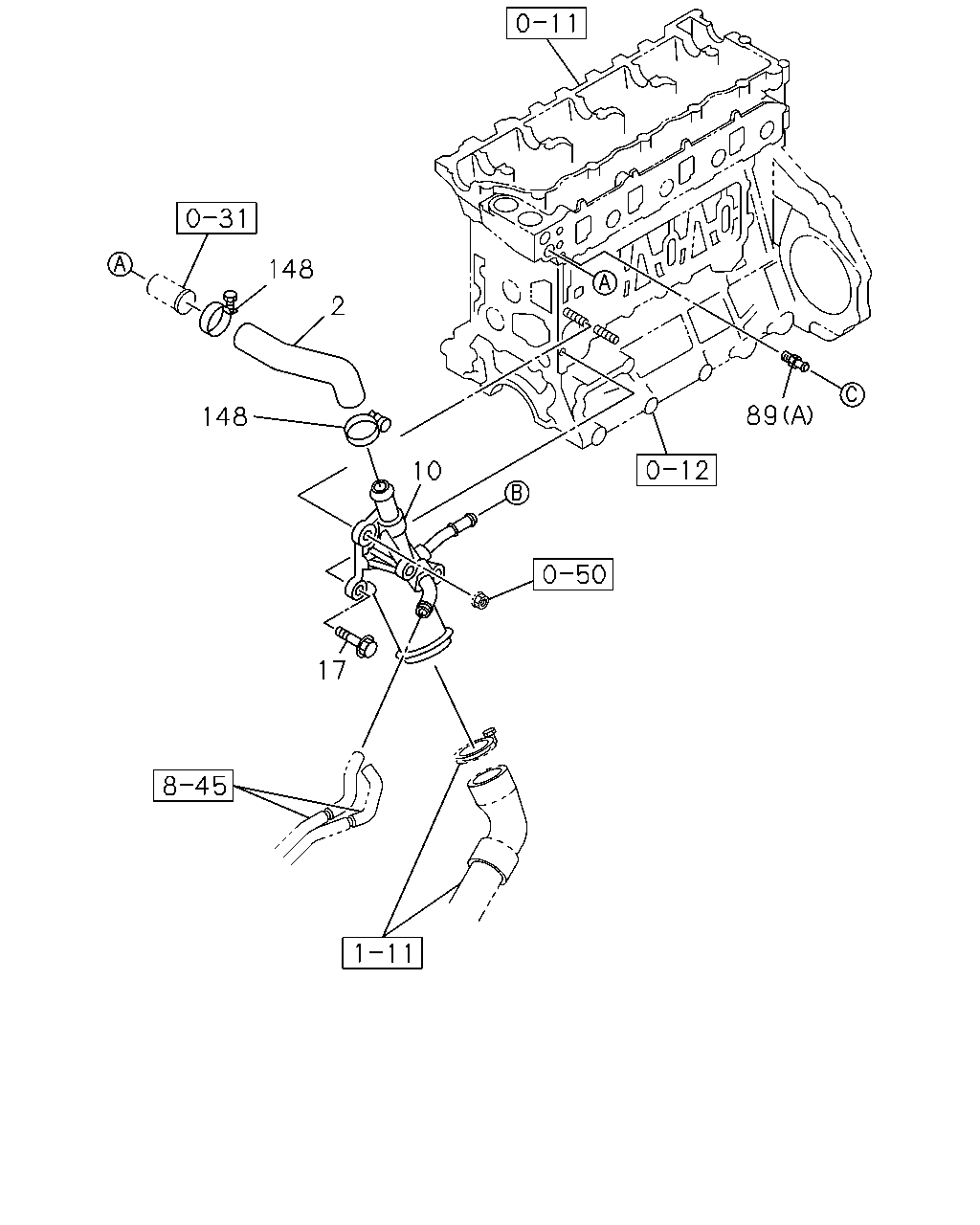

çizim 16731
148 2 89 148 10 17
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; WATER,BY-PASS 8-97379-228-1 01 1 1109-
10 PIPE; SUCTION 8-98166-995-0 01 1 1109-
17 BOLT; SUCTION PIPE
M8X48 FLANGE 		8-94458-473-1 01 1 1109-
89 PIPE; WATER,AIR CMPR,IN
(A) 		8-97358-699-0 01 1 1109-
89 PIPE; WATER,AIR CMPR,IN
(B) 		8-98095-668-0 01 1 1109-
148 CLIP; BYPASS HOSE
ID=30 		9-09915-315-1 02 1 1109-

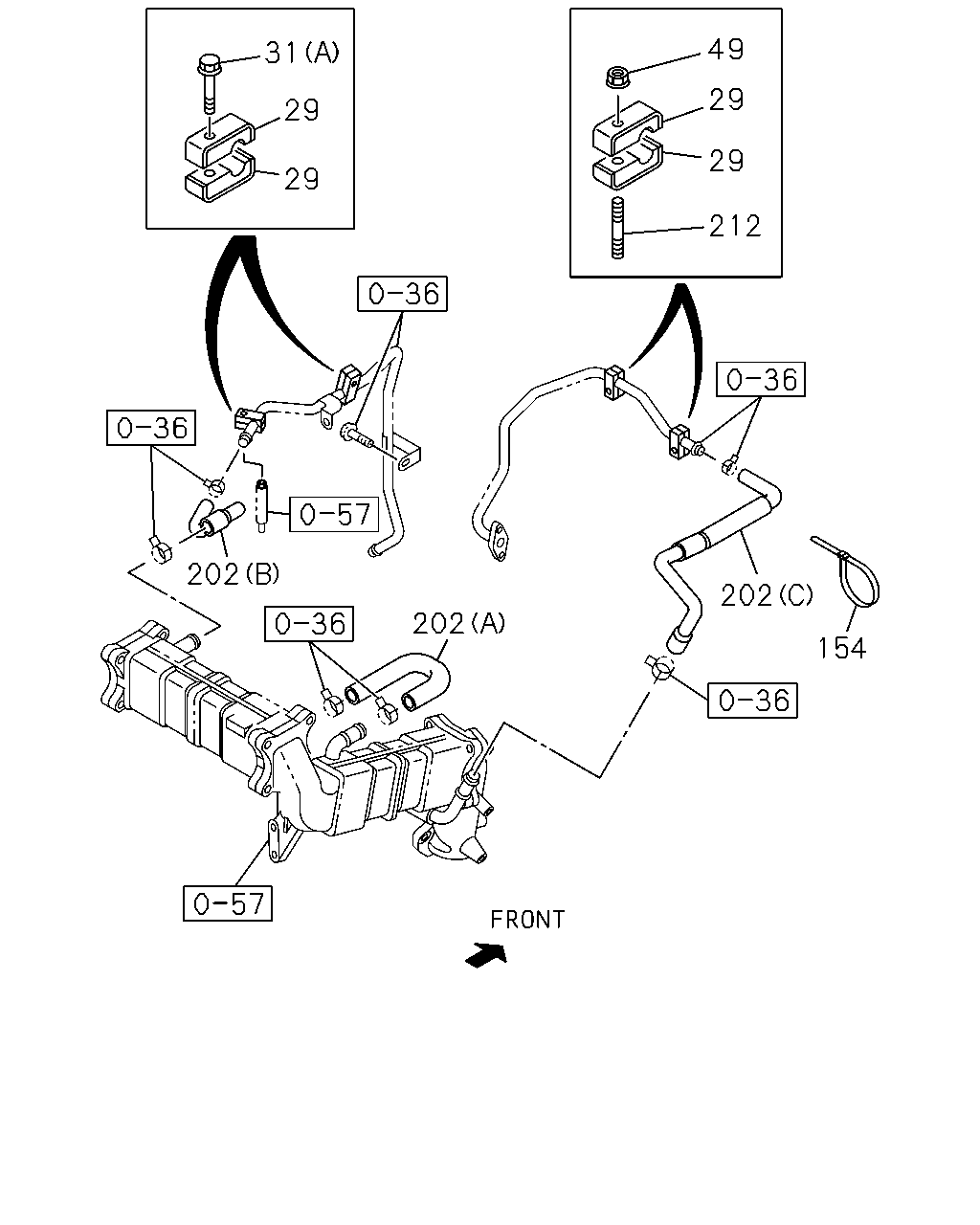

çizim 16824
49 31 29 29 29 29 212 202 202 202 154
BalonParca AdiParca NoAdetTipApplied Date
29 CLIP; PIPE
ID=17 L=17 		1-09701-284-0 08 1 1109-
31 BOLT; CLIP
(B) M8X12 FLANGE 		0-28050-812-0 01 1 1109-
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 02 1 1109-
49 NUT; WATER PIPE
M8 FLANGE 		0-91180-108-0 02 1 1109-
154 CLIP; WATER HOSE
L=170.3 		1-09987-182-0 01 1 1109-
202 HOSE; RUBBER,EGR COOLER
(B) 		8-98028-170-0 01 1 1109-
202 HOSE; RUBBER,EGR COOLER
(A) 		8-98028-171-0 01 1 1109-
202 HOSE; RUBBER,EGR COOLER
(C) 		8-98097-717-0 01 1 1109-
212 STUD; PIPE
M8X45 L=55 		8-94217-227-0 02 1 1109-
