Isuzu WW
▶
TRUCKS
▶
FRR
▶
11440 - FRR-L SPACE EU4 DOC
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶
0-11 — CYLINDER HEAD
(#45236) — 41 parça
◀

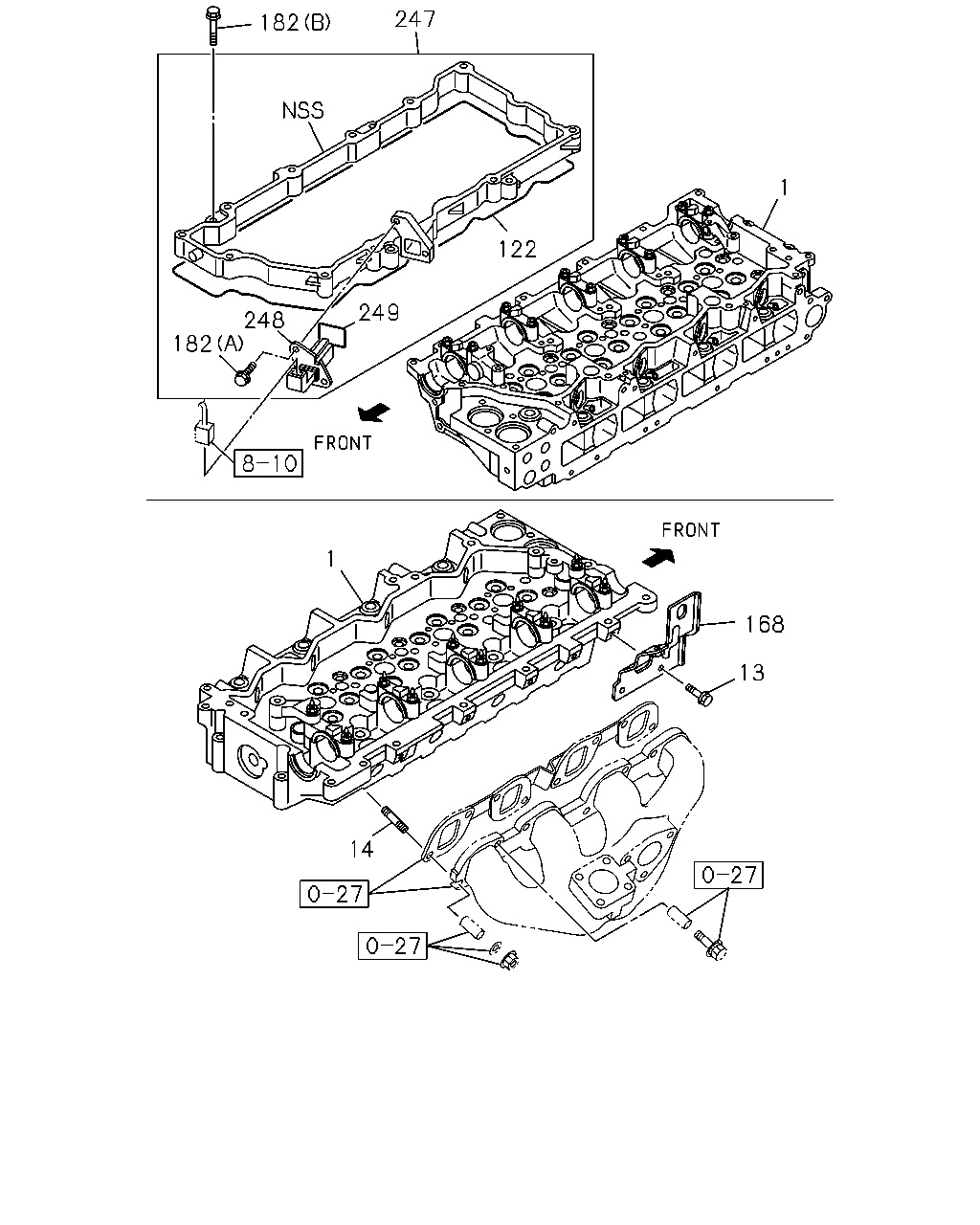

[011A] CYL HEAD CASE AND ENG HANGER FIXING (10 parça)

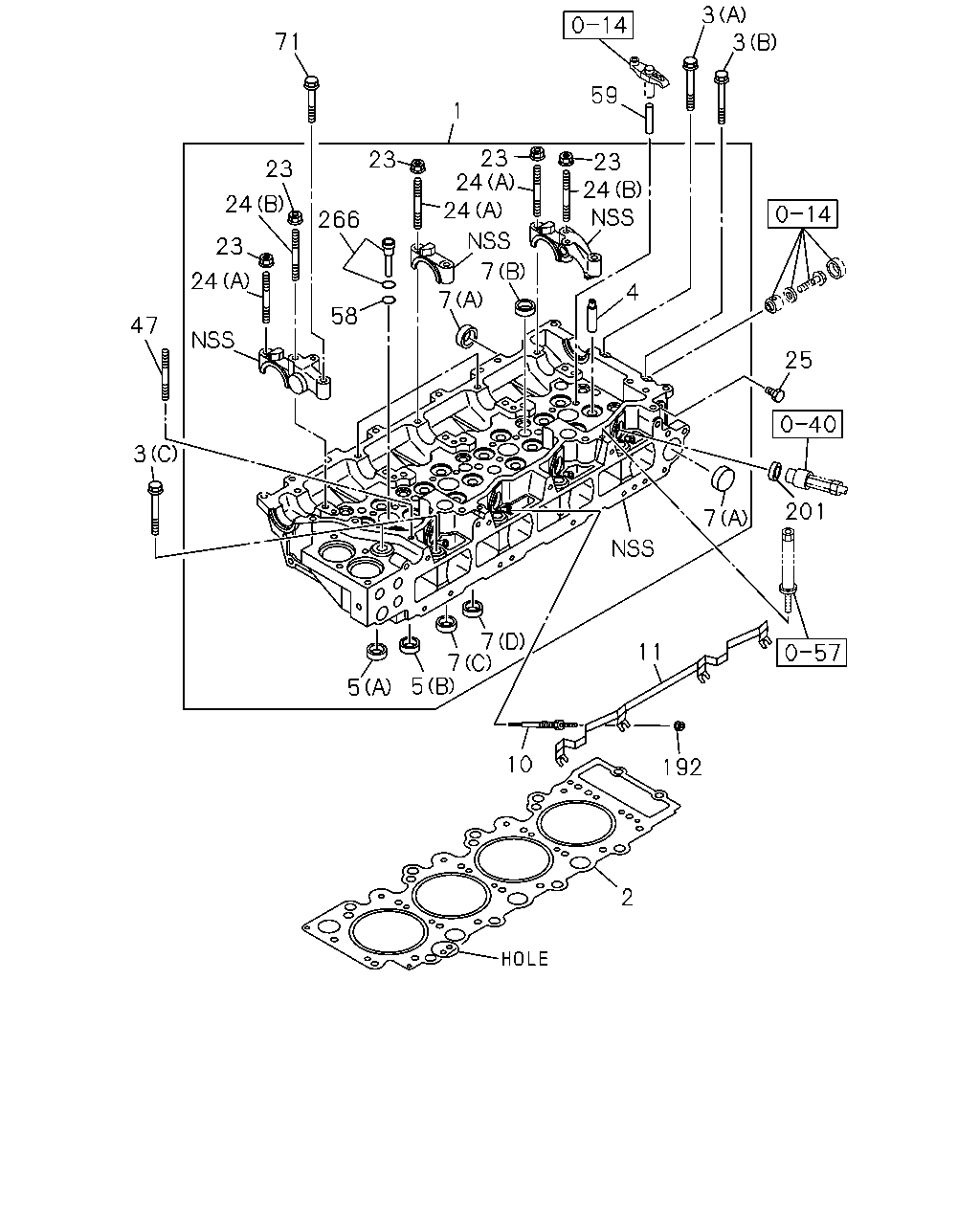

[011A] CYL HEAD COMPONENT (31 parça)
▶
247
182
1
122
249
248
182
1
168
13
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-98170-619-0
01
1
1109-
13
BOLT; HANGER
M10X20 FLANGE
0-28151-020-0
02
1
1109-
14
STUD; EXH MANIF
M10X60 L=75
8-94397-286-0
02
1
1109-
122
GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97331-360-1
01
1
1109-
168
HANGER; ENG,FRT
8-97383-001-1
01
1
1109-
182
BOLT; CASE
(A) M8X12 FLANGE
0-28050-812-0
02
1
1109-
182
BOLT; CASE
(B) M8X45 FLANGE
0-28050-845-0
04
1
1109-
247
CASE; CYL HEAD,C/H COVER
8-97331-362-1
01
1
1109-
248
CONNECTOR
8-94390-858-1
01
1
1109-
249
GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94391-310-0
01
1
1109-
2
192
11
10
7
7
5
5
7
201
25
4
24
23
23
24
24
7
7
23
266
58
23
24
23
24
71
47
1
3
3
59
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-98170-619-0
01
1
1109-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE
8-98055-540-0
01
1
1109-1505
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE
8-98288-501-0
01
1
1506-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE
8-98055-541-0
01
1
1109-1505
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE
8-98288-502-0
01
1
1506-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE
8-98055-542-0
01
1
1109-1505
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE
8-98288-503-0
01
1
1506-
3
BOLT; CYL HD TO BLOCK
(A) M10X73
8-94399-554-0
01
1
1109-
3
BOLT; CYL HD TO BLOCK
(B) M10X43
8-94399-555-0
01
1
1109-
3
BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE
8-97077-638-0
18
1
1109-1503
3
BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE
8-98260-005-0
18
1
1504-
4
GUIDE; VLV
L=57
8-97376-719-2
16
1
1109-
5
SEAT; VLV INSERT
(A) ID=32 OD=38
8-98028-874-0
08
1
1109-
5
SEAT; VLV INSERT
(B) ID=31 OD=38
8-98028-875-0
08
1
1109-
7
CUP; SEALING,CYL HEAD
(B) OD=25
1-09600-016-0
04
1
1109-
7
CUP; SEALING,CYL HEAD
(C) OD=16
5-11129-006-0
05
1
1109-
7
CUP; SEALING,CYL HEAD
(A) OD=32
8-97096-821-0
05
1
1109-
7
CUP; SEALING,CYL HEAD
(D) OD=20
9-11129-128-0
07
1
1109-
10
PLUG; GLOW
NGK
8-94390-777-6
04
1
1109-
11
CONNECTOR; GLOW PLUG
8-97332-358-2
01
1
1109-
23
NUT; CAM BRKT
M8 FLANGE
0-91180-208-0
10
1
1109-
24
STUD; CM/SHF BRKT
(B) M8X54 L=79
8-94322-512-2
02
1
1109-
24
STUD; CM/SHF BRKT
(A) M8X41 L=66
8-94322-513-2
08
1
1109-
25
PLUG; CYL HD
M8X10
8-98003-416-0
01
1
1109-
47
STUD; CYL HD
M8X60 L=72
0-49140-860-0
02
1
1109-
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4
8-97604-916-0
04
1
1109-
59
GUIDE; BRIDGE
8-97381-603-1
08
1
1109-
71
BOLT; CAM BRKT
M8X35 FLANGE
0-28050-835-0
02
1
1109-
192
NUT; GLOW PLUG
M4 FLANGE
8-97368-853-0
04
1
1109-
201
GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30
1-09639-034-0
04
1
1109-
266
SLEEVE ASM; NOZZLE HOLDER
8-98018-462-0
04
1
1109-
