7-40 — INSTRUMENT PANEL AND BOX (#45225) — 143 parça

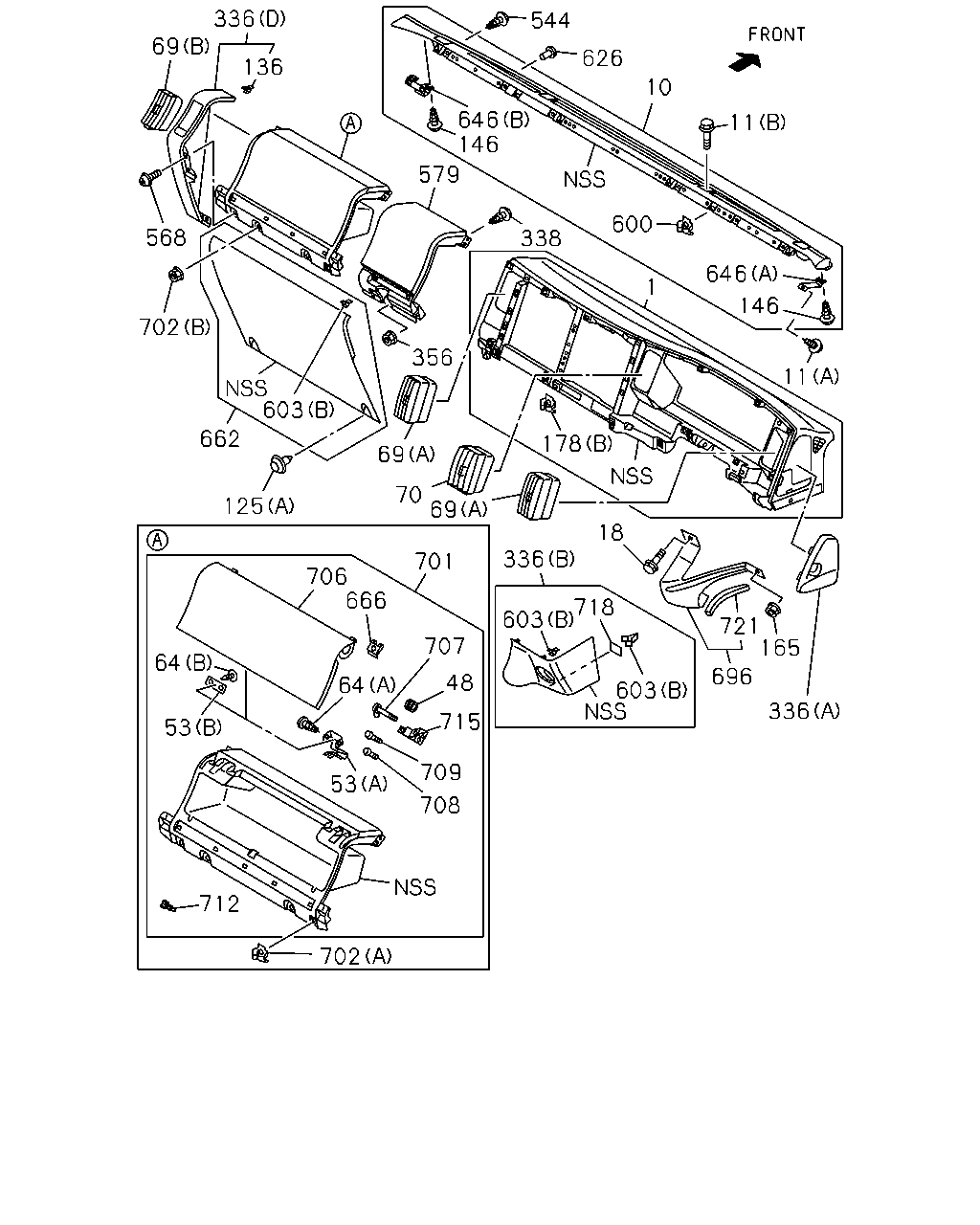

çizim 112954
336 69 136 568 702 603 662 125 706 666 701 69 70 69 356 579 146 646 64 53 712 702 53 708 709 715 48 707 64 336 603 718 603 721 165 696 336 18 178 338 1 600 646 146 11 11 10 626 544
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0801- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97414-686-0 01 1 0801-1008 ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-0 01 1 1009- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0801- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0801- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0801- ● ●
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 0801-1311 ● ●
48 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 0801-1311 ● ●
48 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 0805-1405 ● ●
53 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406- ● ●
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 0805-1405 ● ●
64 SCREW; STRIKER
(B) M4X85 		8-97926-404-0 02 1 1406- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0801- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0801- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0801- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0801-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0801- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 0801- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0801- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0801- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0801- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0801- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0801- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0801-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-0 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0801- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0801- ● ●
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0801- ● ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 0801- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0801- ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ●
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 0801- ● ●
600 NUT; PANEL 8-98037-629-0 02 1 0801-1008 ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0801- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 0801- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0801- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0801- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0801- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 0801- ● ●
666 INSERT; INST PANEL 8-98038-450-0 04 1 0801-1311 ● ●
666 INSERT; INST PANEL
M5 		8-97926-400-0 04 1 1312- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 0801- ● ●
701 TRAY; INST
GRAY 		8-97412-913-0 01 1 0801-0804 ● ●
701 TRAY; INST
GRAY 		8-97415-540-6 01 1 0805-1405 ● ●
701 TRAY; INST
GRAY 		8-97429-703-0 01 1 1406- ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0801- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0801- ● ●
706 LID; TRAY INST
GRAY 		8-97405-372-2 01 1 0801-0804 ● ●
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 0805-1405 ● ●
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406- ● ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0801-1311 ● ●
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0801- ● ●
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 0801- ● ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 0801- ● ●
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 0801-1311 ● ●
715 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 0801-1311 ● ●
715 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1312- ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0801- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0801- ● ●

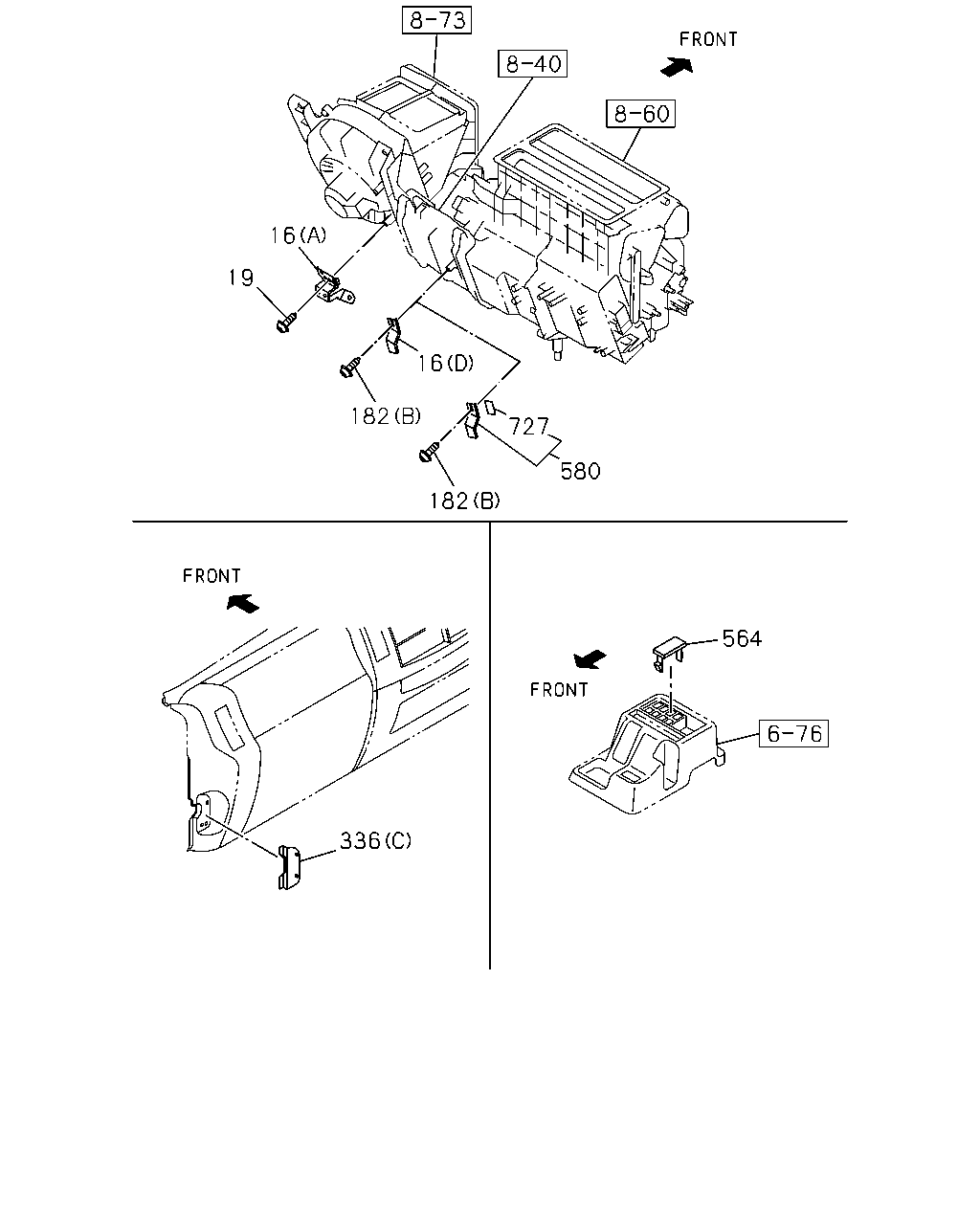

çizim 112956
16 19 16 182 727 580 182 564 336
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 0801-0801 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0802-1301 ● ●
16 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1302- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0801- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0801- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0801- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98017-528-0 01 1 0801-1105 ● ●
19 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801-0801 ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0802-1301 ● ●
19 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0801- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0801-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0801- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801-1301 ● ●
182 BOLT; BRKT,INST PANEL
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0801- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0801-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-0 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0801- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0801- ● ●
564 COVER; SW 8-97043-732-1 02 1 0801- ● ●
580 BRACKET; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-528-1 01 1 1106-1301 ● ●
580 BRACKET; COVER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-528-1 01 1 1302- ● ●
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98186-934-0 01 1 1106-1301 ● ●
727 SEAL; BRACKET
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98186-934-0 01 1 1302- ● ●

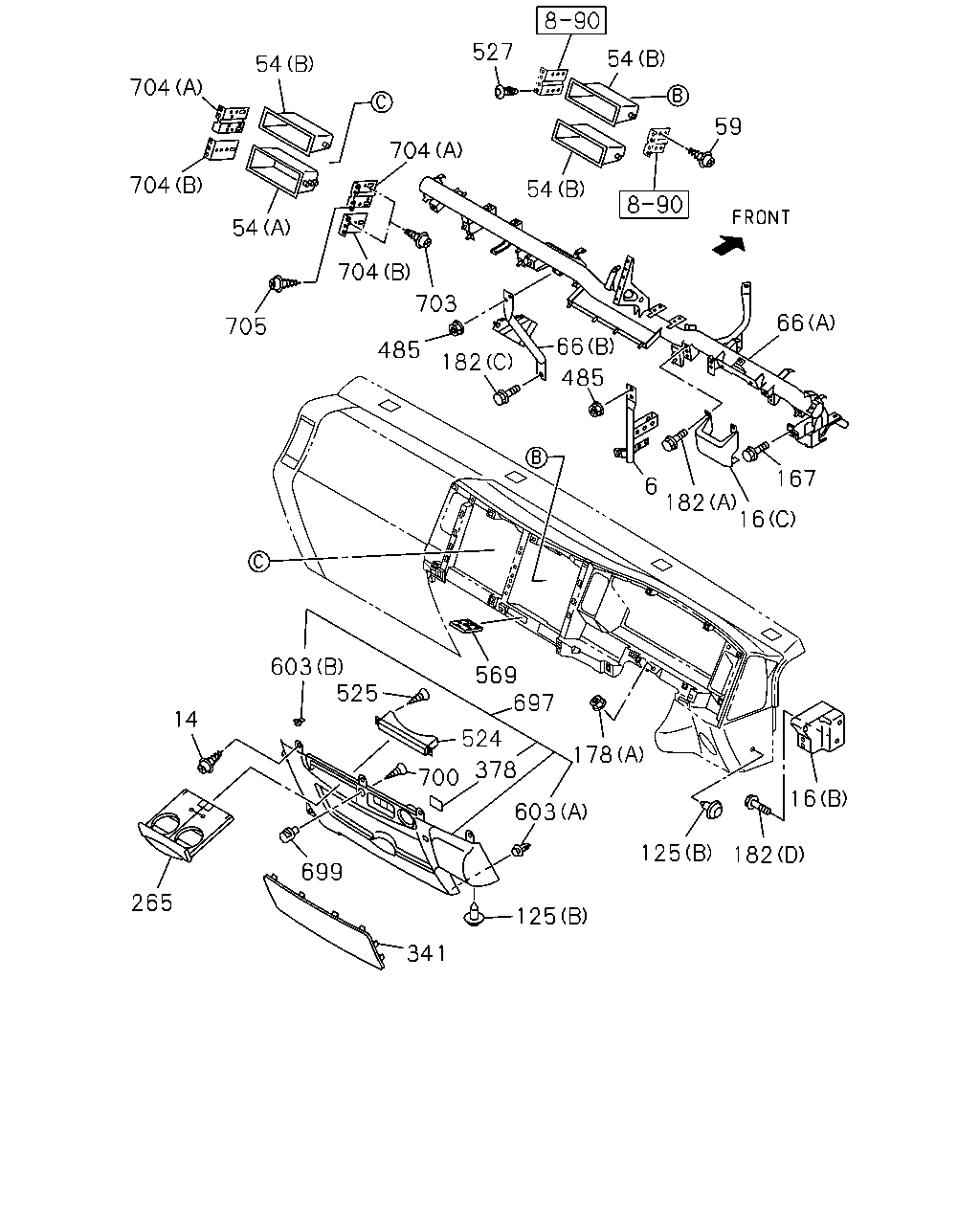

çizim 112962
527 54 59 54 704 54 704 704 54 704 705 703 485 182 66 485 66 6 182 167 16 569 697 178 16 182 125 603 125 378 524 603 525 14 265 699 700 341
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 0801-1109 ● ●
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0801- ● ●
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 0801-0801 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0802-1301 ● ●
16 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1302- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0801- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0801- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0801- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98017-528-0 01 1 0801-1105 ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0801- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 02 1 0801- ● ●
54 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-2 01 1 0801- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0801- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0801-0909 ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 0910-0910 ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0911- ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98081-322-5 01 1 0801-1111 ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1112- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0801-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0801- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0801- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0801- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0801- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0801- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0801-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0801- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801-1301 ● ●
182 BOLT; BRKT,INST PANEL
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302- ● ●
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0801-0909 ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910- ● ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0801-1010 ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0801- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0801- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0801- ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY 		8-97098-326-0 01 1 0902-1211 ● ●
569 HOLDER; CARD 8-97410-276-0 01 1 0801- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0801- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 0801- ● ●
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 0801-1010 ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0801- ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0801- ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0801- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0801- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0801- ● ●
