◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11429 - FXZ(AUST)JNLT05 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#45213) — 64 parça

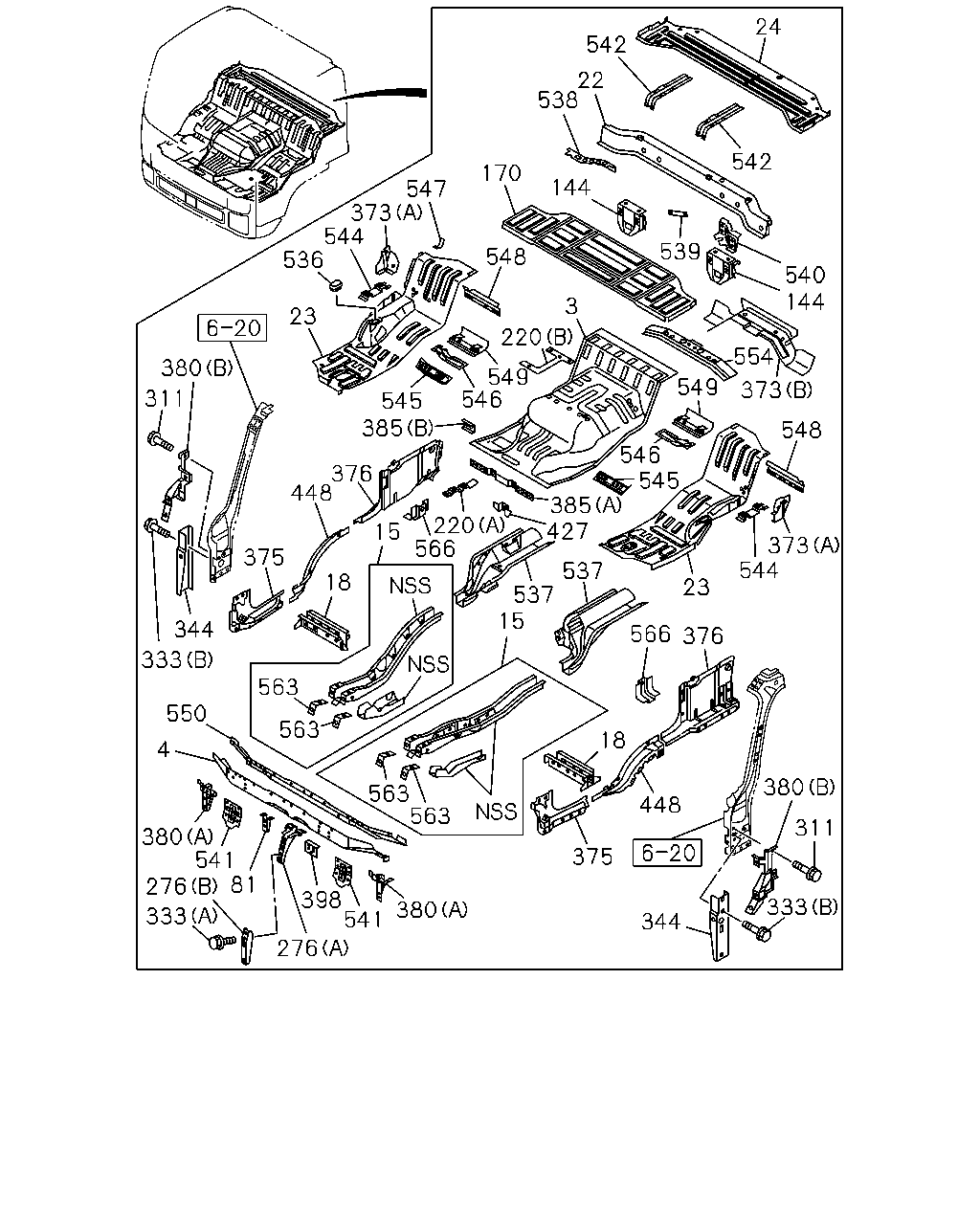

çizim 112941
24 542 22 538 542 170 144 547 373 544 536 539 548 540 144 3 23 220 554 380 549 546 549 373 311 545 385 548 546 545 376 448 385 427 220 566 15 373 544 375 537 537 15 18 23 344 566 376 333 563 550 563 18 4 563 563 380 448 311 380 541 375 398 541 333 380 333 344 276 276 81
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG 8-98053-070-7 01 1 0801- ● ●
4 FRAME; FLOOR,FRT 8-98079-820-1 01 1 0801- ● ●
15 FRAME; UNDER 8-98055-645-2 01 1 0801- ● ●
15 FRAME; UNDER 8-98055-646-2 01 1 0801- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98067-904-1 01 1 0801- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98072-101-2 01 1 0801- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 0801- ● ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 0801- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 0801- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 0801- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0801- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0801- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0801- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 0801- ● ●
220 PATCH
(B) 		8-97589-627-2 01 1 0801- ● ●
220 PATCH
(A) 		8-98053-088-0 01 1 0801- ● ●
276 BRACKET; RAD GRILLE
(B) 		8-98059-816-2 01 1 0801- ● ●
276 BRACKET; RAD GRILLE
(A) 		8-98076-126-0 01 1 0801- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0801- ● ●
333 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 04 1 0801- ● ●
333 BOLT; BRKT
(A) M6X16 FLANGE 		8-97808-792-1 02 1 0801-0804 ● ●
333 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0805- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-821-1 01 1 0801- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-819-1 01 1 0801- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0801- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0801- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98046-586-2 01 1 0801- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 0801- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 0801- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 0801-1403 ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 0801- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0801- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0801- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-825-1 01 1 0801- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-824-1 01 1 0801- ● ●
385 BRACKET
(A) 		8-97588-840-4 01 1 0801- ● ●
385 BRACKET
(B) 		8-98053-825-1 01 1 0801- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0801- ● ●
427 BRACKET; CABLE 8-98053-090-2 01 1 0801- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 0801- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 0801- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0801- ● ●
537 SUPPORT ASM; MTG RR 8-98046-599-2 01 1 0801- ● ●
537 SUPPORT ASM; MTG RR 8-98046-600-2 01 1 0801- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 0801- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 0801- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0801- ● ●
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 0801- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 0801- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0801- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0801- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0801- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0801- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 0801- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0801- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 0801- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 0801- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 0801- ● ●
549 BRACKET; SEAT RR 8-98094-836-2 01 1 0801- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 0801- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-98046-589-0 01 1 0801- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0801- ● ●
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 0801- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
