6-47 — MUD GUARD AND INSULATOR (#45210) — 79 parça

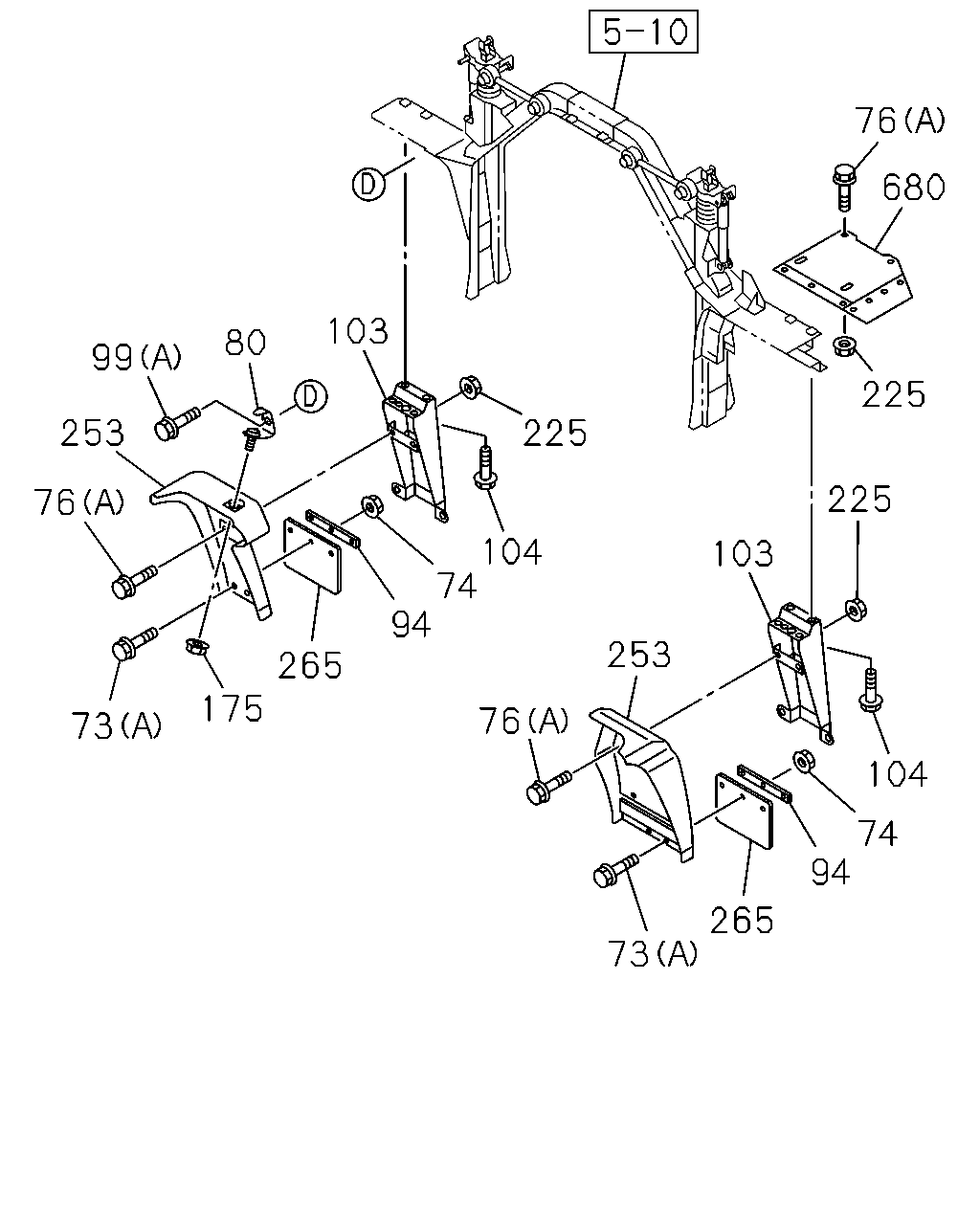

çizim 112918
76 680 103 80 99 225 253 225 225 76 104 74 94 103 253 265 175 76 73 104 74 94 265 73
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0801-0805 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 0801- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0801- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1212- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 12 1 0801-0805 ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 12 1 0806-1211 ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1212- ● ●
76 BOLT; MUD GUARD
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0801-1005 ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1006- ● ●
80 BRACKET; MUD GUARD STAY 8-98057-793-0 01 1 0801- ● ●
94 RETAINER; FLAP RUBBER 1-79931-091-2 01 1 0801- ● ●
94 RETAINER; FLAP RUBBER 8-98038-675-0 01 1 0801- ● ●
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE 		0-28650-616-0 08 1 0801- ● ●
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE 		0-28050-825-0 01 1 0801- ● ●
103 BRACKET ASM; RR MUD FLAP 8-98055-593-1 02 1 0801- ● ●
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 0801- ● ●
175 NUT; STAY FIX
M8 FLANGE 		8-97046-127-0 01 1 0801-0805 ● ●
175 NUT; STAY FIX
M8 W/DISHED WASHER 		8-97329-625-0 01 1 0806- ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1212- ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 12 1 0801-1211 ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 04 1 1212- ● ●
253 GUARD; MUD 8-98057-779-1 01 1 0801- ● ●
253 GUARD; MUD 8-98057-778-1 01 1 0801- ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 0801- ● ●
265 RUBBER; FLAP,REAR 8-98106-956-0 01 1 0801- ● ●
680 GUARD; MUD,UPPER 8-98060-251-0 01 1 0801- ● ●
çizim 112920
122 167 160 163 162 162 163 122
BalonParca AdiParca NoAdetTipApplied Date A B
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0801- ● ●
122 BOLT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 0801- ● ●
160 COVER ASM; EXH 8-98090-111-1 01 1 0801- ● ●
162 BRACKET
(A) 		8-98055-601-0 01 1 0801- ● ●
162 BRACKET
(B) 		8-98055-608-0 01 1 0801- ● ●
162 BRACKET
(C) 		8-98055-609-2 01 1 0801- ● ●
162 BRACKET
(D) 		8-98092-305-0 01 1 0801- ● ●
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0801- ● ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 01 1 0801- ● ●

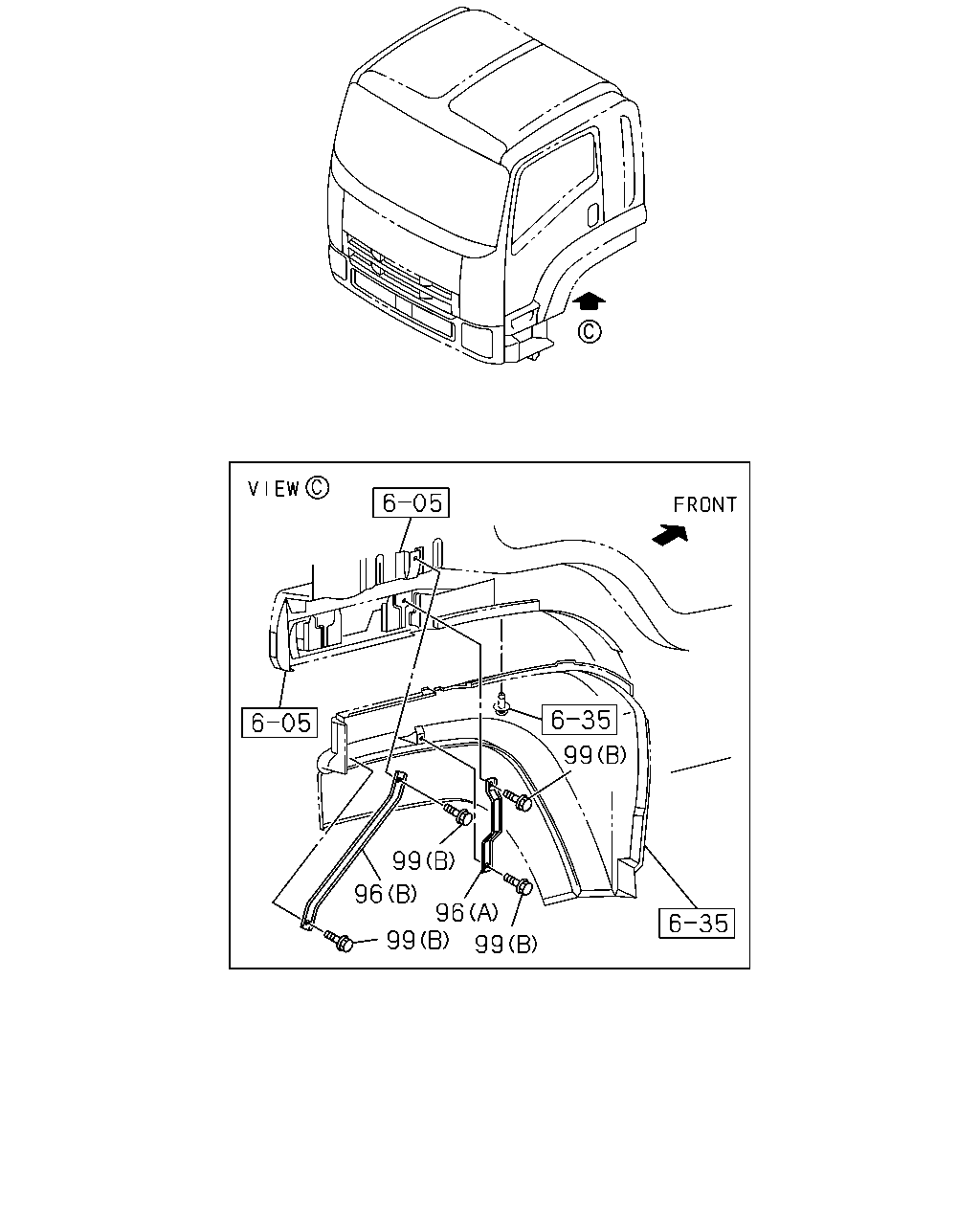

çizim 112929
99 99 96 96 99 99
BalonParca AdiParca NoAdetTipApplied Date A B
96 STAY; MUD GUARD
(A) 		8-98057-075-0 02 1 0801- ● ●
96 STAY; MUD GUARD
(B) 		8-98082-316-0 02 1 0801- ● ●
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE 		0-28650-616-0 08 1 0801- ● ●
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE 		0-28050-825-0 01 1 0801- ● ●

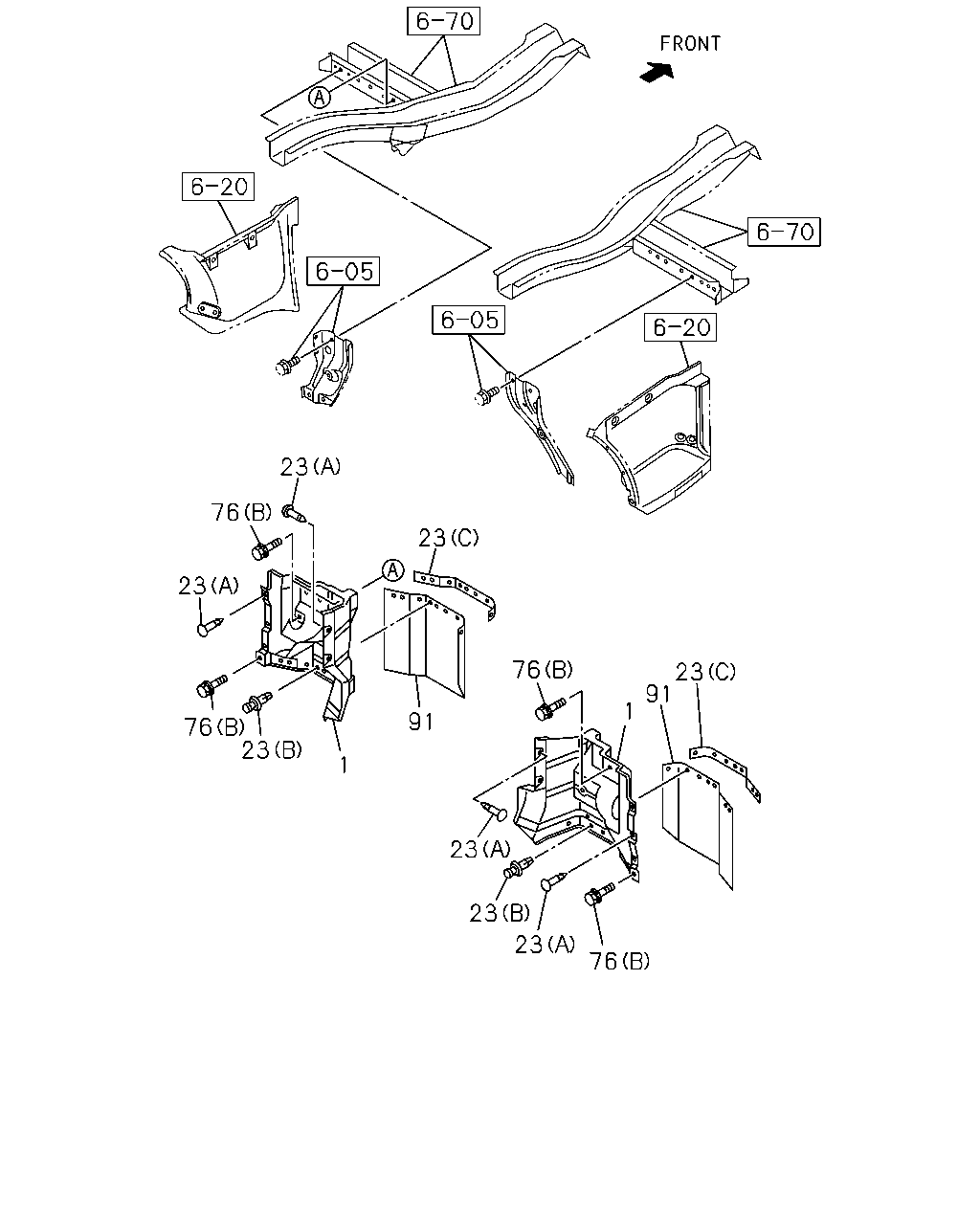

çizim 112933
23 76 23 23 76 23 91 1 91 76 23 1 23 23 23 76
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT 8-97617-152-0 01 1 0801- ● ●
1 GUARD; MUD,FRT 8-97617-151-0 01 1 0801- ● ●
23 FASTENER; MUD COVER
(B) 		1-09470-001-0 10 1 0801- ● ●
23 FASTENER; MUD COVER
(C) 		8-98060-235-0 02 1 0801- ● ●
23 FASTENER; MUD COVER
(A) D8X13.5 		1-09987-248-1 08 1 0801- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1212- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 12 1 0801-0805 ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 12 1 0806-1211 ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1212- ● ●
76 BOLT; MUD GUARD
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0801-1005 ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1006- ● ●
91 COVER; MUD,FRT 8-97617-155-0 02 1 0801- ● ●

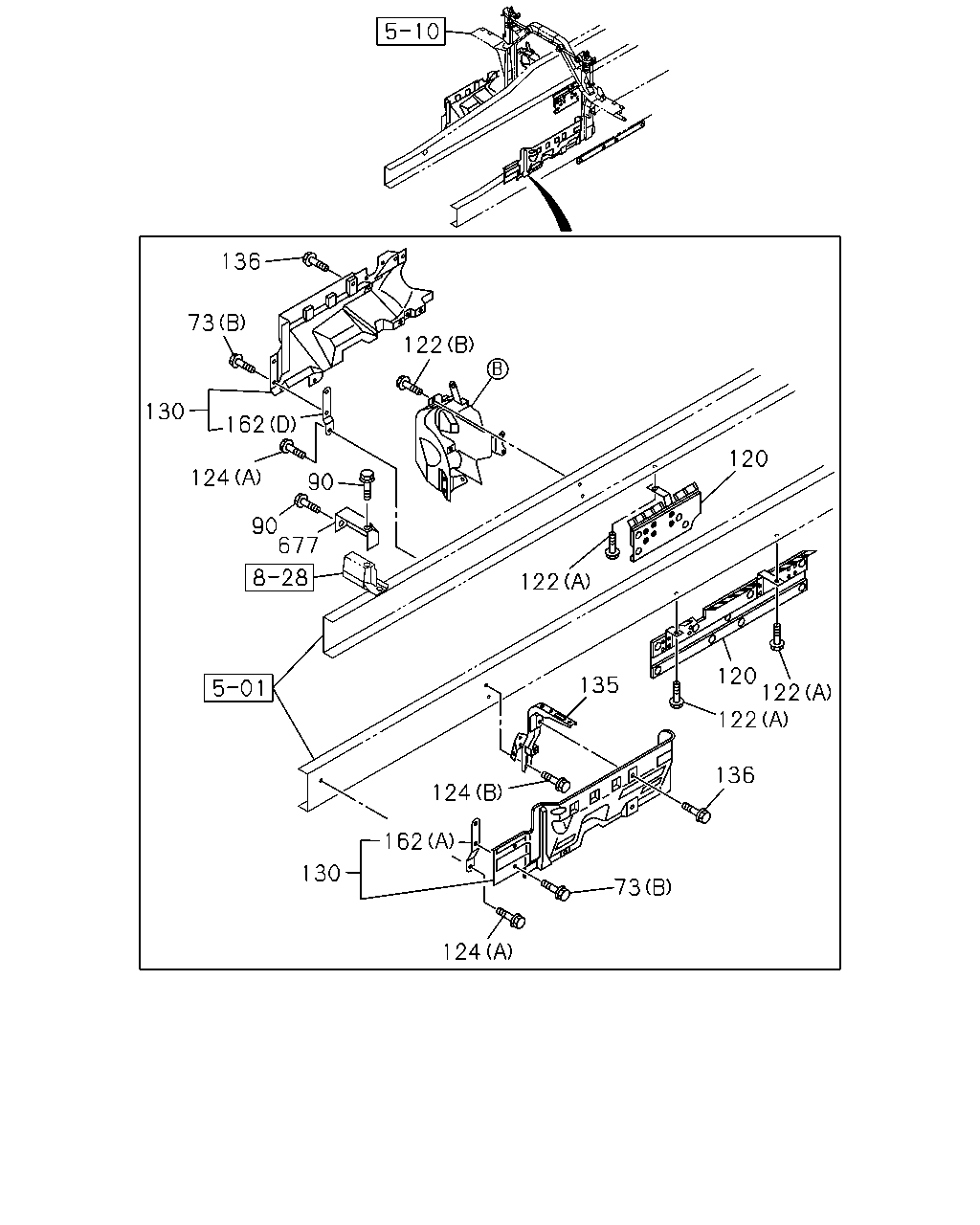

çizim 112938
136 73 122 130 162 120 124 90 90 677 122 120 122 122 135 136 124 162 130 73 124
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0801-0805 ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 0801- ● ●
90 BOLT; COVER
M8X20 FLANGE 		0-28650-820-0 02 1 0801- ● ●
120 PANEL; UNDER 1-53194-272-3 01 1 0801- ● ●
120 PANEL; UNDER 8-98039-540-0 01 1 0801- ● ●
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0801- ● ●
122 BOLT
(A) M8X35 FLANGE 		0-28650-835-0 04 1 0801- ● ●
124 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ●
124 BOLT; BRKT
(B) M12X25 FLANGE 		0-28051-225-0 02 1 0801- ● ●
130 PANEL; SHUTTER NOISE 8-98088-647-0 01 1 0801- ● ●
130 PANEL; SHUTTER NOISE 8-98088-648-3 01 1 0801- ● ●
135 BRACKET; SIDE PANEL 8-98055-600-1 01 1 0801- ● ●
136 BOLT
M8X30 W/LK&PL WASHER 		1-09030-095-0 12 1 0801- ● ●
162 BRACKET
(A) 		8-98055-601-0 01 1 0801- ● ●
162 BRACKET
(B) 		8-98055-608-0 01 1 0801- ● ●
162 BRACKET
(C) 		8-98055-609-2 01 1 0801- ● ●
162 BRACKET
(D) 		8-98092-305-0 01 1 0801- ● ●
677 COVER; MAG VLV 8-98014-736-0 01 1 0801- ● ●

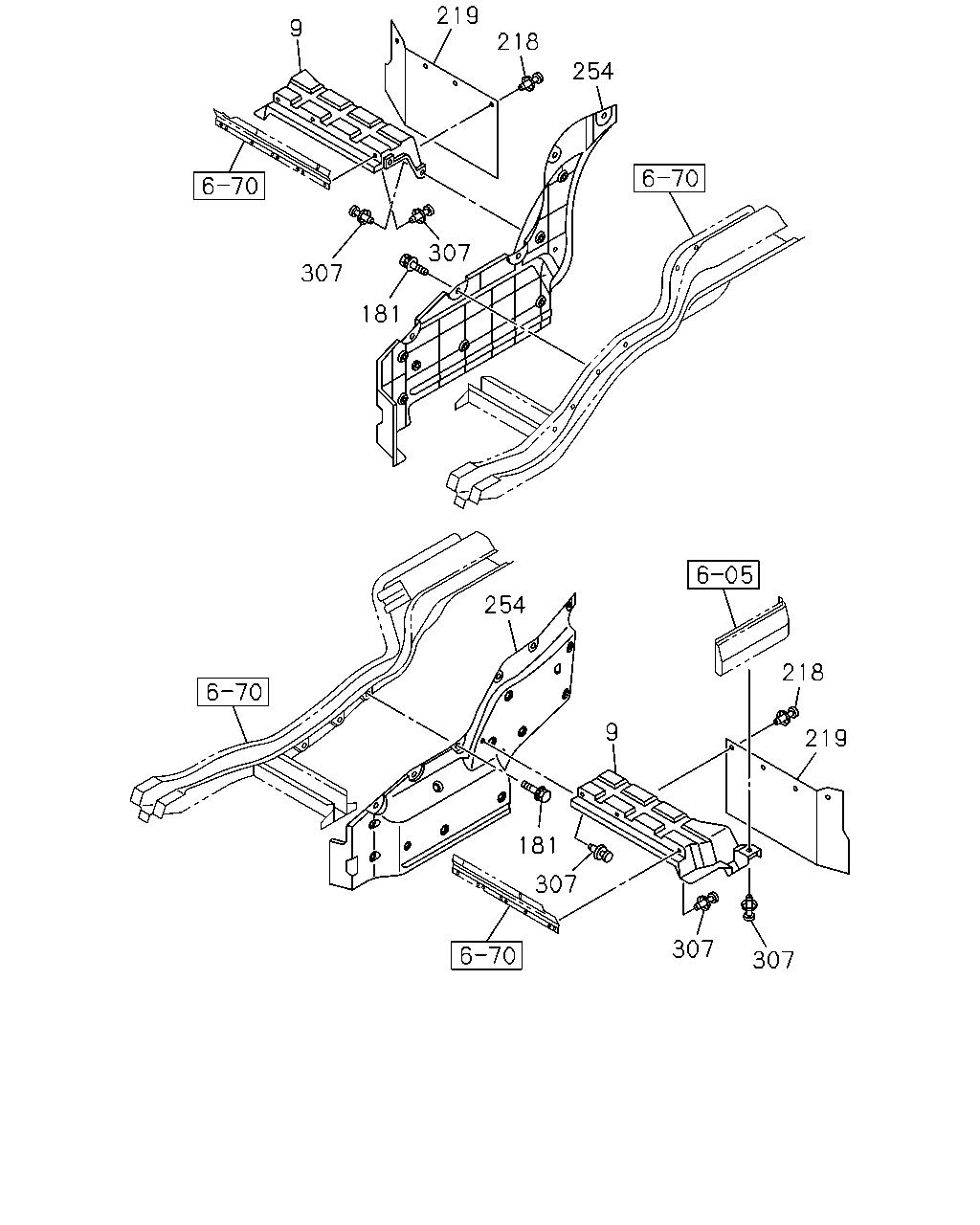

çizim 112975
219 9 218 254 307 307 181 254 218 9 219 181 307 307 307
BalonParca AdiParca NoAdetTipApplied Date A B
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-133-1 01 1 0801- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-132-1 01 1 0801- ● ●
181 BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 11 1 0801- ● ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0801- ● ●
219 FLAP; MUD GUARD 8-97617-139-0 02 1 0801- ● ●
254 COVER; MUD,VALANCE 8-97617-144-0 01 1 0801- ● ●
254 COVER; MUD,VALANCE 8-97617-143-1 01 1 0801- ● ●
307 RETAINER
D8X13.5 		1-09987-248-1 12 1 0801- ● ●
